Wiring diagram 1098/1198 dash

Discussion in 'Technical Help' started by dukeman358, Mar 3, 2014.

  1. I need to repair the plug that connects to the dash. I have the diagram and functions of each wire but don't know if they are still in the correct order.

    help please:wink:

    #1 dukeman358, Mar 3, 2014
  2. Does this help?

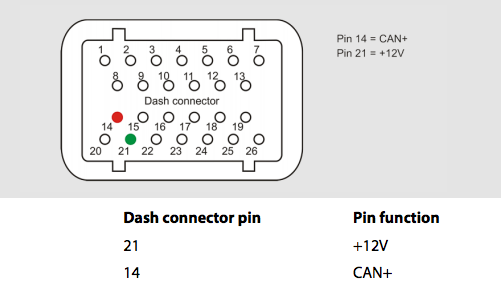

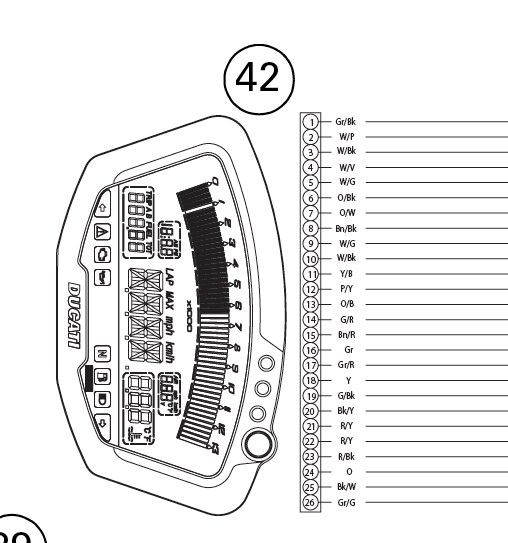

    Screenshot 2014-03-05 13.03.07.png Screenshot 2014-03-05 13.03.32.png

    Screenshot 2014-03-05 13.03.07.png

    Screenshot 2014-03-05 13.03.32.png

    #2 Derek, Mar 5, 2014
    • Like Like x 1
  3. Thanks

    #3 dukeman358, Mar 5, 2014
  4. Derek, do you know where I can obtain a full wiring diag for an 848 evo corse se?

    Ta.

    #4 deleteduser211220, Mar 5, 2014
  5. It's at the end of the handbook

    Download it from Ducati

    #5 chrisw, Mar 5, 2014
  6. What Chris says.
    Click on "Customer Service" at the bottom of the Ducati home page. On the page that opens look under the "Products" column and click on "6. Are you looking for the Owner's Manual for your bike?" and follow the links to select your bike. You can download the parts list too. I've always found these particularly handy.

    #6 Derek, Mar 5, 2014
  7. Thanks chaps :upyeah:

    #7 deleteduser211220, Mar 5, 2014
