1098 Rear Sprocket Nut Torque

Discussion in 'Technical Help' started by RickyX, Mar 12, 2016.

  1. Just doing the chain and sprockets on my R.

    Looking in the workshop manual, it does not give any torque values for the sprocket Cush drive nuts or big retaining nut.
    Anybody know the values please?

    Thanks,
    R

    #1 RickyX, Mar 12, 2016
  2. Big wheel nut is 230Nm. Iirc, Cush drives are 30Nm, but not 100% on the latter

    #2 nelly, Mar 12, 2016
    • Thanks Thanks x 1
  3. I looked in my 916 manual and the little nuts are 42Nm so used the same value. What do you reckon?

    #3 RickyX, Mar 12, 2016
  4. Should be fine. Andy

    #4 Android853sp, Mar 12, 2016
    • Funny Funny x 1
    • Thanks Thanks x 1
  5. Yeah, should be fine as Andy said. They're M10 so 42 is in spec.

    #5 nelly, Mar 12, 2016
    • Thanks Thanks x 1

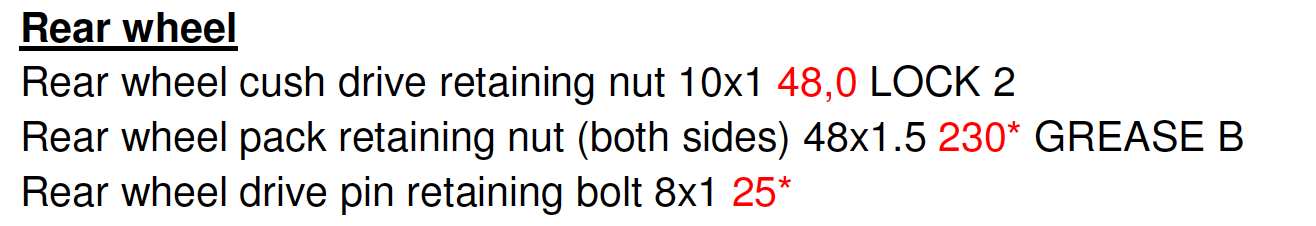

  6. 48 NM according to the document I have. I've attached the full list for you Ricky.

    Screen Shot 2016-03-12 at 17.39.28.png


    Attached Files:

    #6 Robarano, Mar 12, 2016
    • Like Like x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
  7. Cheers all.
    Didn't see it hiding in there with the rear wheel torque values. Just found it on my copy too.
    Better do it again as I didn't put any thread lock on it. Doh!

    #7 RickyX, Mar 12, 2016
