1198 1198r Crankshaft

Discussion in '848 / 1098 / 1198' started by Boukekoppejan, Oct 7, 2018.

Page 1 of 3
  1. good evening all!

    I have a option on a 1198R crankshaft. I have changed almost everything to R components in the engine. Only the crankshaft is missing. Does this R crankshaft do a big thing instead of the oem crankshaft?

    Thanks for replying!

    #1 Boukekoppejan, Oct 7, 2018
  2. Yes will be lighter than oem.

    #2 cookster, Oct 7, 2018
  3. but you'll need the r con rods as well or you'll be adding weight to the crank..

    #3 andyb, Oct 7, 2018
    • Agree Agree x 1
  4. do you have the sand cast crank cases? what gearbox are you using? std?

    #4 andyb, Oct 7, 2018
  5. Yes i have them to

    #5 Boukekoppejan, Oct 7, 2018
  6. No and i use the oem gearbox

    #6 Boukekoppejan, Oct 7, 2018

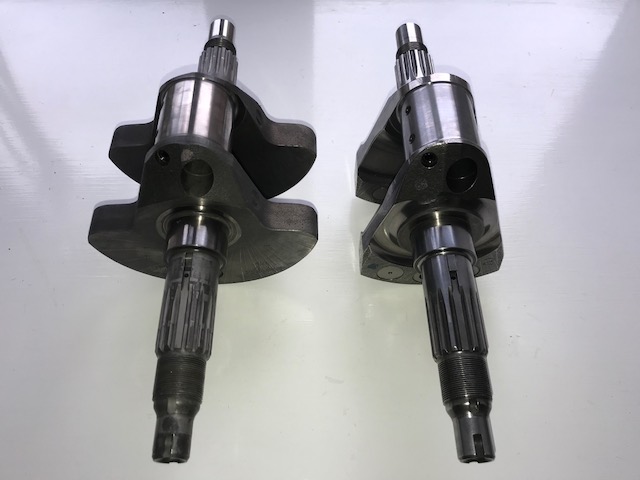

  7. heres a visual of the difference in size and visible weight let alone the materials they are made from.


    #7 andyb, Oct 7, 2018
    • Like Like x 2
    • Useful Useful x 1
  8. a strong 1198 motor bottom end is
    sand cast cases
    10/1198 crank
    1098R rods
    pistols pistons (two ring)

    and i would go for a nova or better value a BSD three dog gearbox whilst you have the crankcases separated!

    and of course the whole thing dynamically balanced...

    #8 andyb, Oct 7, 2018
    • Like Like x 1
    • Agree Agree x 1

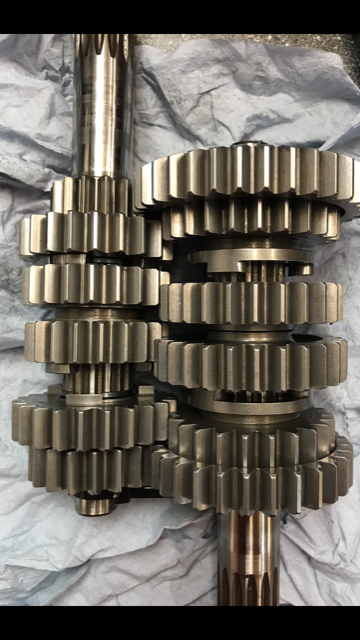

  9. IMG_0305.PNG

    #9 andyb, Oct 7, 2018
  10. Screen Shot 2018-10-07 at 19.45.27.png

    #10 andyb, Oct 7, 2018
  11. I'd buy it just for wall art. :heart_eyes:

    #11 Robarano, Oct 7, 2018
  12. when your std crank cases go boom.. i have a spare set :):upyeah:

    #12 andyb, Oct 7, 2018
  13. WoW! That is a big difference! How does it goes on road? It think it will be faster on speed or something?

    #13 Boukekoppejan, Oct 7, 2018
  14. I am thinking about buying the sand cast casings as well

    #14 Boukekoppejan, Oct 7, 2018
    • Like Like x 1
  15. The 1098r crank will spin a lot quicker, could be a handful on the road

    #15 cookster, Oct 7, 2018
  16. #16 Boukekoppejan, Oct 7, 2018
  17. Mine is. :)

    #17 Robarano, Oct 7, 2018
    • Like Like x 1
    • Agree Agree x 1
  18. especially with a lighter flywheel....:cool: ( ok for the track with a higher idle speed)

    #18 andyb, Oct 7, 2018
    • Agree Agree x 1
  19. around 1600 pounds... a nova is around 2200.

    beautiful piece of engineering!!

    #19 andyb, Oct 7, 2018
  20. I can vouch for the BSD box, super strong, use it with qs and gear changes are slick :upyeah:

    #20 kartman, Oct 7, 2018
    • Like Like x 1
