1200 DVT 2015 Ms 1200s Dvt - Fuel Pump Relay Not Operating On Switch On, Test Please .

Discussion in 'Multistrada' started by Lochnagar, Dec 16, 2025 at 5:00 PM.

  1. Dear All,

    Yet to find the fault causing no fuel pump operation on initial switch on, (see similar thread dated 9th. February, 2025), so assistance required for a test.

    If you have a similar bike please remove the keyless fob from the vicinity then press the immobiliser button under the cover by the fuel tank as if to enable a pin code start. With the button pressed the dash should activate and call for the 4 digit code input.

    Questions :-

    1. Does the fuel pump prime as soon as the dash activates but before the code is entered ?

    2. If the answer to 1 is NO does the pump prime when the correct code is input and recognised ?

    3. If the answer to 1 is YES but the wrong code entered what is the result when you press the RH handlebar starter button ?

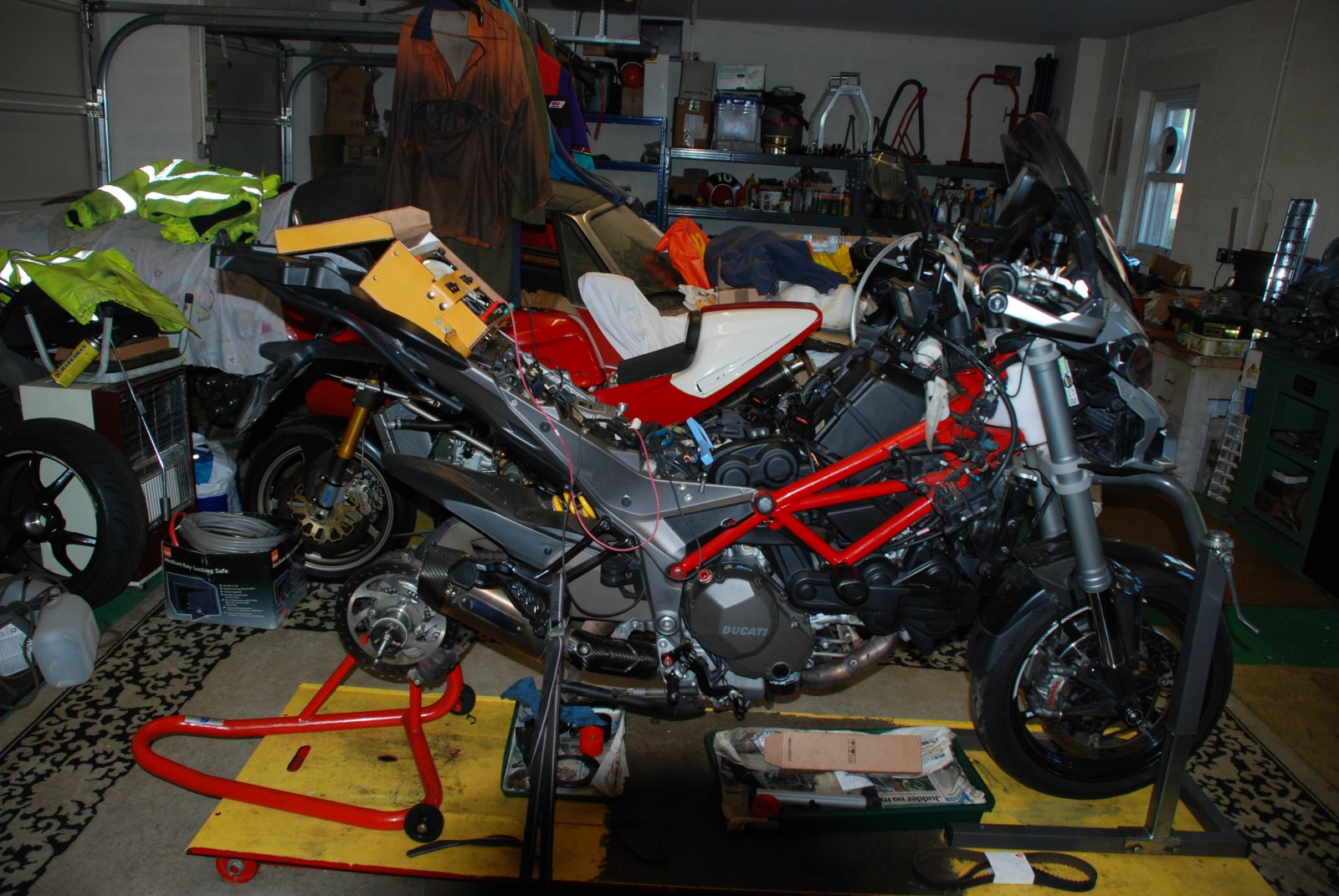

    If all functions correctly and a valid code entered the engine should start on the button, how I wish this were the case with this Churchillian "riddle wrapped in a mystery inside an enigma" gracing my work bench !!!

    Thanking you all in anticipation of your actions.


  2. Press button ,pump activates with code flashing but no dash. Enter code ,if right dash comes on bike will start. Wrong code dash doesn’t come on and sweet fa.
