620ie Engine Swap

Discussion in 'Newbies Hangout' started by Matt Noble, Apr 29, 2025 at 10:10 PM.

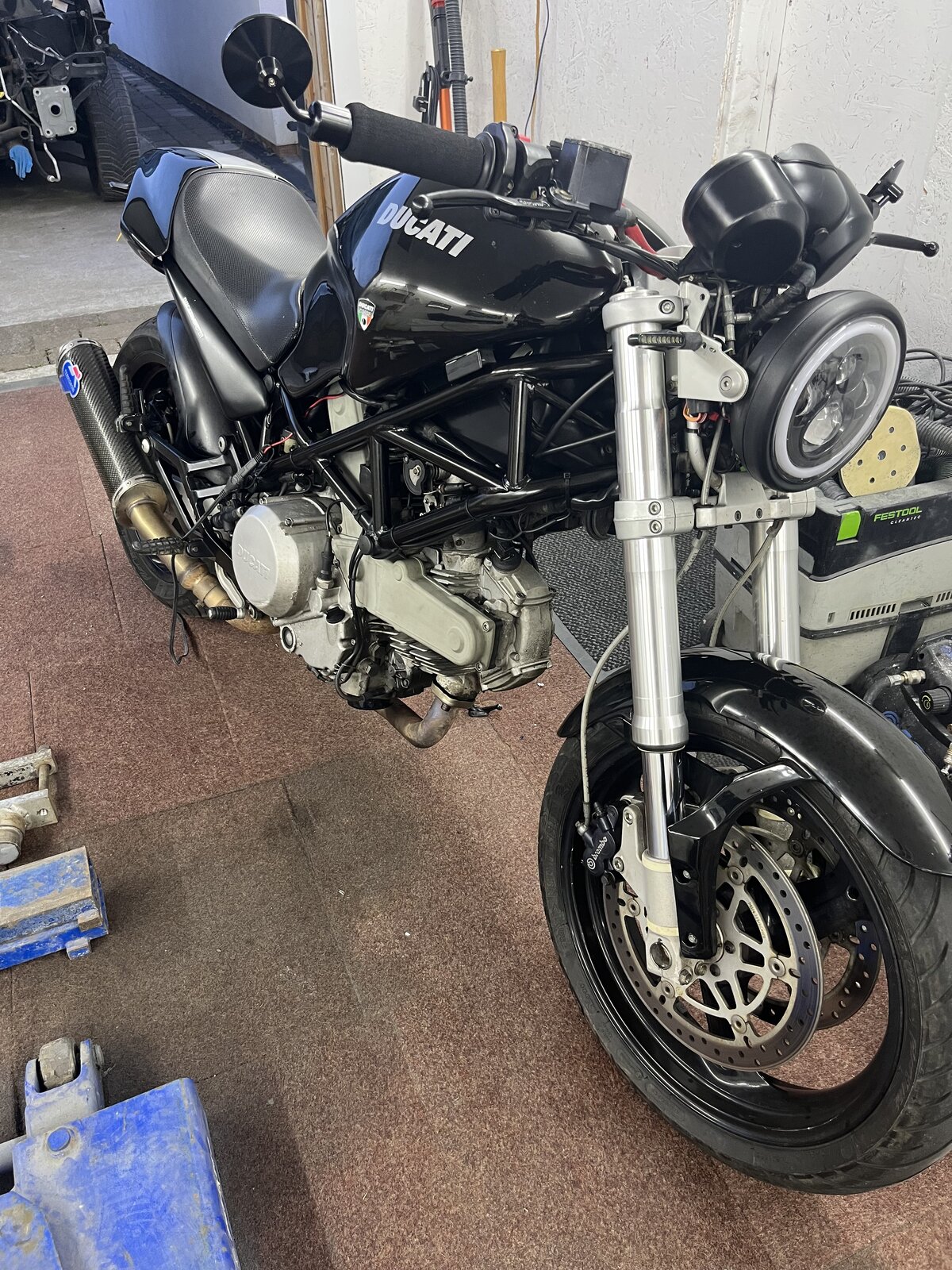

  1. Hi all, I’ve got a 2007 620ie monster with a seized engine. I’ve found another engine from a 98-03 600 dark injection on EBay. My engine code starts with ZDM620A2B the one I’ve found is RA22000583. Anyone know if this will work with no issues?
    Cheers


  2. When I did similar, DVLA threw a hissy fit and tried to make me put a Q plate on the bike, just beware.

  3. Thanks. I’ll look into that. It’s more if the engine will work as a straight swap with my electrics.

  4. On mine, the key, clocks and ECU had to match , m800 into m1000 frame

  5. Welcome.
    It could be fine but I would be careful in this situation as it isn’t a cheap engine (looked at the item on ebay).
    I thought that anything with an engine number that does not start with Z means it wasn’t made in Italy (unless someone knows better), so it could be a variant made in another Ducati engine plant for a different market. Nothing necessarily wrong with that but it could potentially have different compression ratio, valve lift/timing, gear ratios to meet local fuel and emissions regulations, and so may not work optimally with your ECU presets.

  6. Welcome into our mad house :)
