748 748e Dzus Fasteners

Discussion in '748 / 916 / 996 / 998' started by Cossy Mike, Oct 15, 2025 at 5:48 AM.

  1. Does the 748 E have the backing plates on the frame to retro fit the dzus fasteners or would you have to make them work?

    :)

    #1 Cossy Mike, Oct 15, 2025 at 5:48 AM

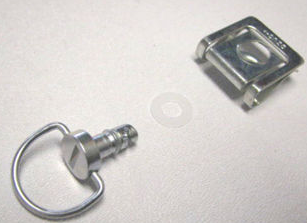

  2. You buy the two parts for each clip together. Get good quality ones which are expensive. You may also need plastic washers to "shim" the clips to the perfect thickness for the clips to work perfectly.


    #2 Martin Le Tessier, Oct 15, 2025 at 6:49 AM
    • Like Like x 1
  3. Thanks for that, just wondered if the 748E has the lugs on the frame to simply attach to or of you have to modify the frame to accept them

    #3 Cossy Mike, Oct 15, 2025 at 9:16 AM
  4. I should think so. How do the original screw fasteners work?

    #4 Martin Le Tessier, Oct 15, 2025 at 12:06 PM
  5. I'll hazard a guess that they use wellnuts, probably cost about 50p less per fixing.

    #5 Dukedesmo, Oct 15, 2025 at 12:27 PM
  6. I’m not sure tbh, it’s on a bike I am considering buying so not familiar with them

    #6 Cossy Mike, Oct 15, 2025 at 1:18 PM

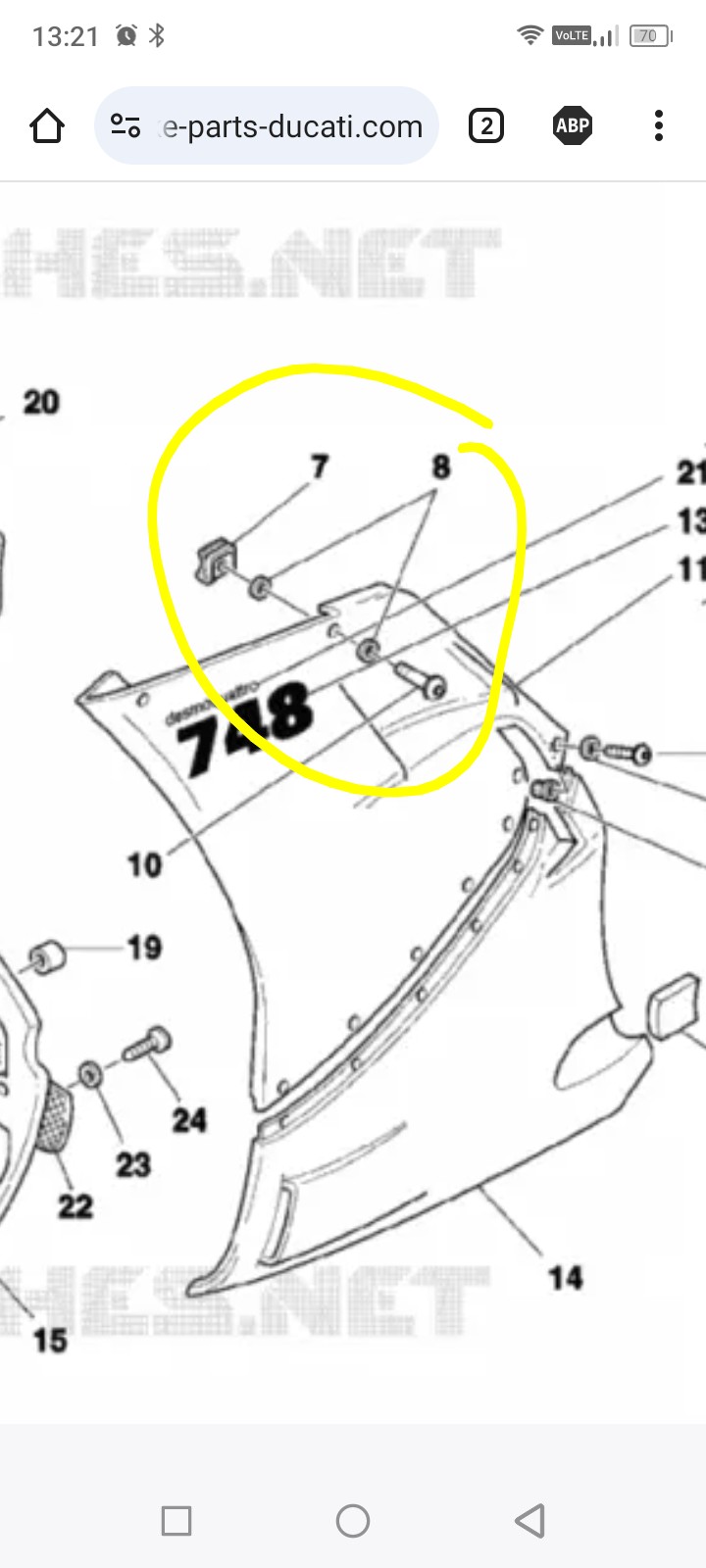

  7. The 748 e uses a clip on nut and bolts instead of dzus fastener recepticals. I can't be 100% sure as I don't have an e but I would be very surprised if the brackets were any different. However, I have used clip on nuts instead of dzus on my 916 at some point. They're the same size and are interchangeable on my bike. Screenshot_20251015-132101~2.jpg

    #7 Petsmith, Oct 15, 2025 at 1:25 PM
    • Like Like x 1
  8. Awesome, thank you :)

    #8 Cossy Mike, Oct 15, 2025 at 2:16 PM
  9. Are Dzuz fasteners that important?

    #9 Marcoduc, Oct 15, 2025 at 4:59 PM
