848 Clutch Change

Discussion in 'Technical Help' started by farmersti, Mar 22, 2021.

  1. I wonder if anyone one can help me clear a few things up regarding the instructions on fitting the new clutch pack ?

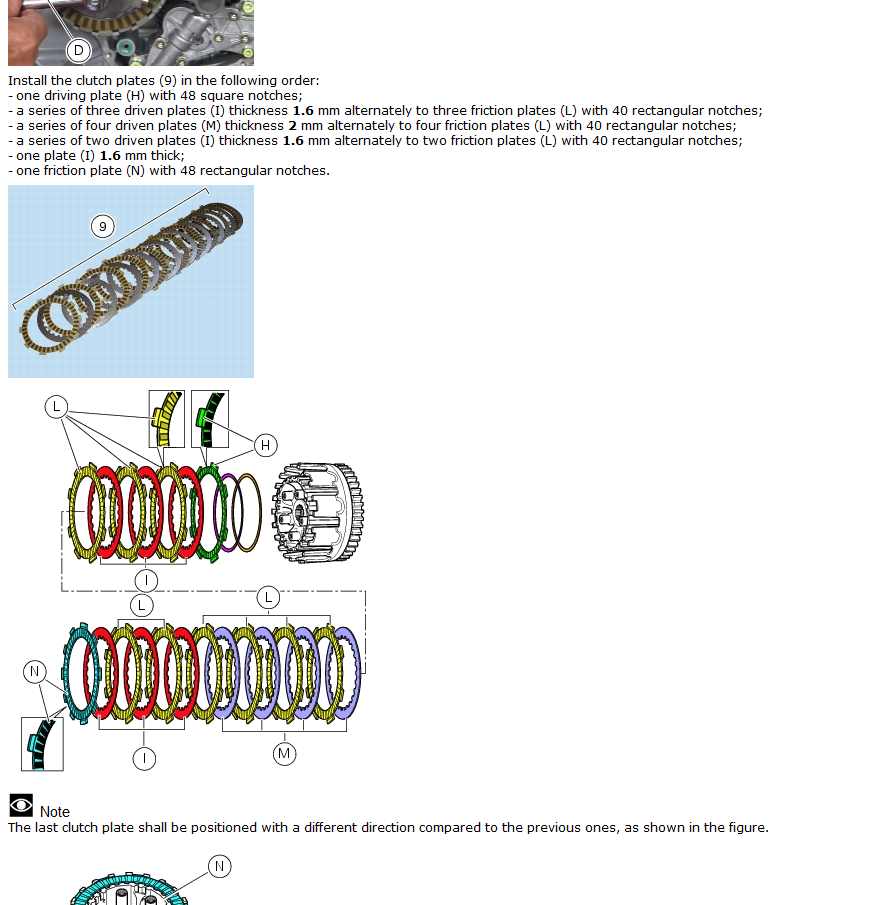

    Install the clutch plates (9) in the following order: one drive plate (H) with 48 square notches.

    Are the notches the friction material on the plate as i notice they are different shapes ?

    The last clutch plate shall be positioned with a different direction compared to the previous ones,
    How do you tell which is the different direction ?
    I notice all the plates have numbers stamped on them so do all the number sides face out except the last one ? TIA

    Screenshot 2021-03-22 12.28.11.png
