851 1992 Colour Wiring Diagram - Free

Discussion in '851 / 888' started by RON, Jan 26, 2021.

  1. Hi
    Having had a crappy time trying to decipher the online diagrams I've finally managed to complete a colour version of the 1992 851 Strada diagram which is easier to read. Thanks to Lefty for help with some of the colours.
    Please feel free and if you spot any glaring screw ups then give me a shout and I'll amend. If you email me, [email protected], then I can send a higher res copy.

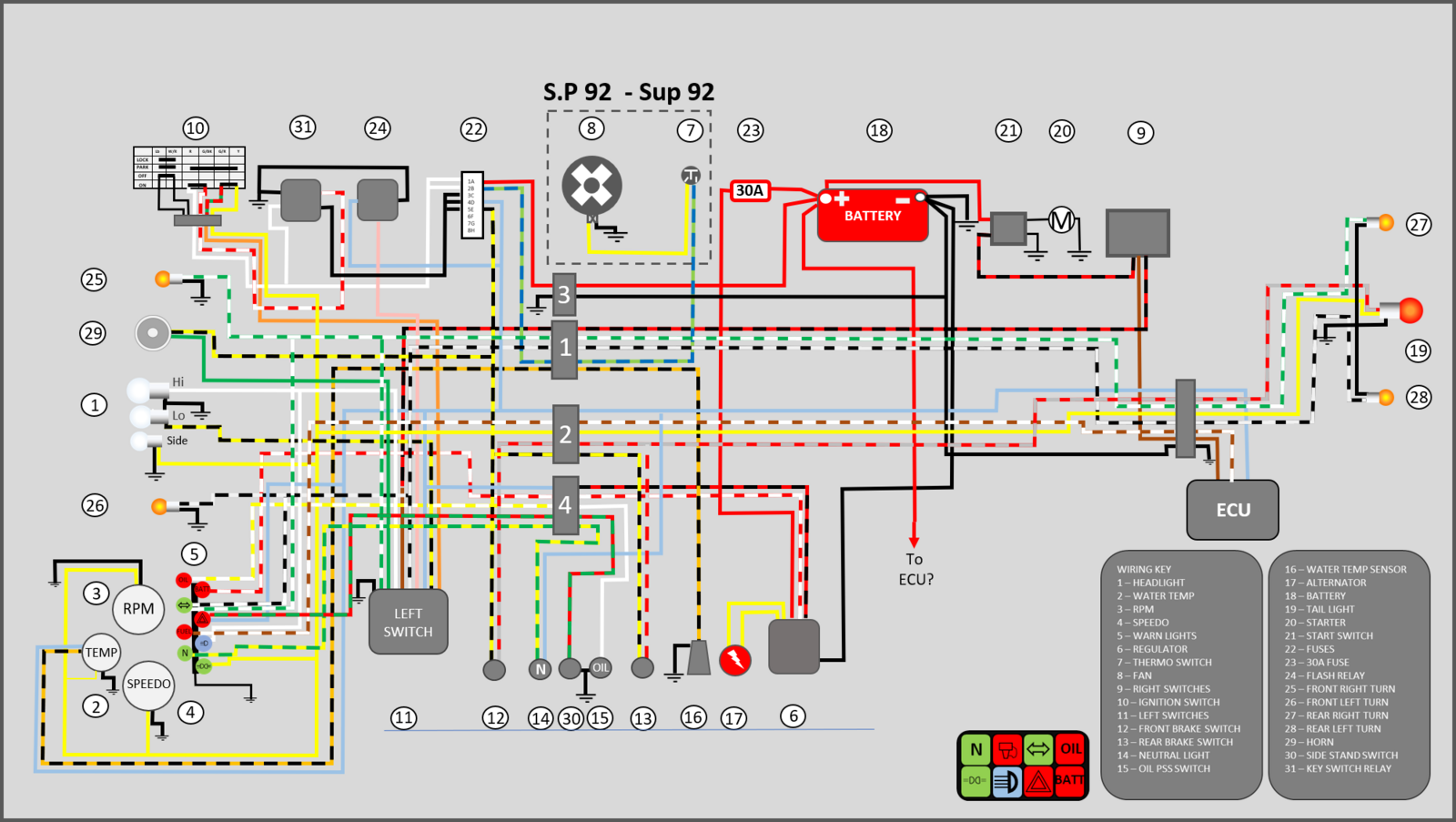

    DUCATI 851 1992 WIRING IN COLOUR.png

    • Like Like x 1
  2. It's of no use to me as many years ago I fitted my 851/955 Special with a new 996SPS loom but...
    Thankyou for your efforts to help fellow 851/888 owners, if it wasn't for fellow owners putting in this sort of effort we (851/888 enthusiasts) would be up sh*t creek without a paddle.

    Steve R

    • Like Like x 1
  3. Great job Ron, I'm sure a lot of 851 owners will find that really helpful.

    If you get really bored, how about one for the 1991 851 SP3???

  4. That's awesome! Nice one... PM inbound.

    • Like Like x 1
  5. I'm betting the SP3 wiring will be pretty similar. If you send me the SP3 service manual download or the wiring diag from one to my email in the original post, then I'll take a look into it for you.

    • Like Like x 1
  6. Excellent work.
