anyone got a detailed picture of the wires going to the back of the clocks? Or a wiring diagram with colour codes on. Firing a new connector to mine as it was smashed in a crash and want to get it right.. Thanks
Download the owners handbook from the Ducati Site. It's in PDF. At the end is the wiring diagram with wire colour info. You can use the zoom feature to make things easier to see.
Google Ducati Handbook. You need the Official Ducati Service site. You then select your bike from the drop down menus.
Can't find it in the manual. Just need to know what colour into which hole. 21 wires into the 34 hole connector
The trouble is the diagrams in the downloadable manuals don't show the colour codes for the dash connector nor for the ECU connectors. You can work backwards from some components but others like the switchgear aren't given either. It should be possible to identify the wires from the manual and using their location on the bike work out which is which.

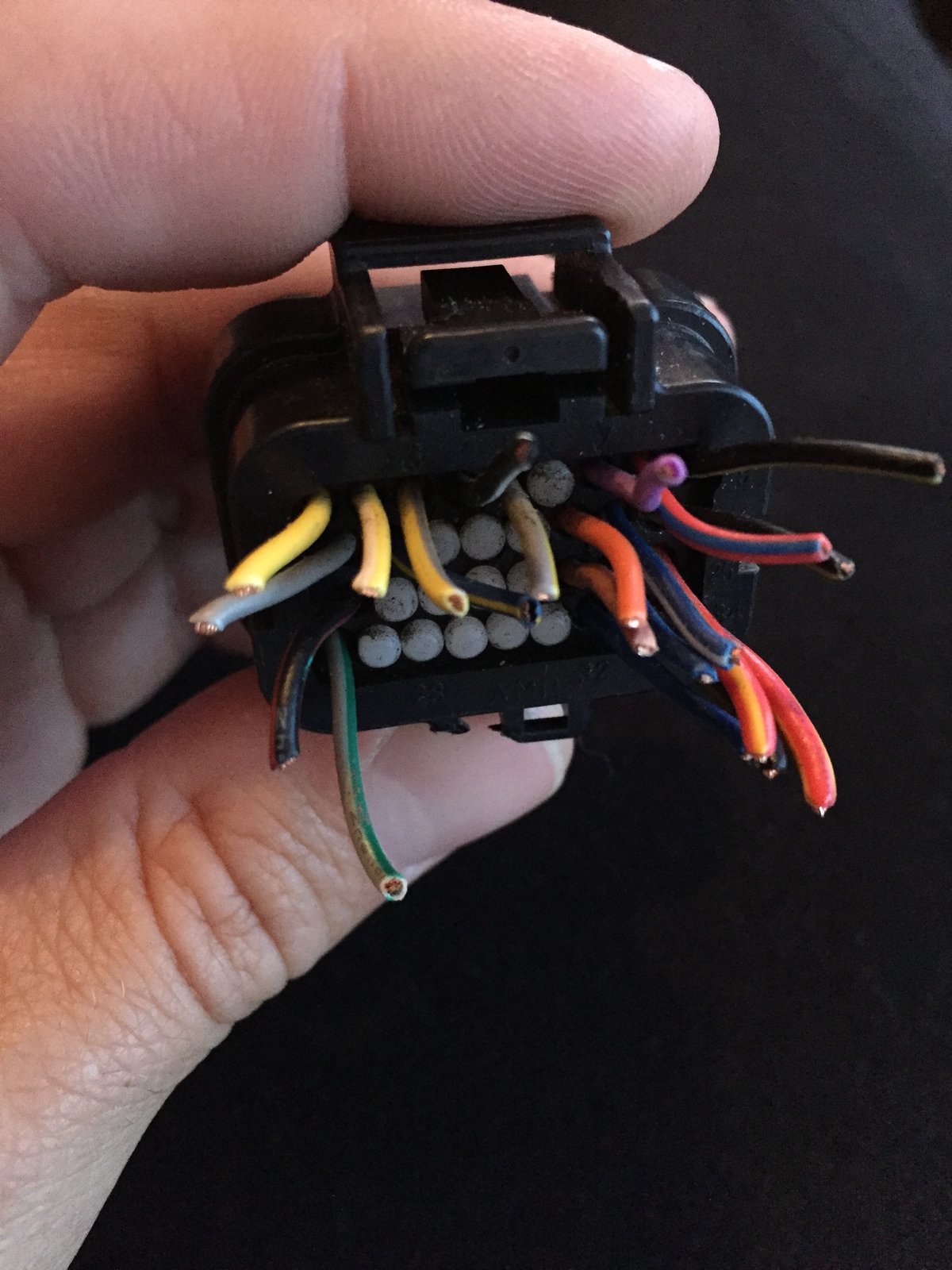

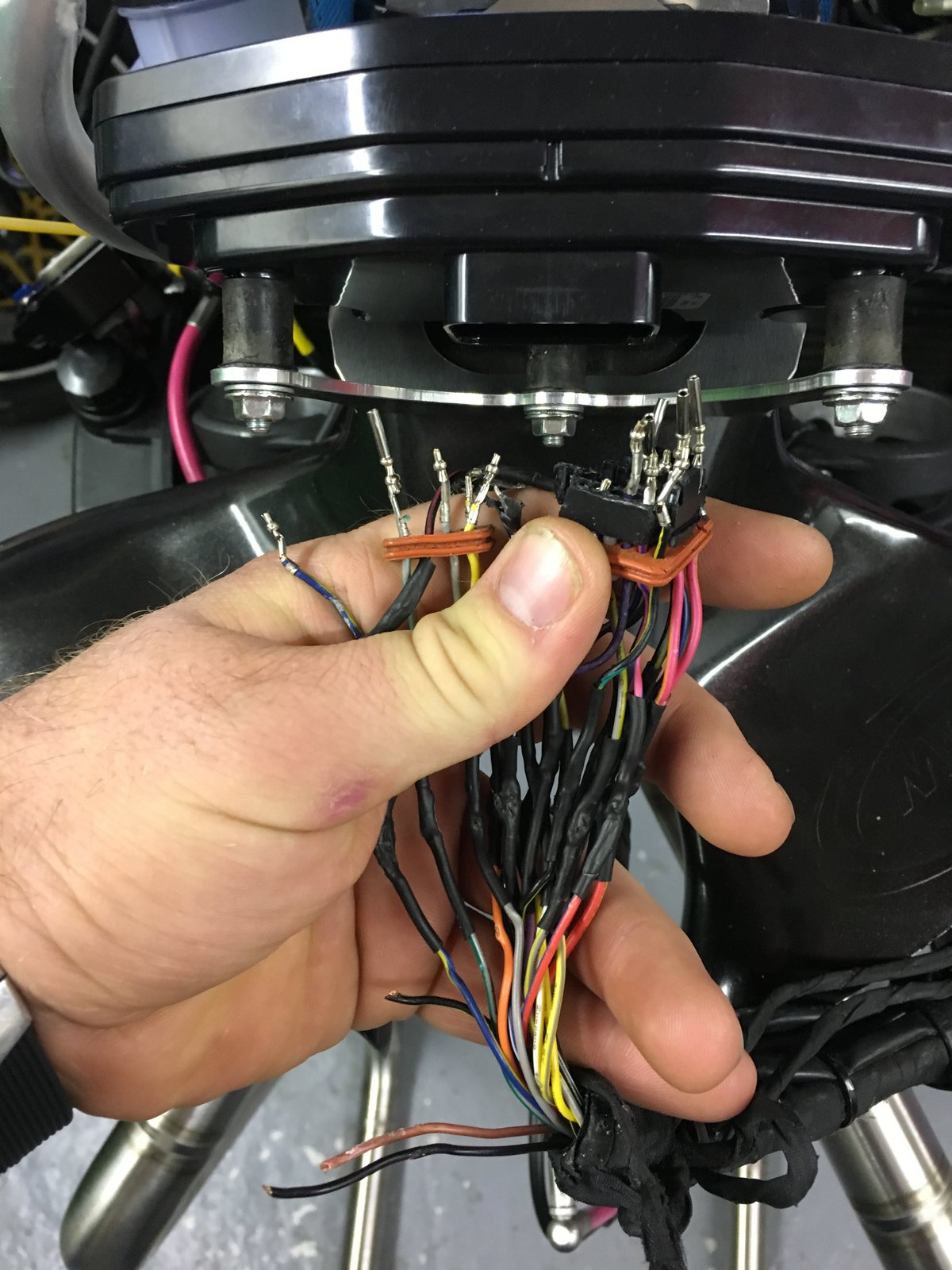

Found the plug. Do you want a pic and me to read of the colours?? I see your in York not too far from me I'm in Scunthorpe if you wanted to pick it up
1. yellow 2. Yellow / white 3. Yellow / grey 4. Black / white 5. Grey / yellow 7. Purple 8. Red / blue 9. Black / yellow ( slightly thiner tracer) 10. Grey 11. Blue / yellow 15. Orange 16. Blue / white 17. Black / yellow (slightly thicker tracer) 18. Black / red 23. Pink 24. Blue 25. Red / yellow (slightly thicker tracer) 26. Grey / green 32. Blue (another) 33. Black / yellow (thicker gauge) 34. Red / yellow (slightly thinner tracer)
No worries. I ended up replacing my loom wasn't a too bad a job if you get stuck. Have you got a new plug and pins??
