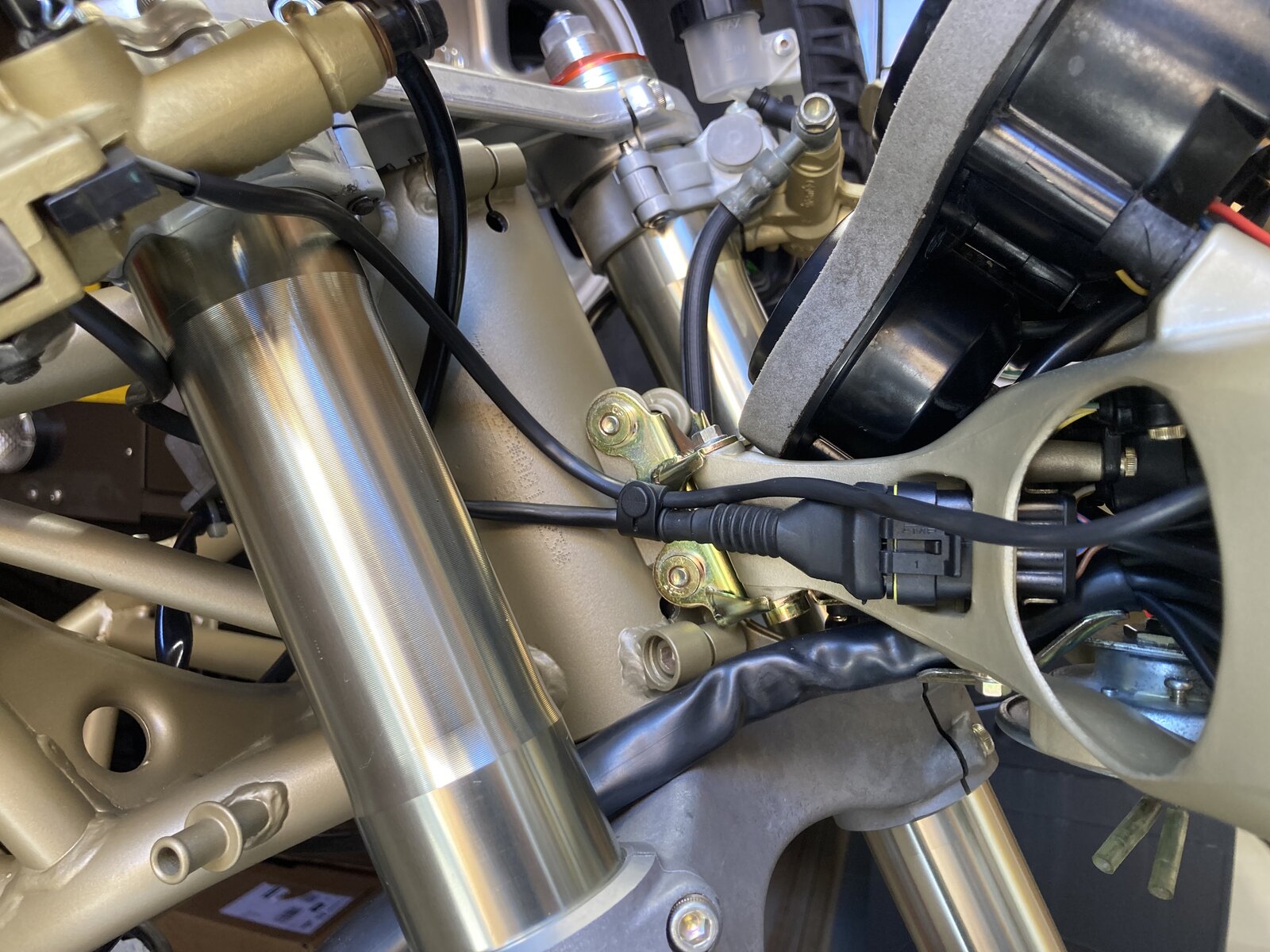

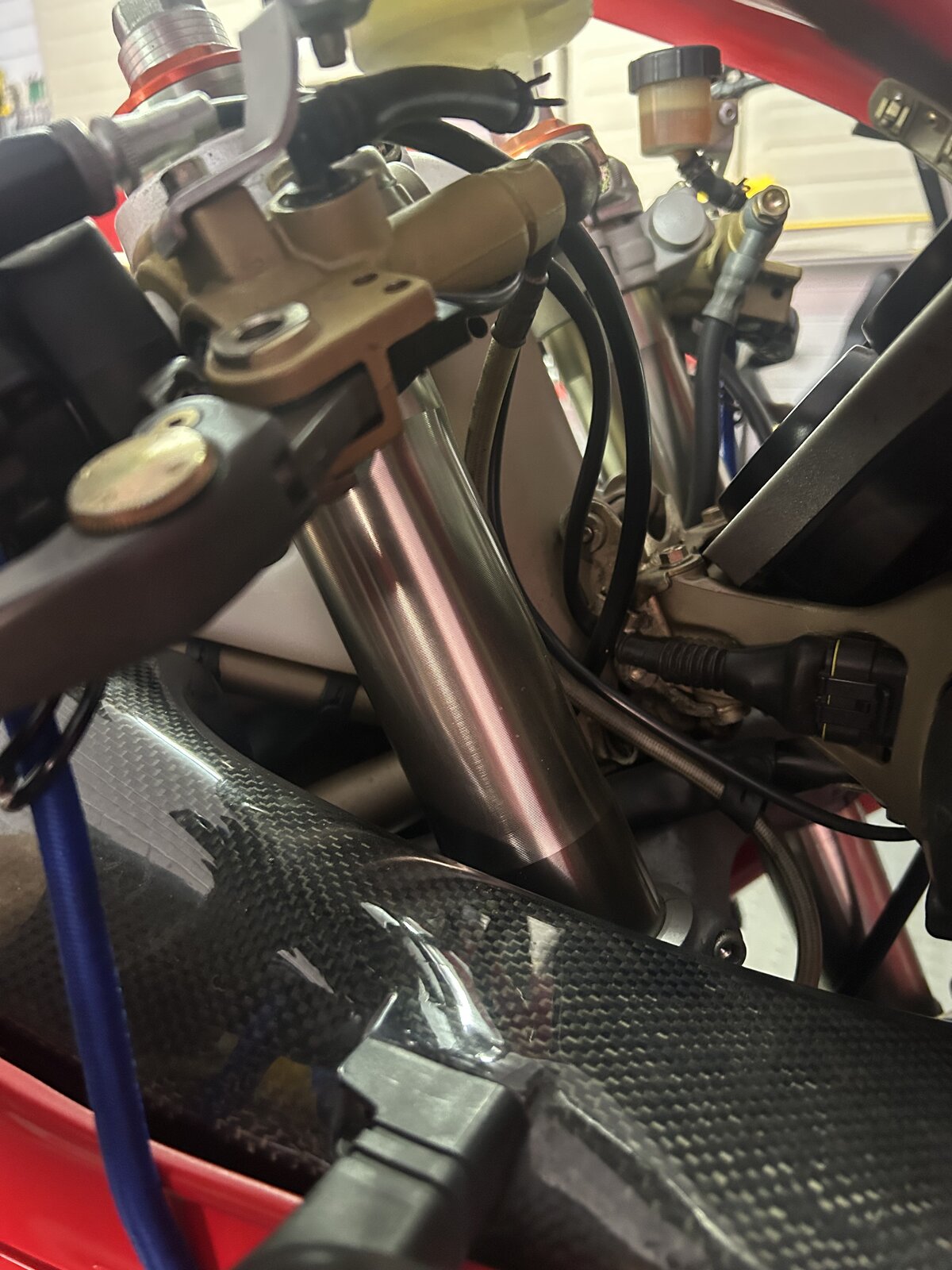

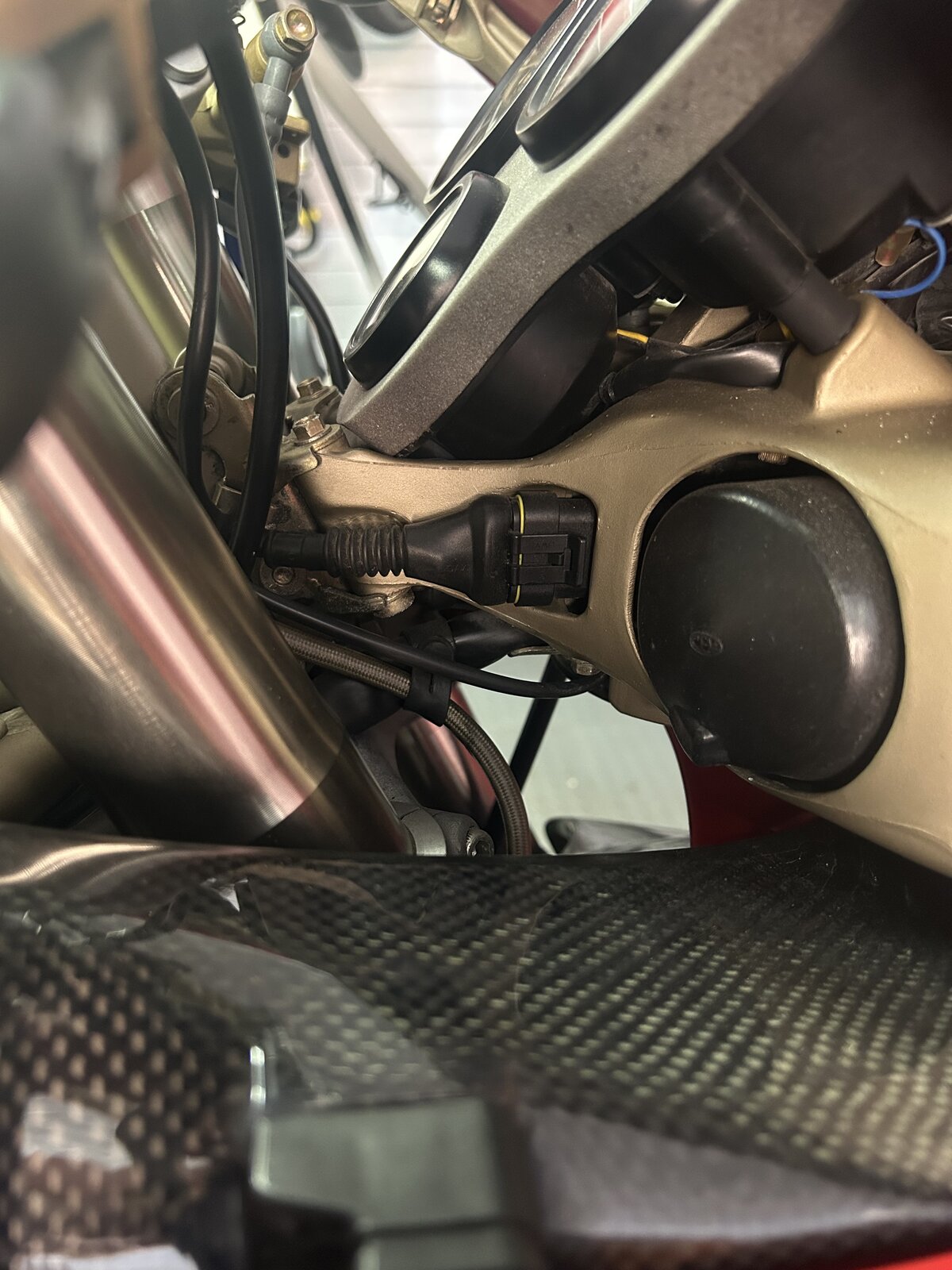

I’ve started to rebuild my 916 after a full restoration strip down and despite taking loads of photos, I can’t work out the correct routing for the front brake light switch loom; from the microswitch screwed under the master cylinder through to the two bullet connectors on the main loom at the rear of the headlight. Specifically,, where does it pass through the headlight housing? Per the attached photo, currently have it passing through the bulb cover opening, but sure that’s not right. Any pointers appreciated.
