Just putting the rear bracket and light back together, does the gold anodised dog leg bracket fix to the seat by all 4 bolts(the brass insert ones that are fitted into the seat itself) or just the rear 2 with the spacer blocks Mines a bit twisted and doesnt line up to all 4 ,it came in bits so not sure Thanks Matt
Hiya Thanks,canf see but is it only fixed on the lower bolts ? Mine has 2 additional bolt holes under the rubber mounted pins but the bracket doesnt line up with those 2 Thanks

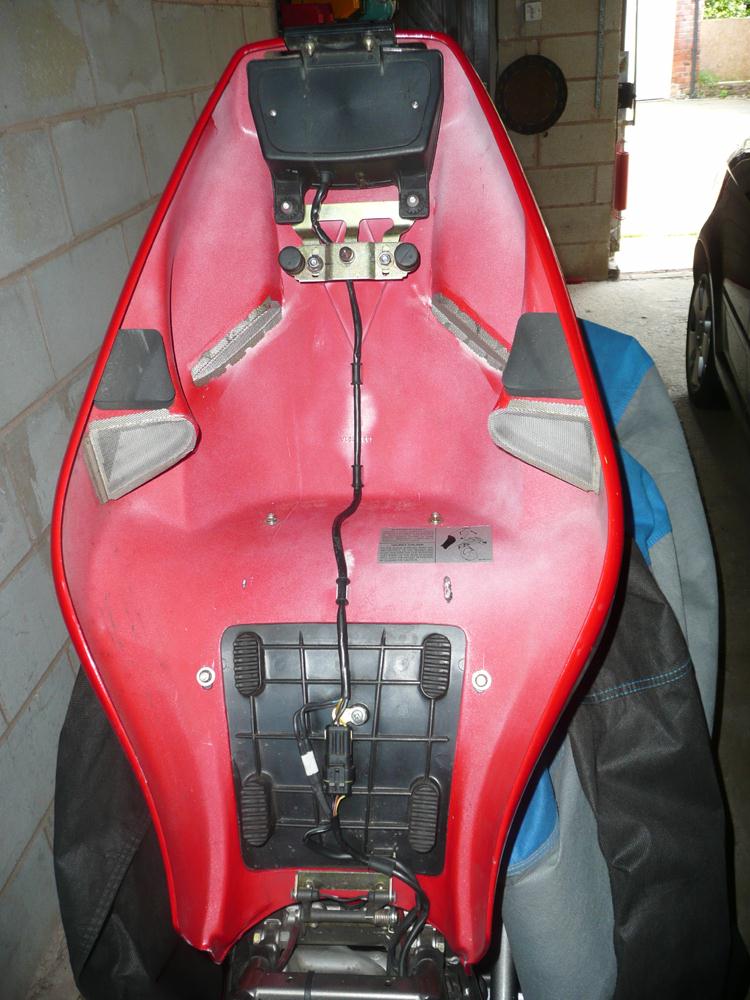

I've had to go out to look at it as I've never removed the bracket but there are 4 fixing bolts; the 2 posts that the light unit pushes onto are actually threaded into the seat base through the bracket plus the 2 small bolts that hold the latch pin in place also bolt through the bracket and into the seat base. I wonder if there maybe different variants based on age/model?
thanks for getting back to me Ive ordered another bracket from Moto Rapido ,hopefully the one I had loose with the rest of the parts is the wrong one
I had both,the mono one is dog leg shaped , the biposto is a flat type.The guy at moto said possible variations on different years or I may have a 996 one I will know next week
