916 Speedo Drive Ring

Discussion in 'Technical Help' started by yellowducmaniac, Oct 23, 2022.

  1. Hi all, i'm in the process of refurbing my wheels, just a simple 916 newbie question - does the speedo drive ring in the front wheel hub just pull out ?, or am i missing something, mine seems reluctant to detach itself from the hub and i don't want to break anything....thanks.

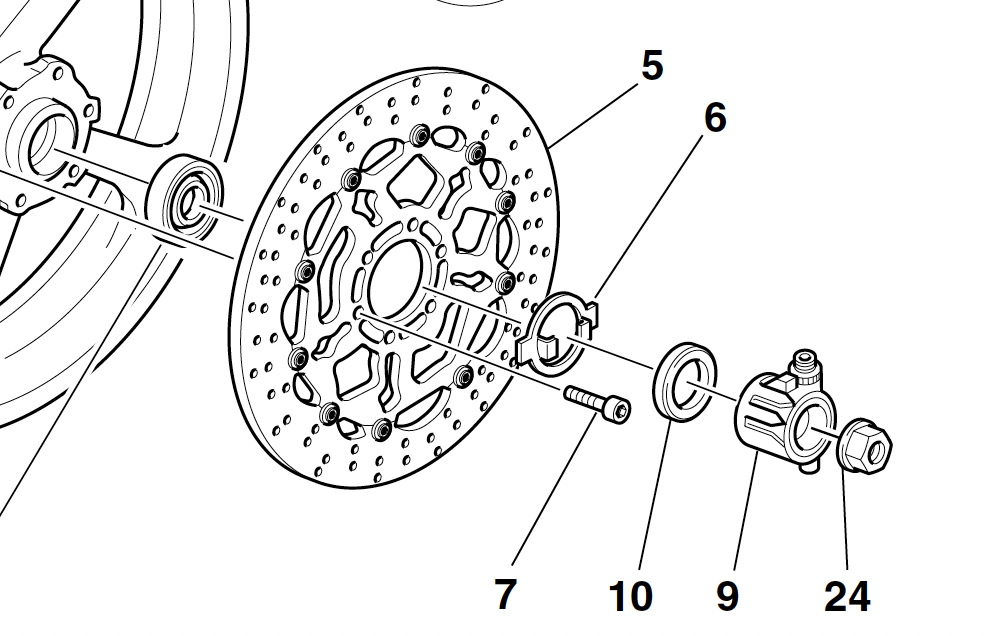

  2. It just pulls out but there is a seal (item 10) which will obstruct it.

    Screenshot 2022-10-23 at 09.20.32.png

    • Useful Useful x 1
