998 Crank Sensor Bolt Length

Discussion in 'Technical Help' started by bettes, Feb 24, 2016.

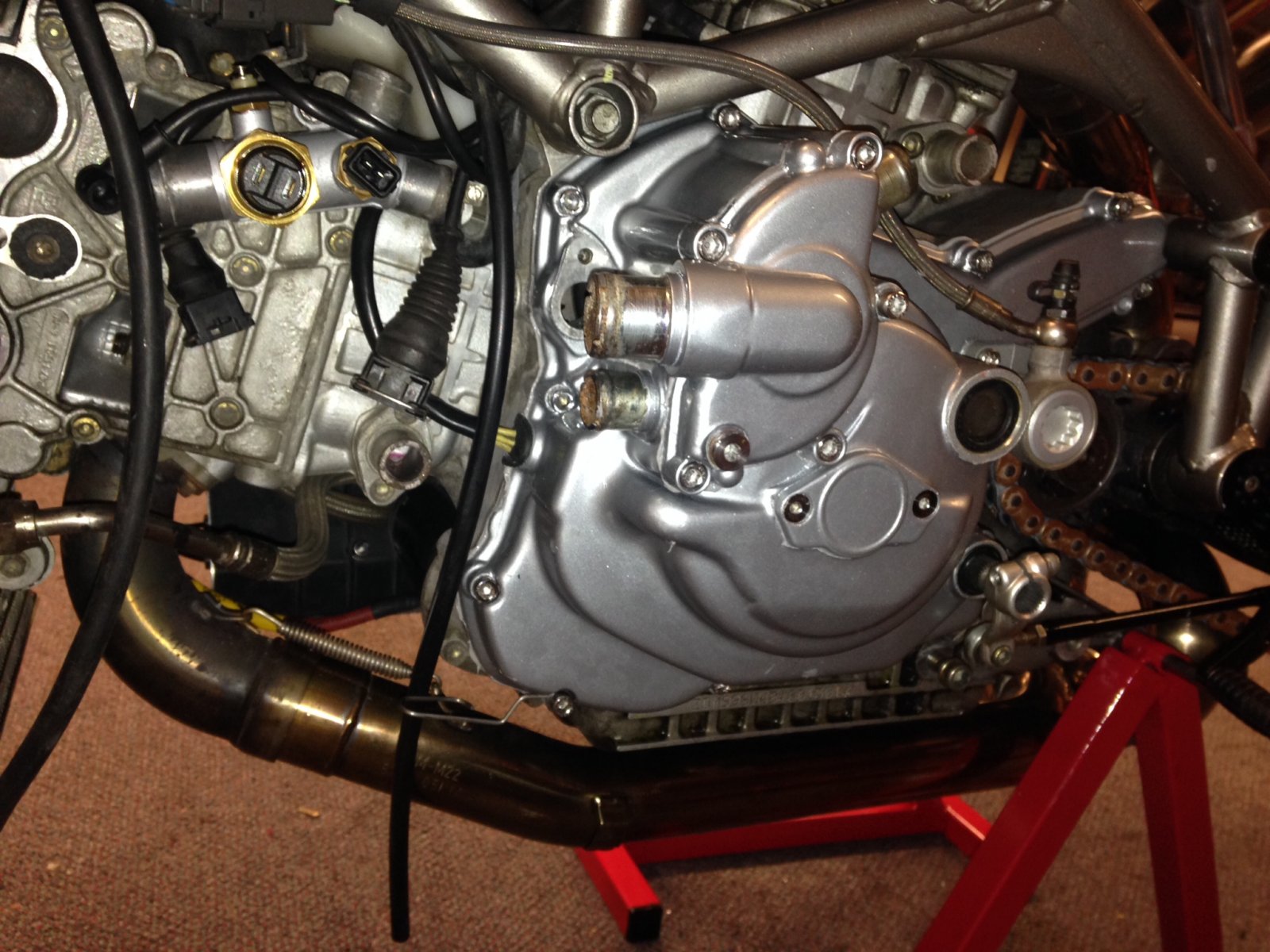

  1. evening all. Painted the alternator cover earlier and got it back on the bike this aft. When taking it off, I made a note of all the m6 bolt lengths, positions and replaced them all with st/st ones. The only bolt length I forgot to check was the crank position sensor bolt. I know it's either M6X20 or M6X15. I think it's 15mm long but could anyone confirm that please?

    Ian


  2. Buy an M20 and cut it if it's too long?

  3. M5 x 12 :)

  4. M5? Sure they were all M6. Thanks anyway for the replies. I'll dig a depth gauge out tomorrow and sort it.

  5. :(My mistake! thats for the two hole earlier sensor.

    You need M6 x 18

  6. @Rman, used an m6 X 20 with a washer and the 2 shims. Just right. Cheers, ian
