999 Fuel Tank Removal

Discussion in 'Technical Help' started by Cream_Revenge, Mar 14, 2016.

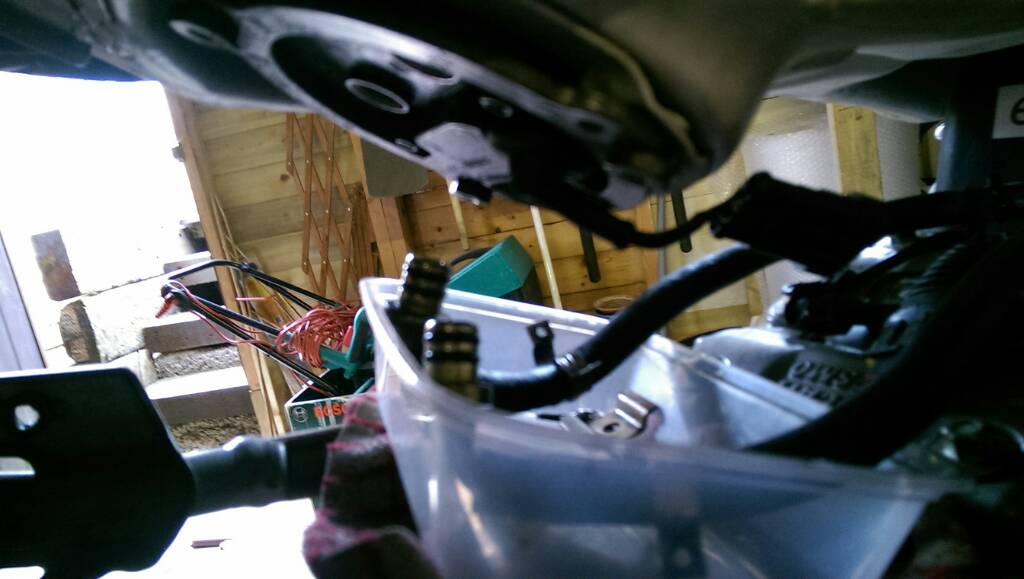

  1. How do these puppies disconnect?

    [​IMG]

    #1 Cream_Revenge, Mar 14, 2016
  2. Oh my Good Gawd..................Hit it with a hammer.............Oh my bones, shake me up Judy....

    #2 Ghost Rider, Mar 14, 2016
  3. you need to cut off the clamps, then replace them. I thought you disconnected at the fuel pump and left these in place?

    #3 Flatfish, Mar 14, 2016
  4. Ok, other end has jubile clips, I read it as these unclip, I'll go up the other end.

    Thanks

    #4 Cream_Revenge, Mar 14, 2016
  5. see my next post

    #5 Flatfish, Mar 14, 2016
  6. black clips on the hoses at the fuel pump end, squeeeze them on the raised parts and pull em off :upyeah:

    #6 Flatfish, Mar 14, 2016
  7. RTFM :)

    #7 Tobytyke, Mar 14, 2016
    • Like Like x 1
  8. Thanks, tomorrows job now.....

    #8 Cream_Revenge, Mar 14, 2016
  9. I did, I read it as you unplug it that end, must have read it wrong.

    #9 Cream_Revenge, Mar 14, 2016
    • Funny Funny x 1
  10. Reading again, and some google, and searching on here, I think whats not helping is my manual is for the later model and it has different fuel pump connectors, apparently.

    #10 Cream_Revenge, Mar 15, 2016

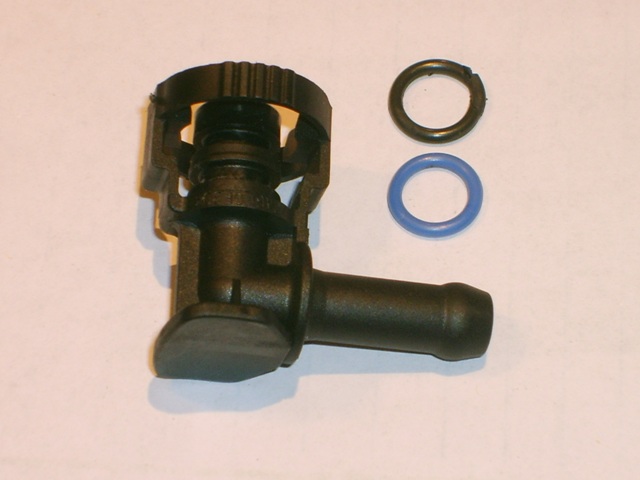

  11. Don't know these are the quick release ones, maybe there's a version with fixed pipes & jubilee clips ala 748E

    QD fitting.JPG

    #11 Tobytyke, Mar 15, 2016
  12. The early ones used metal connectors that push into the bottom of the fuel pump. Unbolt the bar that holds them in place and pull out. Have a rag handy for a little fuel spillage.

    #12 chrisw, Mar 15, 2016
    • Agree Agree x 2
    • Useful Useful x 2
  13. BOOM!,Thanks.

    #13 Cream_Revenge, Mar 15, 2016
    • Like Like x 1
  14. The earlier ones are a better design IMO, more reliable than push fit.

    #14 bluey, Mar 17, 2016
