Bar Risers

Discussion in 'Supersport (2016 onwards)' started by Derek, Jan 20, 2018.

  1. I had fancied fitting bar risers to the Supersport to slightly improve the already very good ergonomics but was bit put off by the £80 price being asked for a couple of 15mm alloy plates with a few holes in them.

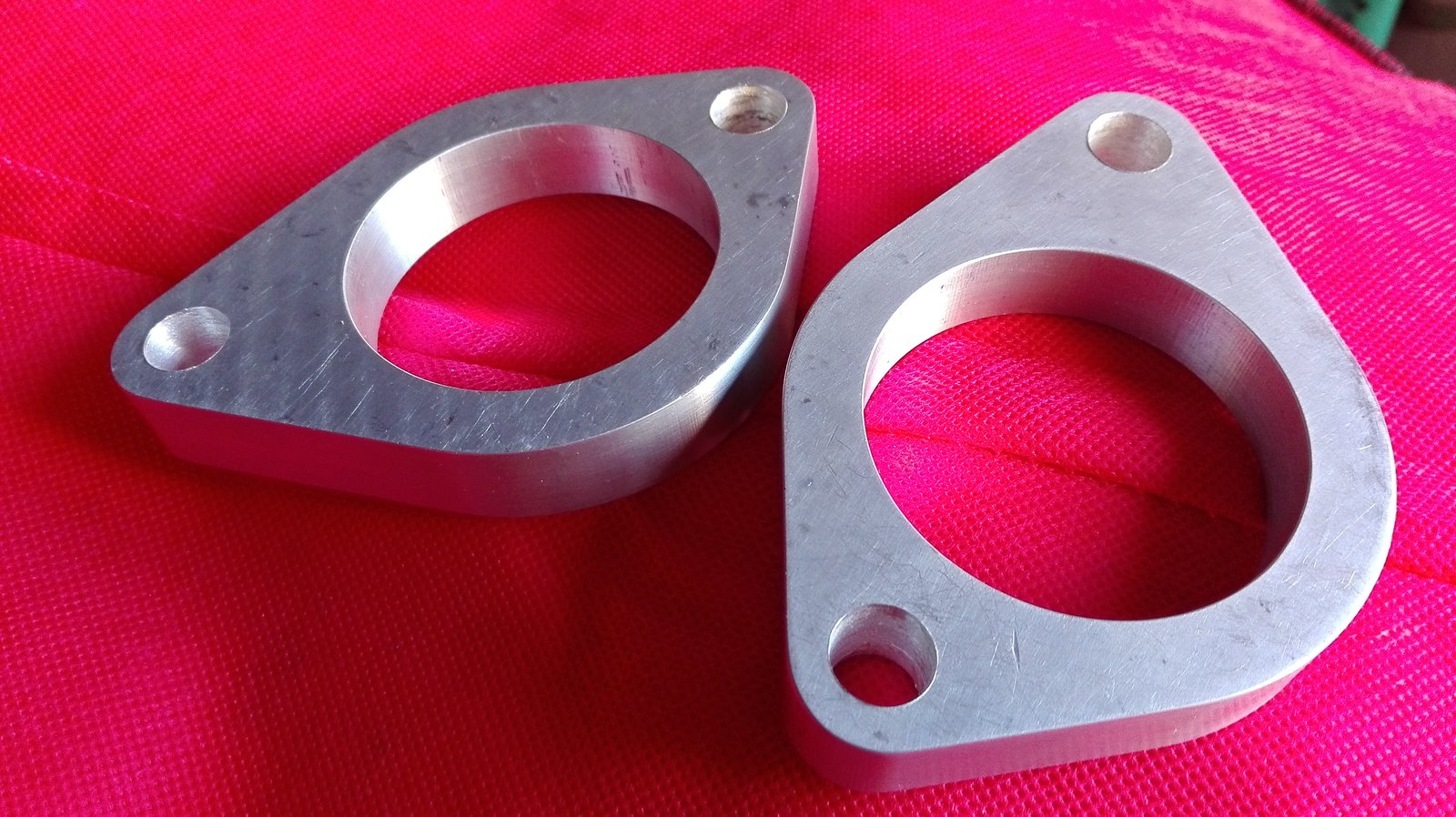

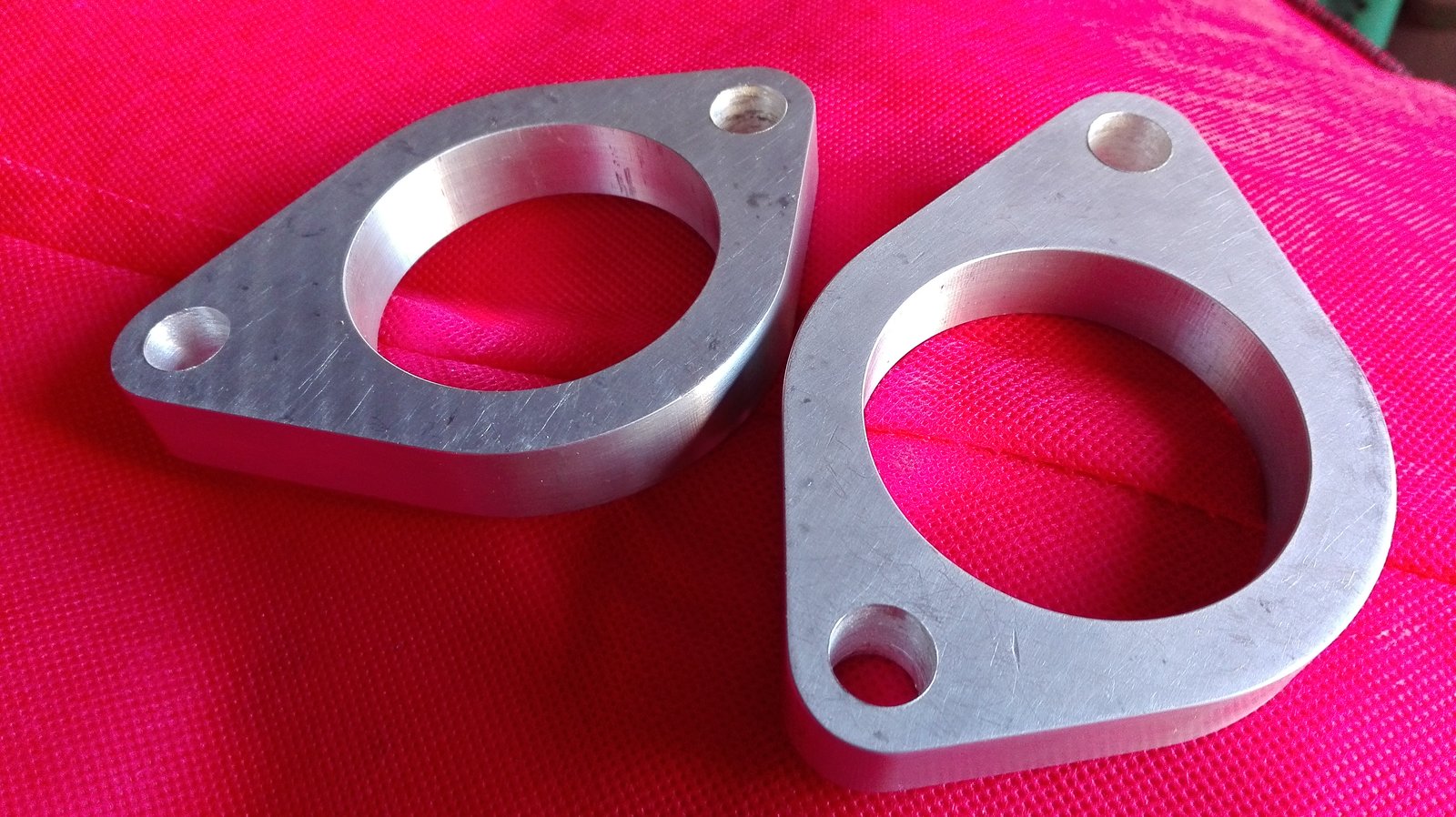

    So I drew up sketch and a friend made them for me for the price of a couple of pints.

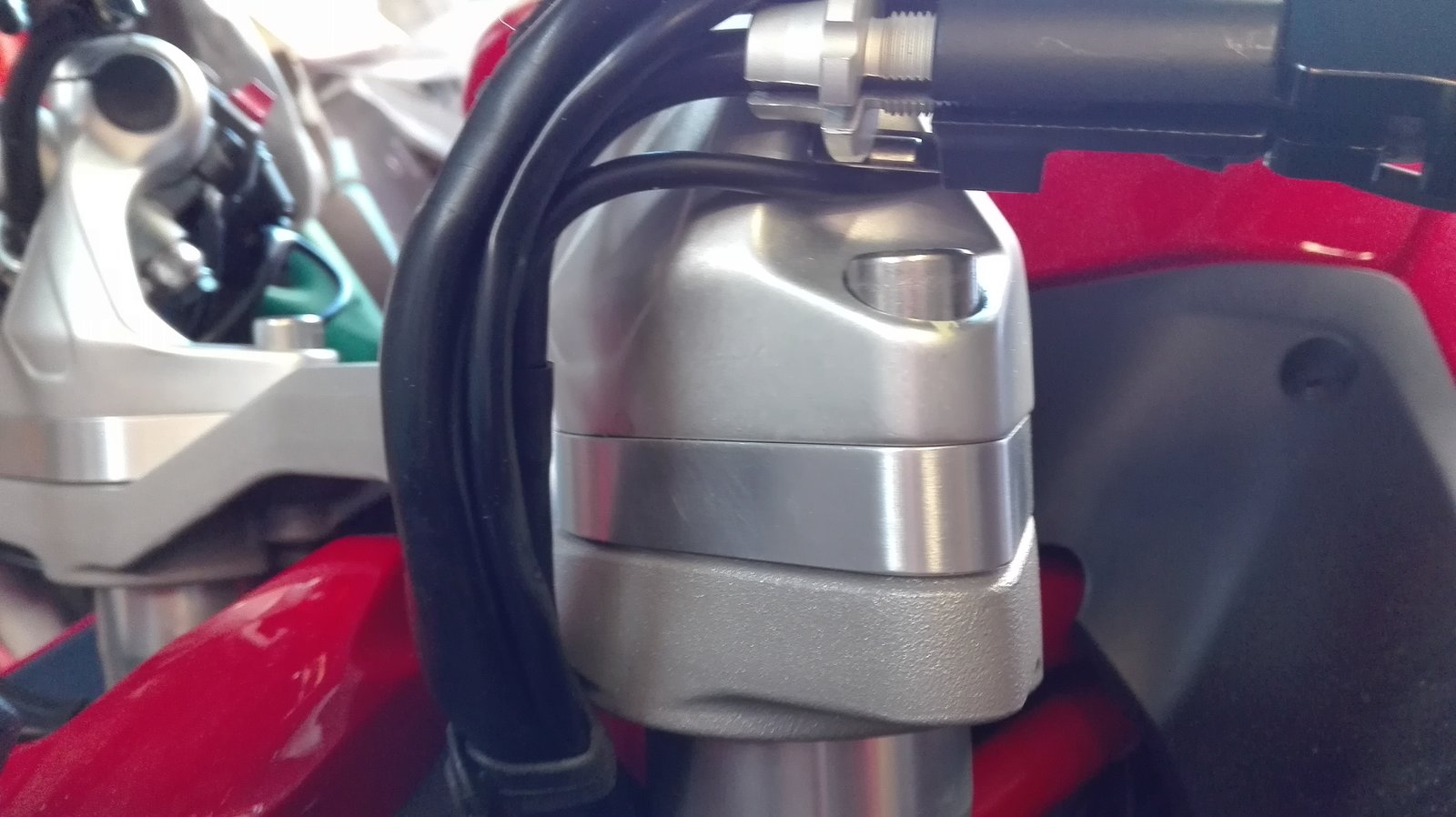

    This is them fitted.

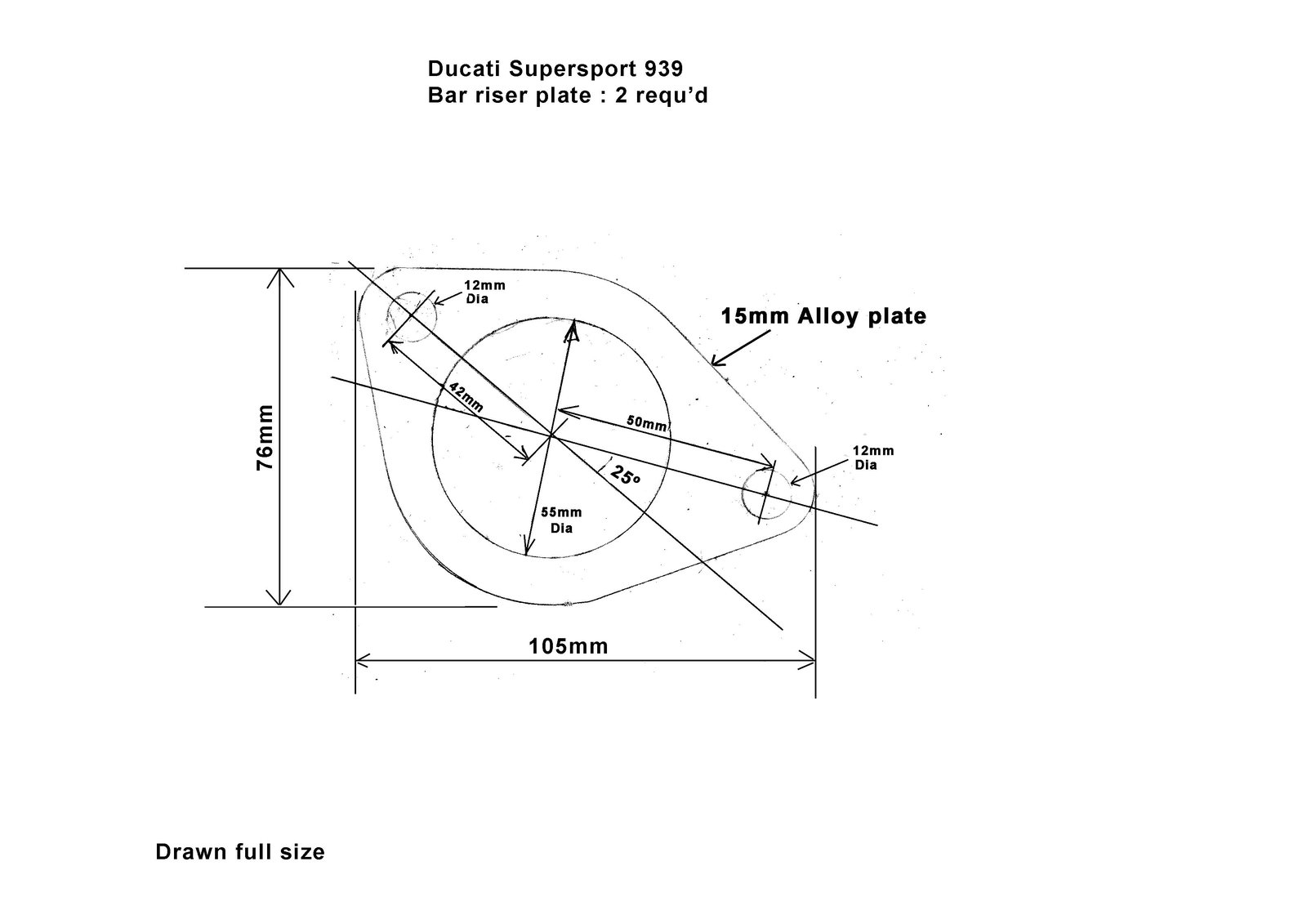

    And this is the sketch if it is any use to anybody.

    Riser plate drawing(2).jpg
    I'm not a draughtsman but it is near enough. I made the bolt holes 12mm to allow for a bit of alignment.

    #1 Derek, Jan 20, 2018
    • Useful Useful x 1
  2. Very satisfying making it yourself. Good share. :)

    #2 Carr01, Jan 20, 2018
    • Like Like x 1
  3. Look very good, I'd be interested in how they feel once you're able to get out on the bike.

    #3 steeve, Jan 22, 2018
  4. What do you have to do to fit them?

    #4 Chris Rowland, Aug 13, 2019
  5. And welcome David . Introduce yourself properly in the newbies section too please

    #5 El Toro, Aug 13, 2019
  6. David?

    #6 Chris Rowland, Aug 13, 2019
  7. What's this? a 'Supersport' without clip-ons?? Hailwood will be spinning in his grave..... outrageous :D

    Great info :upyeah:

    #7 Harry Bell, Aug 13, 2019
  8. We're all Dave, Dave

    #8 Harry Bell, Aug 13, 2019
  9. You're my wife now Dave!

    #9 Chris Rowland, Aug 13, 2019
  10. Umm, ok :D

    #10 Harry Bell, Aug 13, 2019
  11. Unbolts the bars and refit then with the spacers under them and with 15mm longer bolts. Can't remember the size, something like M8 x 35mm.

    #11 Derek, Aug 13, 2019
  12.
    #12 Chris Rowland, Aug 13, 2019
    • Funny Funny x 1
  13. Do you need a torque wrench?

    #13 Chris Rowland, Aug 13, 2019
  14. Probably should if you want to be correct. 35Nm and the bolts are in fact M10.

    #14 Derek, Aug 13, 2019
    • Like Like x 1
