916 Biposto To Mono Conversion

Discussion in '748 / 916 / 996 / 998' started by Shorty4045, Oct 12, 2020.

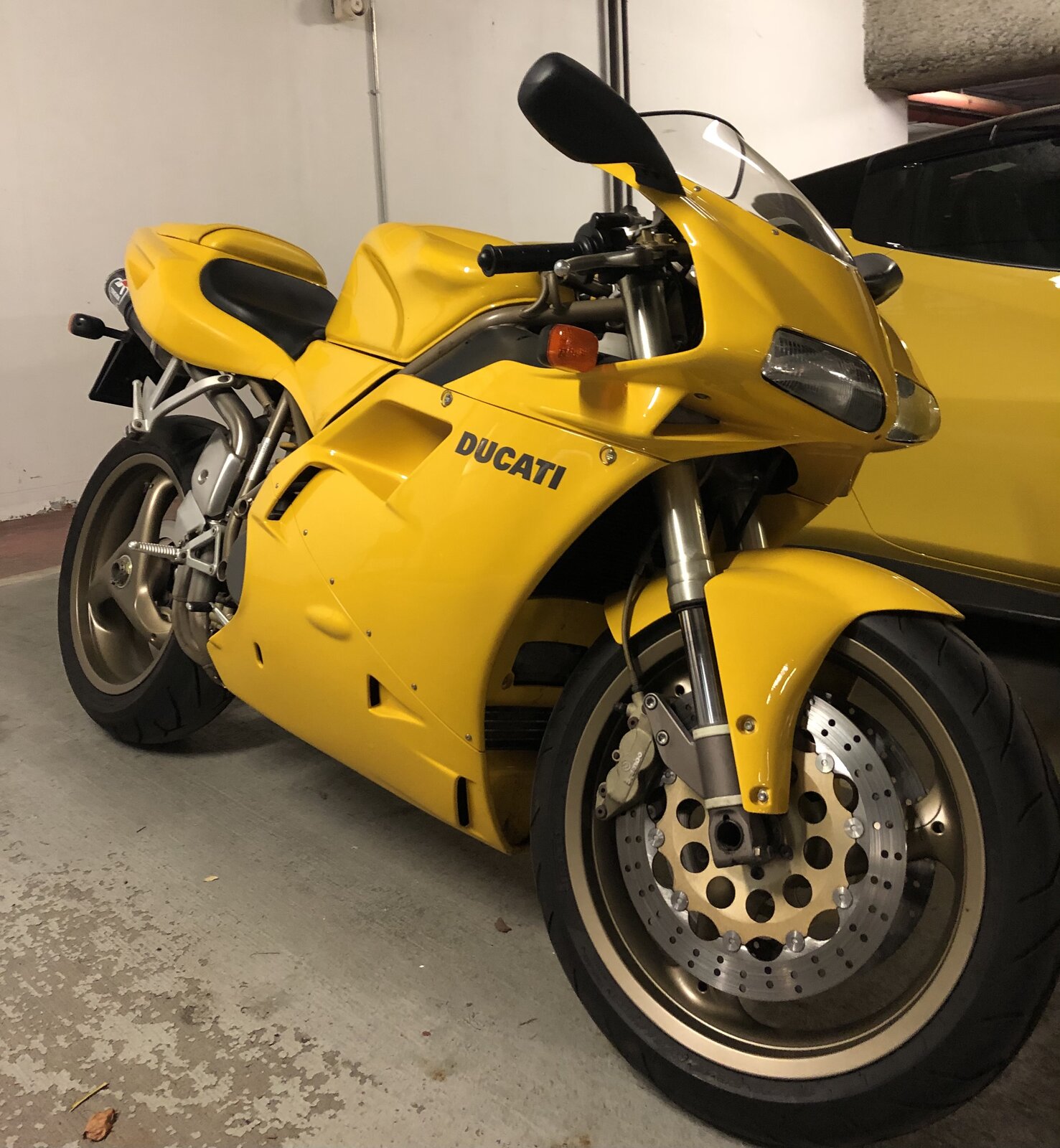

  1. I’ve decided that I’d like to convert my 916 from Biposto to Mono and so have researched all the options

    The simplest way would be to reuse the biposto subframe but the holes where the rear foot pegs attach would remain visible which I’d prefer not to see. So I decided to do it properly and source OEM parts where possible

    First acquisition was a seat from @JoeC
    Minus the seat pad and lights ...

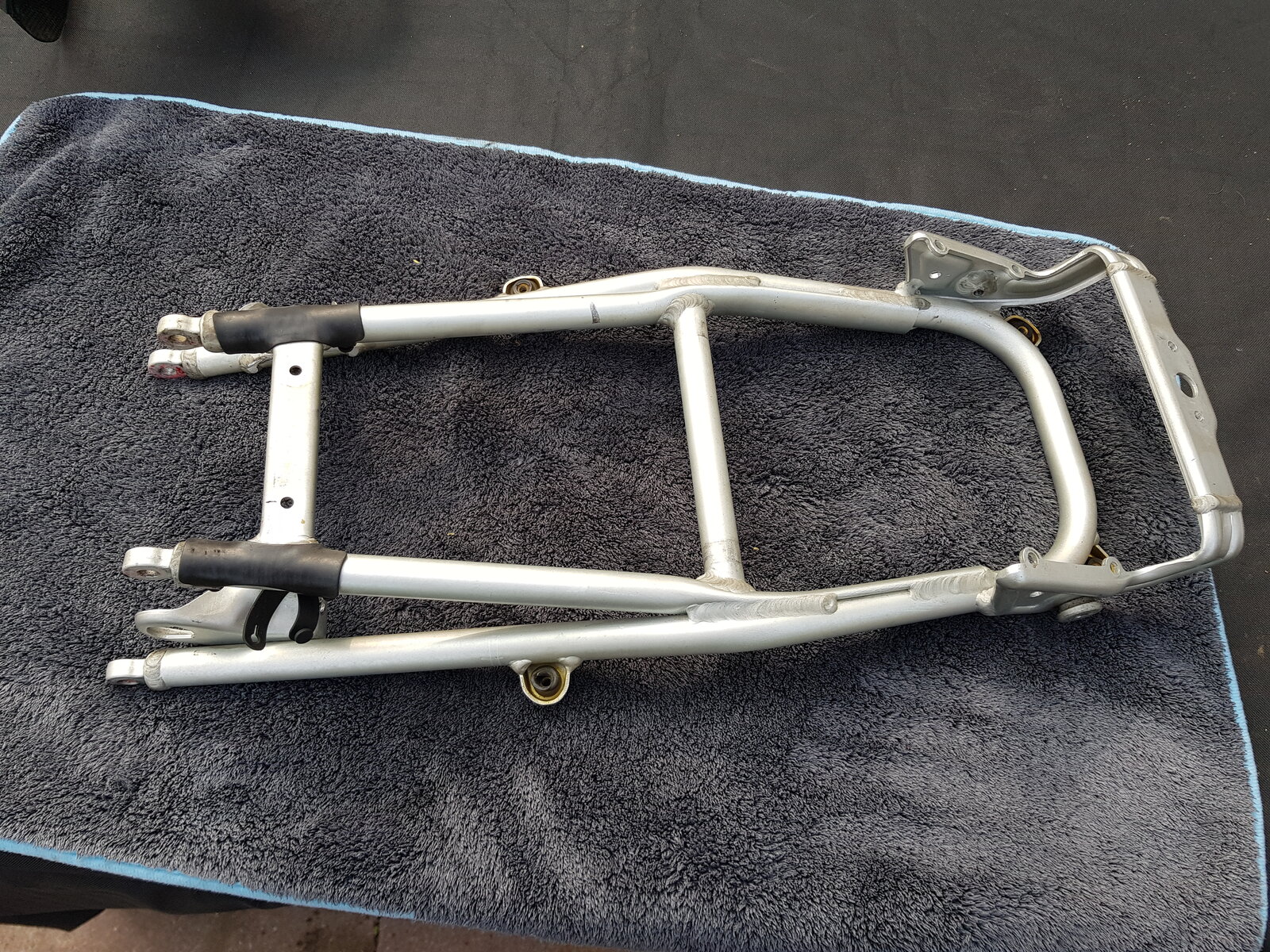

    Next up was the subframe. Turns out there are two versions depending on which ECU you have P8 or 1.6M ECU
    I bought the correct 1.6M frame from @final_edition

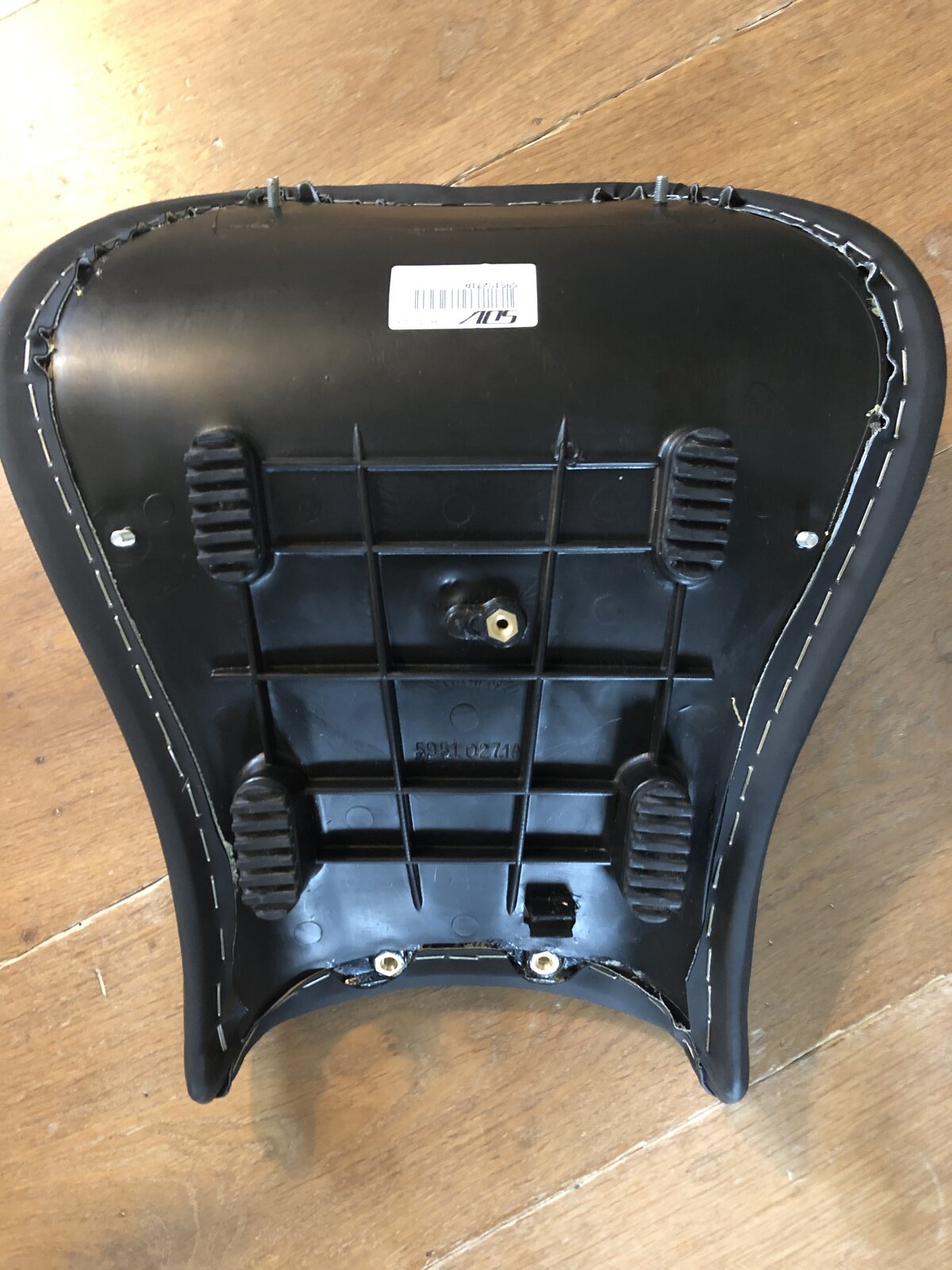

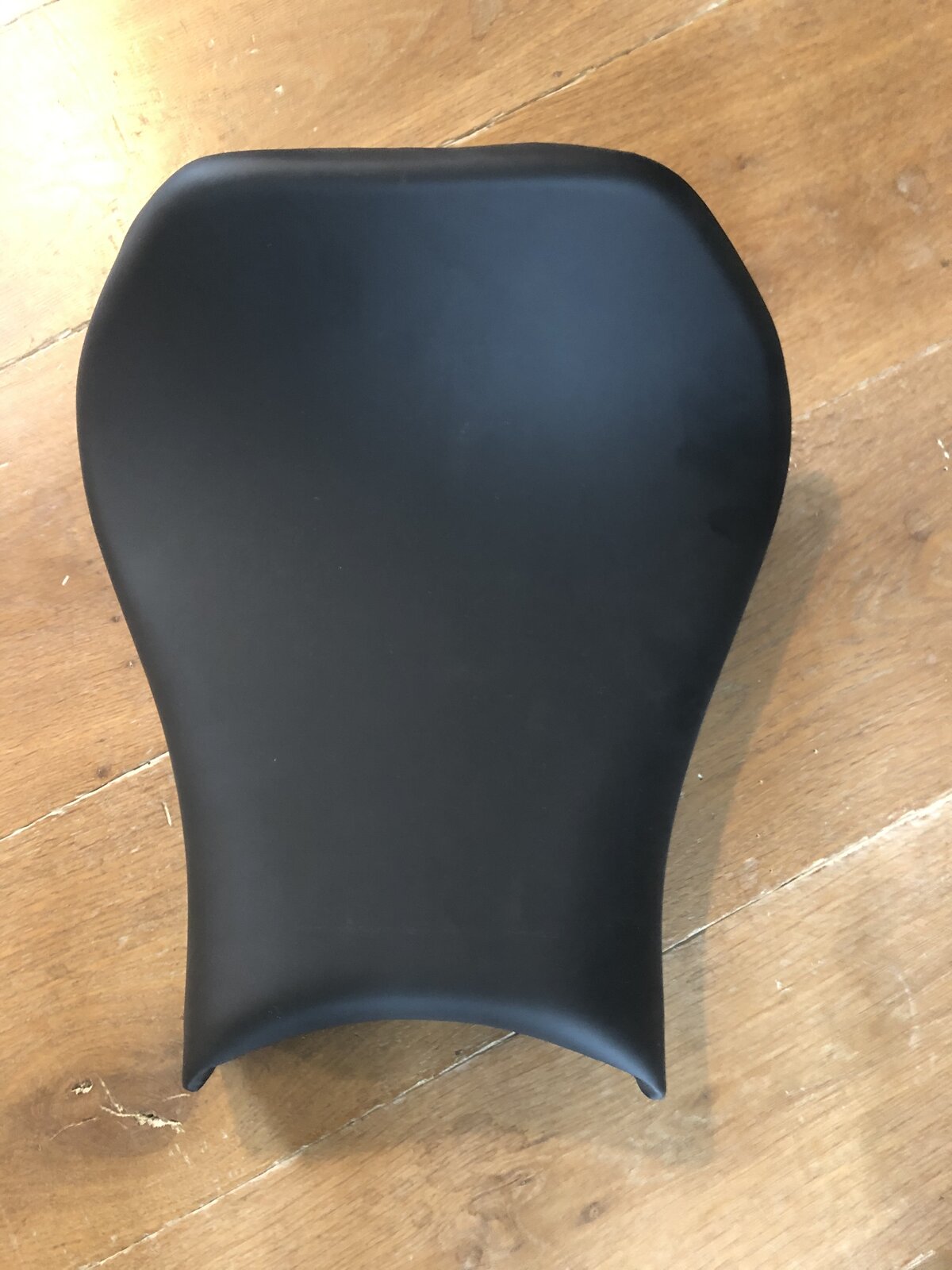

    Next up was the mono seat which differs from the front biposto seat with a higher profile at the back. Found one on EBay
    6F933CB7-48C7-417C-BA13-D33EF422C139.jpeg F0FF3614-9E0A-42E9-9678-0FF720BE96D6.jpeg

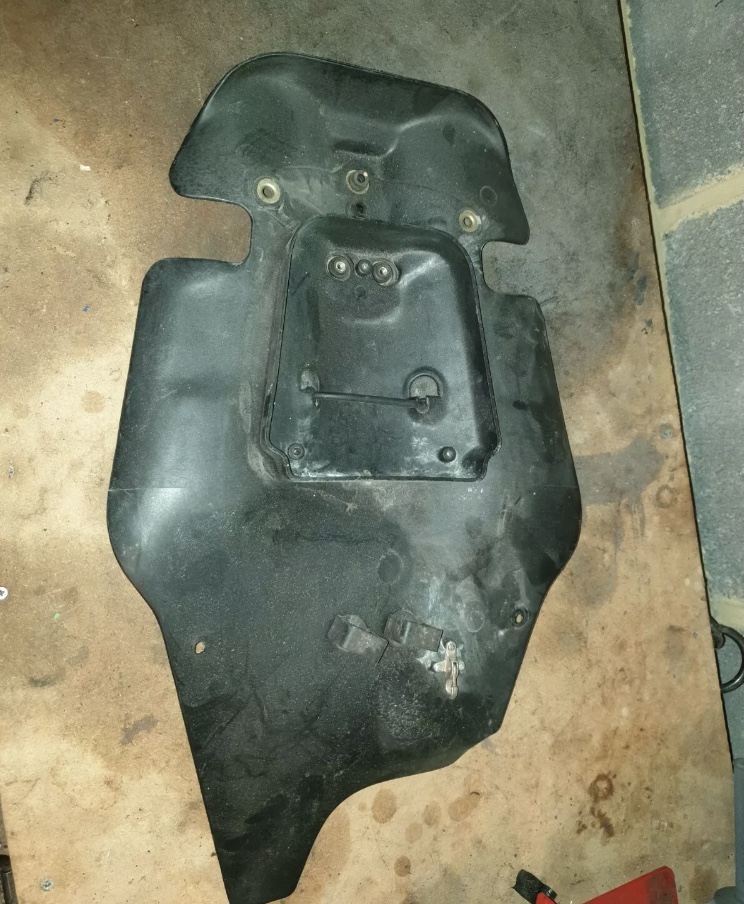

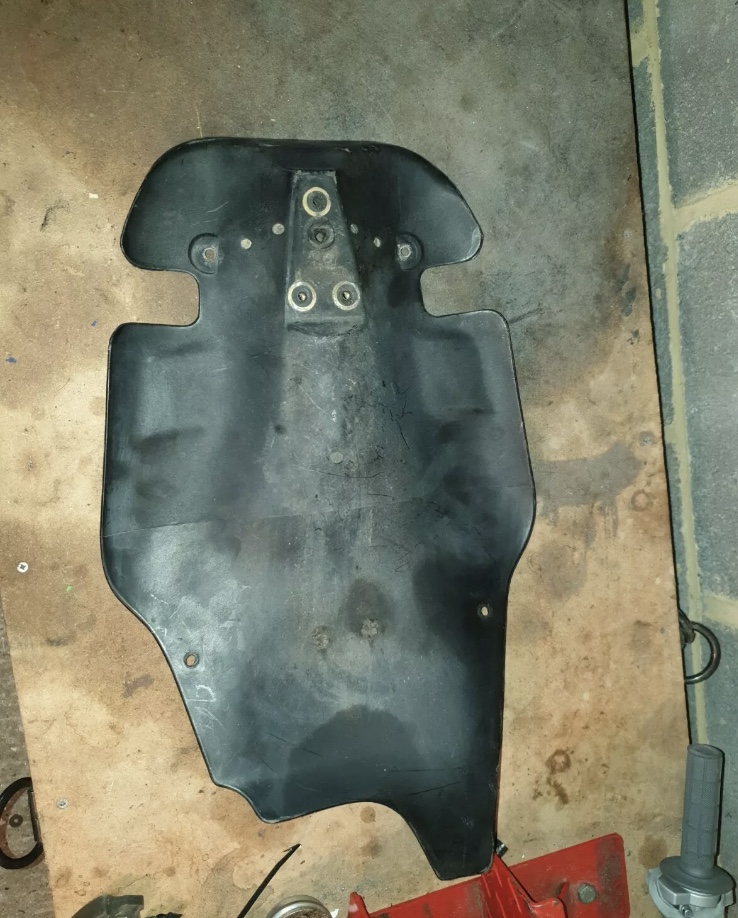

    The only remaining major part I needed was the mono undertray (I’m told you can reuse the biposto one but I didn’t want to make any non reversible alterations to the original seat which I will keep so the bike can be returned to stock in future) Anyone that has looked for mono undertray’s recently will find they are not cheap, typically £190 to £300 whereas you can get a biposto version for £25. Demand and supply in action!
    Anyway I got lucky and I found one on eBay for £50 ....

    87A827C4-4E21-4B99-B0B7-FB722CDBD919.jpeg E8819243-57AA-41FD-87AC-491BA8429A92.jpeg

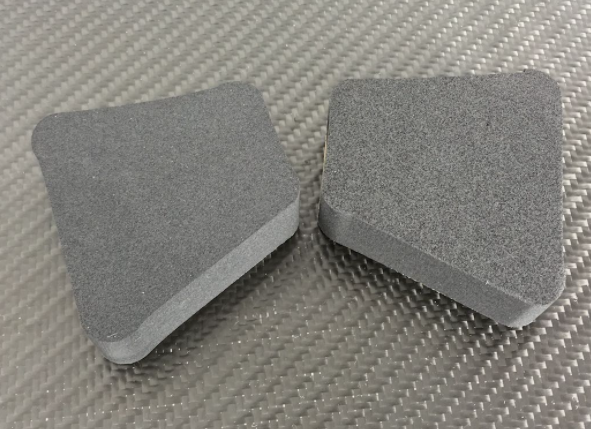

    There are a number of pads, brackets, fitted mesh parts, which Craig at Moto Rapido is sourcing for me.

    In the meantime the seat is being repainted to the correct shade of yellow. Before and after pics to follow once fitted .....


    #1 Shorty4045, Oct 12, 2020
    Last edited: Oct 12, 2020
    • Like Like x 14
  2. if i remember correctly the wire loom is to short for the mono conversion from the ecu.

    you might have to make it longer or get a new loom.

    • Useful Useful x 1
  3. Great thread :upyeah::upyeah::upyeah:

    • Like Like x 1
  4. Thanks Cookster, haven’t got round to it yet so you will probably be right :(

  5. if the Bip can be made to fit and costs half as much, why not buy one of those to mod?

  6. You’re right and that was the plan if I couldn’t find a cheap one, but for an extra £20 I’d rather have the correct part.

    • Like Like x 1
  7. #8 Shorty4045, Oct 12, 2020
    Last edited: Oct 12, 2020
    • Useful Useful x 1
  8. You can also fit a rear section of a Mono to the wiring loom of a Biposto as the rear section of the Mono wiring loom is much longer. You will need the correct type as there are some differences. It's a long job to lengthen the rear wiring loom.

    • Useful Useful x 2
  9. I did this on my old bike, I was able to get almost everything to fit except the wire for the air temp sensor at the front, so I just soldered in some extra wire and heat shrinked it after, worked fine.

    • Like Like x 2

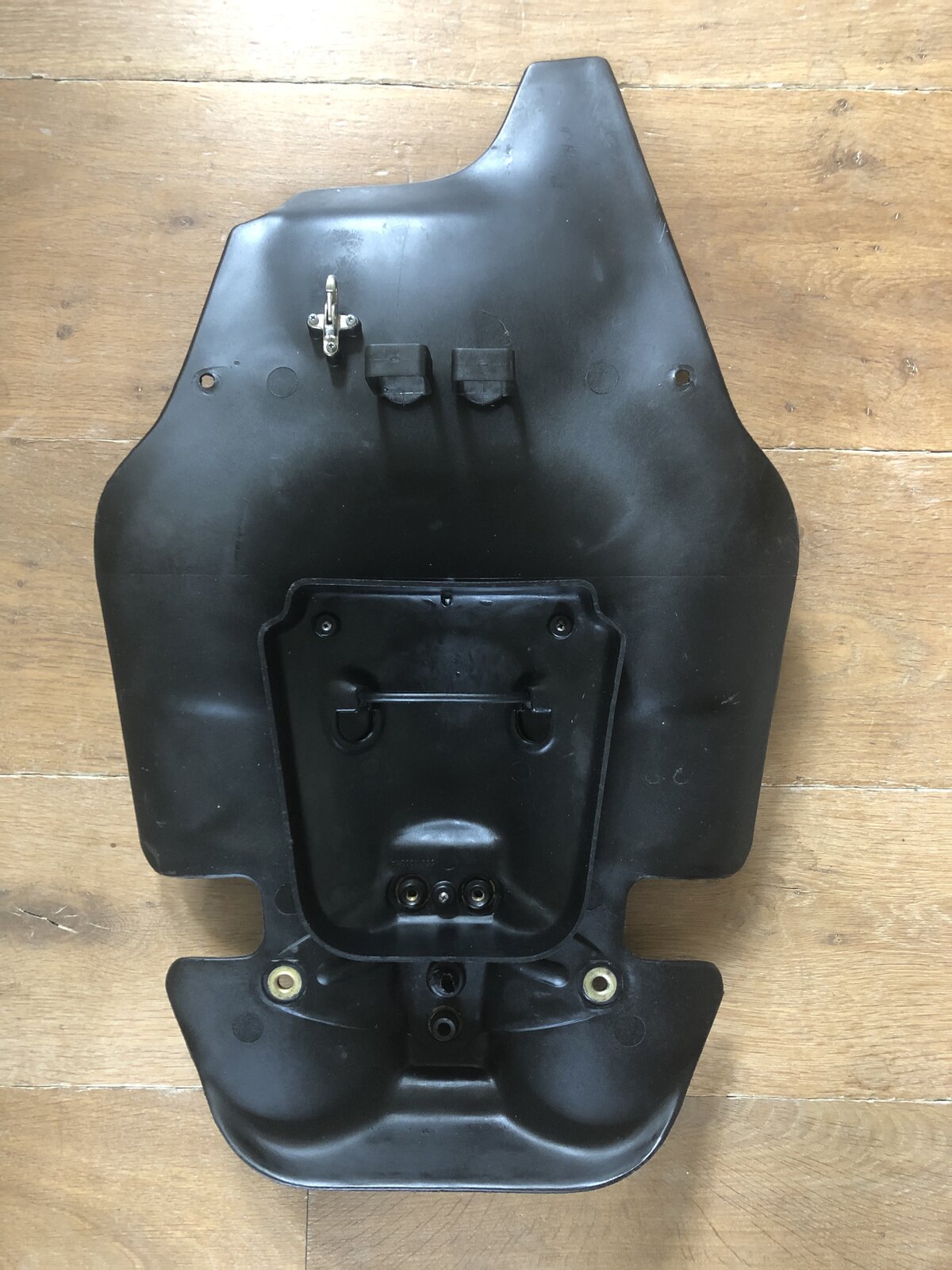

  10. Cleaned up the undertray ...


    • Like Like x 2

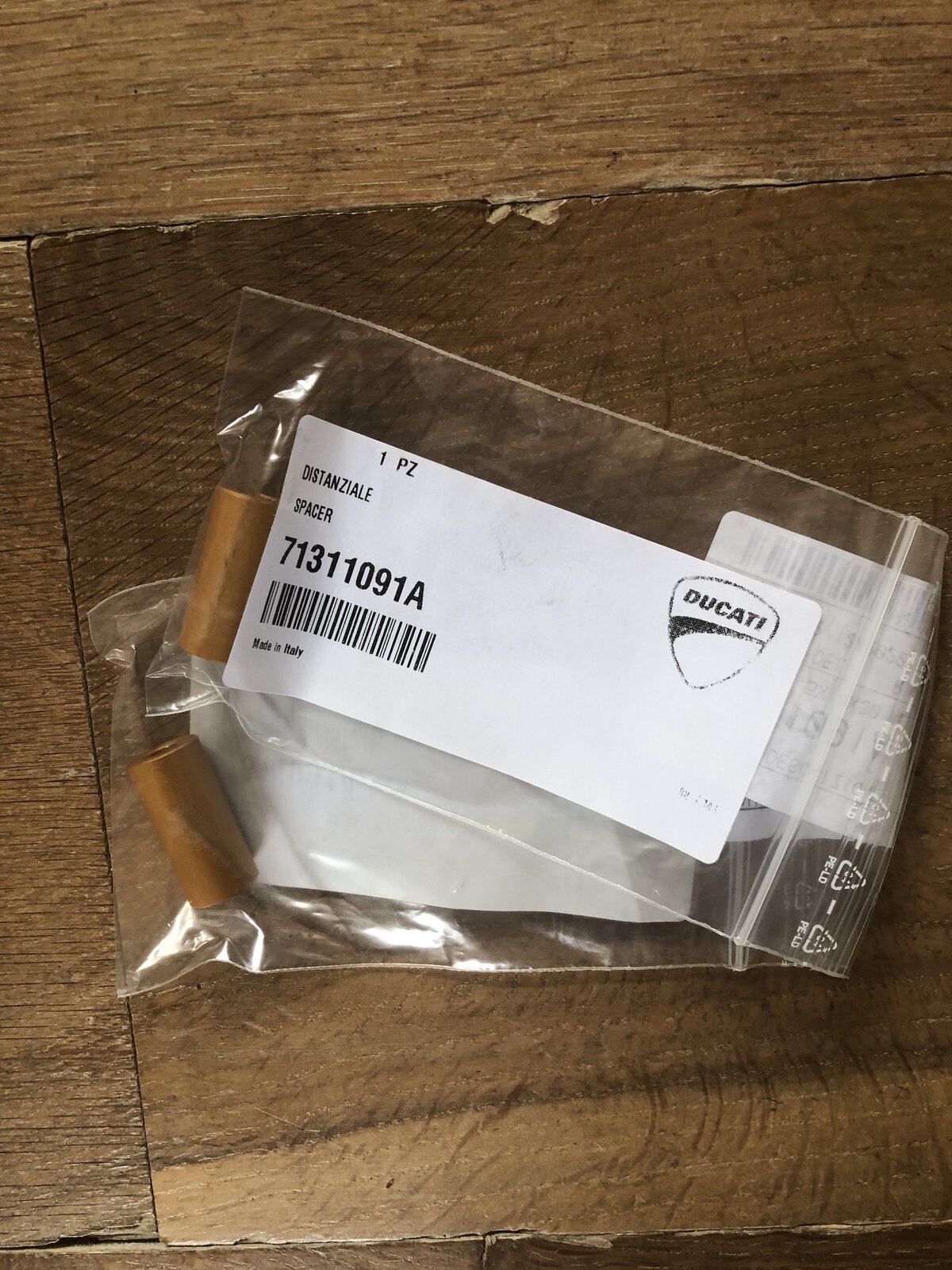

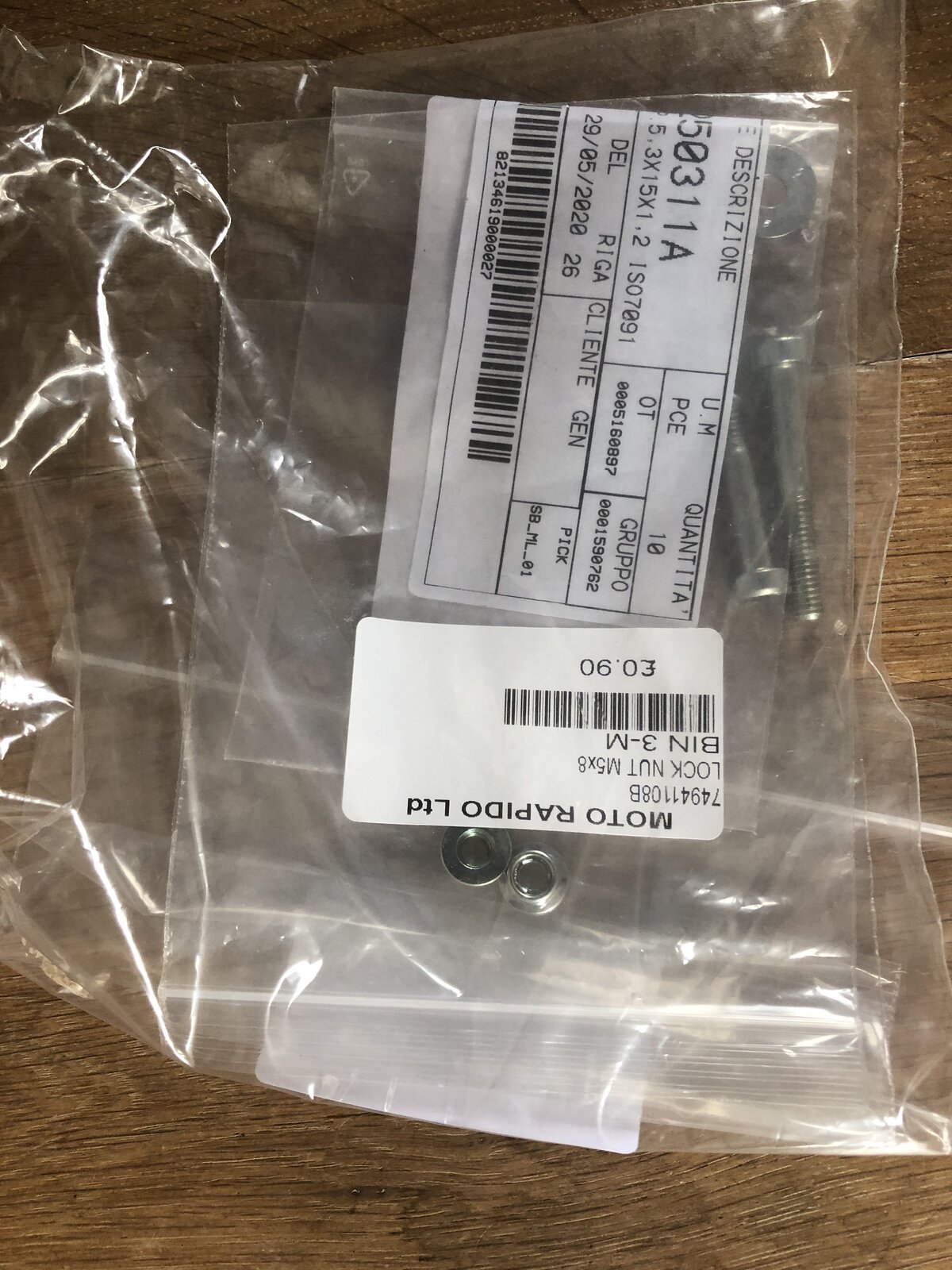

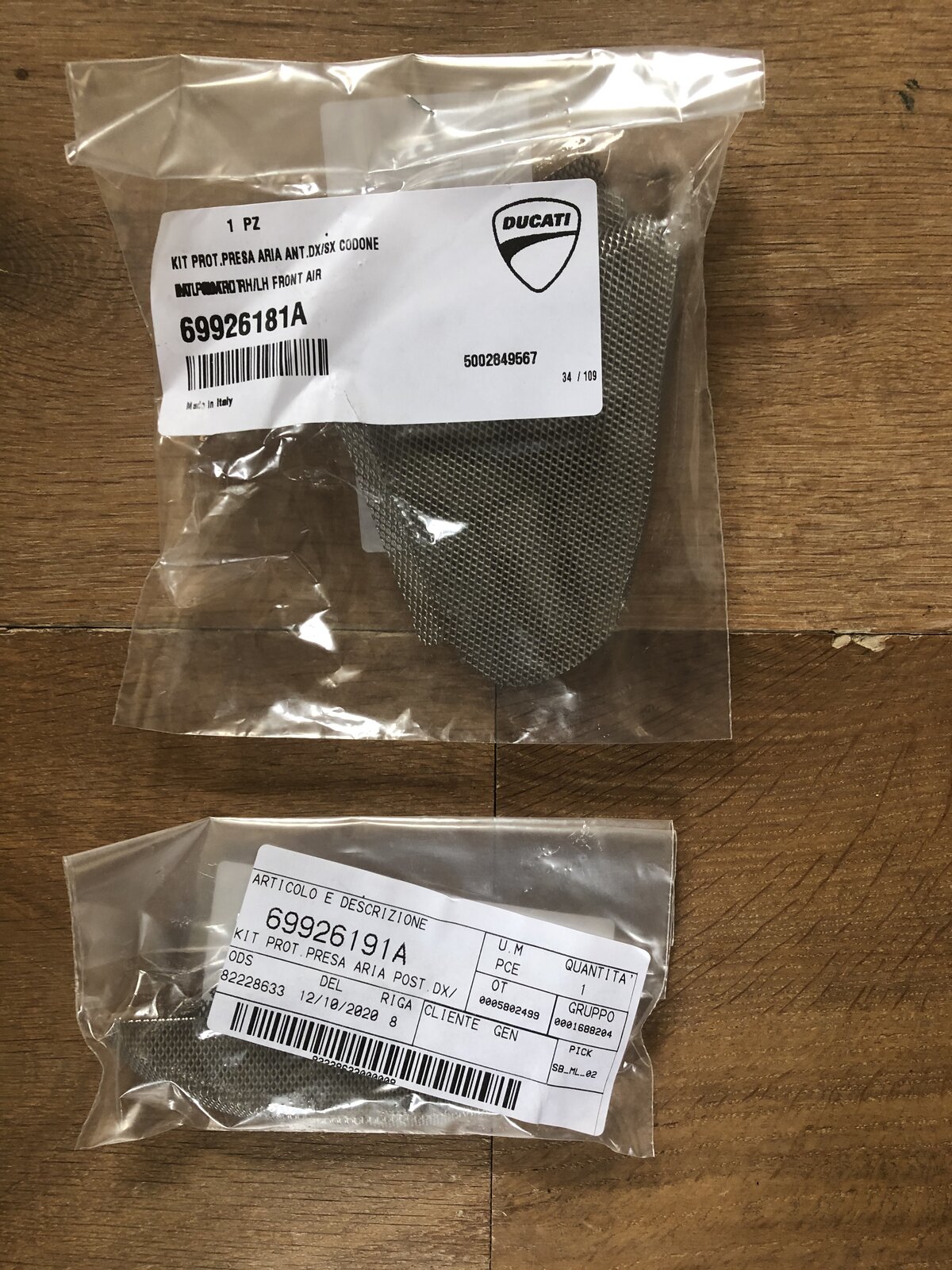

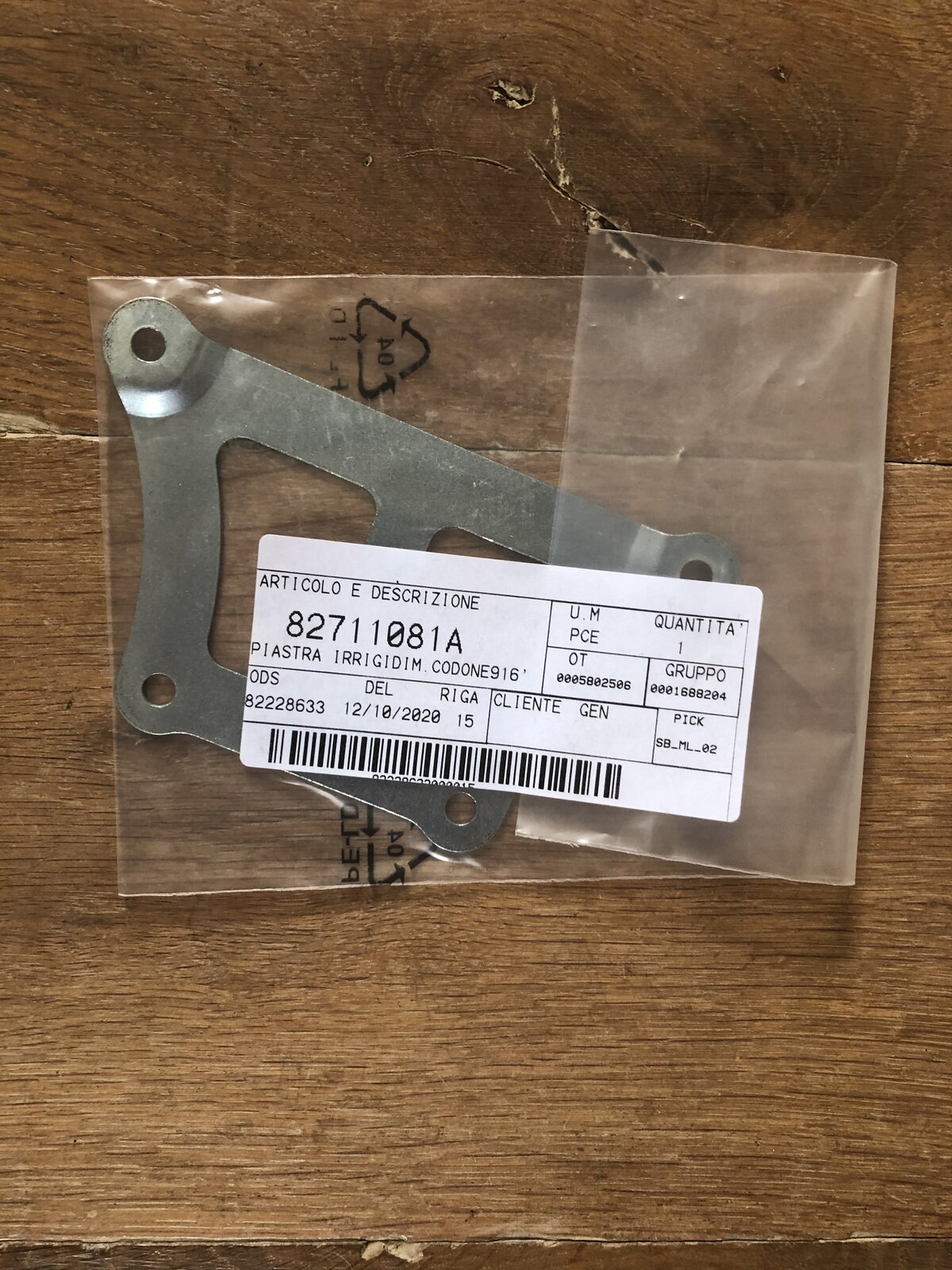

  11. Delivery arrived from Moto Rapido

    BC5C9E45-A40C-4BA1-81F6-1A58114E9FFC.jpeg 50007310-1A9C-4A54-A30D-689CF0CD2BA0.jpeg A46E7287-850A-457F-8A2A-EC90AEC55E57.jpeg 8E40898D-85FC-4EC6-B1C8-9D06BCC48DE6.jpeg

    • Like Like x 4
  12. Ironically when i advertised my biposto it was fitted with a mono seat inc loom and all those parts you had to source except the subframe ,it was as it came when i bought it
    Few comments saying i should change it back ! Personally i think the twin seats spoils the whole look of the bike

    • Agree Agree x 4
  13. Great thread, as something I’m just embarking on so appreciate the detail and advice from everyone.
    Cheers

    • Like Like x 2

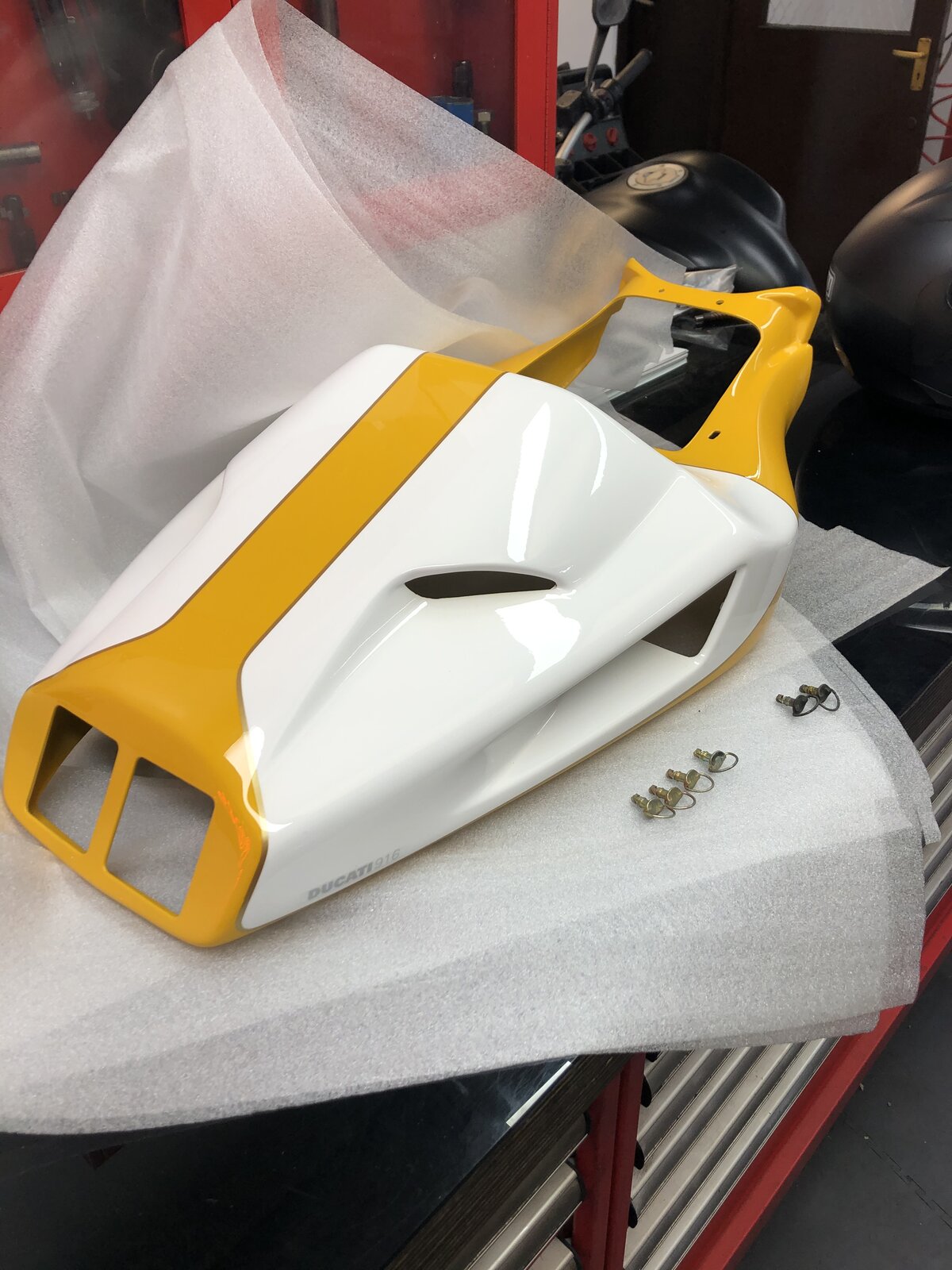

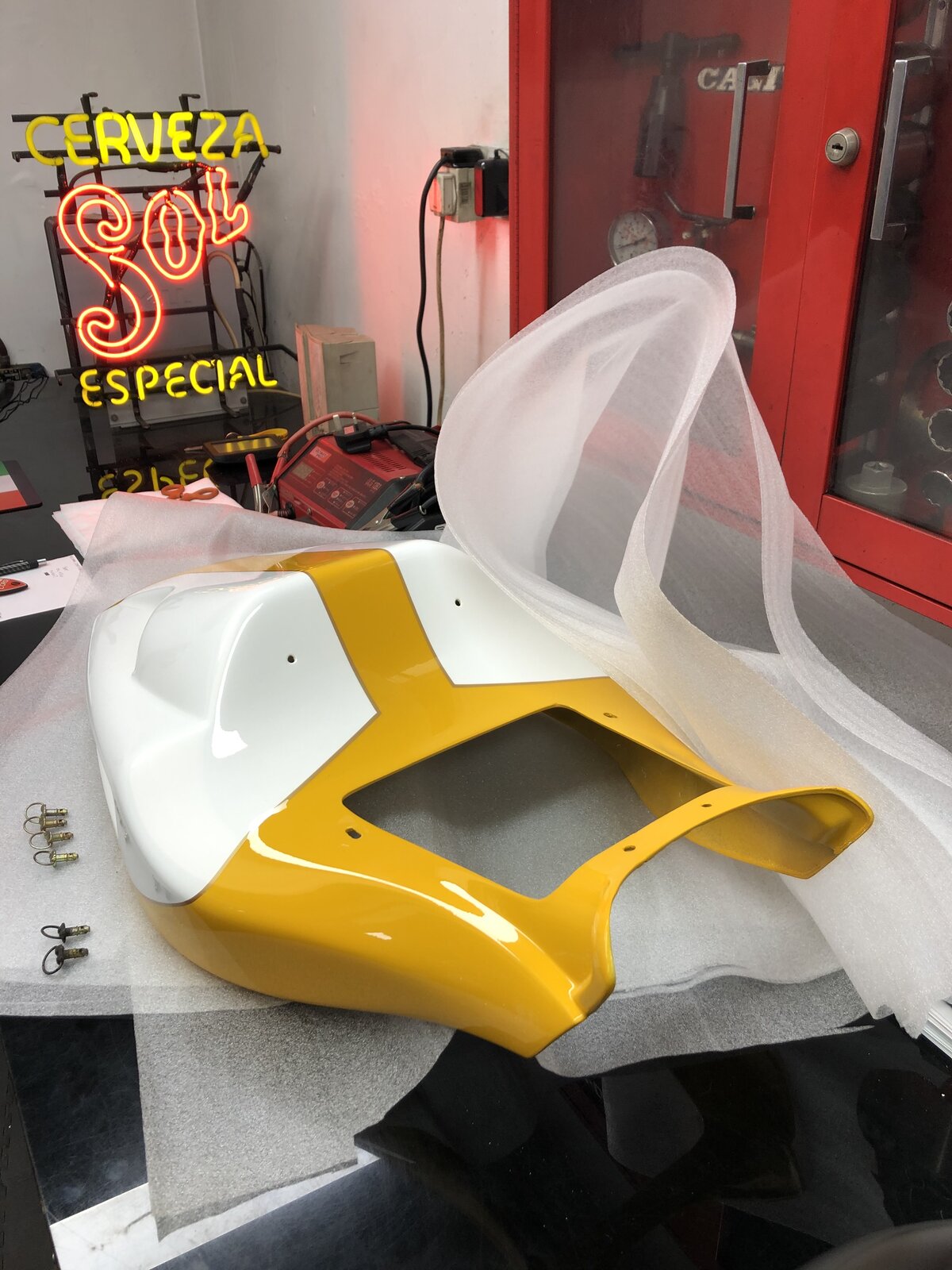

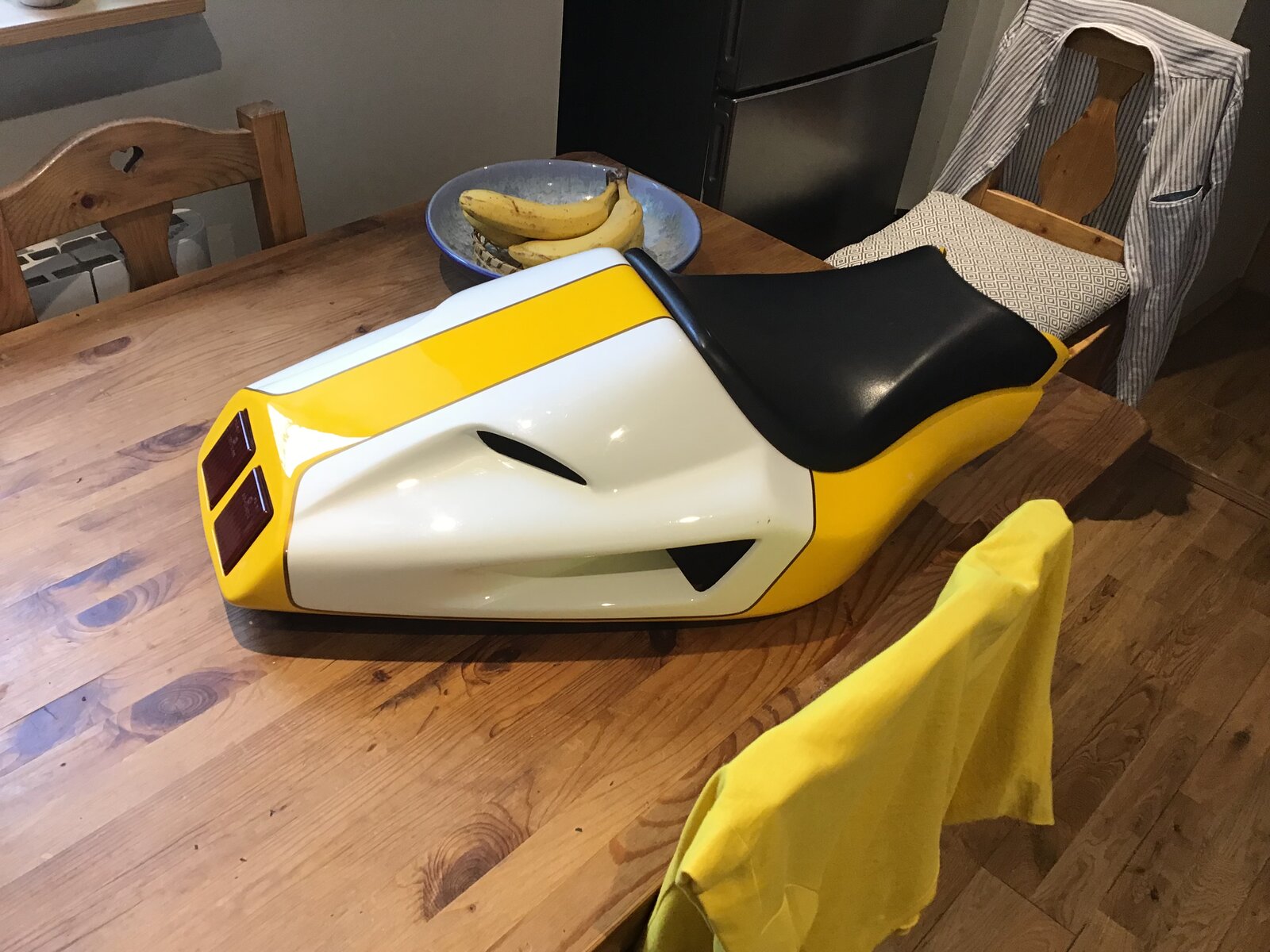

  14. So the seat came back from the painters

    AA9404C6-BEA6-43EC-ABCF-AED583FDE2B1.jpeg 54F160FF-6BE3-4021-9DB8-2B2D40188D4B.jpeg

    And as Cookster predicted the wiring loom was too short to fit the ECU so the bike was sent to Ray Petty at Meccanica to have the loom extended.
    Once completed I arranged for a courier company to collect and deliver the bike.
    Unfortunately they dropped the bike whilst loading it into their van :(
    So it’s being repaired/ repainted and whilst at Mechanica Ray is tidying it up :)

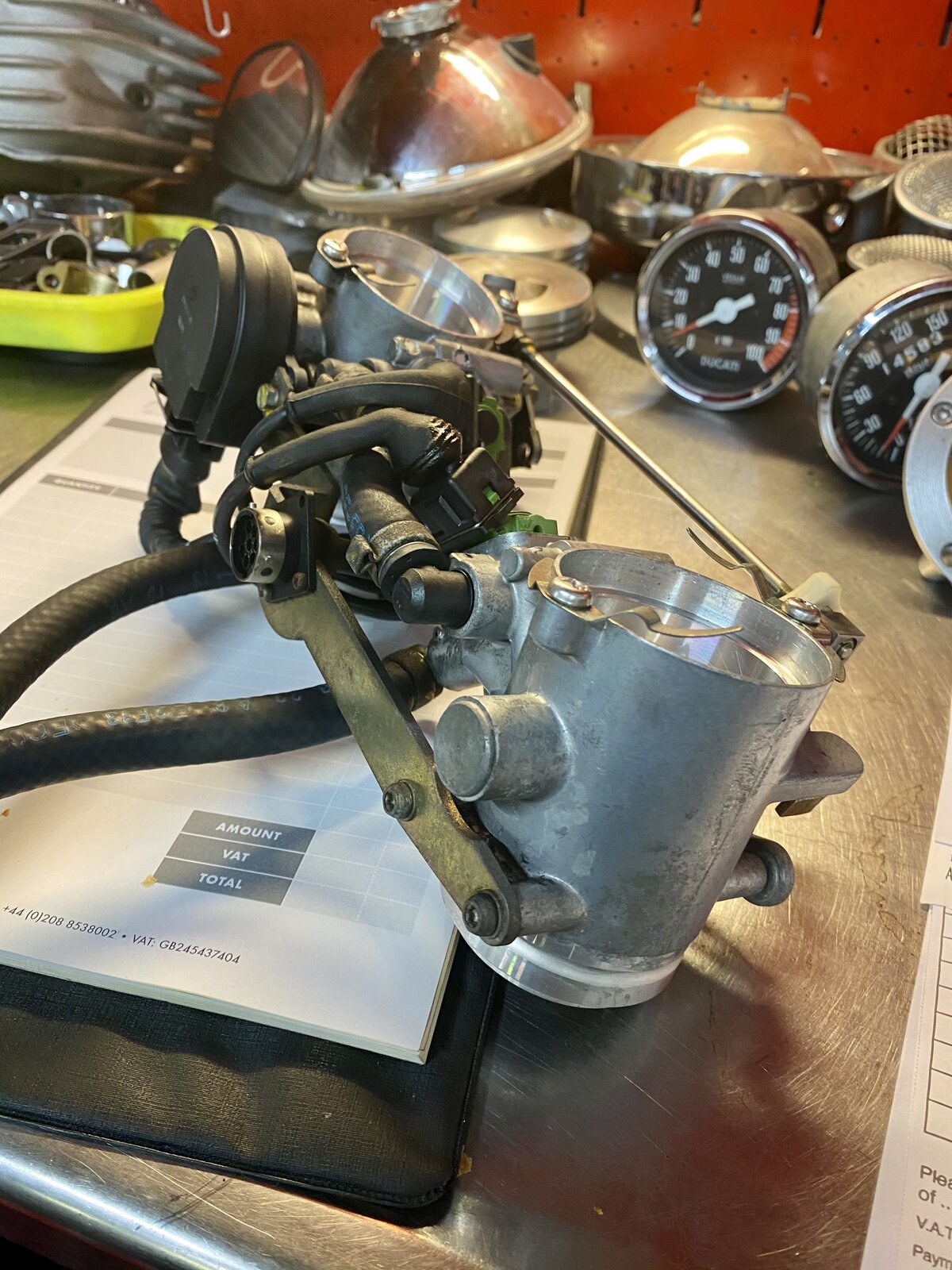

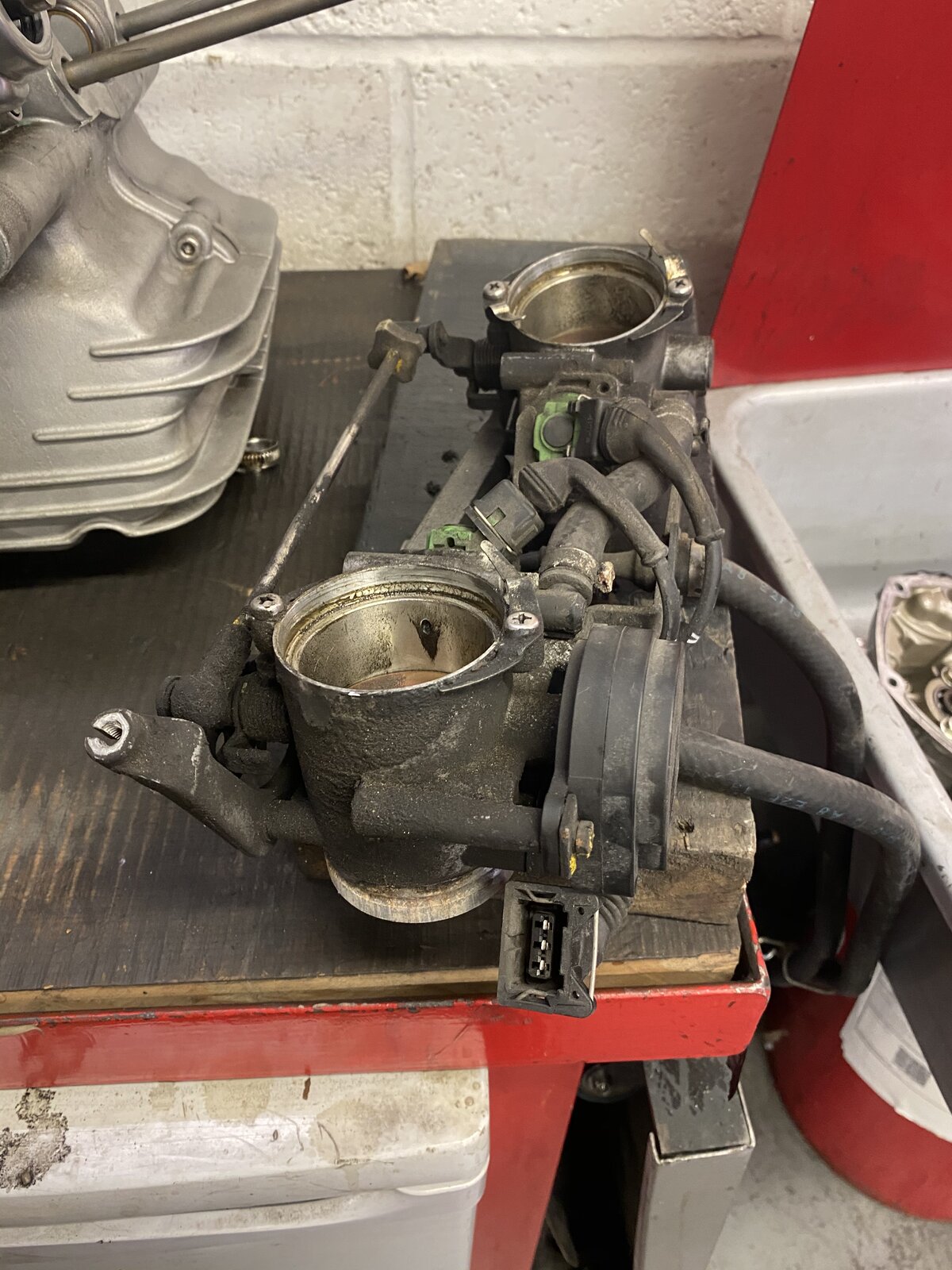

    D163EED7-5ABC-40AB-8EC0-A9D400DA47EF.jpeg 936BDAF7-0683-4AB0-8279-EA0369470145.jpeg

    Throttle bodies (before and after)

    #16 Shorty4045, Nov 20, 2020
    Last edited: Nov 21, 2020
    • Like Like x 2

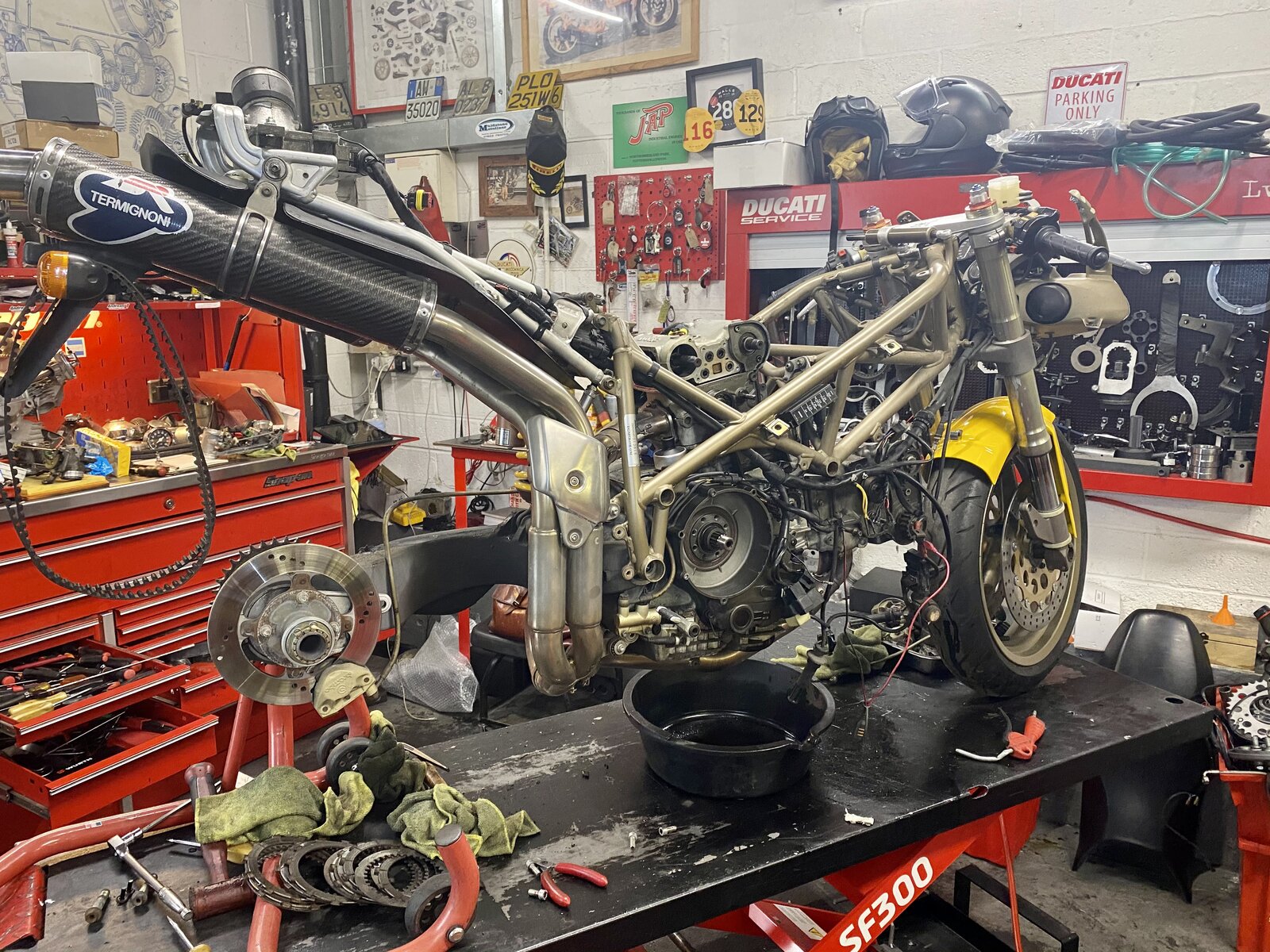

  15. E38F45DA-E0D8-4003-BA20-0F26BAED23E5.jpeg D3067BD8-21DA-4117-ACCF-B0D90C5B9033.jpeg BC261A28-A950-441C-9C2B-6886577D3336.jpeg

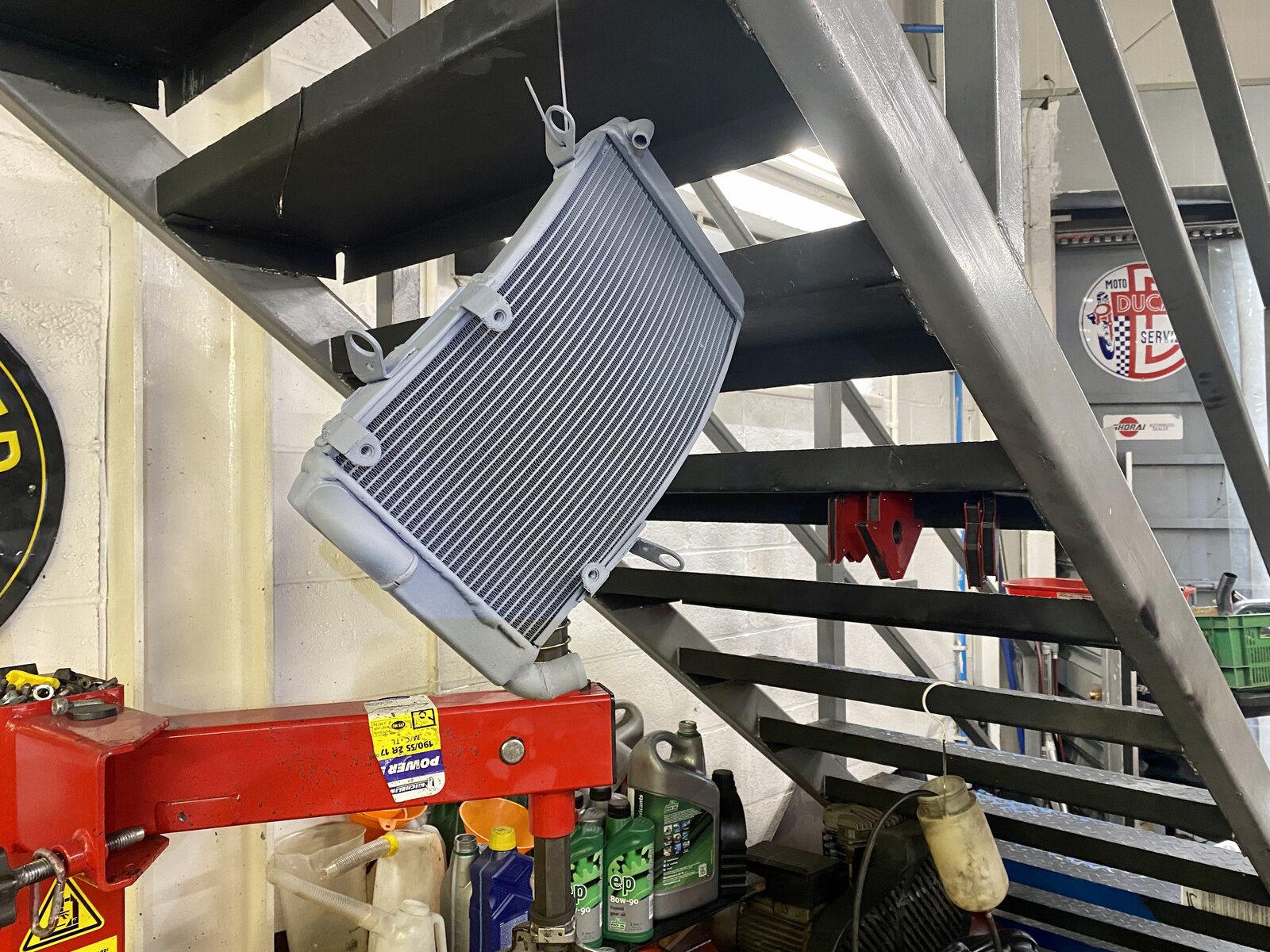

    Radiator was replaced some time ago but with a black one for some reason. Ray has had it painted silver as it should be

    • Like Like x 3
  16. E25EE67A-CBE5-4BB2-BE2C-2E2670CE689D.jpeg 19B3680D-959E-49ED-AE4D-A4D3E9109456.jpeg

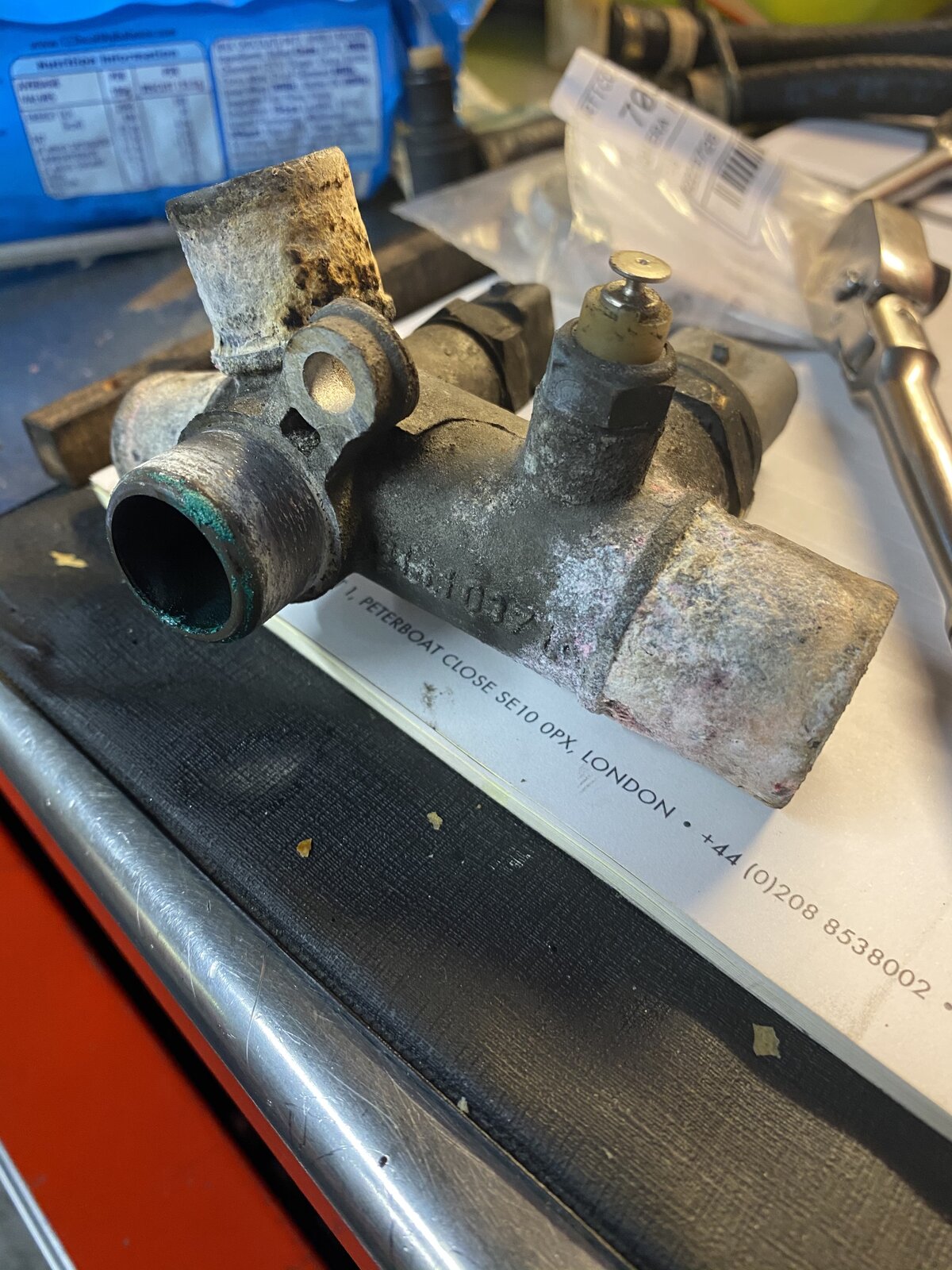

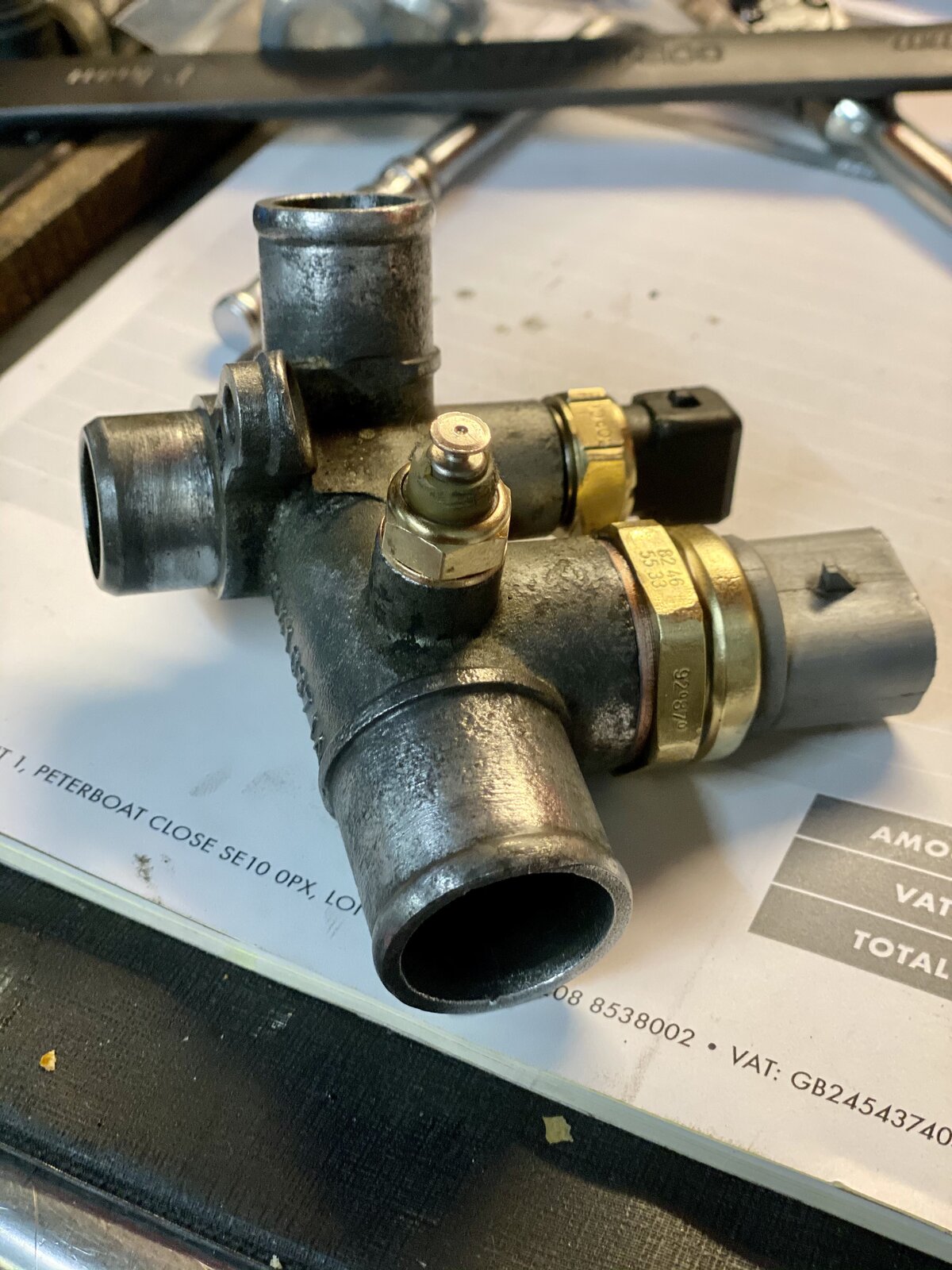

    Main coolant junction, before and after... the corrosion was causing a slight coolant leak..

    • Like Like x 2
  17. 3E362450-BE5C-4A41-A905-8FFBF008855A.jpeg

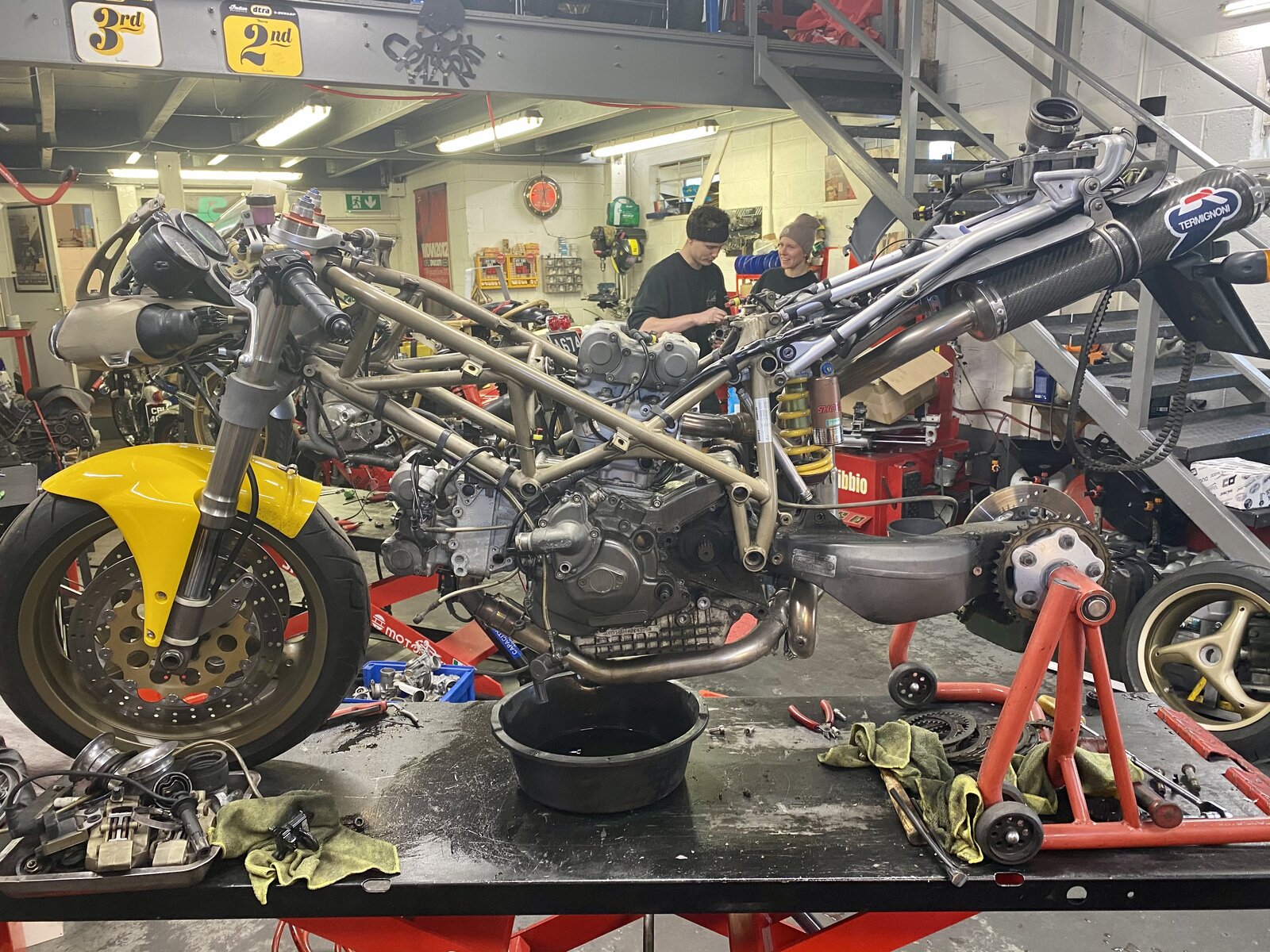

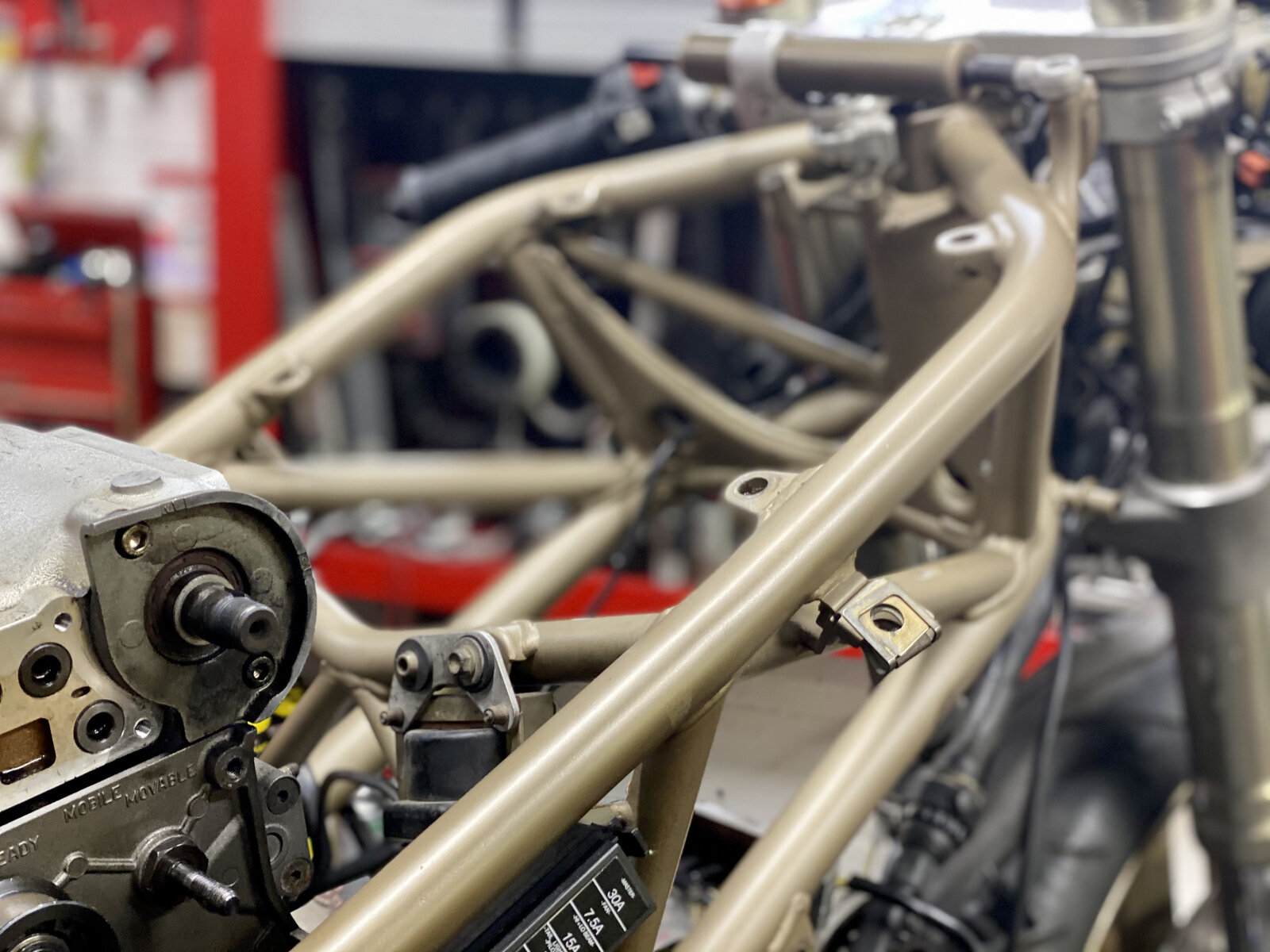

    Chassis deep clean :)

    • Like Like x 3
  18. Lovely seeing it come along

    you must have been so fucked off with someone dropping you bike!
