Bleeding Brakes

Discussion in 'Technical Help' started by Ken Oaff, Jul 10, 2014.

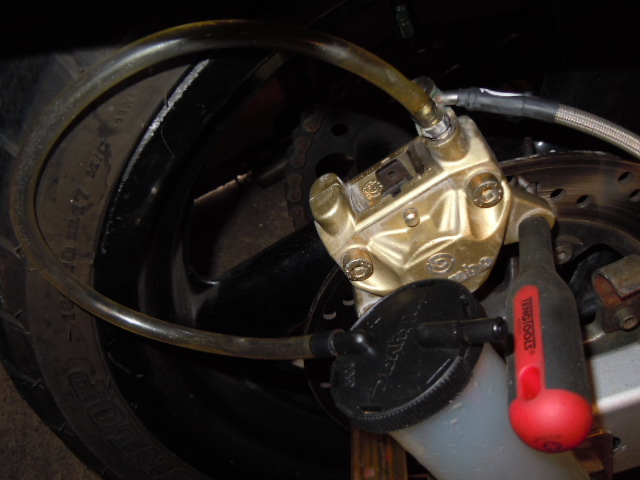

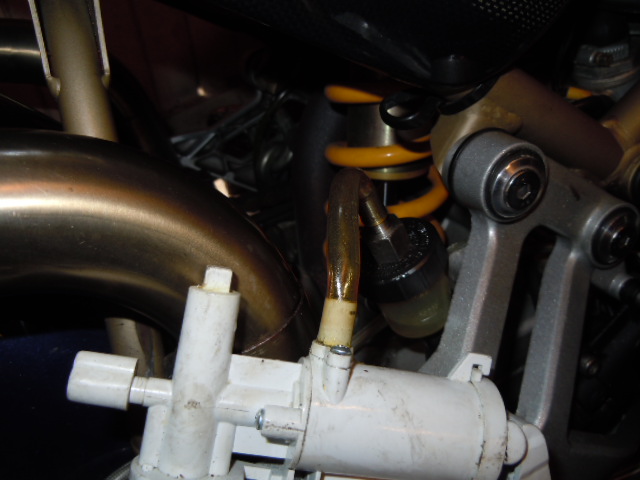

  1. the easy way to bleed brakes is to pressurize the reservoir, (reverse connections on vaccum pump) then with caliper moved so the bleed nipple is at the highest point just open the bleed nipple until fluid comes out

    pictures should be self explanatory




    #1 Ken Oaff, Jul 10, 2014
    • Thanks Thanks x 2
  2. I have one of those pumps. Not used it for years as I kept pinching the tubing for other things. Now the tubing has well...been recycled. You have solved my current rear brake issue potentially. Thanks. :upyeah:

    #2 bootsam, Jul 10, 2014
  3. Very clever system. Nice to see you have made your own reservoir cap connectors.

    #3 PeterT, Jul 11, 2014
  4. Brilliant. Never realised you could reverse the pump. What did you use for the cap connectors?

    #4 EddieDeguello, Jul 11, 2014

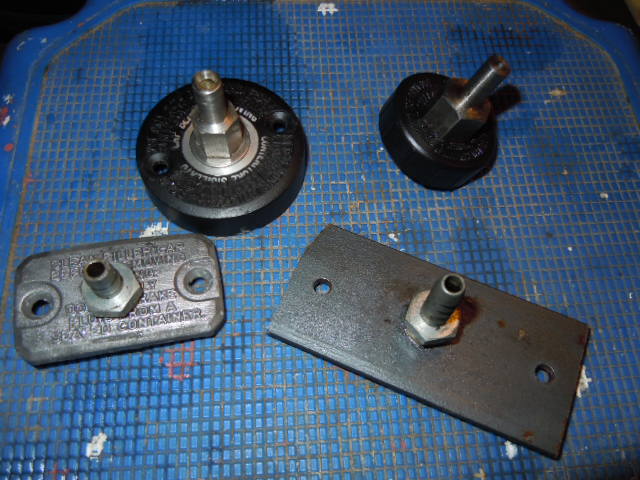

  5. a couple I made up on my lathe

    the others are a 1/4" NPC taper thread hose fitting available at any decent engineering shop, just drill a hole and tap said thread into hole, these taps are also readily available

    #5 Ken Oaff, Jul 11, 2014
