899 Brembo Rcs19 Fitment.

Discussion in 'Panigale' started by Nelson, Aug 13, 2018.

  1. Anyone fitted one to 899/1199?
    Will it fit using the oem starter switch?

    Ta

  2. Interested as I'm planning to do the same. About to sell the gixxer that has one on it. Plan to swap it for the standard 959 unit.
    Cheers,
    Bob

  3. Not that it helps - RCS doesn’t fit on 1098 with standard starter switch.

  4. Ack. Same on my 848. That didn't fit either.

    I'll wait to see how Nelson gets on ;-)

  5. You could adapt this.


  6. Guessing I’m missing something but it’s just a clamp with remote reservoir, why won’t it fit?

    If it doesn’t, maybe move switches to right hand bar? My 848 had that when I bought it (had been used on track)

  7. On 848/1098 the curvature of the lever means it hits the switch before full brake pressure is applied.
    The clamp physically fits but it’s the fouling of the lever that is the issue.
    Not sure about 899 though. Could be similar, might not be though.

  8. Knock the locator lug off the switch and move it left and use tape so it grips bar, or buy longer bars?

  9. I’ve put an RCS on mine. Couldn’t get it to fit anything like with stock switchgear in place. BDS switchgear was/is an option but pricey. I’ve brought a few switch sets in from Italy that act as the clamp for the master cylinder. Look pretty smart and come prewired. Work a treat. I’ll get a picture up here

    • Thanks Thanks x 2
    • Like Like x 1
  10. From everything I’ve seen online you will need a thinner switch housing.

    • Agree Agree x 1
  11. Cheers Nelly.
    Very interested in any solution that doesn't involve a £174.00 switch!

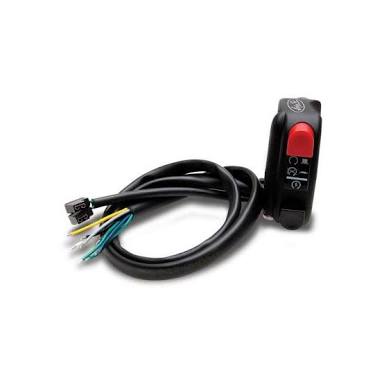

  12. ANY switch housing will work on any bike. Look at the honda/Aprilia housings, I think they are rather fancy looking and also a much thinner profile than the duc unit

    Pic because I’m nice...
    this one is by motion pro.
    Domino
    Corse dynamics

    • Thanks Thanks x 1
    • Like Like x 1

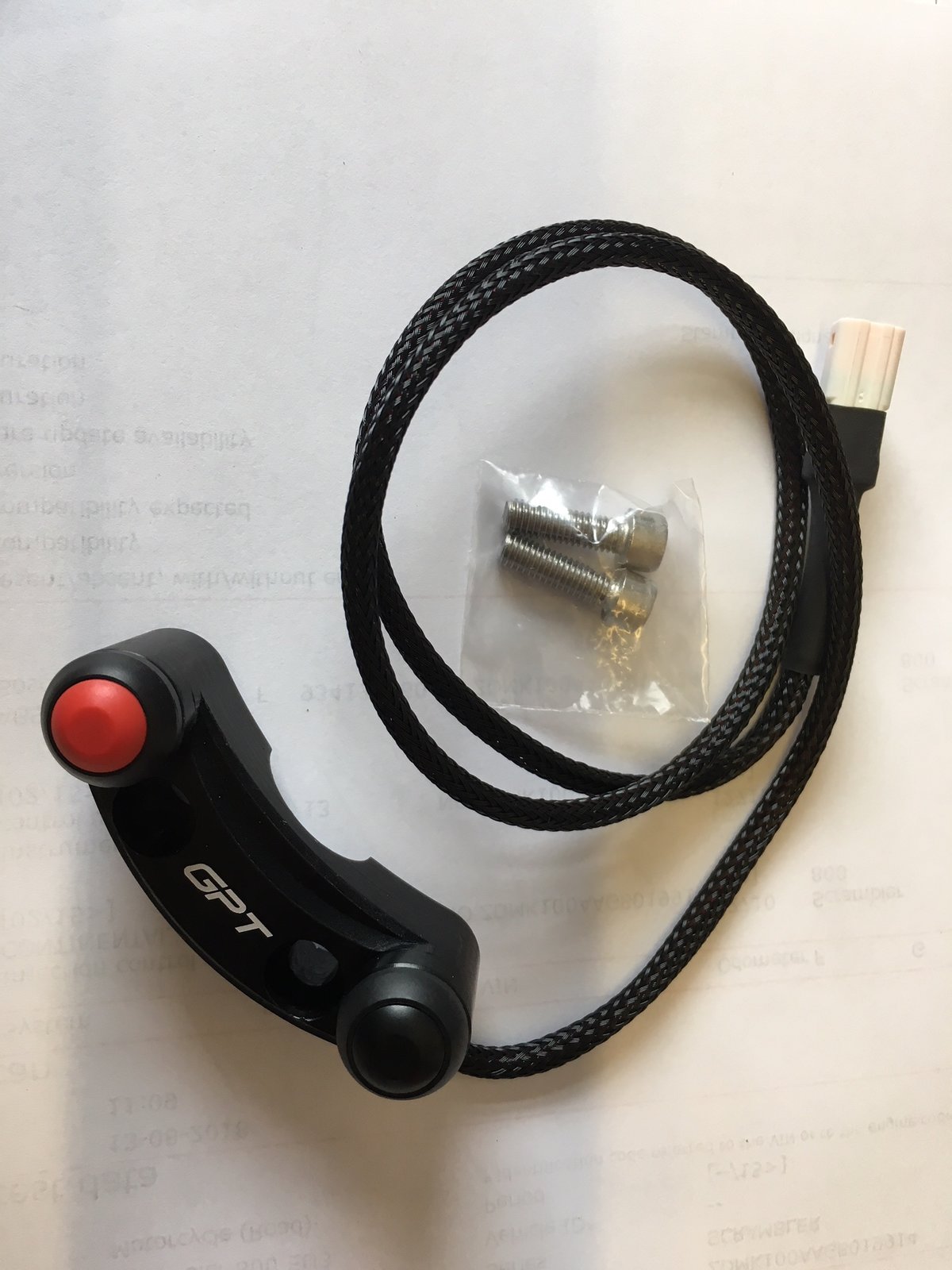

  13. These are the ones I have. Billet alloy, prewired and replaces m/cyl clamp. Red is the latching run/kill switch and black the push start. £80 inc. I don't have my bike at the workshop, but i'll get a pic of it fitted if you want one :)


    • Like Like x 3
    • Useful Useful x 1
  14. @nelly, are you stocking these and would it fit the 848/1098/1198 family ? Cheers, Andy

  15. Full on factory look that :upyeah:

  16. @Android853sp, yep. Got a few in but they don't fit 1098/848, or at least they aren't prewired for them. Sorry. There is universal option but it would need wiring to the multiplug.
    The ones I have are for Panigale, MTS12 (gen1 & 2), SF848/1098, HYM, M821/1200. They use the small white connector as in the photo.

    • Like Like x 2
    • Thanks Thanks x 1
