749 Ecu Fault Codes?

Discussion in '749 / 999' started by bluey, Oct 30, 2015.

  1. Hi

    I assume it is possible to read the codes on my 749s?

    I have held down the left button on the dash and switched on the ignition but no fault code appears on the dash. I have a misfire at very low revs and throttle position and I want to check the codes.

    Or do I assume as no code is displayed that I have no ECU stored fault?

    Cheers,

    Bluey.

    #1 bluey, Oct 30, 2015
  2. Only works if the yellow MIL is illuminated

    For stored codes you need diagnostic software

    #2 chrisw, Oct 30, 2015
    • Like Like x 1
  3. Ah ha. Brilliant, thanks.

    #3 bluey, Oct 30, 2015

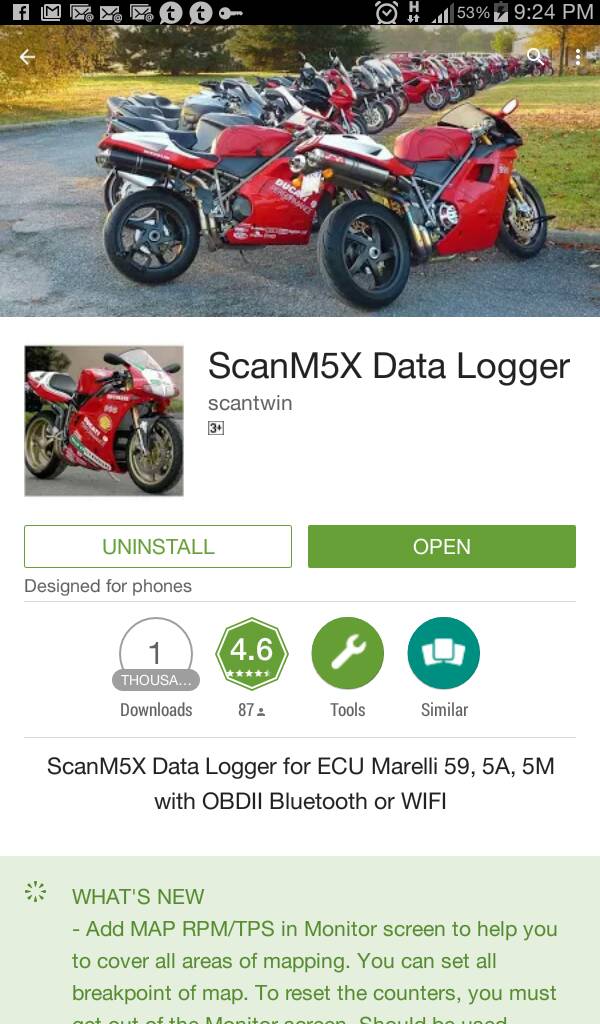

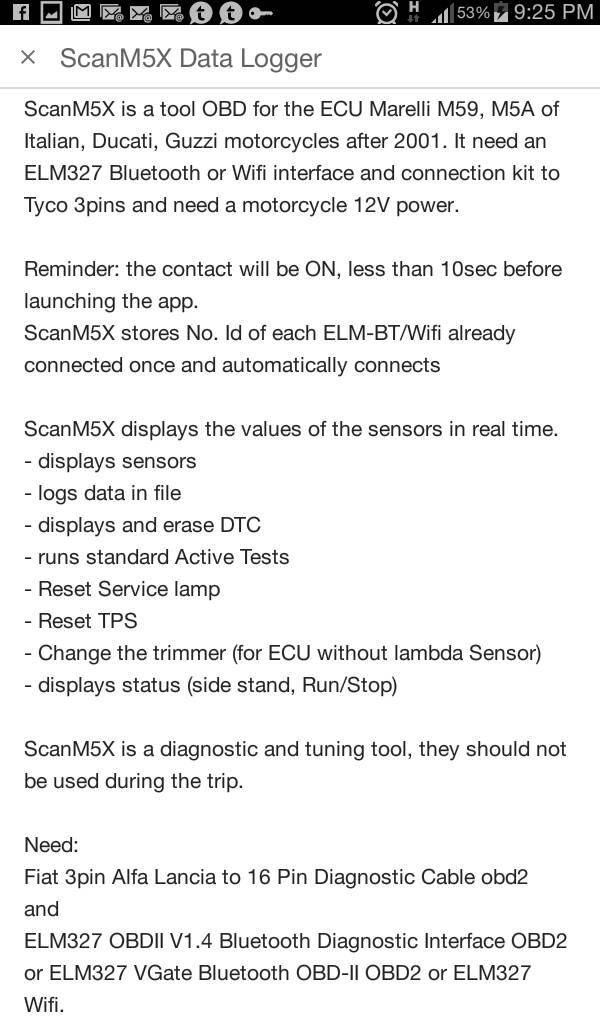

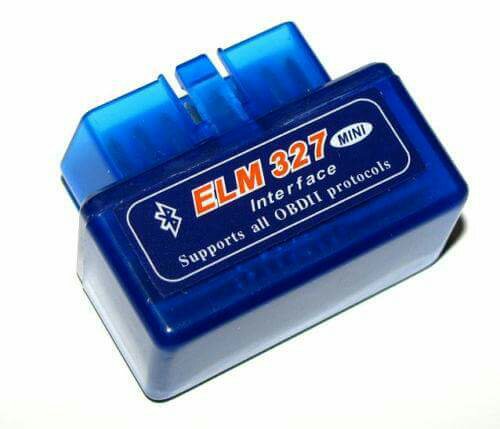

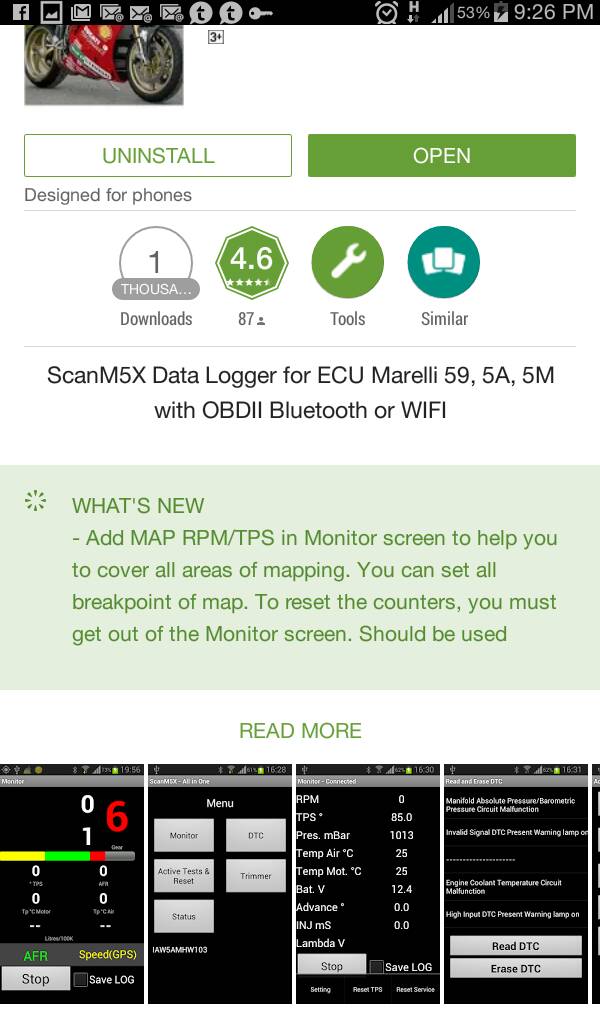

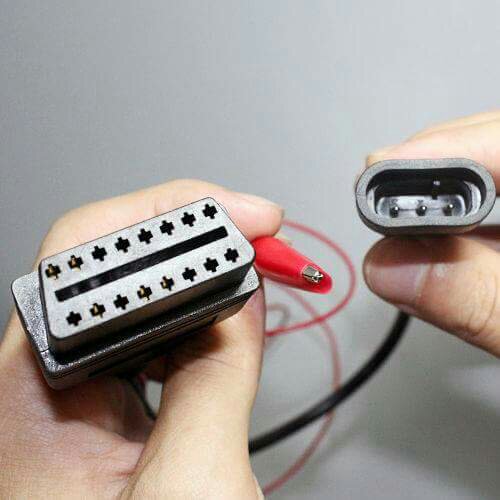

  4. Something the dealers won't tell you is that there is free Android software out there and only requires a smart phone or tablet for the ScanM5X software plus two eBay items: Fiat 3 Pin Alfa Lancia to 16 Pin Diagnostic Cable OBDII and a ELM327 v1.5 OBDII Bluetooth Adapter Auto Scanner. See the photos below

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    #4 WarpRacer, Dec 4, 2015
    • Like Like x 1
    • Useful Useful x 1
  5. I meant to add that this has been used successfully many a time on my 999S. The bluetooth adaptor and cable are not expensive at all.

    #5 WarpRacer, Dec 4, 2015
    • Useful Useful x 1
