Ecu Help

Discussion in 'Technical Help' started by Cupid Stunt, Jul 28, 2017.

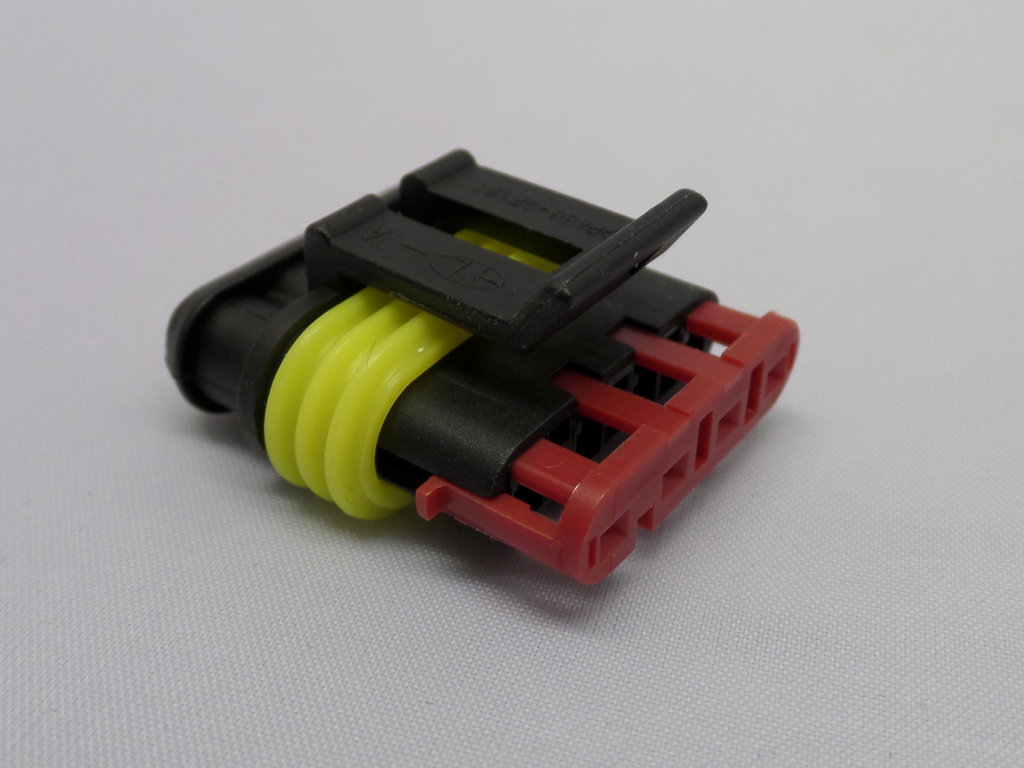

  1. Well I took the LHS fairing off my 1198 today located the ECU just under the battery but where the hell is this little plug ? Amp_4_Way_Superseal_Female_Connector_Front.JPG

    #1 Cupid Stunt, Jul 28, 2017
  2. If you are after the diagnostic port it is to the left of the ECU. It should have a protective cap on it.

    #2 chrisw, Jul 29, 2017
  3. #3 chrisw, Jul 29, 2017
  4. Its not there Chris, I thought I had found it but ir was the thirty amp fuse cap.

    #4 Cupid Stunt, Jul 29, 2017
  5. It is attached to the left hand ECU connector. Just trace the wires back a and you will find it.

    #5 chrisw, Jul 29, 2017
  6. That's what I did with the 848 evo found it no problem. This 1198 looks like it's got a cap on the outlet of the ecu and no wire.

    #6 Cupid Stunt, Jul 29, 2017
  7. #7 Android853sp, Jul 29, 2017
  8. Oh Chris you gave all the dash readouts once mine says SBK 1198 TSE. I thought the standard ECU would just say SBK 1198

    #8 Cupid Stunt, Jul 29, 2017
  9. Thanks Andy

    #9 Cupid Stunt, Jul 29, 2017
  10. SBK1198TSE is the stock ECU message

    #10 chrisw, Jul 29, 2017
  11. That looks like a plug for lights.

    #11 triari, Jul 29, 2017
    • Useful Useful x 1
  12. There it is!

    #12 RickyX, Jul 29, 2017
    • Funny Funny x 1
