1260 Full Termi Hanger Bolts - Which Order?

Discussion in 'Multistrada' started by freshage, Sep 4, 2024.

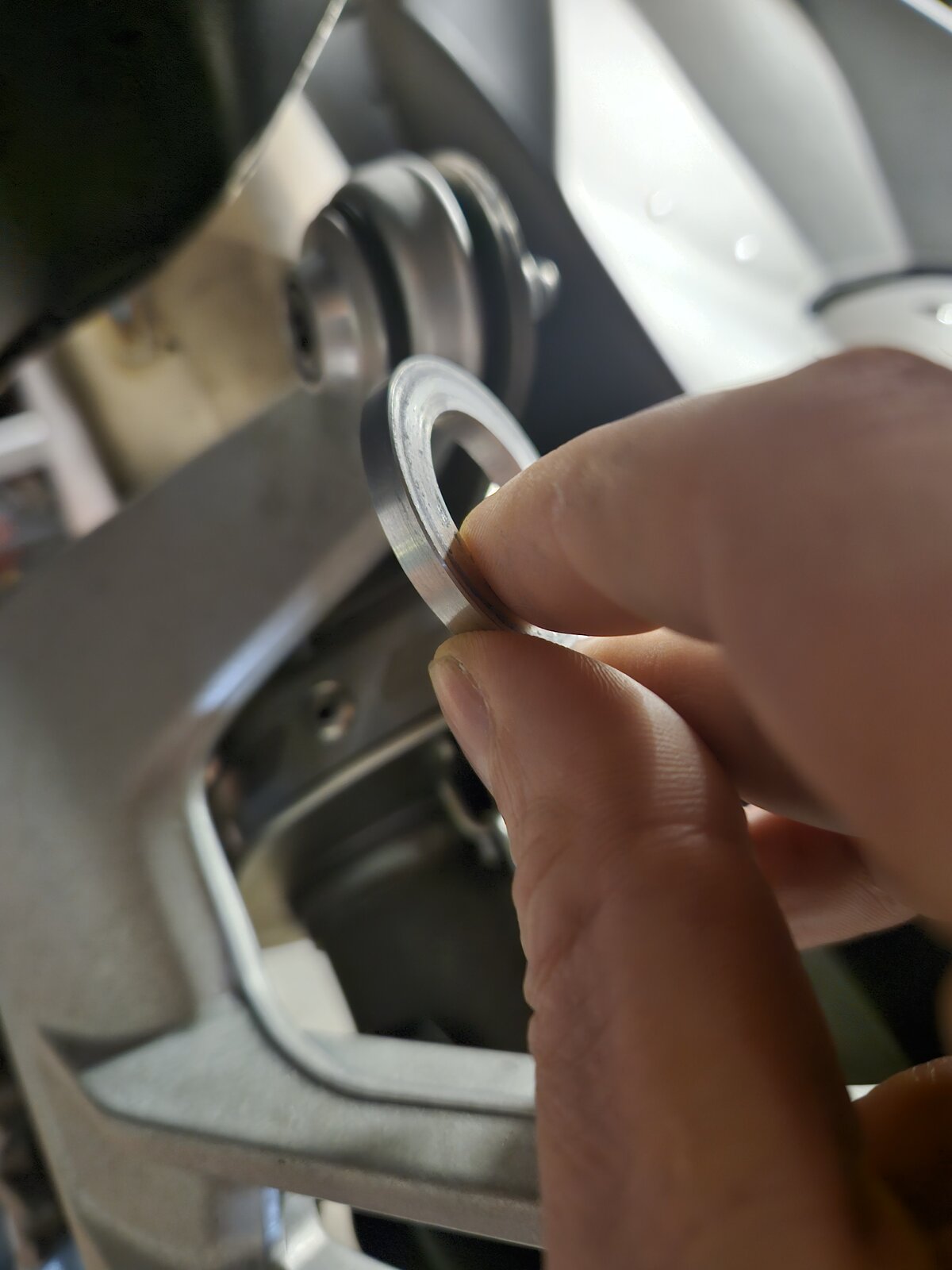

  1. Has anyone got a full termi and can tell me where the aluminium ring goes amongst the two rubber grommets, spacer, bolt, nut and washer for the pillion RH peg mounting?

    As far as I can see, it doesn't, but clearly it came from there as I took it off :D

  2. Search some images, but I’m sure it’s just a nut on the rear of the hanger and the bolt sits in a cup at the ‘front’ and has a washer separating it from the pipe.

    So, bolt, cup, washer, pipe then nut.

    Does that make sense?

    • Like Like x 1
  3. I don’t know if this contradicts my post:

    [​IMG]

    • Like Like x 1
  4. Then yes, the part I'm curious about isn't shown... Spare parts box it goes then.


    I have nut and washer on the backside of the exhaust mount and rubber, footpeg, rubber, collar, bolt on the outer side of said mount.

  5. Is it a spacer that moves the can away from the tyre ?
    I’m not near mine so I can’t check :)

  6. I'm honestly not sure, the can looks aligned nicely so I don't think so.

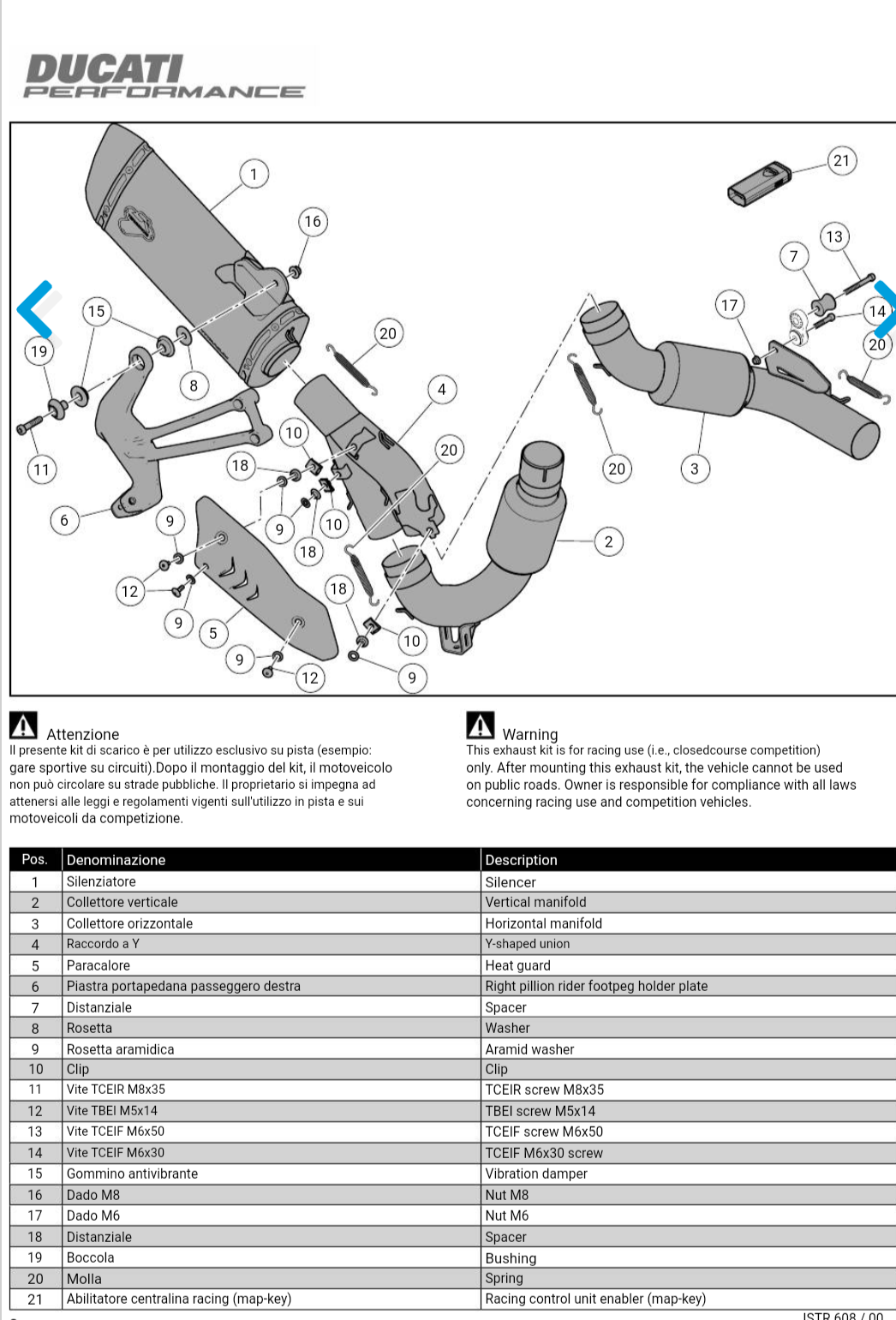

  7. Does this help? Screenshot_20240913-220908.png

    • Like Like x 2
