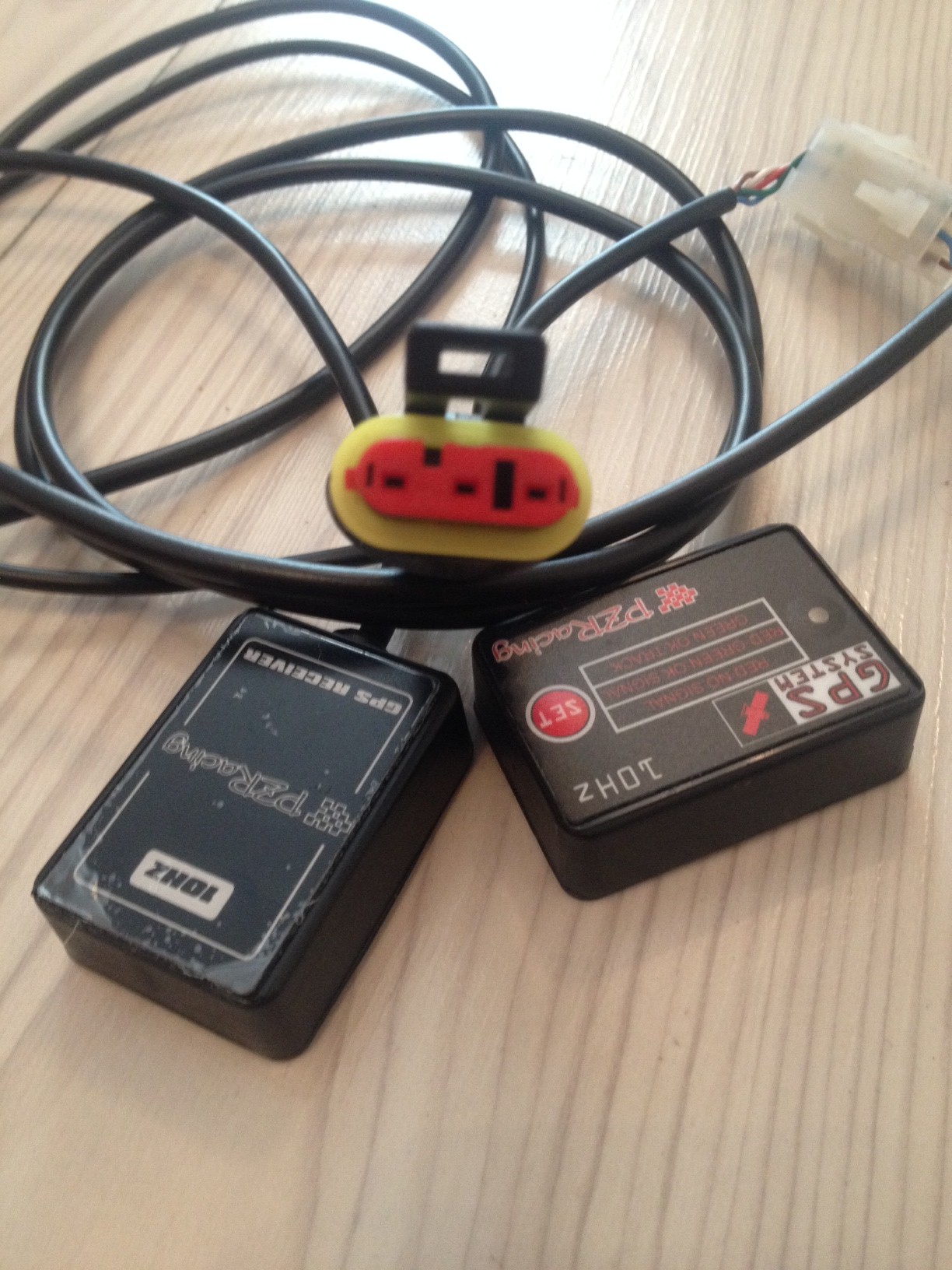

Hi. I bought a GPS laptimer from pzracing but the installation instruction is not clear. Quote from manual : "Fit the Desmotronic connector to the special input of your motorcycle... " Does anybody know where the special connector is located ? I had a look and can confirm that it is not the diagnostic port ( just below the ecu ) and neither where we connect the DDA ( under the passenger rear seat ). I have attached a picture of the connector. Many thanks
Sorry, the bike is a 848 evo corse. Thanks for the tip. I will remove the front fairing and see if I find it.
Look behind the headstock, or infront as I can`t remember which it is, and you`ll see the socket with a blank plug in it. For the best results you`ll want the DDA USB stick as well.
If you can't find it email Paolo Marchetti on PZRacing - Technical office <[email protected]> his English is perfect and he helped me when I set one up initially on a 748.

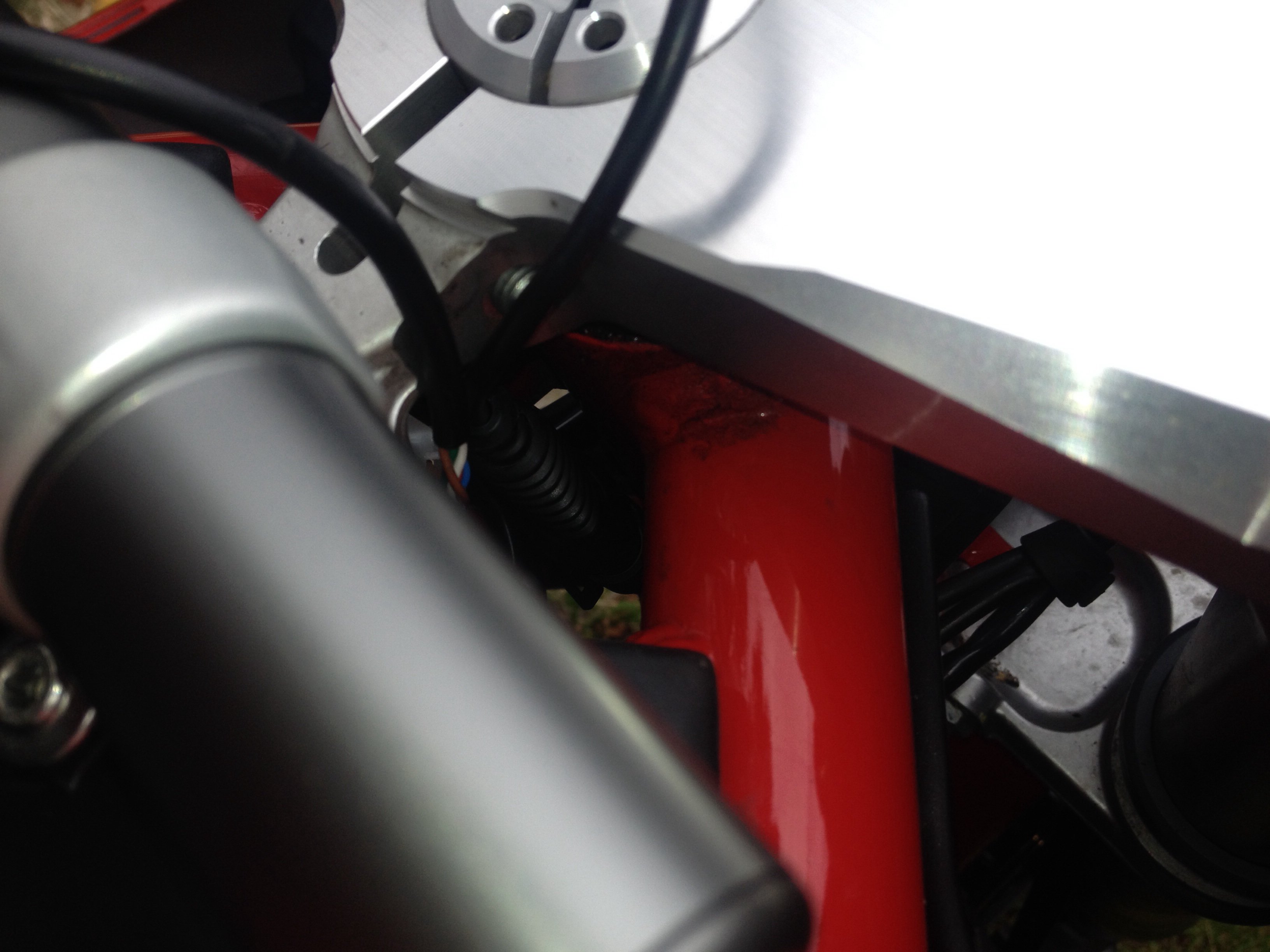

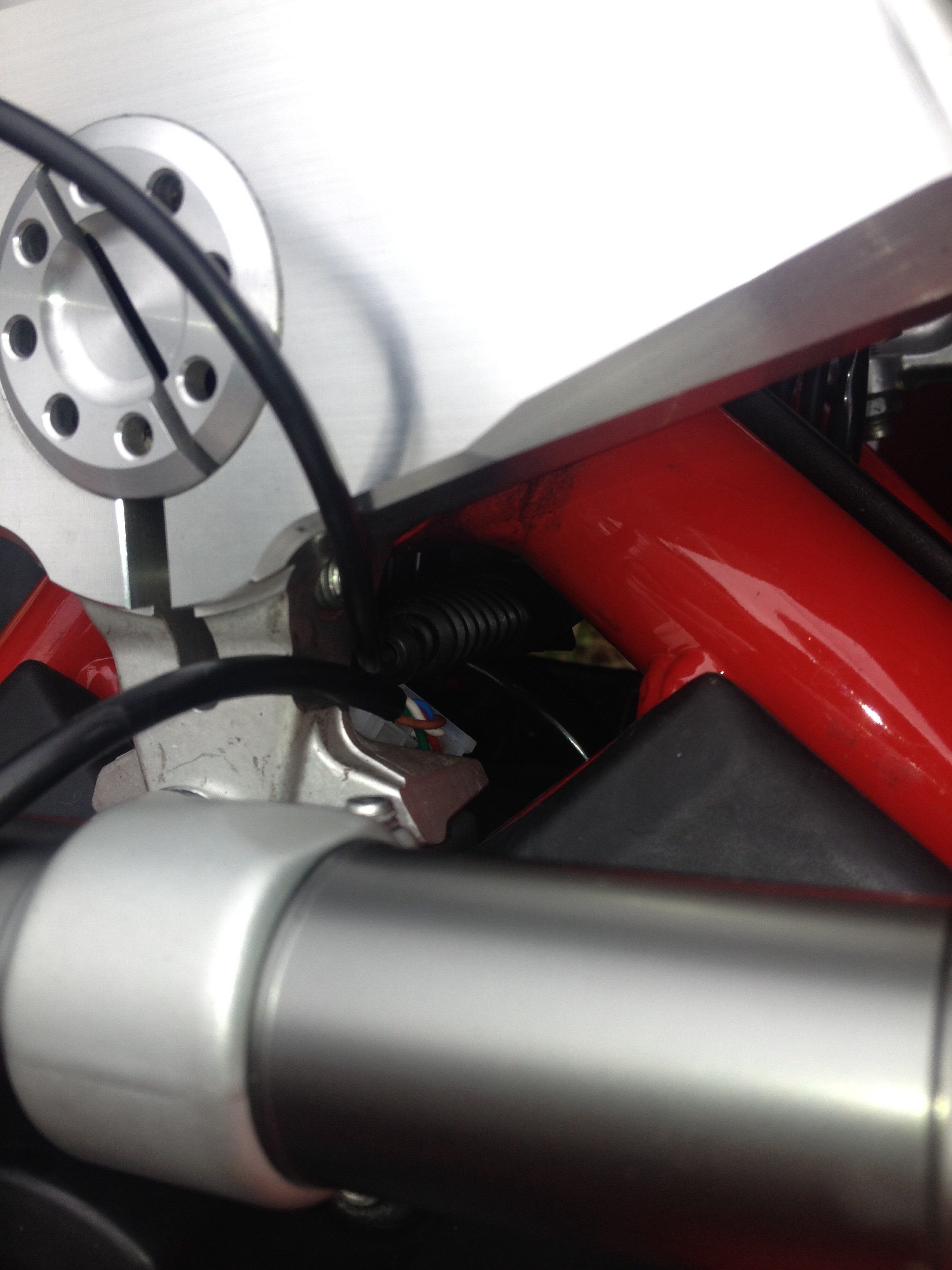

Hi guys , I managed to install it. The connector is just behind the headstock . If you look down between the tank and the top yoke you will see it. See pic.
