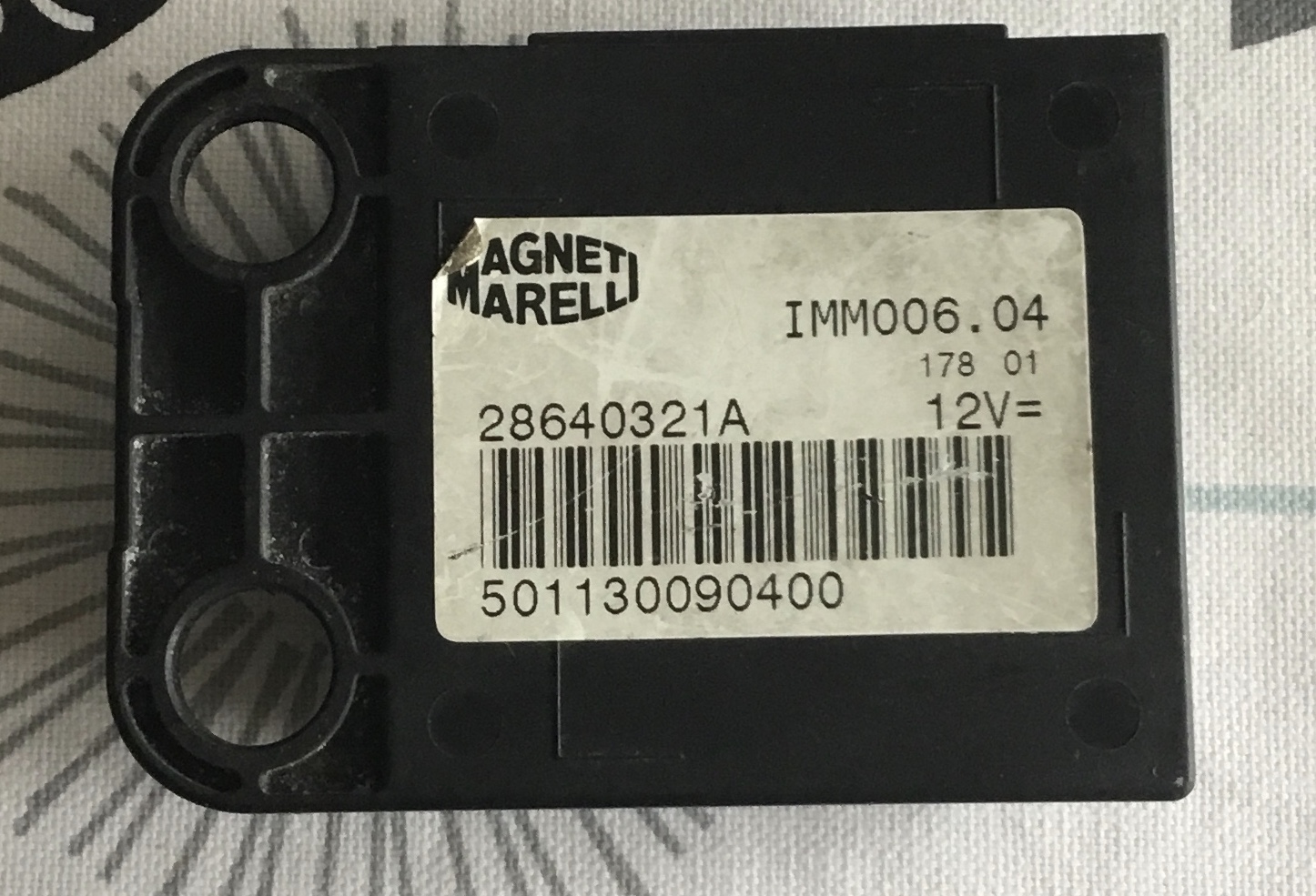

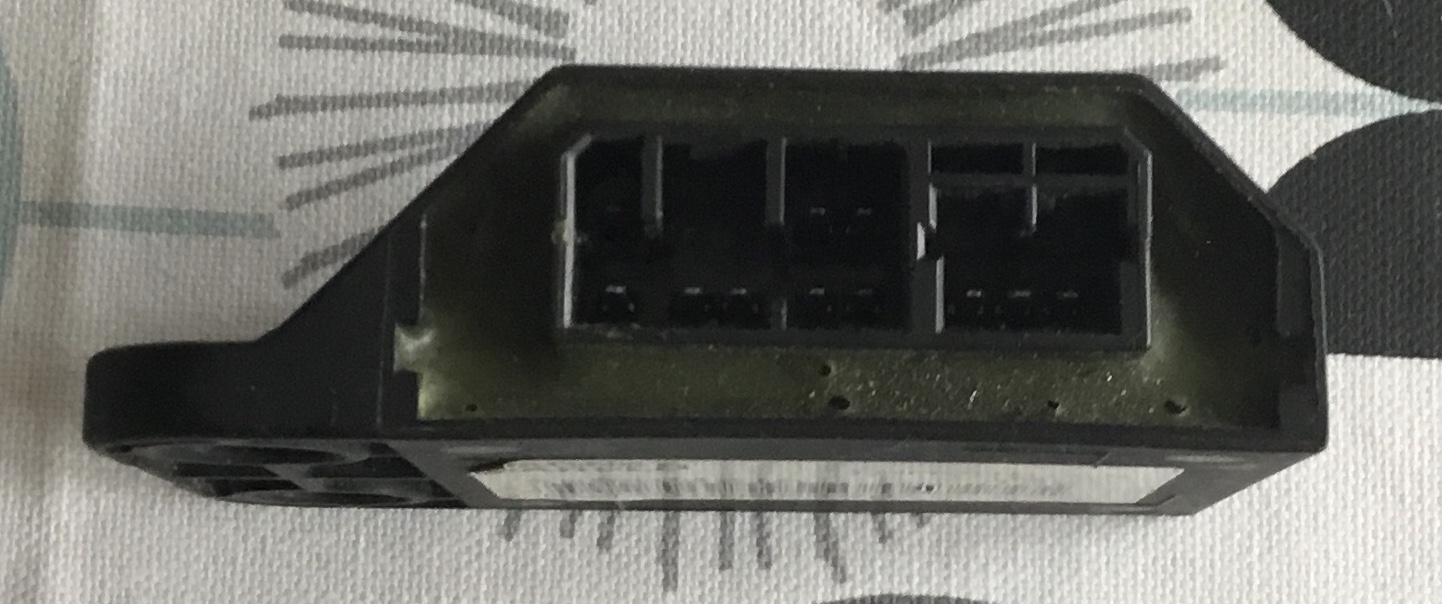

This is a used but virgin IMM006.04 Part number 28640321A As fitted to the ST4S and early monsters using the IAW59M ECU The Virgin units go for silly money when new The red key and two black keys are required for programming £40 inc P&P
Programming Immobilizer Control Unit • Insert red key into ignition switch and wait for at least 30 seconds. • Turn the key to on. Led light will turn on. • Allow the led light to turn off and turn ignition switch to off within 1 second. • Remove the red key, insert a black key and turn the ignition switch to on within 15 seconds. • Allow the led light to turn off and turn ignition switch to off within 1 second. If additional black keys need to be programmed, repeat above. • Remove black key, insert red key and turn ignition switch to on within 15 seconds. • Allow the led light to turn off and turn ignition switch off within 1 second. • Allow a minimum of 30 seconds before you turn the ignition switch to the on position. • To check for proper key storing insert the red key after 30 seconds. Turn key to on and make sure that the led sends a 0.7 second pulse and then a series of pulses as the number of stored black keys, including the red key.
