748 Is This A 748r Clutch.....

Discussion in '748 / 916 / 996 / 998' started by Zhed46, Sep 29, 2015.

  1. Wot is fitted to my 900ss ie?

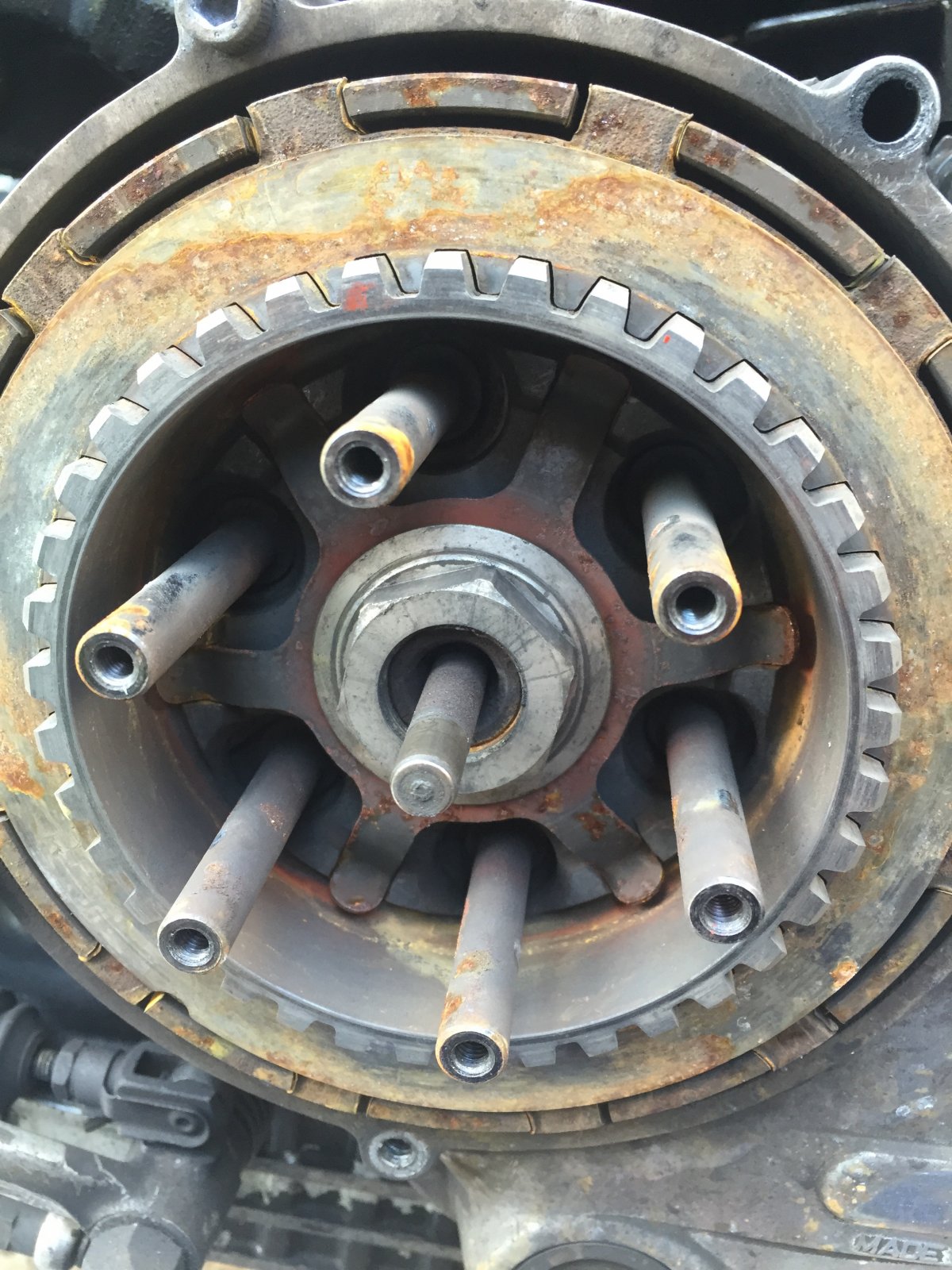

    The guy I bought my (heavily modded) bike off said the owner before him had fitted a slipper clutch. I took this with a pinch of salt because it didn't feel like a slipper clutch, and having owned a 748R and crashed it because I wasn't used to the free-wheeling effect of a slipper clutch, I know what they feel like, but lo and behold, this is what was behind the pressure plate when I took it off.

    Just want to check before I buy a clutch pack.

    Thanks


    #1 Zhed46, Sep 29, 2015
  2. Sadly the only way to tell is to strip the whole thing down. Andy PS have sent you some information.

    #2 Android853sp, Sep 29, 2015
  3. looks like the standard ramp slipper 748r clutch rather than a standard 748 clutch, someone with better tech knowledge will confirm or deny

    #3 Chris.P, Sep 29, 2015
  4. All he needs to do is look at the inside of the pressure plate.
    No teeth = slipper
    Teeth = not a slipper

    #4 deleteduser211220, Sep 30, 2015
  5. Oh it's defo a slipper as it has a spider and the pressure plate has no teeth but what I want to know is, is it a 748R slipper?

    #5 Zhed46, Sep 30, 2015
  6. If it has three balls and ramps it's likely to be from a 748R as all the aftermarket ones that I have ever come across have 4 ramps\balls. It could also have some markings on it that would indicate it is Ducati OE.

    #6 Red998, Sep 30, 2015
  7. I think 748R original slipper is 3 ramps, no balls - same as 749R.

    #7 RickyX, Sep 30, 2015
    • Like Like x 1
  8. My old 748R was bereft of balls...

    #8 Nelson, Sep 30, 2015
  9. That's correct, the 748R clutch is ramp only and not very subtle in its operation

    #9 ducv2, Sep 30, 2015
  10. This one was subtle in its operation as I didn't even notice it was a slipper clutch until I took the pressure plate off! :p

    #10 Zhed46, Sep 30, 2015
  11. All the ones I've seen have 6 balls

    #11 deleteduser211220, Sep 30, 2015
