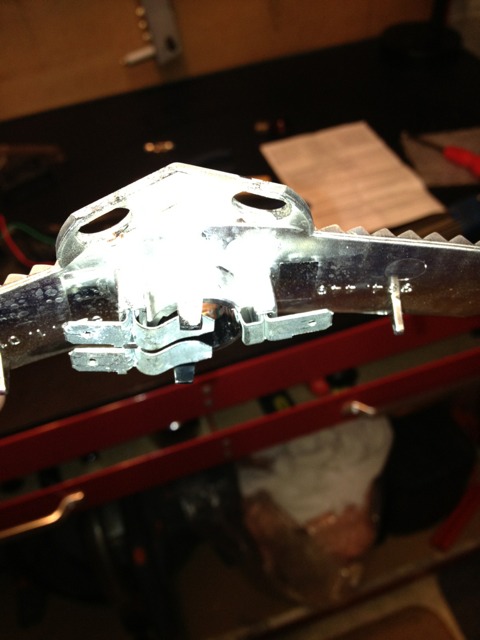

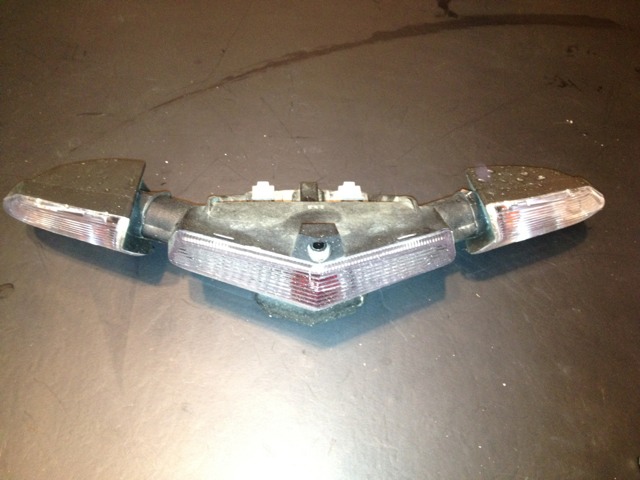

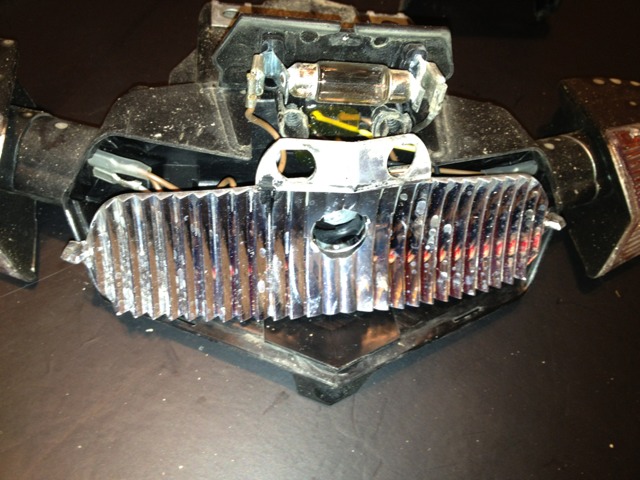

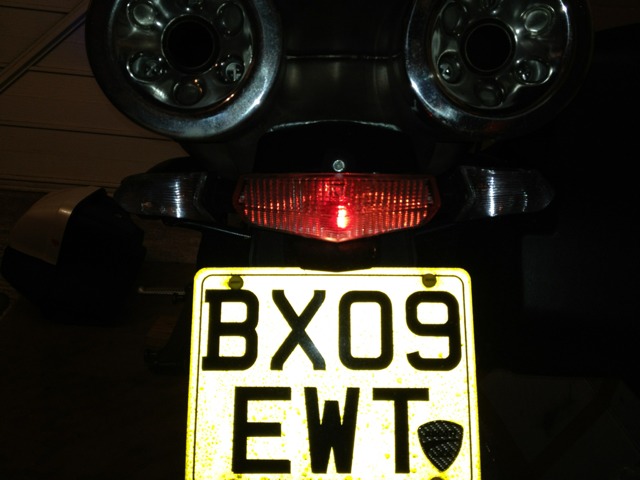

Hi all. Just fitted an LED light board from Project R onto my bike. Did some pics of the install incase anyone might be interested. 1, the light as it was after I fitted the clear lens and red bulb. Android commented that it wasn't very bright, on our recent ride out. So, I removed the rear light unit. One screw above the light and 2 under the mudguard. 2 screws on the back and the cover comes off. I then slid off the reflector, after removing the bulb and unplugged the wires from behind. More to follow.........

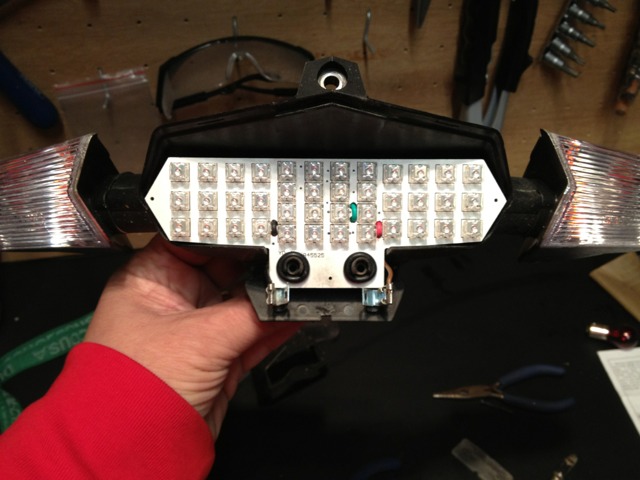

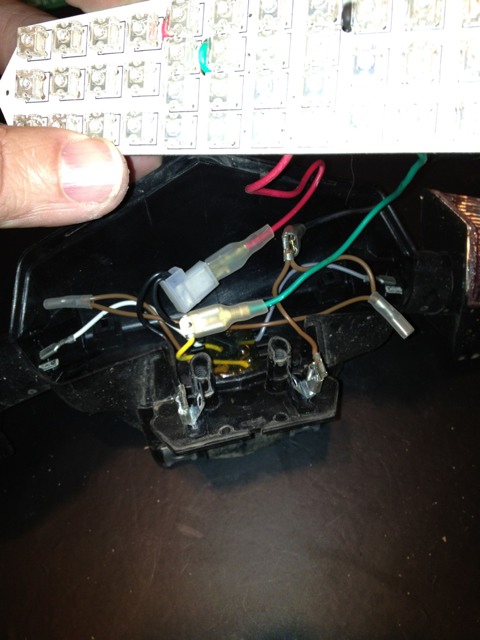

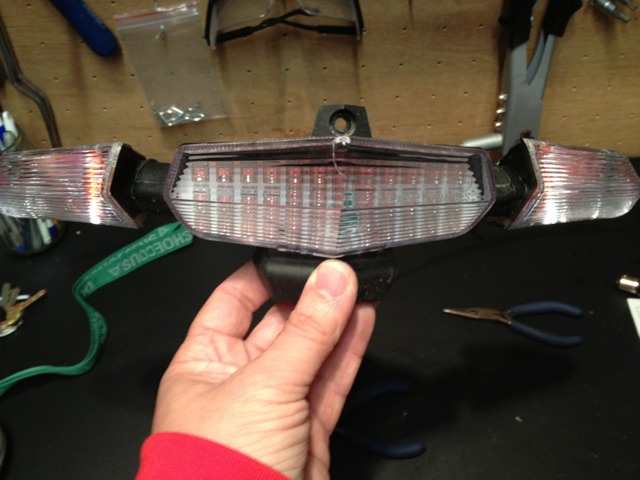

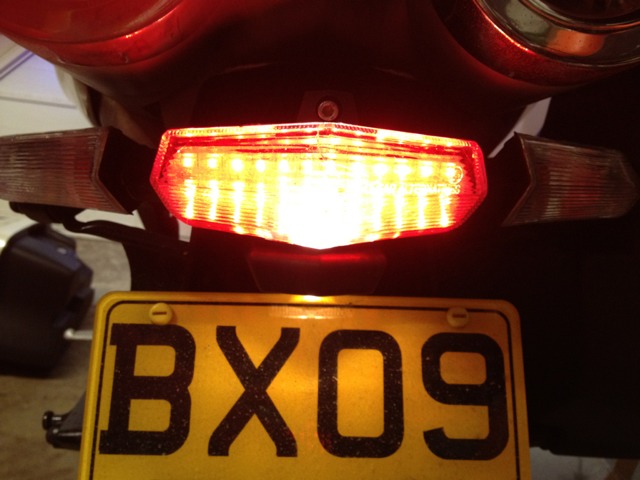

I connected the wires as per the instructions Slid the light board onto the post where the reflector sat Refitted the clear lens Refitted the unit to the bike and gave it a try The light is bright but the brake light is REALLY bright! Just looking for LED bulbs to replace the filament ones in the indicators now. Thanks for reasons and comments welcome. Pete
