1200 Leo Vince Decat

Discussion in 'Multistrada' started by Beef, Mar 24, 2019.

  1. Well, after the chore of cutting out the rear shock bolt out, changing all the fluids, refitting the forks after spring change & service, I started the bike up only to find the weld around the small silencer on the Leo Vince decat pipe has a cracked weld. Anyone else had this happen?



  2. No, but I have to check mine tomorrow as I have to take the wheel off as I have a puncture

    • Like Like x 1
  3. How old and miles?

  4. 2012 bike - decat fitted straight away. 36000km (just over)

  5. mine is ok no cracking, I think you should ask Leo Vince for an answer

  6. 7 yrs on isn’t bad going - plus it’s an easy repair
    Do you have the LV end can that’s mounted to the frame or stock /termi slip on that just clamps on?

    • Like Like x 1
  7. this is a manufacturing fault in my eyes, it clearly is a stress crack not fatigue. 7 years or not but he does not say that it is that old and I think he is entitled to a new one

  8. The bike is a 2012 & the decat was fitted just after I bought the bike. I have the standard slip on end can.
    It is an easy fix (for a welder) I just wondered if anyone else had this happen and if there was any suggestions to modify it so that it doesn’t happen again. My mate makes exhausts so I am going to get him to make me something a little quieter as it gets a bit much when you’ve been riding all day. Decat & standard can is way louder than any other end can I’ve heard.

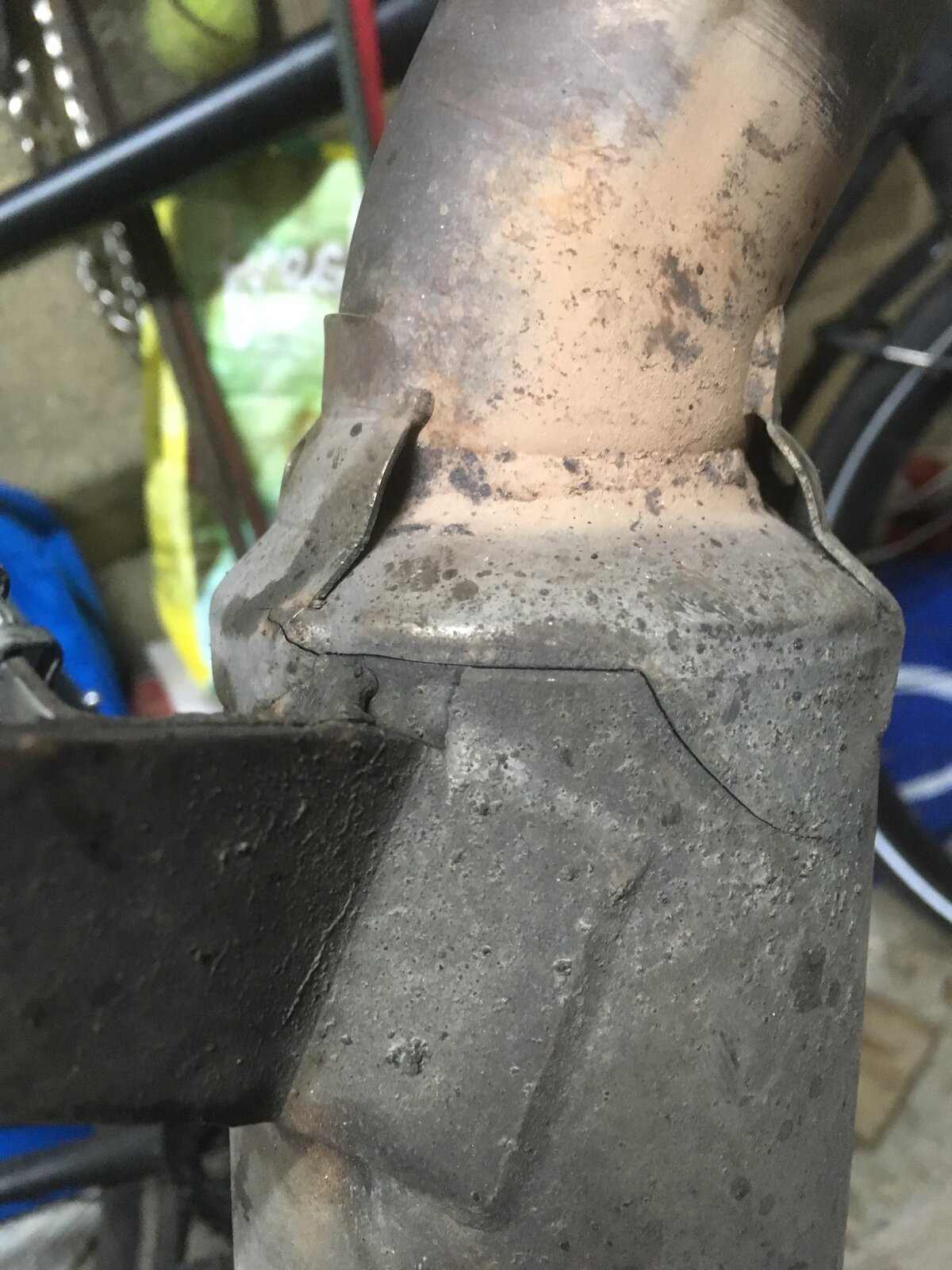

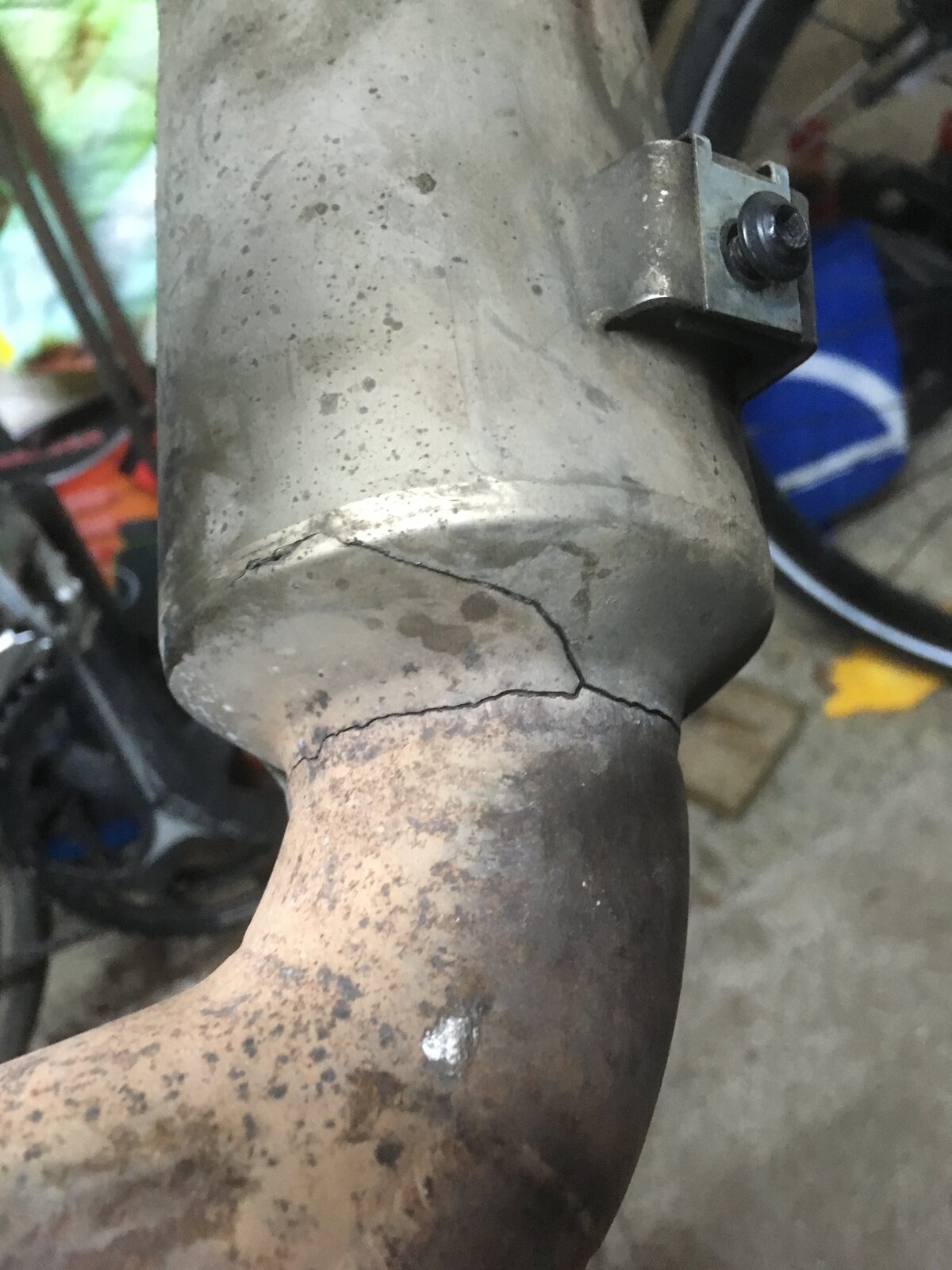

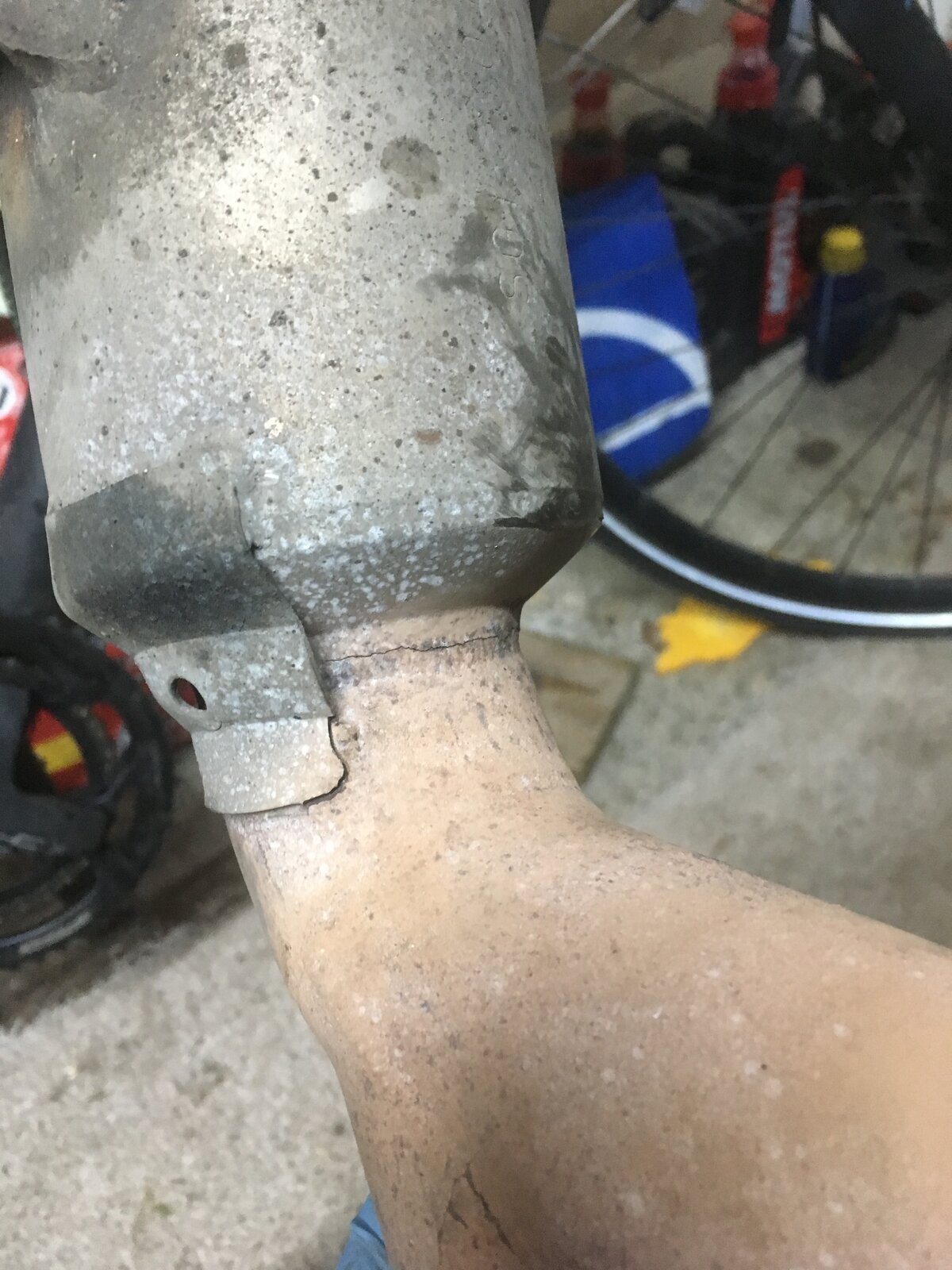

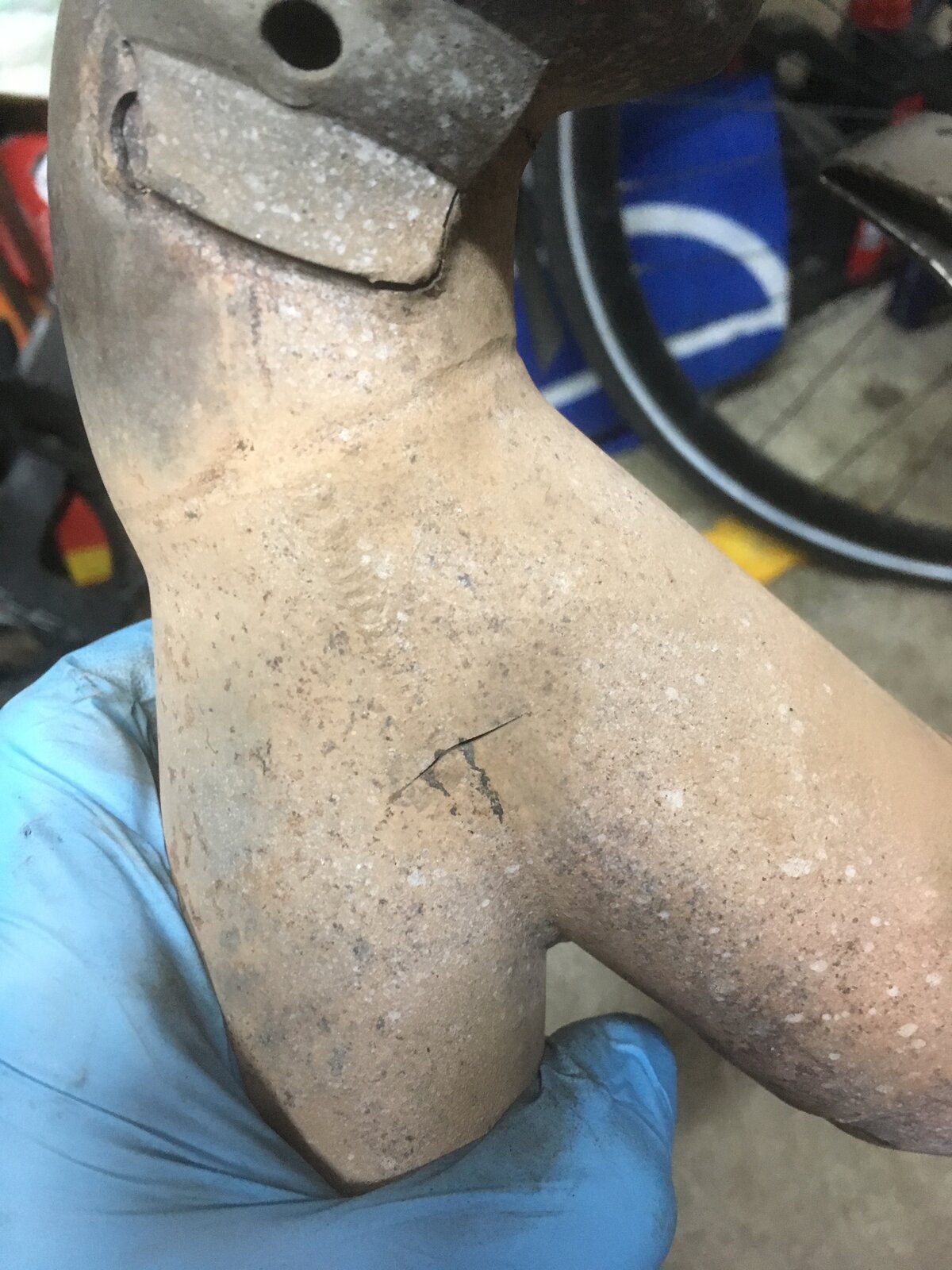

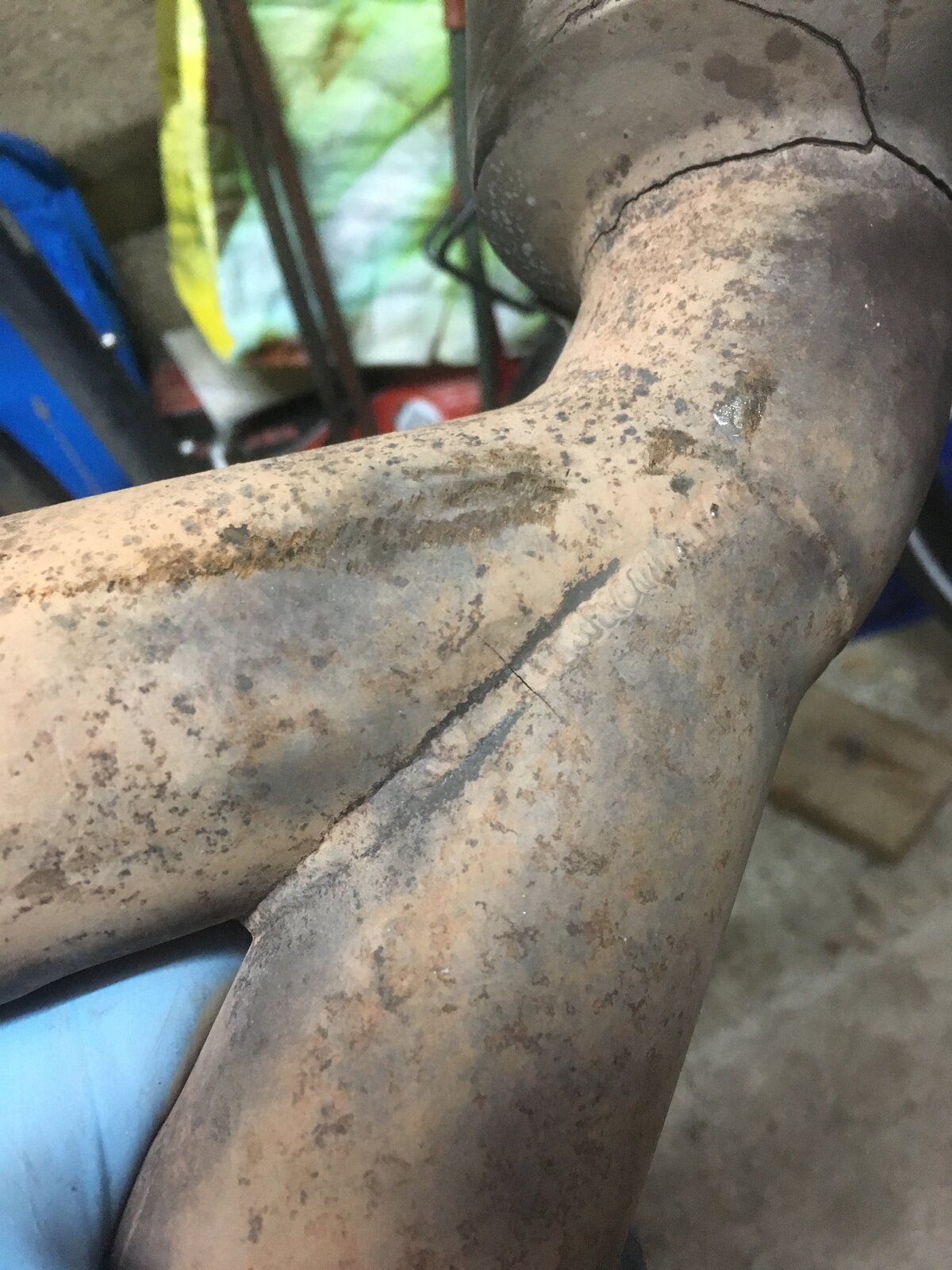

  9. 5DEB3CDE-EBFD-4D4E-87C0-ED31B88C676C.jpeg F862A001-E617-48E6-BB7E-3D40F84FE713.jpeg 72EC7209-2A2C-434D-A3DA-26D436EBE51A.jpeg C620EF38-910F-410B-9FB2-EB8325433EAE.jpeg F11FD0D1-4C84-4DF8-9D25-A347323056B4.jpeg Got the decat off to take to my mate to weld up tomorrow, more of a mess than first expected.

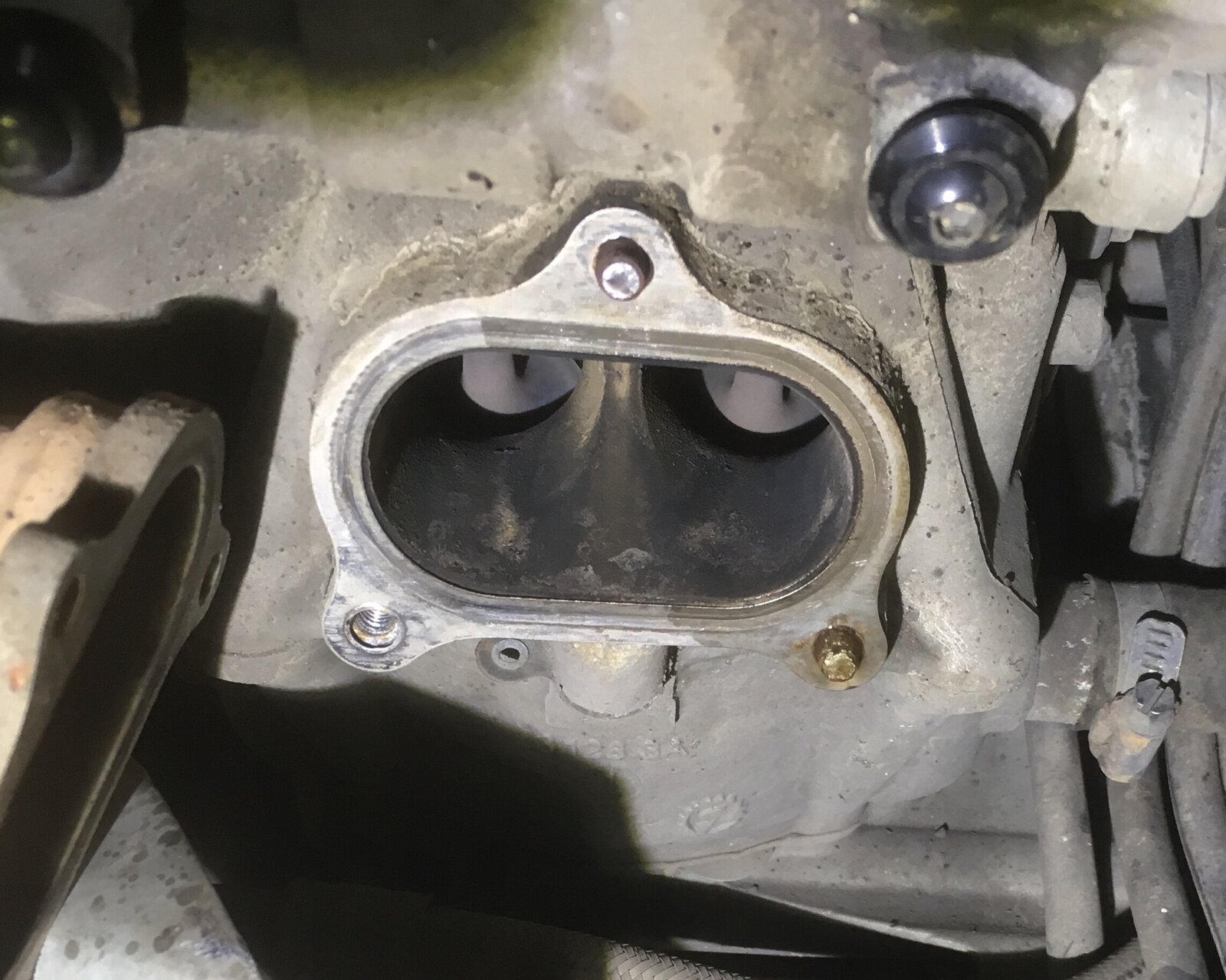

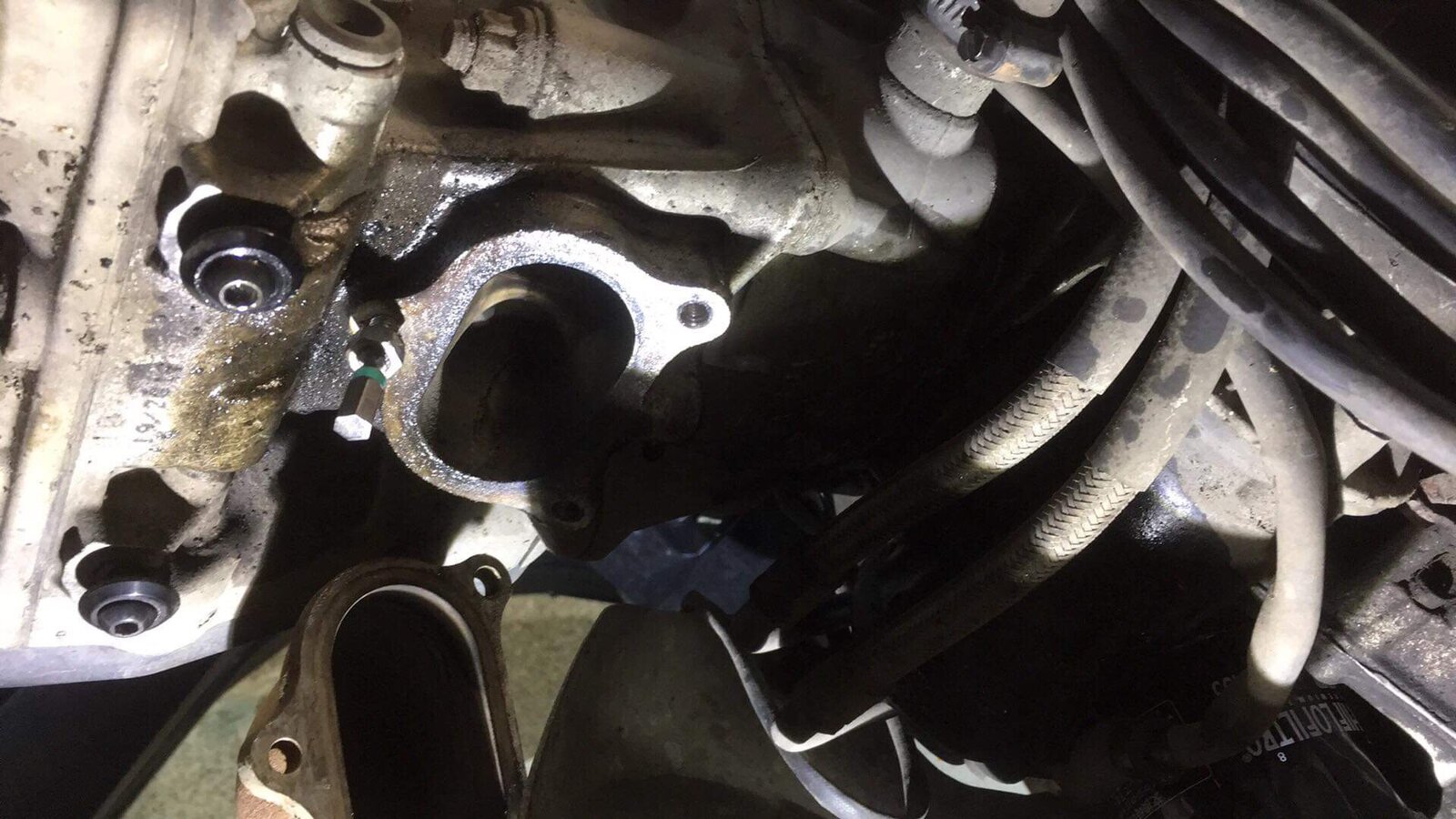

  10. But if that wasn’t enough.....

    FFS

  11. wow that exhaust is really cracked...……………………..all over!!! it must be very thin, shall have to keep an eye on mine now. Good pictures and hope you sort out your studs ok.

  12. That's a bummer mate, hope you get them out ok

  13. Potentially the stock end can whilst not that heavy , will put more pressure on the joints than the LV can that also mounts to the frame

    Had the same issue with studs - mig welded a nut on (disco the battery!) and the heat from welding helped to get it out easy peasy - good luck

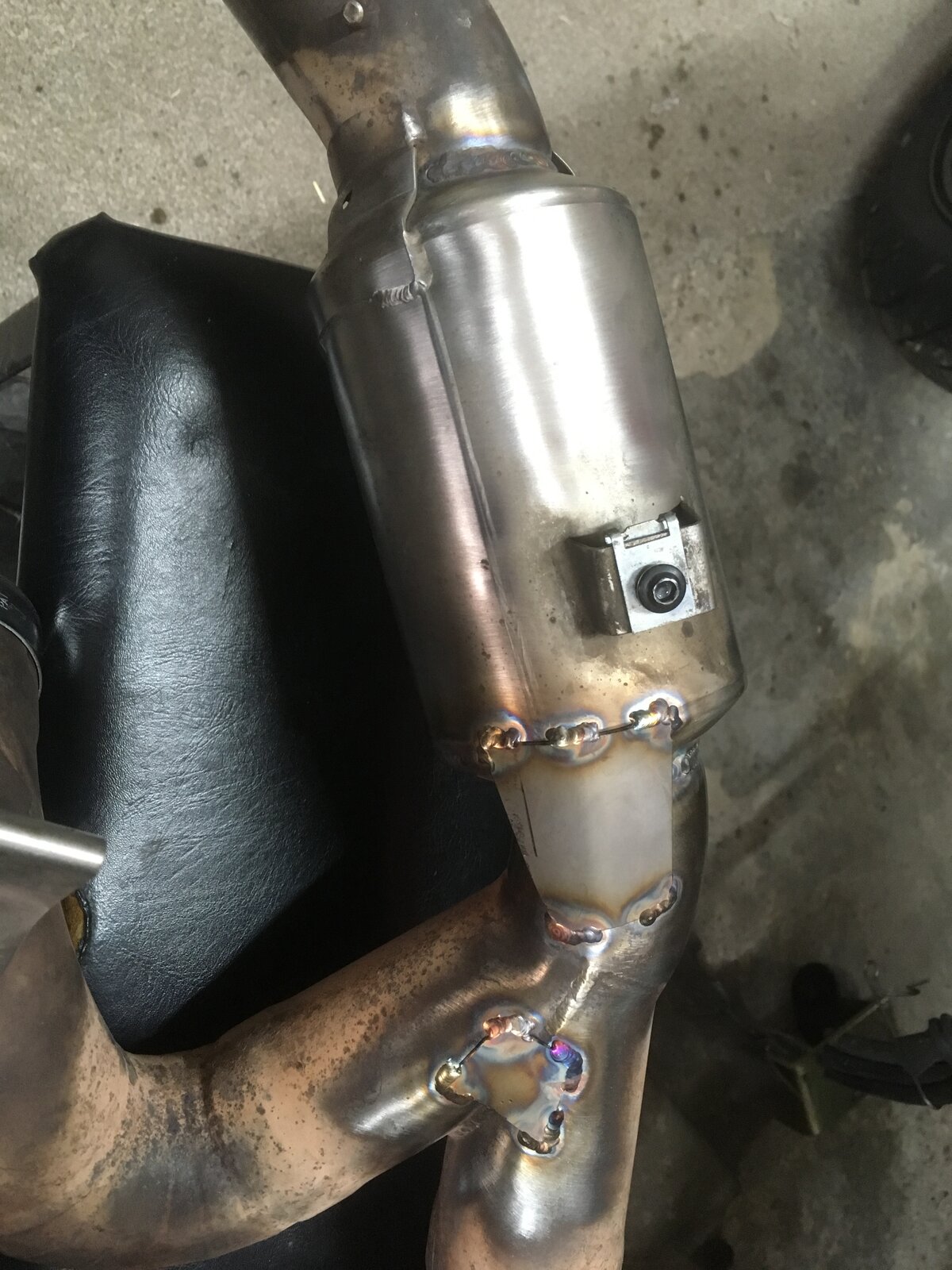

  14. 76EF7A53-D278-4C0B-AA6E-394150BD8A92.jpeg A10EDC81-E102-48C0-9583-02153A532F60.jpeg

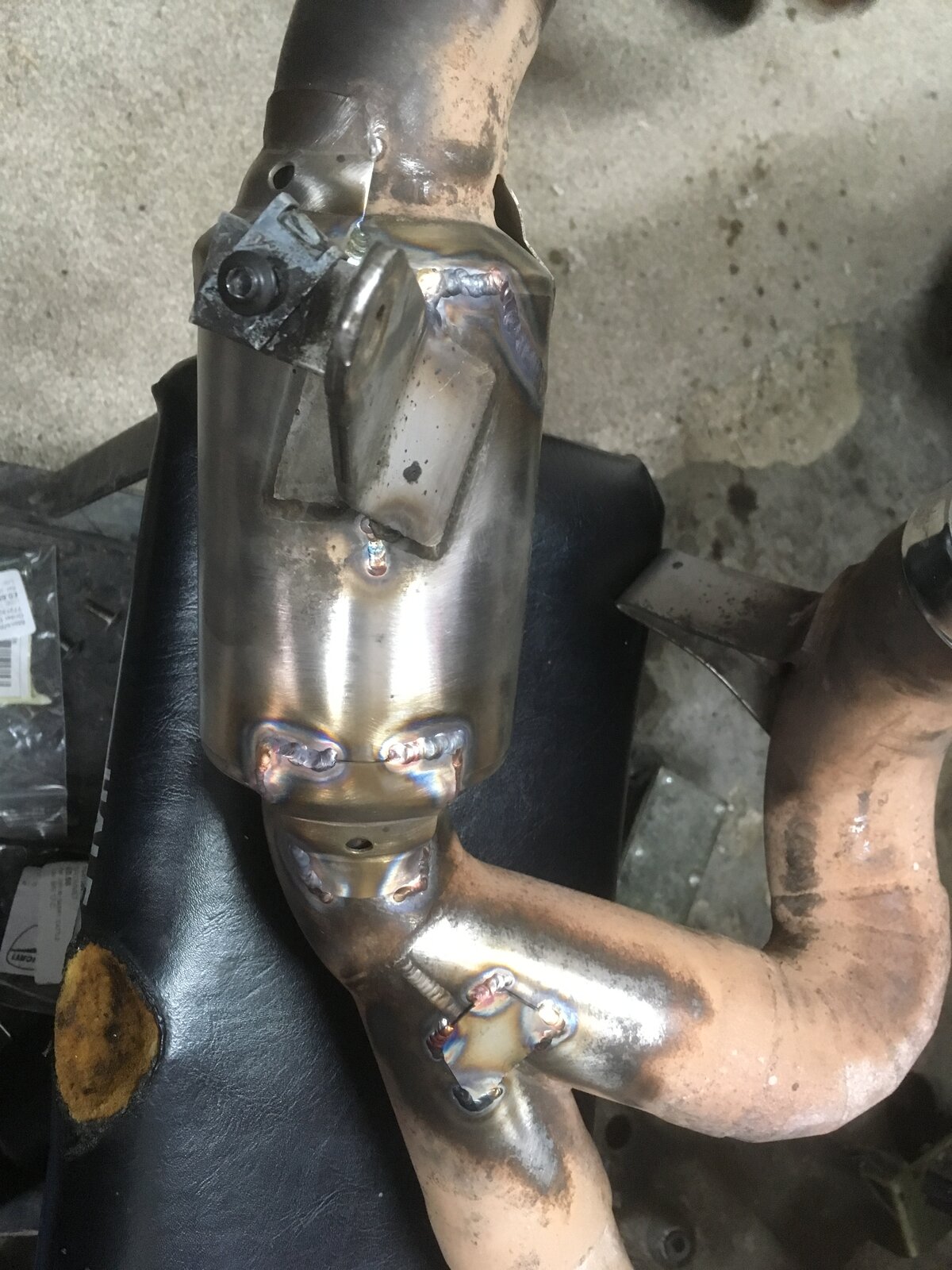

    Mate sorted it right out. The S.S is pretty thin. I am off to Brittany beginning of next month, he is making me a new decat and and can out of something a little thicker......just need to get the studs out! :confounded:

  15. 4A449BC0-EA13-4328-975E-C2DE2D1FBFB1.jpeg
    Got both the studs out today, drilled them and tapped a torx bit into them. Put a nut on the studs so that the torx wouldn’t break out the stud.
    Reassembly next!

    • Like Like x 1
  16. Don’t suppose anyone knows what the torque is for the studs themselves? I can only find the nut torque! @Derek

  17. It’s OK - found it!! 10Nm same as nuts!

  18. I am taking my bike up to my mates shop tonight, he is building me a new decat link pipe & end can. His instruction is
    1. To make it quieter than it currently is. (Not hard if you've ever heard a standard can with no cat)

    2. Make it look in the same style as original (double barrel)

    I shall add pics when I return from holiday. :cool:

    • Like Like x 2
  19. Exhaust has been done, Al went with making a new decat but keeping the standard end can.
    When I dropped the bike off, it was 102dB on idle (with my phone at approx. position of track day noise test)
    With Al's phone in same place - 97dB on idle, that is quite some drop. He has said if I want it quieter, I will have to have a can change. He's now buggered off on holiday so will post pics when I visit to pick the bike up.....or have a new can made!!

    • Like Like x 1

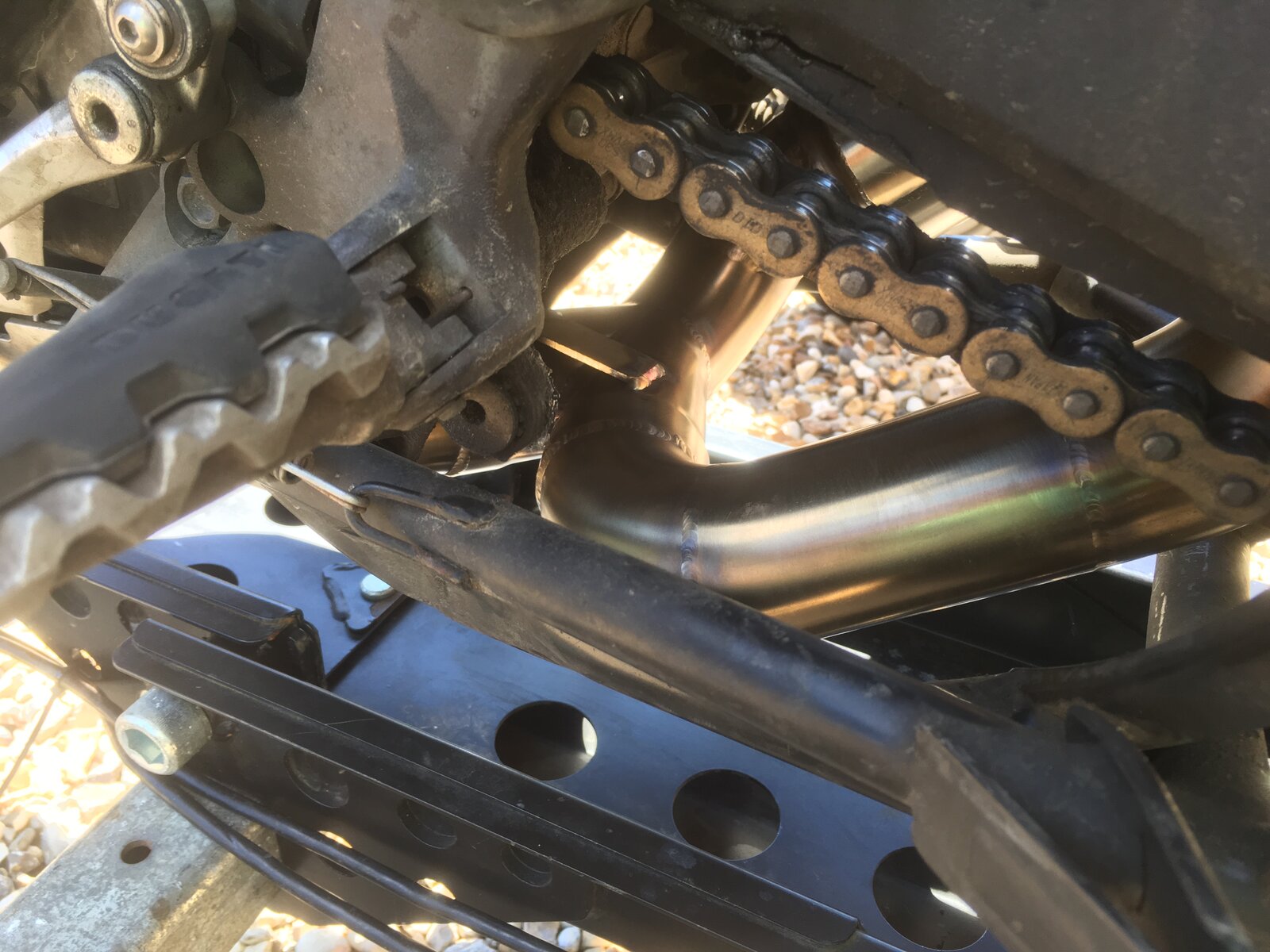

  20. Best pics I can do until I take belly pans off next! Very pleased with the work.





    • Like Like x 1
