V4 Need Some Dims

Discussion in 'Panigale' started by The Pearl - Paul, Sep 22, 2020.

  1. Hi all,

    Does anyone with a panigale v4 2020 or a v4r can help me with some dimensions?

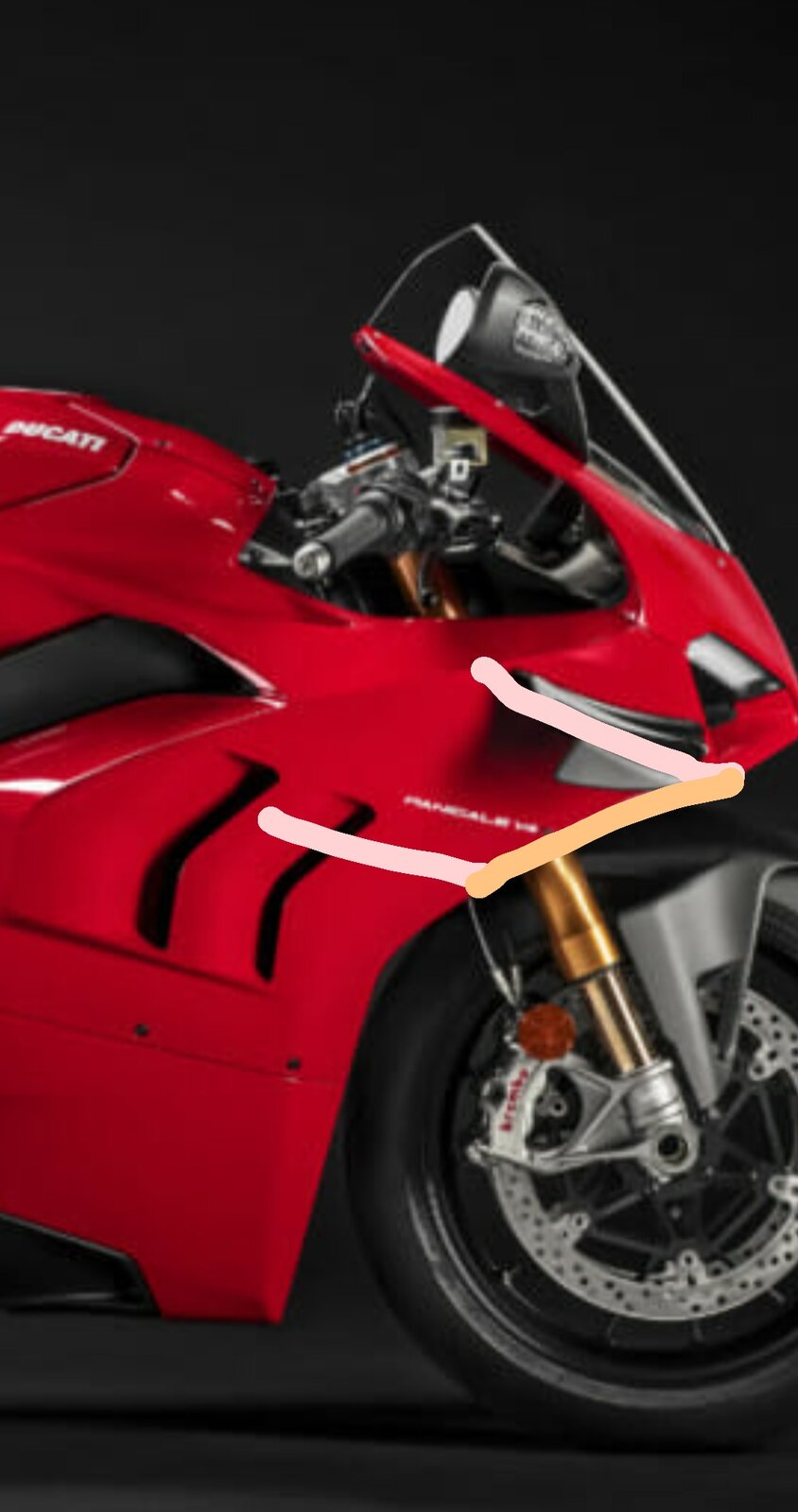

    I'm interested in dimensions in cm for the lines in the picture below

    Yellow

    And the lenght of the two pink'ish colour

    Thank you!


  2. What this for then a special compartment for storing the frozen peas in on the way home from the supermarket.:confused:

    • Funny Funny x 1
  3. I have measured the lines in the picture: they are all just over 1cm but that is on my phone, if your on a lap top I can measure on mine too :):upyeah:

    • Funny Funny x 3
  4. Exactly that, I was thinking of a basket

    • Like Like x 1
  5. That's quite precise thank you

  6. I can do mm’s too if needed o_O

  7. What’s it for mate? I’ll be home tomorrow and I’ll get me tape out :upyeah:

  8. I have a project in mind for my 1199r, I've been looking to create the gp winglets (GP16),

    So basically I'm shaping the winglet, then I measure it phisically and add it into Autocad, check the shape and angle and 3d print it

    Now, I can do the shape, I just need the overall dimension *size*

    It will not be as effective as the originals but it will 100% give downforce

    I know it is a bit of a long shot but hell yeah I'll try it

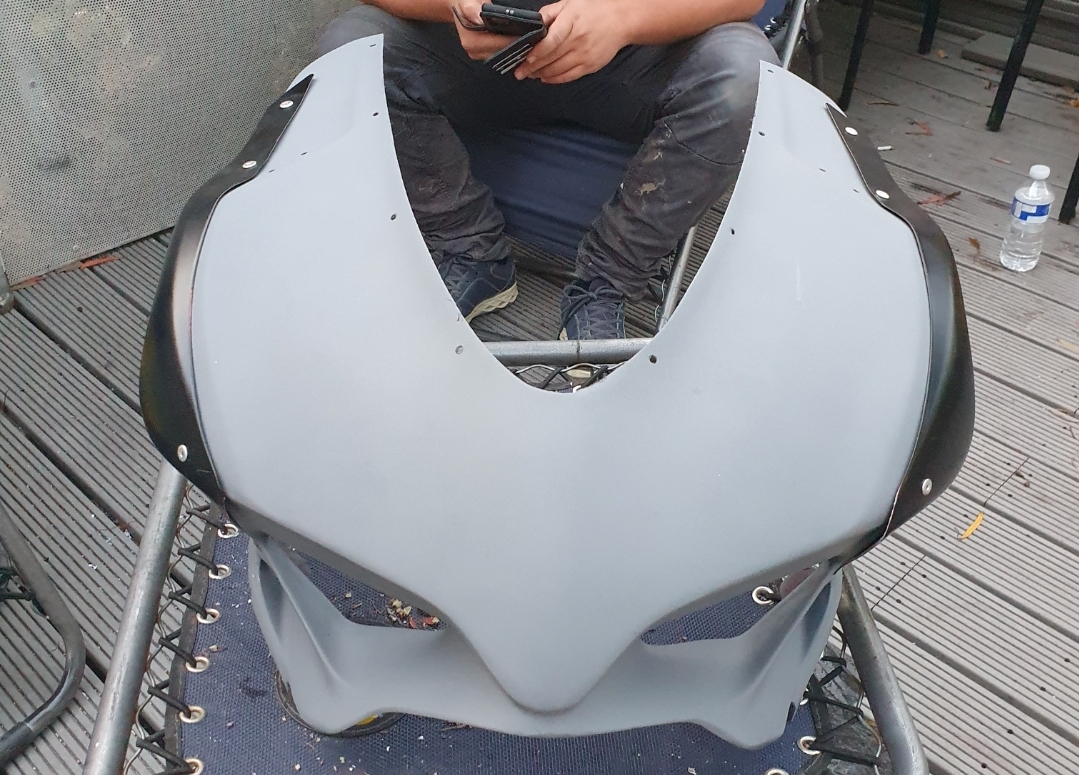

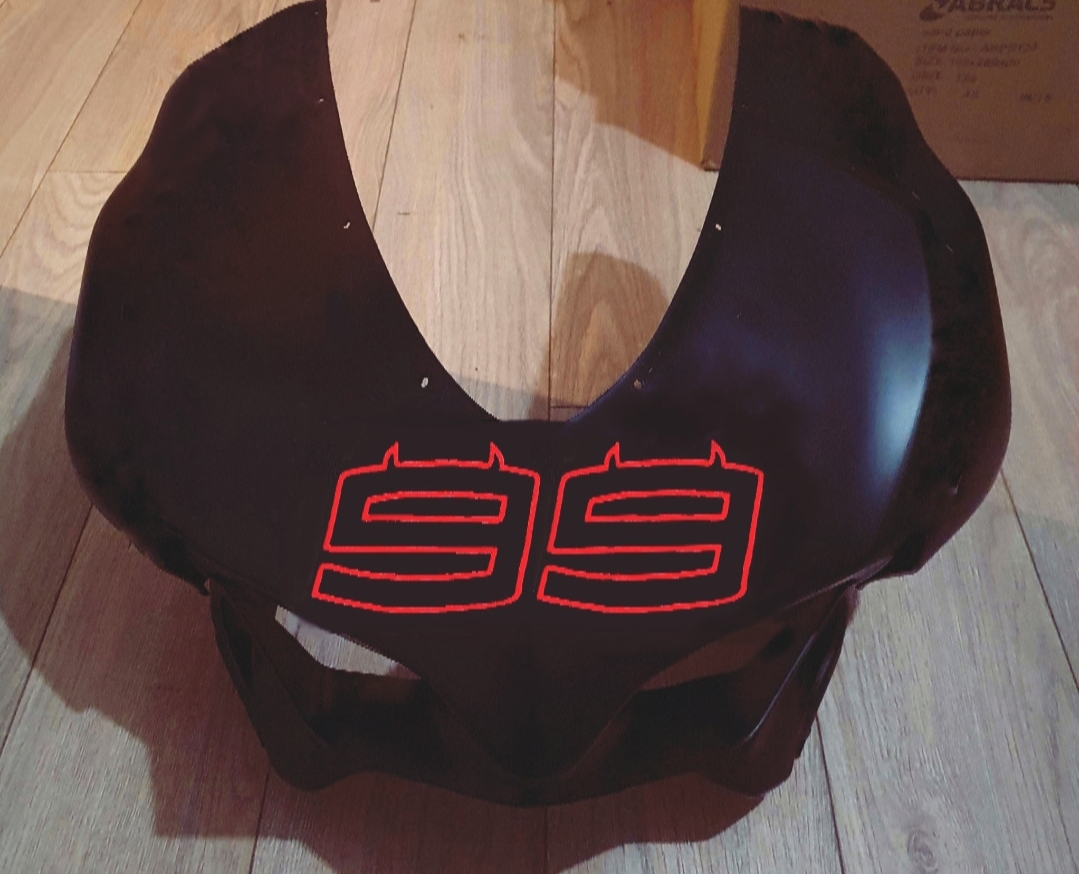

    I've already widened the nose cone and prepp it for paint,

    So, I'm serious about it


    Cheers



    • Like Like x 2
  9. Dim Dim Dim
    Dim Dim Dim
    Dim Diddly Dim Dim Dim.

    There you go

    Nasher.

    • Funny Funny x 1
  10. Wow! Like it. You’ll have to update the thread with pictures when you get there :):upyeah:

    • Like Like x 1
  11. I will!

  12. plenty of Dims on here bud.... and the advanced ones too Dums!

    • Funny Funny x 1
  13. So anyone can help me with those dims?

  14. Gimmie an hour. Err, mines a 2018. Is that ok? And it’s FullSix body work.

    • Like Like x 1
  15. i see you are in London.... there must be several ducati dealerships in that area... why not go to one and measure exactly what you want...

    • Like Like x 1
  16. Don't have some dims, but have Dim Sum. Hope this helps.


    • Funny Funny x 1
  17. Cheers, it's all good, it's the same thing basically


    Thanks a lot!

  18. Not really open by the time I get home,

    Unfortunatelly I work close to portsmouth and I leave in essex :(

    Hence why I've asked for help here

  19. Portsmouth to Essex.... Snells, Motorapido, Malden,.....

    just saying .... You could measure exactly to the millimetre what it is you are trying to do...especially for a cad drawing...
    precise and exact.

    why not buy a pair of the aftermarket wings that are available and make them fit ...

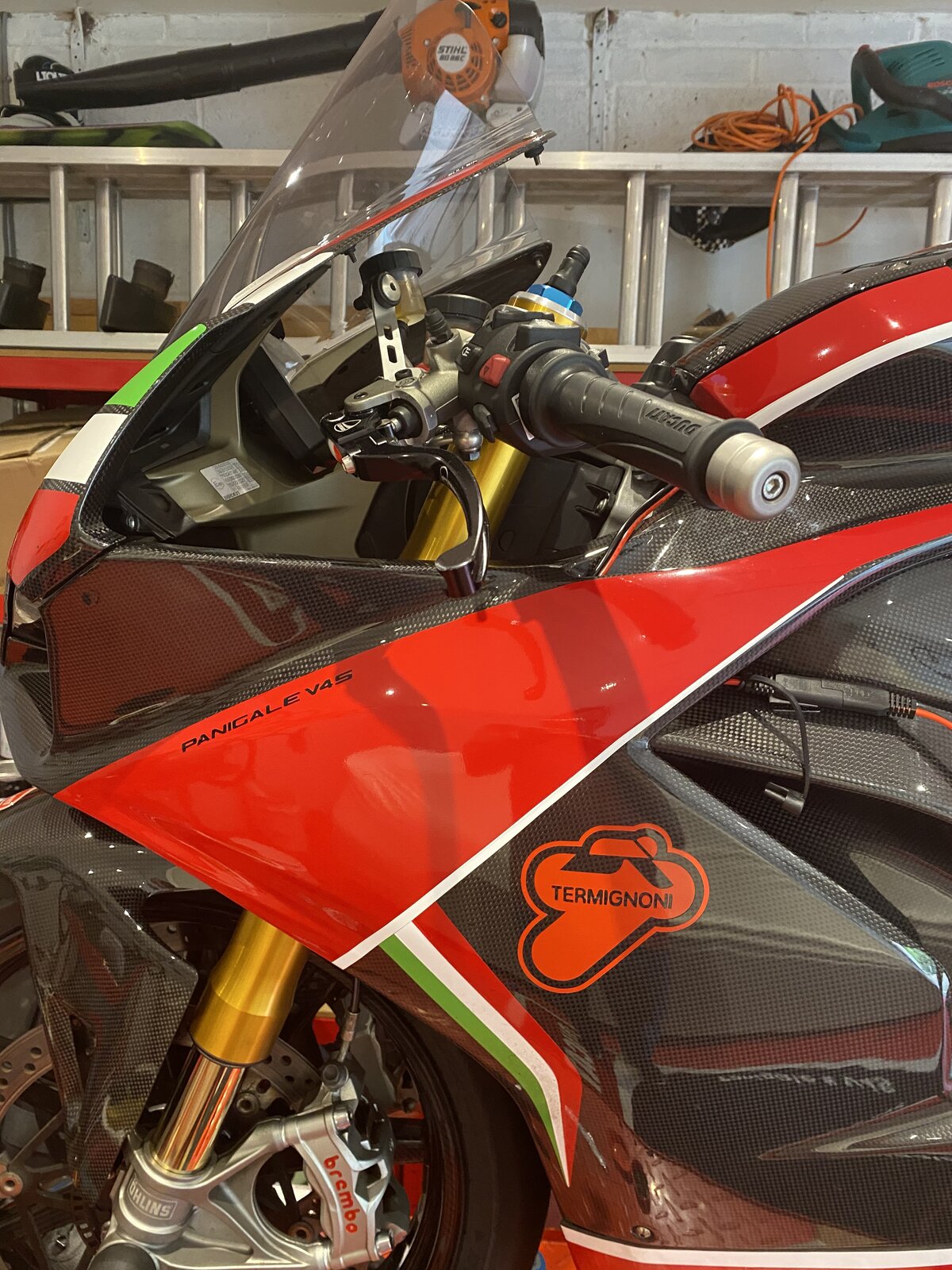

  20. F443DCEE-3BF6-4478-9B5C-8C1238D2D0F3.jpeg
    Ok, very difficult to gauge accuracy but here goes:-

    top horizontal line - 270mm
    Downward line. - 220mm
    Bottom horizontal - 220mm

    My fairing configuration is different too o_O

    • Like Like x 2
