No Dash 848 Streetfighter

Discussion in 'Technical Help' started by Cupid Stunt, Jul 22, 2015.

  1. Well I had the ignition on and bike running when all of a sudden it cuts out, the dash has gone off completely but front and rear lights have stayed on.
    Is it a fuse ? if so where or is it more serious.

  2. Check the battery cables for tightness. In particular the earth.

    Any electrical gremlins and my first change is the coil/injector/pump relay.

    • Useful Useful x 1
  3. I had the battery out earlier and also tidied up the cables under the tail tidy was just doing a bit of house keeping

  4. ?

  5. If you have done something which could be the reason/connected, start there first.

    Most of my calls to mates for help start with 'I've just...and now...'

  6. LOL Yeah will check battery and leads again tomorrow night but what has me puzzled is lights come on and are just as bright as when bike is running

  7. Just read the SF handbook. There is a 5amp fuse at position 3 for the instrument panel.

  8. Cheers Chris, what page is that ?

  9. Using the Ducati Maintenance site to download - Page 113

  10. Got it thanks. its position 4 out of curiosity though my fuel pump isnt engaging either so prob not the dash fuse unless it is linked to the ECU

  11. Could be that it simply isn't recognising the ignition so the pump cant prime?

  12. Will check fuses and and battery leads tomorrow, may actually take the whole back end off

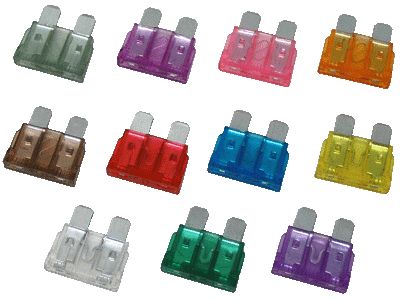

  13. I assume they are the flat fuses like this picture


  14. Bike size yes. Car size no. Mistake made before, yep.

    Got 50 car ones if you want them...

    • Funny Funny x 1
  15. Nah ya ok mate I will buy some bike ones :)

  16. Well gents I checked my fuses tonight and it would appear that its the one at position 6 according to the book which should be a 5 amp fuse however the one on the bike is a 10 amp at that position, So I have not got a clue, as I cant see the ECU fuse causing my dash not to come on.
    The only 10 amp fuse is the key on which makes more sense

  17. Mine had that problem, a new wiring loom sorted it out.

  18. Extract of page from my manual,
    It says position 6 is a 5 amp fuse, but on the bike the actual fuse is 10A
    Which suggests that its the key on fuse which makes sense as it was keyon that did nothing. The cap opens the same way so its possible the fuses are in reverse over, I will check this tomorrow.


    Attached Files:

    • Useful Useful x 1
  19. Look at the SF 2010 handbook just in case there was a crossover of parts. Ducati are renowned for using the parts bin to build bikes at times. The fuse box is a different order.
