Nuts And Bolts

Discussion in '851 / 888' started by Vussey, Jan 5, 2024.

  1. Has anyone got a partial list of the common nuts and bolts (888)width length pitch? Bit cheeky I know, erm I have to replace lots. I won’t get started on the TI stainless thing. So it’ll be like for like In anywhere contentious (brakes for example) and stainless where it’s not.
    I saw a list somewhere but I can’t find it. Cheers if anyone has anything. If not it’ll be the hard way.

    #1 Vussey, Jan 5, 2024
  2. Hi

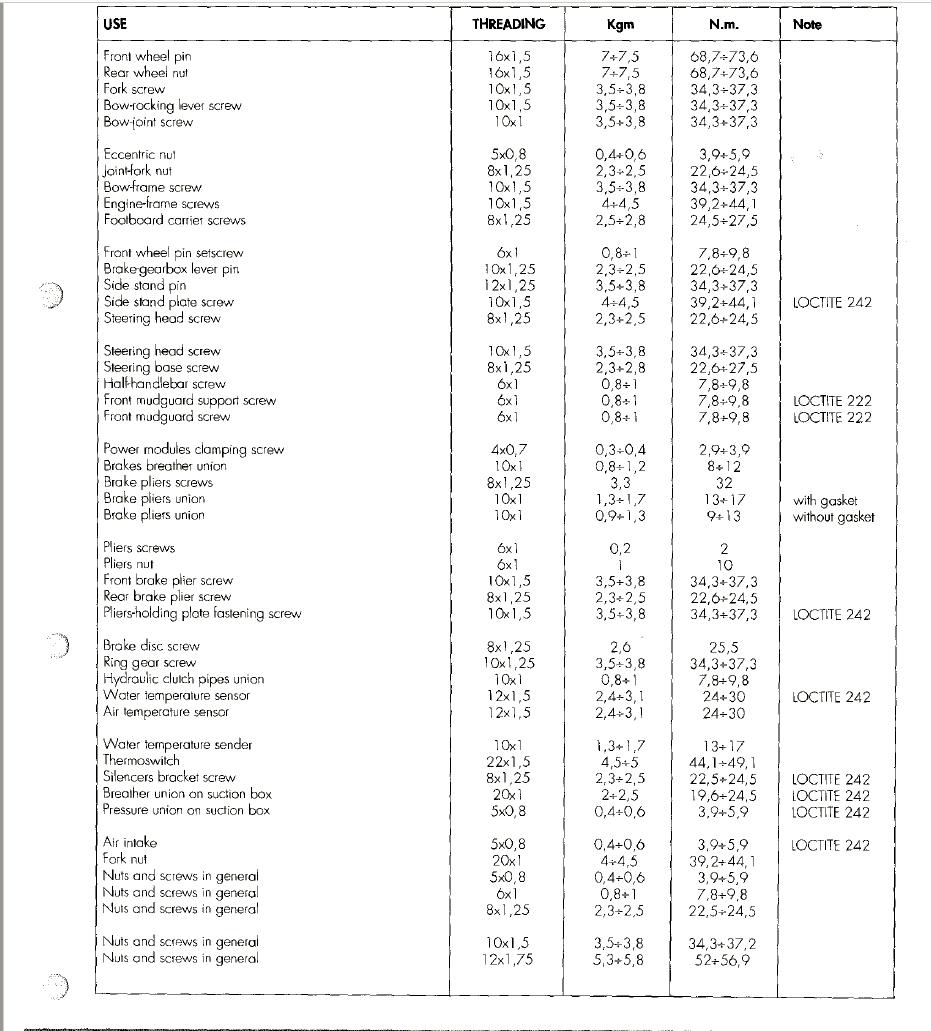

    Don't know if this helps, it's from the Workshop Manual for my 851 SP3.

    Torque settings.jpg

    #2 AndrewS, Jan 5, 2024
    • Like Like x 4
    • Useful Useful x 1
  3. Amazing. Thanks!

    #3 Vussey, Jan 5, 2024

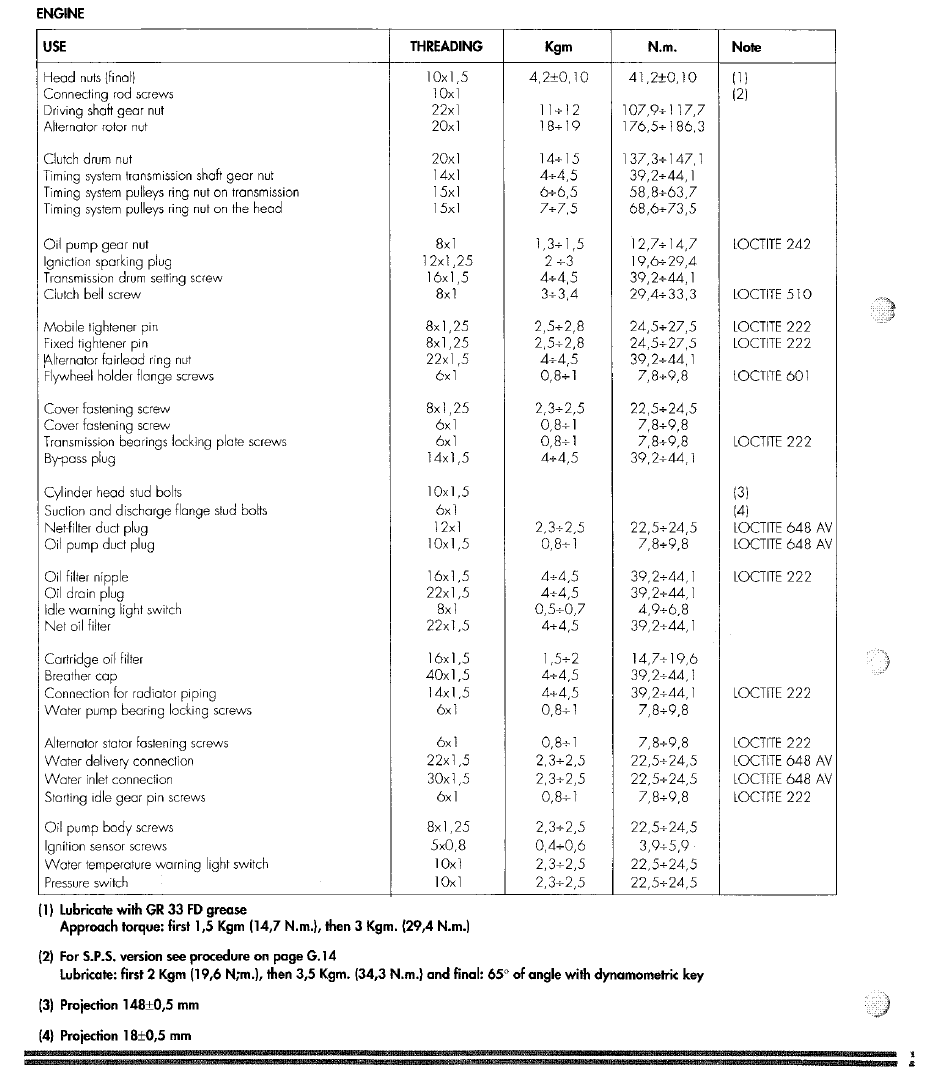

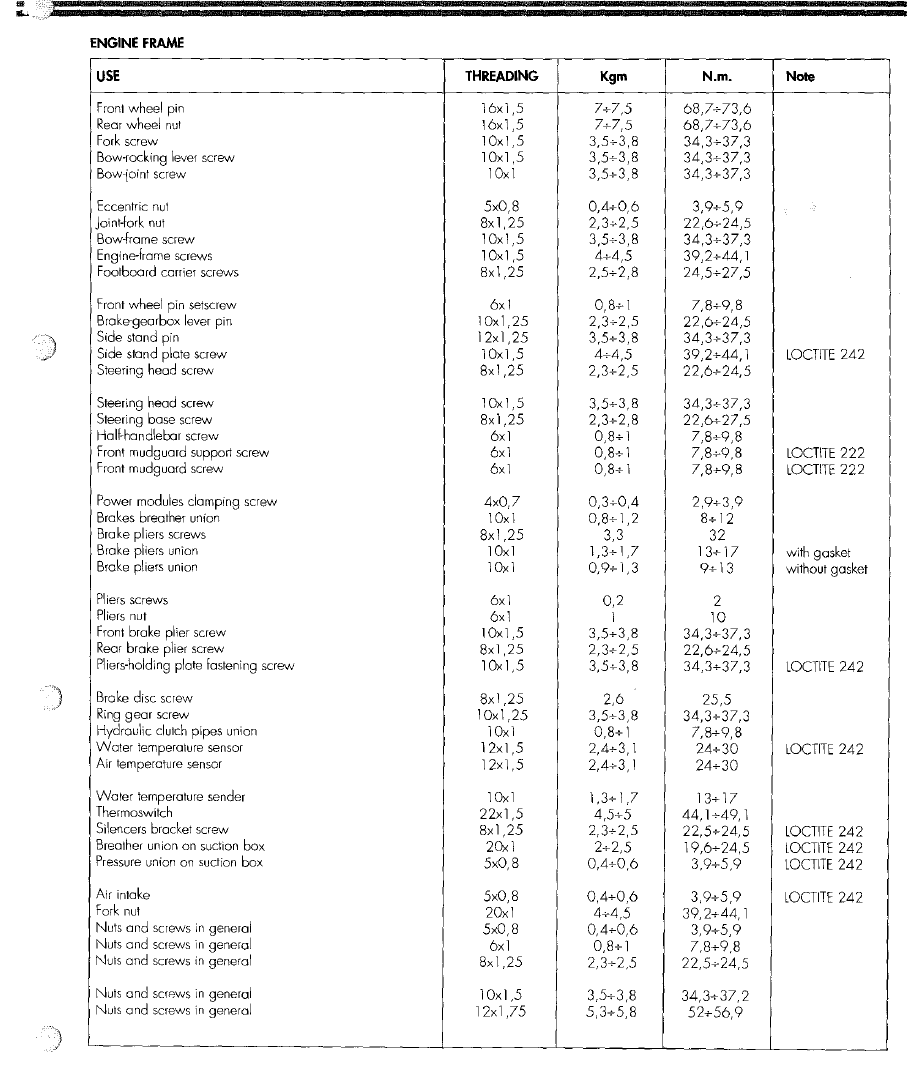

  4. Just in case there is a difference - these are for 888 (SP4).
    888_engine_bolts.PNG 888_engine_frame_bolts.PNG

    #4 KevB, Jan 5, 2024
    • Like Like x 2
  5. Also pro-bolt lists the sizes length etc for most ducati bikes.
    Copy the info then buy elsewhere.....

    #5 St.Evenage, Jan 6, 2024
    • Like Like x 2
    • Useful Useful x 1
