Removing Indicators On A 1199

Discussion in 'Technical Help' started by Clarkey63, Feb 15, 2019.

  1. hi
    Just purchased some bar end mirrors and indicators I've not taken my Ducati apart so really don't know where to start
    What do I need to remove to get to the indicator wires where are connections located
    Any advice would be much appreciated
    Thanks

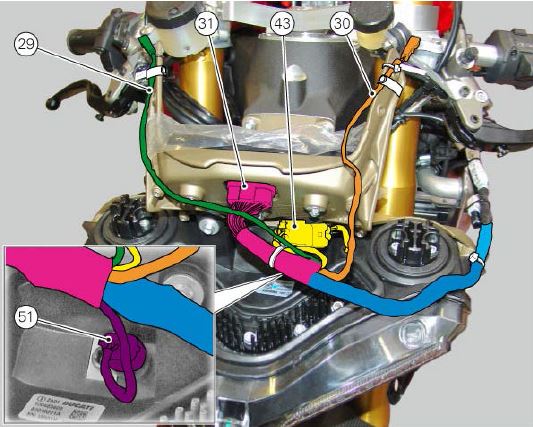

  2. Remove the fairings and, if you wish, (although I don't know why you wouldn't just leave them in place for a future owner and functioning) disconnect the wiring to the indicators marked 29 and 30.

    wiring indicators.JPG

  3. Matt
    Great diagram thanks, I will be leaving all the original wires in place so if I wanted to take back to standard
    But with the new indicators I wanted to know were they could be connected
