Tom Tom Rider

Discussion in 'Hypermotard' started by Scott Watson, Sep 27, 2019.

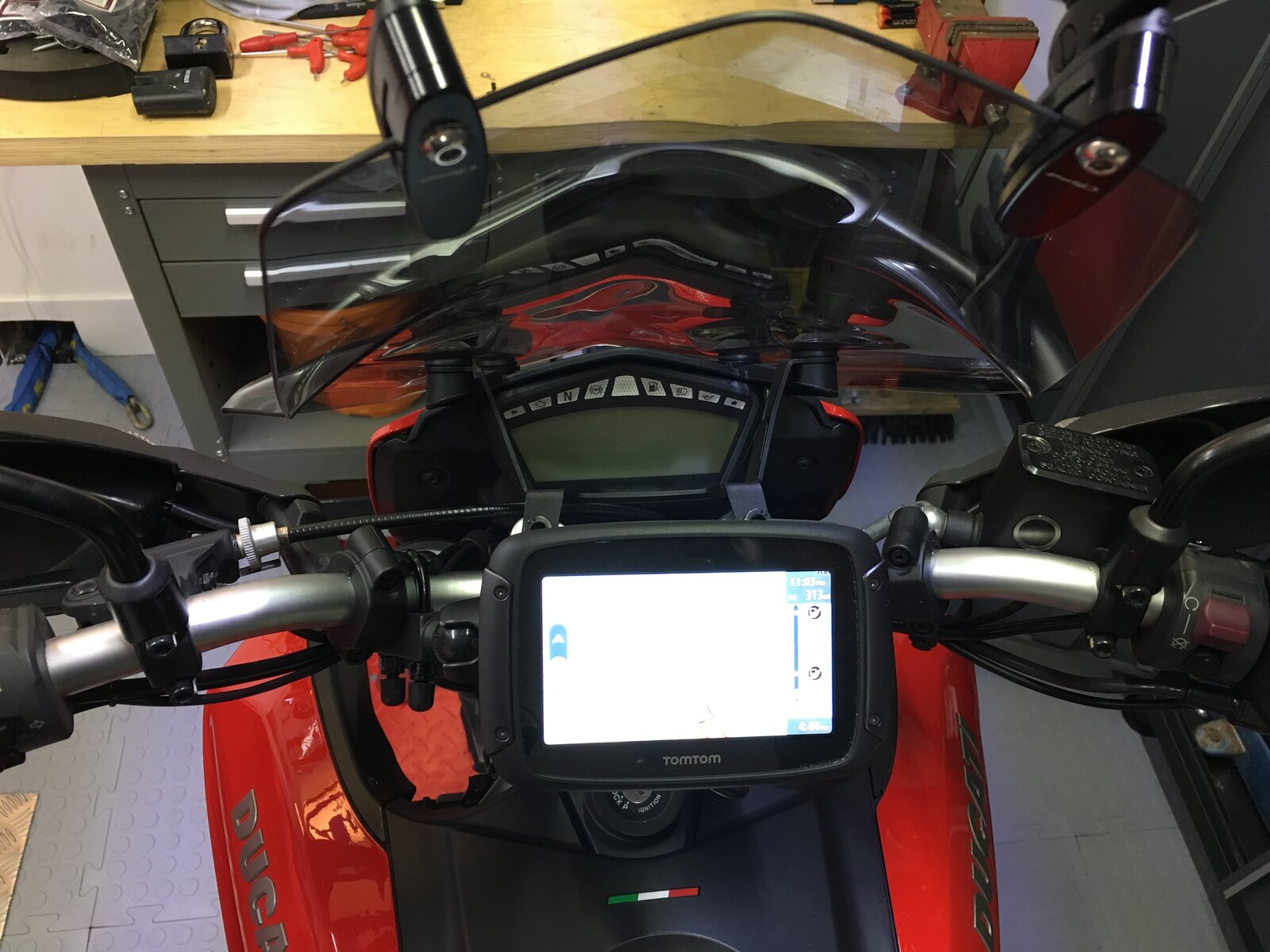

  1. hi could someone please advise the best way to wire a Tom Tom rider to my 939 hyper thanks in advance
    Scott

  2. Scott.

    I took mine directly to the battery. But if I had my time again, I'd go to the fusebox under the LH panel of the bike.


    • Useful Useful x 1
  3. Thanks man

  4. There’s a switched live taped up in the loom behind the headlight. I used it for my Garmin, really easy to get to.
    Nose cone off, drop headlight bolts out. 25 minutes tops

    • Useful Useful x 2
  5. Yep go for the switched live behind the head light dead easy to do and no flat battery

  6. ^^ agree, go down the dedicated wire route.

  7. Is this found on the 950 as well?
    Can see there’s a blinded plug with 4 wires, no markings on it though :(
