I have found some screen grabs on here and elsewhere from a manual for a 750SS? I was wondering if anyone can guide me to the manual for downloading? I'm sure I have had these in the past but no longer can find them. They show cable and harness routing and in the process show other items that may help in reassembly. While mine is a 900 and the grabs are obviously for a wet clutch motor they are still helpful.
Thanks for this, unfortunately I couldn't find that screengrab or others like it in there. I am a bit foggy today with a blinding headache so quite possibly it is me but I thought I had a reasonable scan of the 334pages! Can you give me an idea where to look in there if possible? Thanks
Dunno where the scans came from, but here are all the ones I have, the manual is linked above by @Sev , but like you I've not gone all the way through it... I only go there if I have to haha https://www.dropbox.com/scl/fo/eiv0...oZOH_gQA?rlkey=waxqqe7e8ktenrt2k72md9as1&dl=0

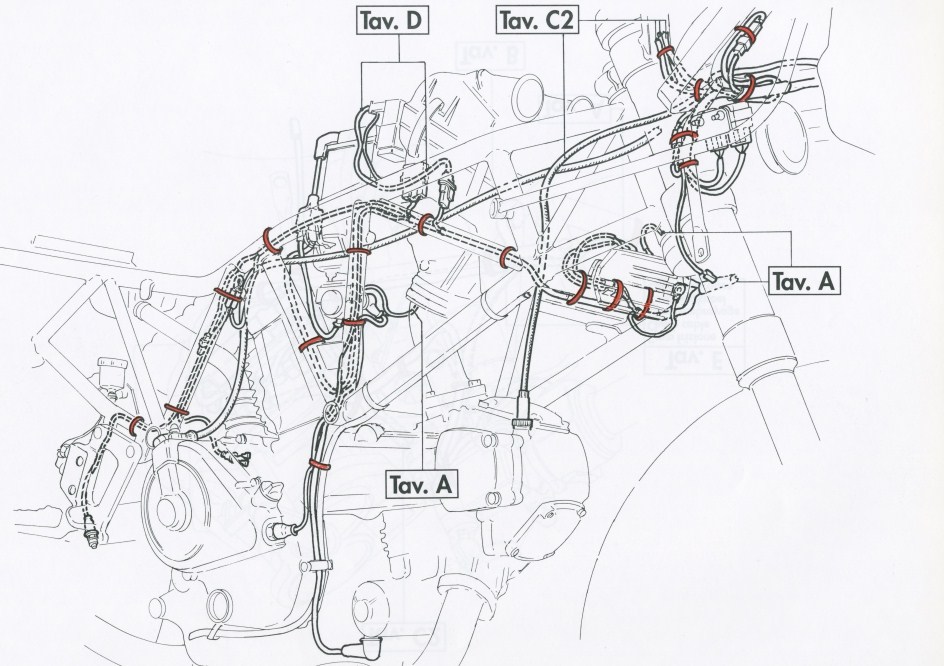

That link's manual is incomplete, I looked at my original paper manual and it's nearly 500 pages long. here's the section on harness routing:
