V4 V4 Front Sprocket In 520

Discussion in 'Panigale' started by andyb, Oct 8, 2020.

  1. Any one identified a std 16 tooth front sprocket in 520 chain for a std v4?

    mixed stories... a well known dealer says use the 1199 1299 ... a well known supplier of chains and sprockets says dont as they are different!

    Renthal dont appear to list a 16 tooth!

  2. I bought an AFAM 16 tooth steel sprocket in 520. All good.

    Part number 52902-16 from Performance Parts, Daventry. £19 including the VAT.

    • Agree Agree x 1
  3. Band c are adamant that the 1199 is wrong and don’t fit...exactly

  4. Speak to Reactive Parts. I'm pretty sure the bloke who owns Reactive ran a v4 last year so would likely know.

    Performance Parts are usually knowledgeable also :)

  5. Think I’ve a brand new un opened 520 16t front sprok in my garage if you want it for a bag of Wotsits? Will look tomorrow.

  6. Scratch that; found it & its 14t soz.

  7. I heard race teams snaffled all the Renthal. I ended up going Afam 520 gauge. All good :)

  8. I’m running the 520 conversion, Renthal lightweight front and rear with quick change Renthal carrier. DID EVR3 race chain... I’ve since gone down one on the front sprocket. Exactly the same part number for Renthal front sprocket on my old 959... Shop around as it should be easy to find! AR racing have always been really helpful and keep plenty of stock...

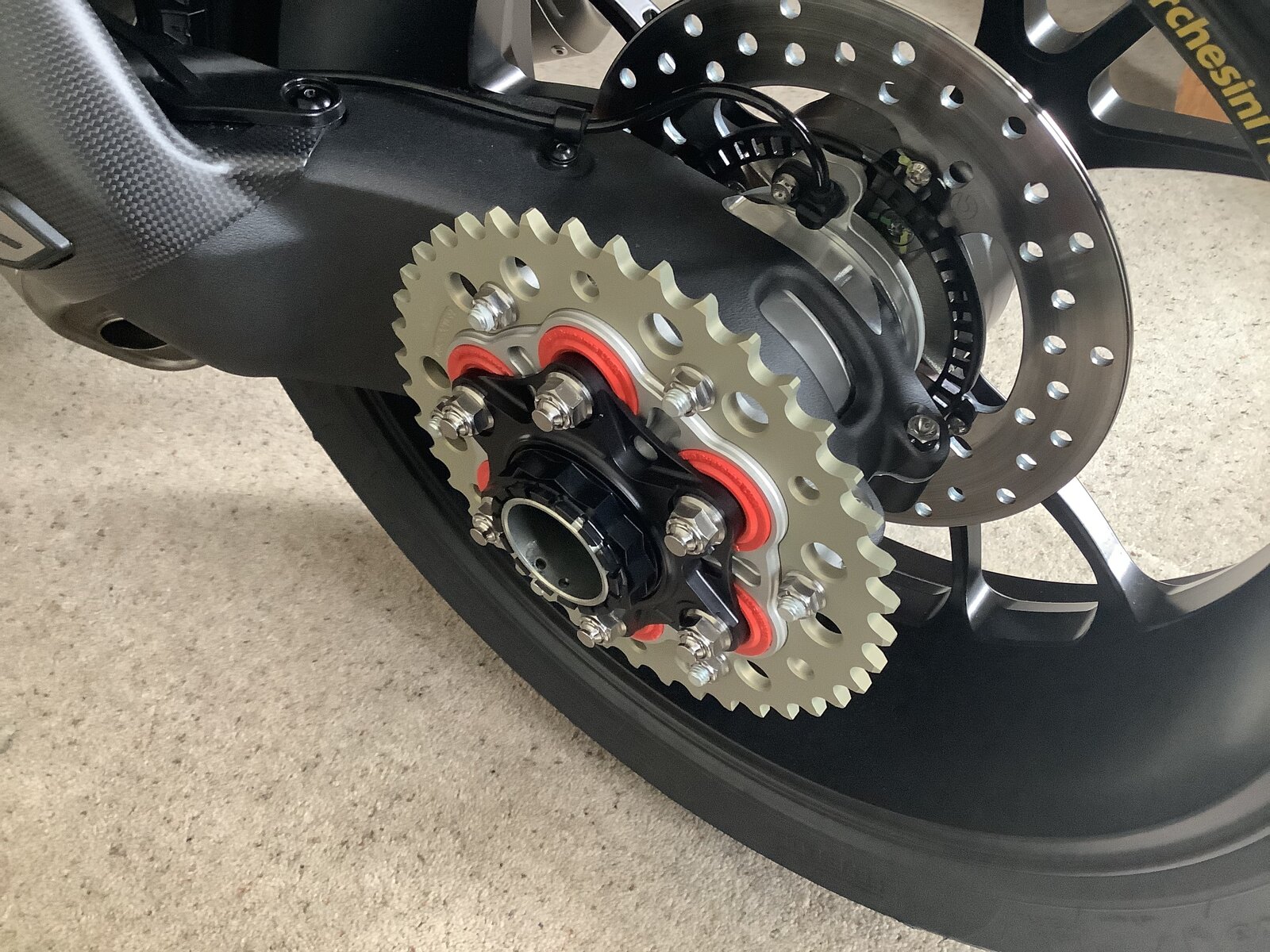

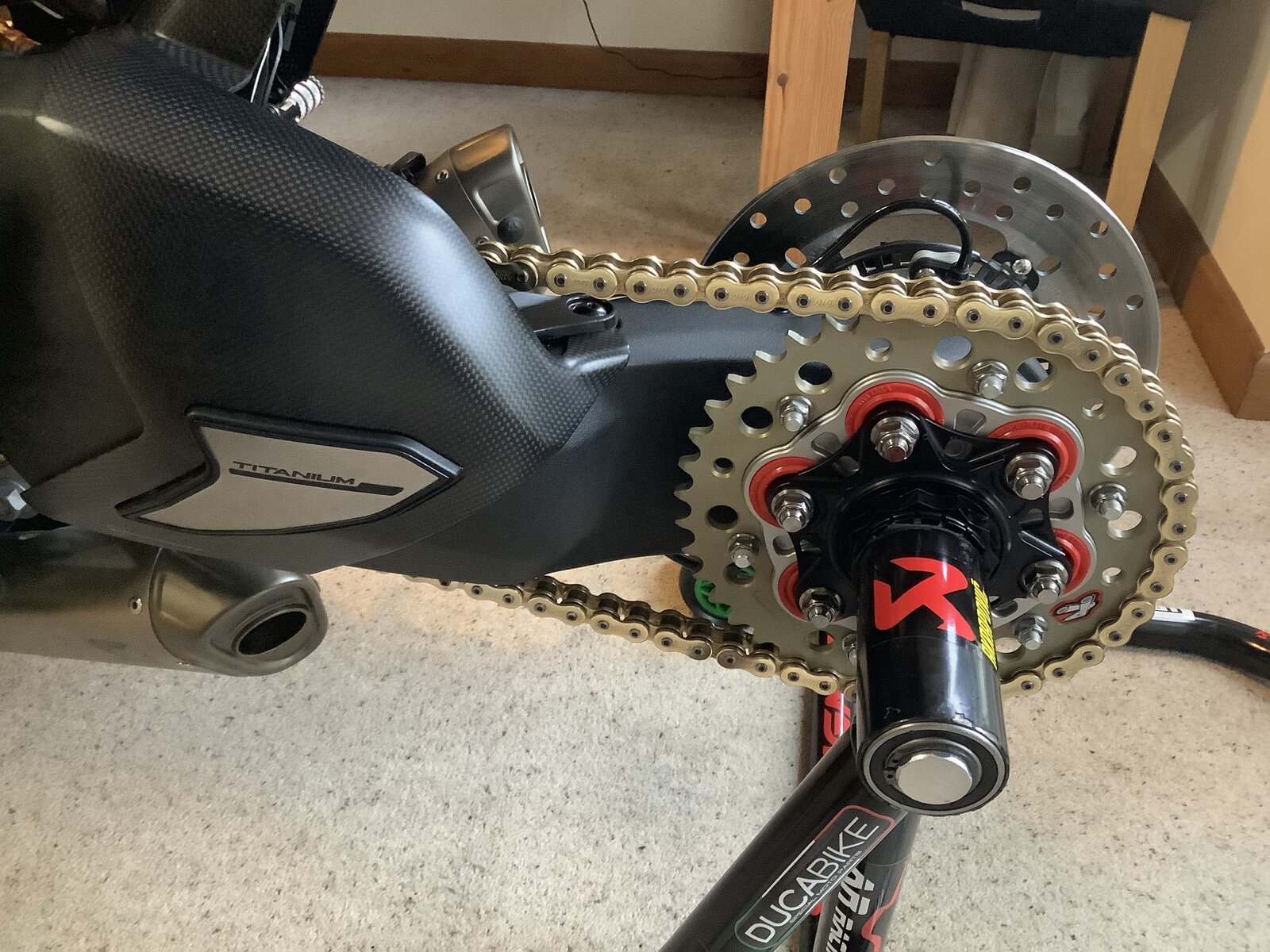

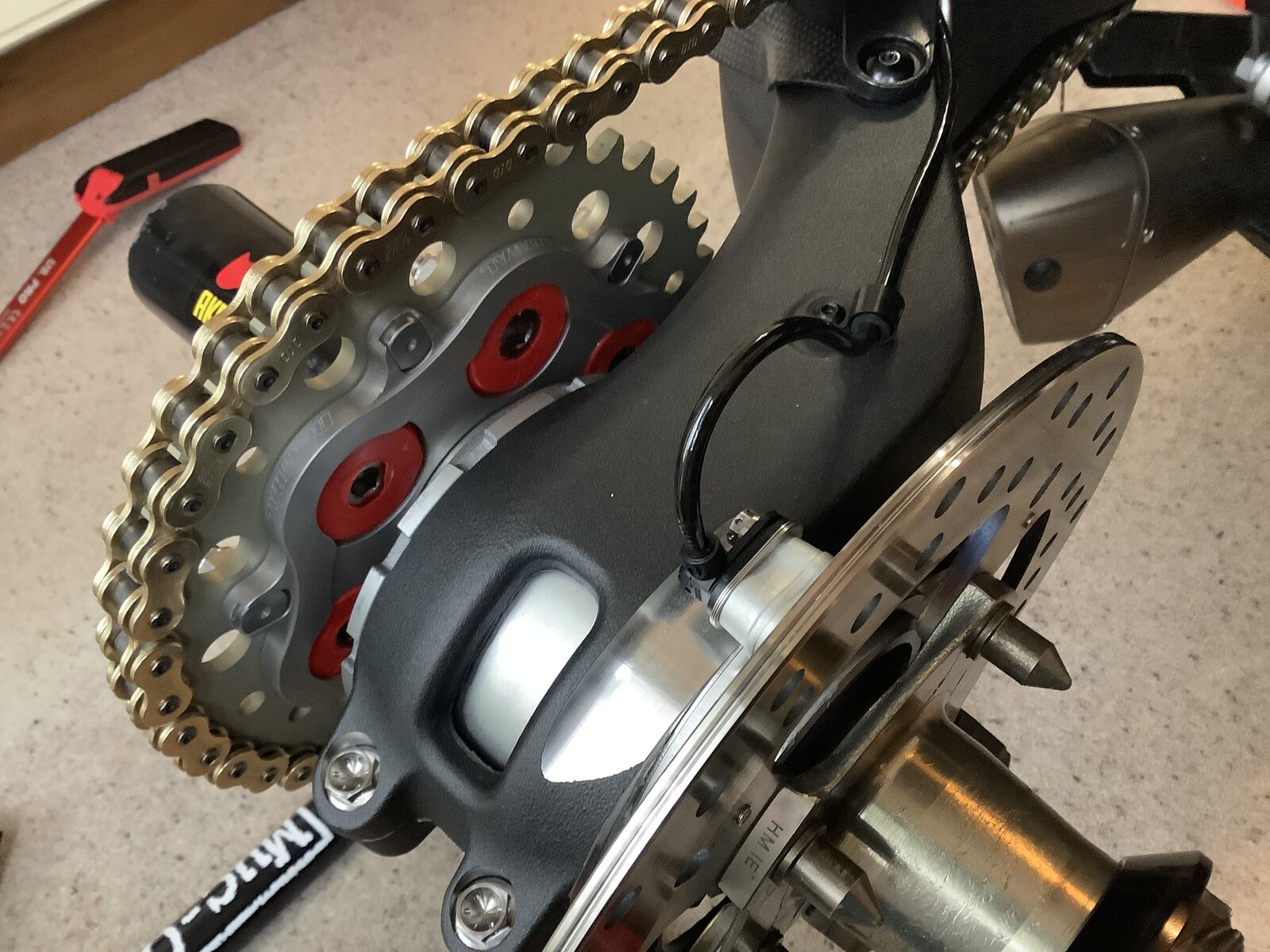

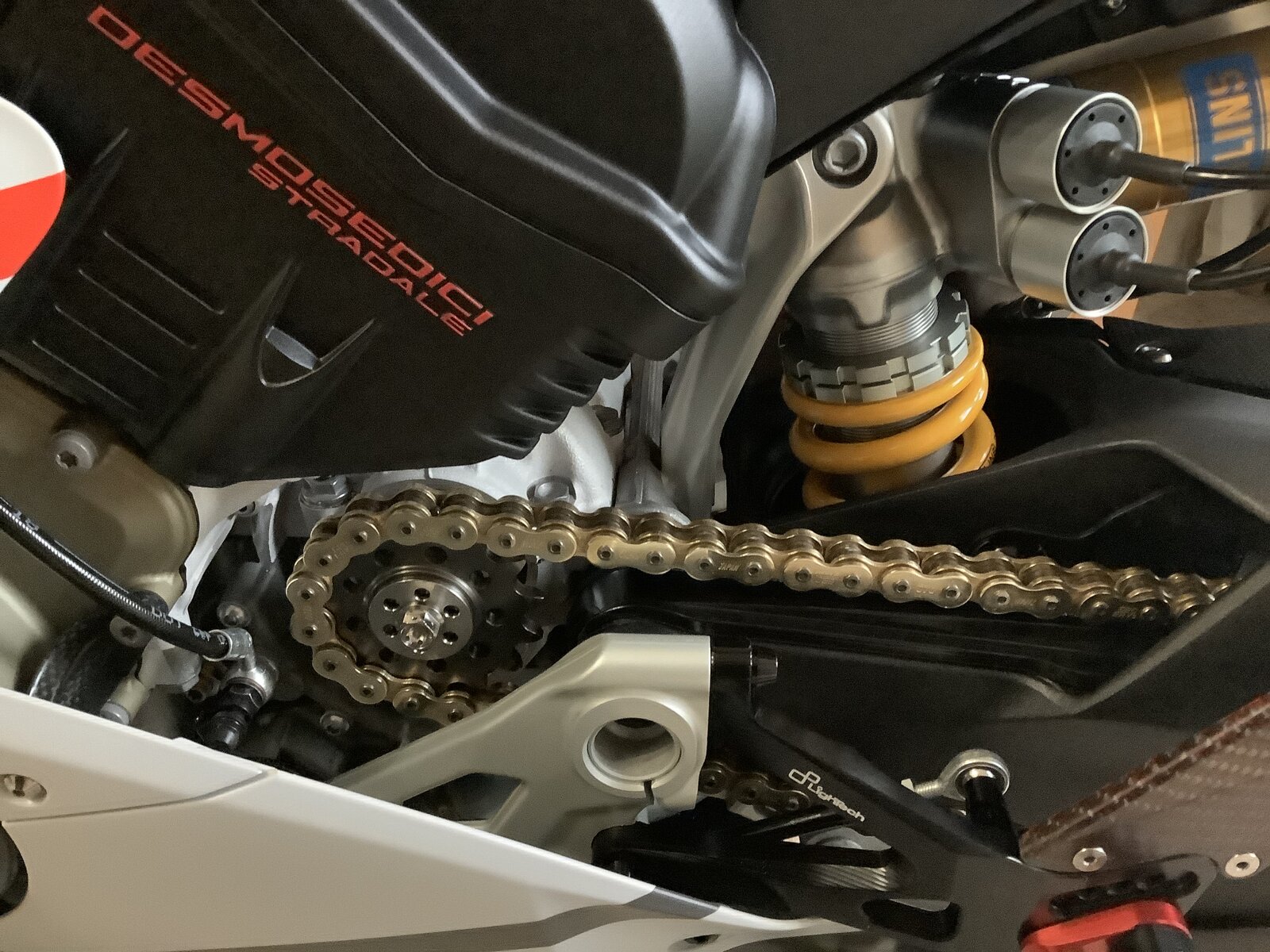

  9. 5B07123C-CB73-43B2-9665-7999E0CD4A30.jpeg 98221434-BA27-478C-B105-174187A6B36D.jpeg ED370785-8525-46EA-89FC-8A06E4C9EE55.jpeg 4ED062CD-8FF9-4662-A000-51509DEFC916.jpeg

    • Like Like x 1
  10. Hi Dave can you do a photo of where your chain sits in relation to the chain rubs please?
