V4 V4 Tail Light Plug Picture (bypass Plug)

Discussion in 'Panigale' started by darko, Aug 9, 2025 at 2:03 PM.

  1. Hoping someone can help and send me a picture of the tail light plug for a V4 ?

    Just looking to see the colours and which pins they connect with ideally.

    The 3 colours on mine are : Black - Yellow - Grey/Red

    #1 darko, Aug 9, 2025 at 2:03 PM
  2. when you say tail light there is the stop and rear, the number plate and the indicators that need an insert.
    What age bike are you talking too, as there are different ones?

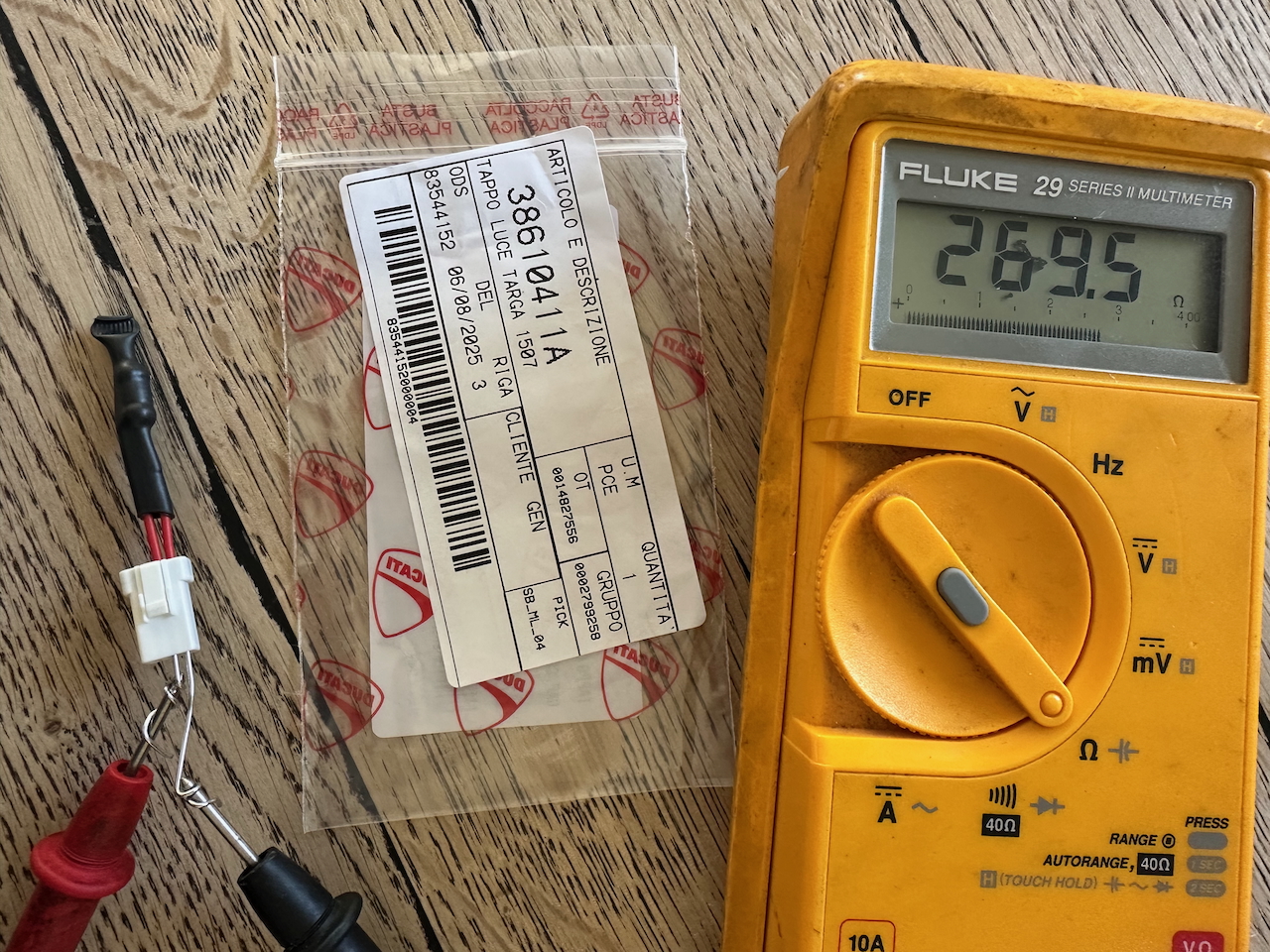

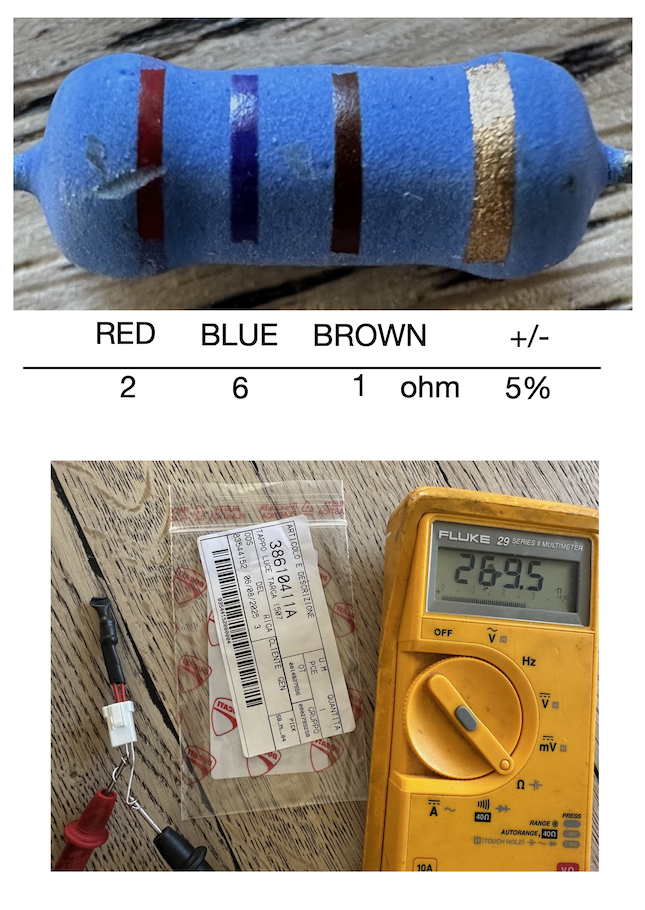

    It is more than just joining wires together, there needs to be a resister in there too for the can system,

    and finally they are as cheap as chips from a Ducati dealer.

    #2 andyb, Aug 9, 2025 at 5:44 PM
  3. thanks @andyb - mine is a 2023 and the plug has been cut off to connect an integrated rear light / brake light / indicators.

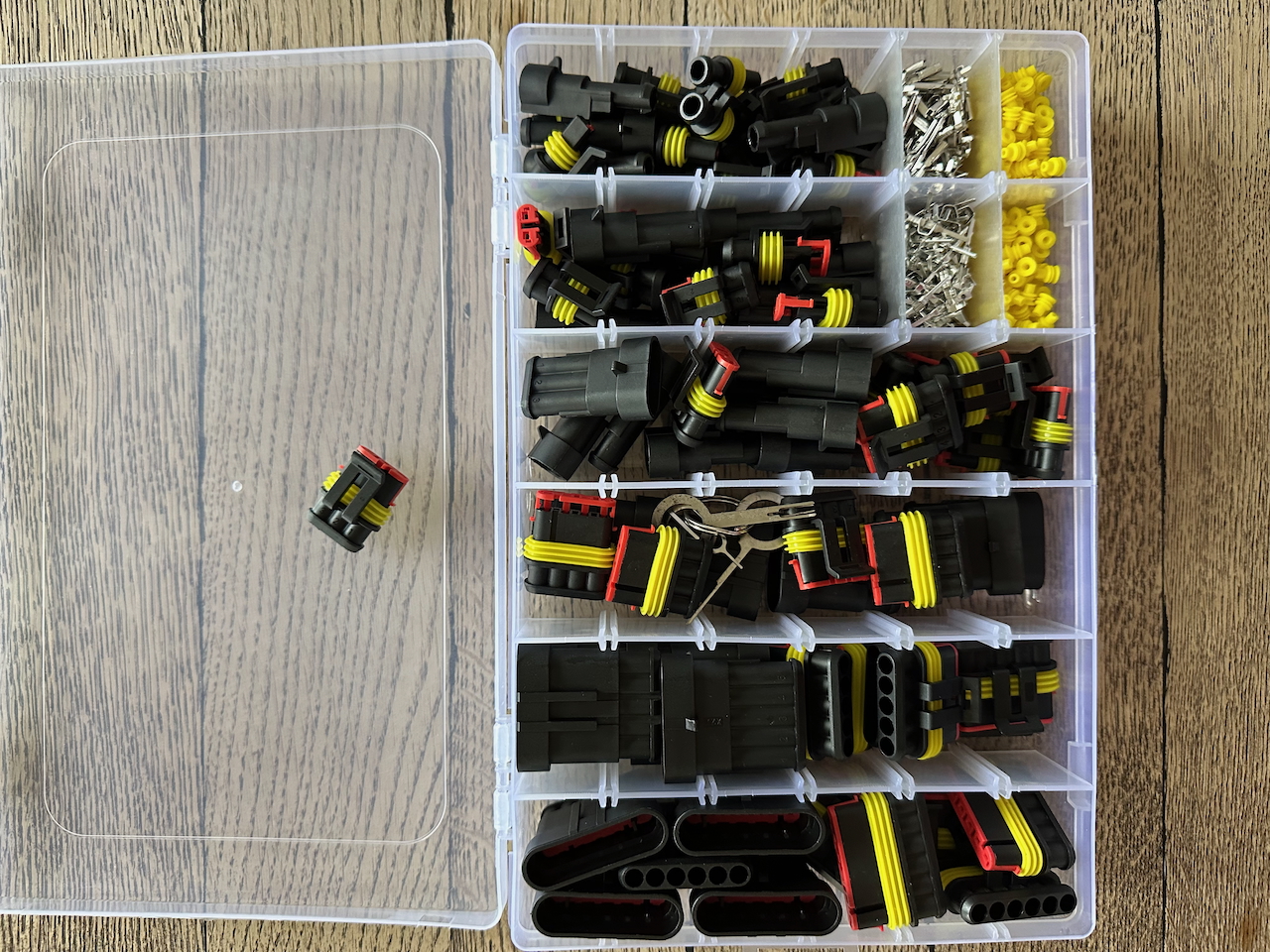

    I am looking to re-wire a 3 way superseal plug (as OEM) to be able to plug the tail light bypass in (and cancel the warning light)

    I also have the licence plate bypass, but the cabling for that is all intact.

    #3 darko, Aug 9, 2025 at 5:53 PM
  4. Best picture I could find on the internet was this one amazingly

    Screenshot 2025-08-09 at 17.53.45.png

    #4 darko, Aug 9, 2025 at 5:54 PM

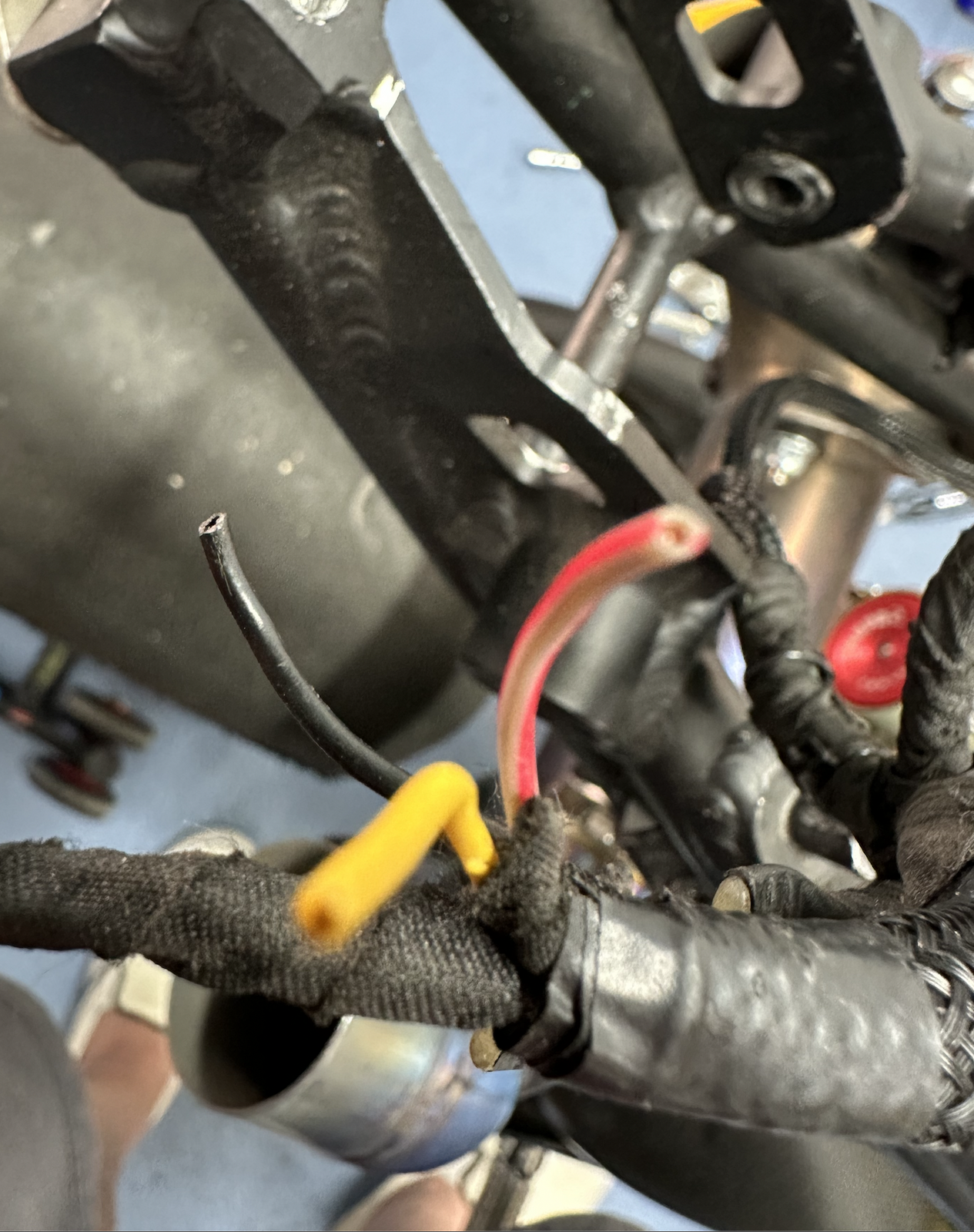

  5. This is what I have at the moment :

    Screenshot 2025-08-09 at 17.58.01.png

    #5 darko, Aug 9, 2025 at 5:58 PM

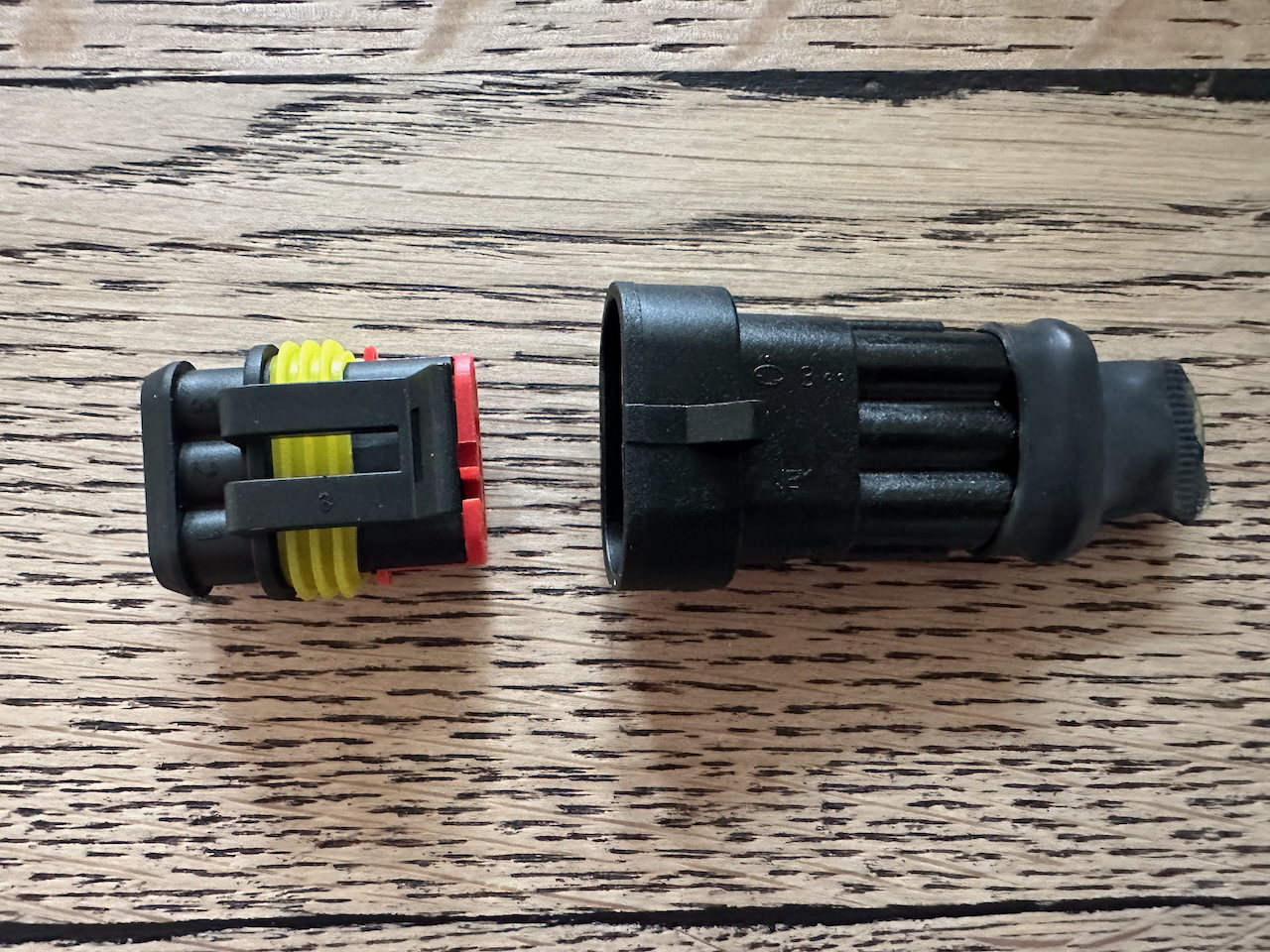

  6. I have the bypass plug ready to go :

    Screenshot 2025-08-09 at 18.01.03.png

    #6 darko, Aug 9, 2025 at 6:02 PM

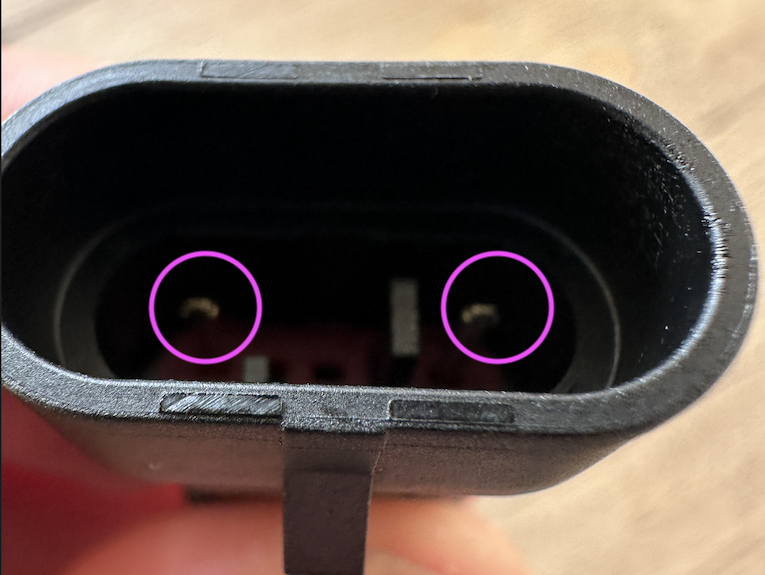

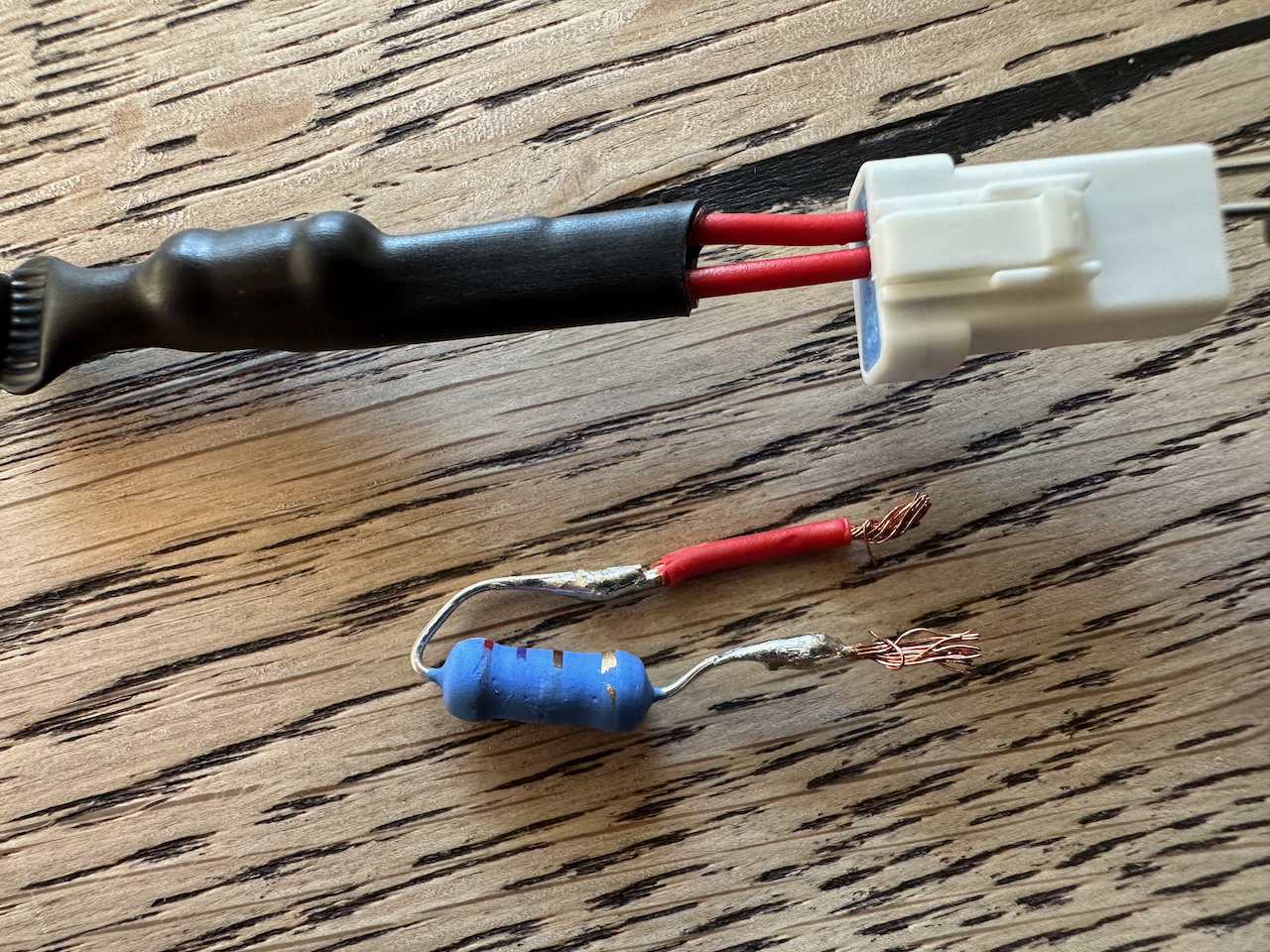

  7. Which seems to only have pins at the ends, not in the middle

    Screenshot 2025-08-09 at 18.01.20.png

    #7 darko, Aug 9, 2025 at 6:03 PM
