Wot Wire Is Wot ?

Discussion in 'Technical Help' started by Steve Paxman, Apr 22, 2021.

  1. Help please, I have looked at the wiring diagram. But cannot make out what i need to know. I am just being thick I know.
    2017 Supersport rear light wires. Red and White I assume is power, Black I assume is Earth, is Yellow the brake light ?

    Thanks in anticipation

    #1 Steve Paxman, Apr 22, 2021
  2. Can you post a photo of the wiring diagram? Or even better upload a pdf? It’ll save others having to search and make sure we’re all looking at the same diagram as you :upyeah:

    #2 West Cork Paul, Apr 22, 2021
  3. I have attached it. I looked but could not see the colour coding !


    Attached Files:

    #3 Steve Paxman, Apr 22, 2021
    • Like Like x 1
    • Lock Thread Lock Thread x 1
  4. Correct :upyeah:

    #4 CAT3, Apr 22, 2021
    • Like Like x 1

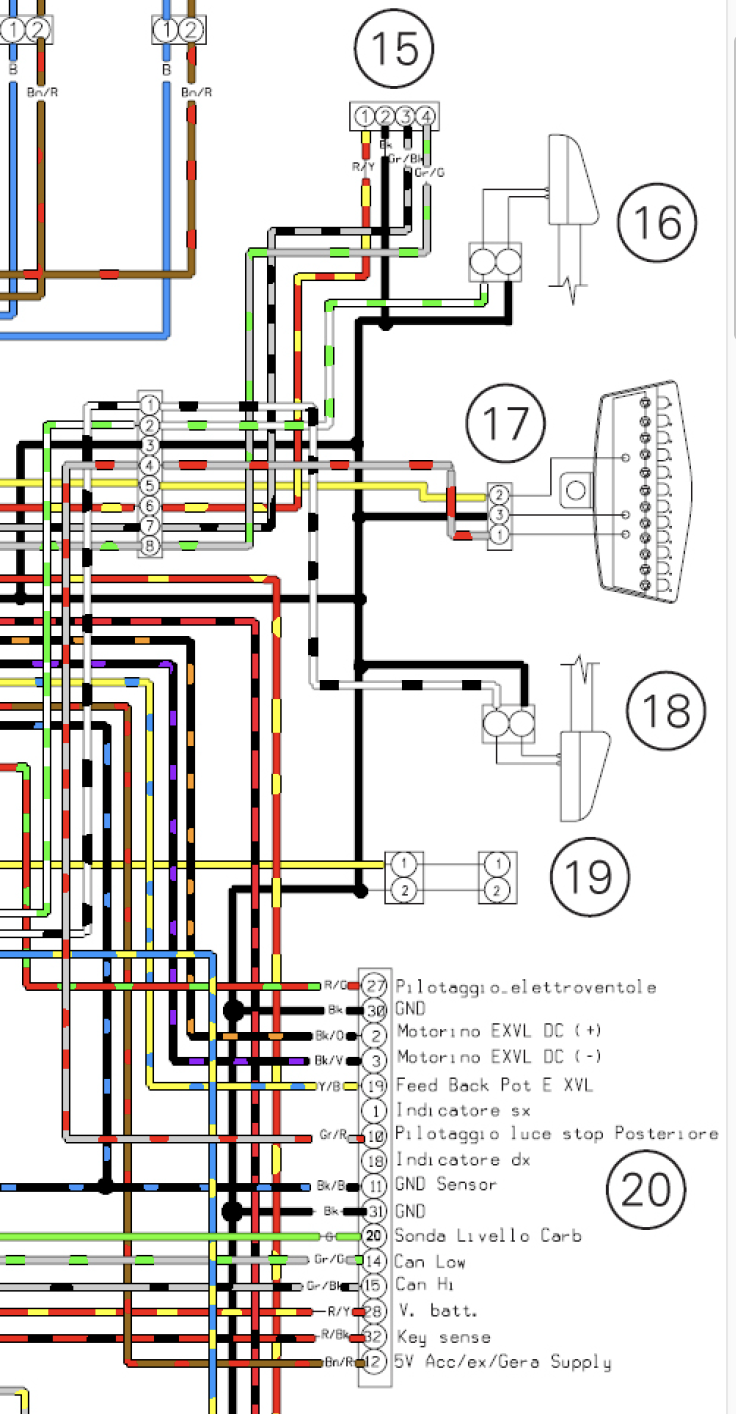

  5. Black is ground, Yellow is tail light and red/grey is stop light.

    Screenshot 2021-04-22 at 16.23.20.png

    #5 Derek, Apr 22, 2021
    • Like Like x 3
    • Useful Useful x 1
  6. Thanks Derek
    That's a far better diagram in colour. I can make sense of that. Much appreciated

    #6 Steve Paxman, Apr 22, 2021
  7. No problem.

    #7 Derek, Apr 22, 2021
