Battery Size

Discussion in 'Monster' started by West Cork Paul, Jul 23, 2020.

  1. Does anyone know the size, physical and electrical of the battery for a 2009 Monster 1100S please?

    I think I may need to get a new battery and I don’t want to have to strip the plastics off and lift the tank just to see it & measure it. I don’t mind doing that obviously when I replace it but it’s a chore just to see what I need to order.

    I thought I had a picture from when it was all stripped down and serviced earlier this year but sadly no:(

    I want the highest CCA I can get to fit in the tiny space under the tank.

    Mind you, I could always go lithium :astonished::joy:

    • Lock Thread Lock Thread x 1

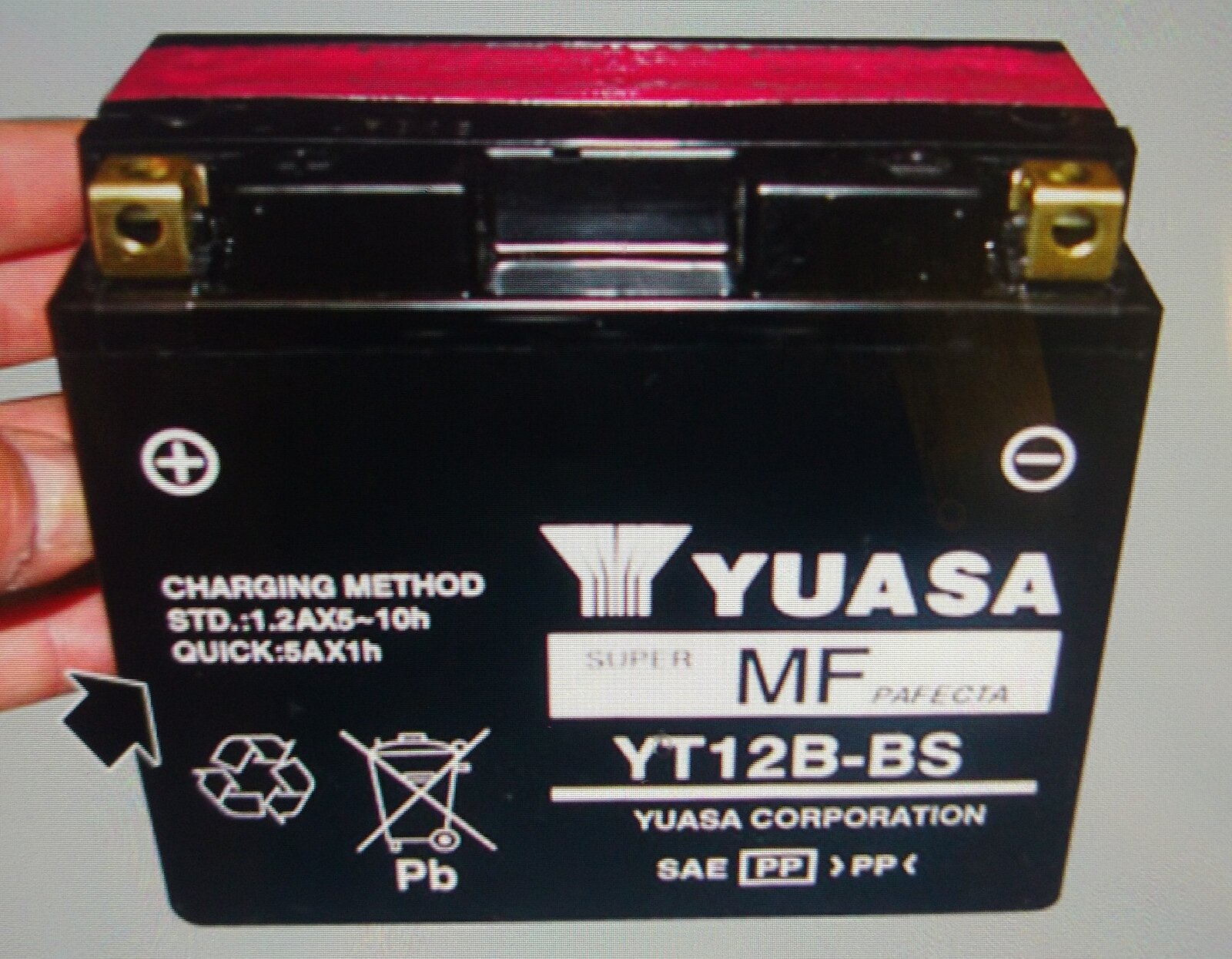

  2. Think it's one of these?

    YT12B
    -BS Battery Specifications:
    Dimensions : (H) 5.12" x (L) 5.91" (W) 2.72" Weight: 8.46 lbs. CCA: 210. Volts: 12V.

  3. Yuasa YT12B-BS 12V 10Ah Motorbike Battery for Motorcycles and Quad bikes
    Brand: Yuasa
    Voltage : 12 V
    Capacity : 10 Ah
    Cold start performance: 180 EN
    Dimensions : 150mm x 69mm x 130mm
    Weight (filled) : 4.1kg
    Maximum charge rate: 1 Amp
    Terminal layout: Left: + Right: - (With the terminals on the edge nearest to you)
    Type : AGM battery

    YT12B-BS Motorbike Battery
    Yuasa LF Liquifix Gel batteries feature the latest AGM (Absorbent Glass Mat) technology.
    Benefits include increased lifespan, and electrical performance, higher vibration resistance, and 100% leak and spill proof.

    Replaces the following numbers

    FT12B-BS
    Yuasa YT12B-BS
    YT12B-4
    CT12B-A
    GT12B-4
    GT12B-B4
    YT12B-BS
    CT12B-4
    ET12-B4
    YT12B-4
    YT12B-BS
    ET12B-4
    FT12-12B
    F12-12B
    512 901 019
    Yamaha 4TX-82100-02-00
    Yamaha BTY-YT12B-BS-00

    FOR REFERENCE ONLY ALWAYS CHECK BATTERY SPECIFICATION AGAINST THE EXISTING BATTERY BEFORE PURCHASE.

    Listed to fit the following motorcycles

    APRILIA MOTORCYCLES SPORTCITY Sportcity CUBE 125
    APRILIA MOTORCYCLES SPORTCITY Sportcity CUBE 125 Black Line
    APRILIA MOTORCYCLES SPORTCITY Sportcity 200
    APRILIA MOTORCYCLES SPORTCITY Sportcity 250 i.e.
    APRILIA MOTORCYCLES CUBE Cube 300 i.e.
    APRILIA MOTORCYCLES CUBE Cube 300 i.e. Black Line
    BENELLI MOTORCYCLES TREK TreK 899 (TK0)
    BENELLI MOTORCYCLES TREK TreK 899 (TK0)
    BENELLI MOTORCYCLES TREK TreK 899 Amazonas (TK0)
    BENELLI MOTORCYCLES TREK TreK 899 (TK0)
    BENELLI MOTORCYCLES TREK TreK 899 Amazonas (TK0)
    BENELLI MOTORCYCLES TREK TreK 1130
    BENELLI MOTORCYCLES TREK TreK 1130
    BENELLI MOTORCYCLES TREK TreK 1130 Amazonas
    BENELLI MOTORCYCLES TREK TreK 1130 K
    BIMOTA MOTORCYCLES DB5 DB5 R
    BIMOTA MOTORCYCLES DB5 DB5 S
    BIMOTA MOTORCYCLES DB7 DB7
    BIMOTA MOTORCYCLES DB7 DB7
    DUCATI MOTORCYCLES SCRAMBLER Scrambler Sixty2 (KA)
    DUCATI MOTORCYCLES 620 620 Sport Carenata
    DUCATI MOTORCYCLES 620 620 Sport Nuda
    DUCATI MOTORCYCLES MONSTER Monster 620 I.E.
    DUCATI MOTORCYCLES MONSTER Monster 620 I.E. Dark
    DUCATI MOTORCYCLES MONSTER Monster 620 S I.E.
    DUCATI MOTORCYCLES MONSTER Monster 620
    DUCATI MOTORCYCLES MONSTER Monster 620 Dark
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 620
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 620 (A1)
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 620 (A1)
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 620 Dark
    DUCATI MOTORCYCLES MONSTER Monster 659 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 695
    DUCATI MOTORCYCLES 696 696 (M5)
    DUCATI MOTORCYCLES 696 696 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 696
    DUCATI MOTORCYCLES MONSTER Monster 696 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 696 20th Anniversary
    DUCATI MOTORCYCLES MONSTER Monster 696+
    DUCATI MOTORCYCLES 748 748 R
    DUCATI MOTORCYCLES 748 748 S
    DUCATI MOTORCYCLES 749 749 Dark
    DUCATI MOTORCYCLES 749 749 S (H 5)
    DUCATI MOTORCYCLES 749 749 S
    DUCATI MOTORCYCLES 749 749 (H 5)
    DUCATI MOTORCYCLES 750 750 SS I.E. C
    DUCATI MOTORCYCLES 750 750 SS I.E. N
    DUCATI MOTORCYCLES 750 750 SS I.E. (V2)
    DUCATI MOTORCYCLES 750 750 SS I.E. (V2)
    DUCATI MOTORCYCLES MONSTER Monster 750 I.E.
    DUCATI MOTORCYCLES MONSTER Monster 750 I.E. Dark
    DUCATI MOTORCYCLES 749 749 R (H5)
    DUCATI MOTORCYCLES 796 796 (B1)
    DUCATI MOTORCYCLES 796 796 (B1)
    DUCATI MOTORCYCLES 800 800 SS Carenata
    DUCATI MOTORCYCLES 800 800 SS Sport Nuda
    DUCATI MOTORCYCLES 800 800 SS Sport Carenata
    DUCATI MOTORCYCLES 800 800 SS Nuda
    DUCATI MOTORCYCLES 800 800 SS
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 796
    DUCATI MOTORCYCLES MONSTER Monster 796
    DUCATI MOTORCYCLES MONSTER Monster 796
    DUCATI MOTORCYCLES MONSTER Monster 796 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 796 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 796 Dark
    DUCATI MOTORCYCLES MONSTER Monster 796 20th Anniversary
    DUCATI MOTORCYCLES MONSTER Monster S2R 800 (M4)
    DUCATI MOTORCYCLES MONSTER Monster S2R 800 (M4)
    DUCATI MOTORCYCLES MONSTER Monster S2R 800
    DUCATI MOTORCYCLES MONSTER Monster S2R 800 Dark
    DUCATI MOTORCYCLES SCRAMBLER Scrambler Classic (K1)
    DUCATI MOTORCYCLES SCRAMBLER Scrambler Classic (K1)
    DUCATI MOTORCYCLES SCRAMBLER Scrambler Classic (K1)
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 821 SP
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 821
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 821
    DUCATI MOTORCYCLES HYPERSTRADA Hyperstrada 821
    DUCATI MOTORCYCLES HYPERSTRADA Hyperstrada 821
    DUCATI MOTORCYCLES MONSTER Monster 821 (M6)
    DUCATI MOTORCYCLES MONSTER Monster 821 (M7)
    DUCATI MOTORCYCLES 848 848
    DUCATI MOTORCYCLES 848 848 Dark
    DUCATI MOTORCYCLES 848 848 Evo
    DUCATI MOTORCYCLES 848 848 Evo (H6)
    DUCATI MOTORCYCLES 848 848 Evo Corse SE
    DUCATI MOTORCYCLES 848 848 Evo Dark
    DUCATI MOTORCYCLES STREETFIGHTER Streetfighter 848
    DUCATI MOTORCYCLES 900 900 SS Nuda
    DUCATI MOTORCYCLES 900 900 SS I.E. C
    DUCATI MOTORCYCLES 900 900 SS I.E. N
    DUCATI MOTORCYCLES 900 900 SS FE
    DUCATI MOTORCYCLES 900 900 Sport Carenata
    DUCATI MOTORCYCLES 900 900 Sort Nuda
    DUCATI MOTORCYCLES 900 900 SS Carenata
    DUCATI MOTORCYCLES MONSTER Monster 900 S/Spezial
    DUCATI MOTORCYCLES MONSTER Monster 900 Metallic
    DUCATI MOTORCYCLES MONSTER Monster 900 I.E. Dark
    DUCATI MOTORCYCLES MONSTER Monster 900 I.E.
    DUCATI MOTORCYCLES MONSTER Monster 900 S/Spezial
    DUCATI MOTORCYCLES MONSTER Monster S4
    DUCATI MOTORCYCLES ST ST 4
    Model year from: 01.01
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 939 (BA)
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 939 SP (BA)
    DUCATI MOTORCYCLES HYPERSTRADA Hyperstrada 939
    DUCATI MOTORCYCLES ST ST 2
    Model year from: 01.01
    DUCATI MOTORCYCLES DESMOSEDICI Desmosedici RR
    DUCATI MOTORCYCLES 1000 1000 SS
    DUCATI MOTORCYCLES 1000 1000 SS Carenata (V5)
    DUCATI MOTORCYCLES 1000 1000 SS Nuda (V5)
    DUCATI MOTORCYCLES 1000 1000 DS
    DUCATI MOTORCYCLES GT GT 1000
    DUCATI MOTORCYCLES GT GT 1000 Touring
    DUCATI MOTORCYCLES GT GT 1000 Touring
    DUCATI MOTORCYCLES MONSTER Monster 1000
    DUCATI MOTORCYCLES MONSTER Monster 1000 S
    DUCATI MOTORCYCLES MONSTER Monster 1000 Dark
    DUCATI MOTORCYCLES MONSTER Monster S2R 1000
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1000 S DS
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1000 DS
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1000 DS
    DUCATI MOTORCYCLES PAUL SMART Paul Smart 1000LE
    DUCATI MOTORCYCLES SPORT Sport 1000
    DUCATI MOTORCYCLES SPORT Sport 1000 S
    DUCATI MOTORCYCLES ST ST 3
    DUCATI MOTORCYCLES ST ST 3
    DUCATI MOTORCYCLES ST ST 3S ABS
    DUCATI MOTORCYCLES 996 996 Biposto
    DUCATI MOTORCYCLES 996 996 S
    DUCATI MOTORCYCLES MONSTER Monster S4R
    DUCATI MOTORCYCLES ST ST 4 S
    DUCATI MOTORCYCLES 996 996 R
    DUCATI MOTORCYCLES 998 998 R
    DUCATI MOTORCYCLES 998 998
    DUCATI MOTORCYCLES 998 998 S
    DUCATI MOTORCYCLES 999 999
    DUCATI MOTORCYCLES 999 999 S
    DUCATI MOTORCYCLES 999 999
    DUCATI MOTORCYCLES MONSTER Monster S4RS
    DUCATI MOTORCYCLES MONSTER Monster S4RS Tricolore
    DUCATI MOTORCYCLES 999 999 R
    DUCATI MOTORCYCLES 999 999 R Xerox
    DUCATI MOTORCYCLES 999 999 R
    DUCATI MOTORCYCLES 1100 1100 S
    DUCATI MOTORCYCLES 1100 1100
    DUCATI MOTORCYCLES 1100 1100 Evo SP
    DUCATI MOTORCYCLES 1100 1100 Evo
    DUCATI MOTORCYCLES 1100 1100 S Portedefolio
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 1100
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 1100 (B1)
    DUCATI MOTORCYCLES HYPERMOTARD Hypermotard 1100 S
    DUCATI MOTORCYCLES MONSTER Monster 1100 (M5)
    DUCATI MOTORCYCLES MONSTER Monster 1100
    DUCATI MOTORCYCLES MONSTER Monster 1100 S
    DUCATI MOTORCYCLES MONSTER Monster 1100 Diesel
    DUCATI MOTORCYCLES MONSTER Monster 1100 EVO
    DUCATI MOTORCYCLES MONSTER Monster 1100 EVO 20th Anniversary
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1100 DS
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1100 S DS
    DUCATI MOTORCYCLES 1098 1098 S
    DUCATI MOTORCYCLES STREETFIGHTER Streetfighter S
    DUCATI MOTORCYCLES STREETFIGHTER Streetfighter
    DUCATI MOTORCYCLES 1098 1098 R (H7)
    DUCATI MOTORCYCLES 1098 1098 R Bayliss Limited Edition
    DUCATI MOTORCYCLES 1198 1198
    DUCATI MOTORCYCLES 1198 1198 S
    DUCATI MOTORCYCLES 1198 1198 R Corse
    DUCATI MOTORCYCLES 1200 1200 S Granturismo
    DUCATI MOTORCYCLES 1200 1200 S Pikes Peak
    DUCATI MOTORCYCLES 1200 1200 S Touring
    DUCATI MOTORCYCLES 1200 1200
    DUCATI MOTORCYCLES 1200 1200 S Sport
    DUCATI MOTORCYCLES DIAVEL Diavel (G1)
    DUCATI MOTORCYCLES DIAVEL Diavel Carbon (G1)
    DUCATI MOTORCYCLES DIAVEL Diavel Titanium (G1)
    DUCATI MOTORCYCLES DIAVEL Diavel Strada
    DUCATI MOTORCYCLES DIAVEL Diavel Dark
    DUCATI MOTORCYCLES DIAVEL Diavel Cromo
    DUCATI MOTORCYCLES DIAVEL Diavel AMG
    DUCATI MOTORCYCLES DIAVEL Diavel Carbon Red
    DUCATI MOTORCYCLES DIAVEL Diavel Carbon
    DUCATI MOTORCYCLES DIAVEL Diavel
    DUCATI MOTORCYCLES DIAVEL Diavel (G1)
    DUCATI MOTORCYCLES MONSTER Monster 1200
    DUCATI MOTORCYCLES MONSTER Monster 1200 (M6)
    DUCATI MOTORCYCLES MONSTER Monster 1200 S
    DUCATI MOTORCYCLES MONSTER Monster 1200 S (M6)
    DUCATI MOTORCYCLES MONSTER Monster 1200 R (MA)
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 S Touring
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 S Pikes Peak
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 S Granturismo
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 (A3)
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 Enduro
    DUCATI MOTORCYCLES MULTISTRADA Multistrada 1200 Pikes Peak
    DUCATI MOTORCYCLES DIAVEL X Diavel (GA)
    DUCATI MOTORCYCLES DIAVEL X Diavel S (GA)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00C/D)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00C)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00C/D)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00D)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00E)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00E)
    KAWASAKI MOTORCYCLES NINJA Ninja ZX-10R (ZXT00E)
    PIAGGIO MOTORCYCLES BEVERLY Beverly 125 (M28)
    PIAGGIO MOTORCYCLES BEVERLY Beverly 125 GT (M28)
    PIAGGIO MOTORCYCLES BEVERLY Beverly 200 GT (M28)
    PIAGGIO MOTORCYCLES BEVERLY Beverly 300 i.e. Tourer (M28)
    PIAGGIO MOTORCYCLES BEVERLY Beverly 300 i.e. RST (M69)
    YAMAHA MOTORCYCLES FZS FZS 600 Fazer (RJ02)
    YAMAHA MOTORCYCLES FZS FZS 600 Fazer (RJ02)
    YAMAHA MOTORCYCLES FZ FZ 6 (RJ07)
    YAMAHA MOTORCYCLES FZ FZ 6 Fazer (RJ07)
    YAMAHA MOTORCYCLES FZ FZ 6 Fazer (RJ14)
    YAMAHA MOTORCYCLES FZ FZ 6 S2 Fazer (RJ14)
    YAMAHA MOTORCYCLES XJ XJ 6 (RJ19)
    YAMAHA MOTORCYCLES XJ XJ 6 (RJ22)
    YAMAHA MOTORCYCLES XJ XJ 6 (RJ22)
    YAMAHA MOTORCYCLES XJ XJ 6 ABS (RJ19)
    YAMAHA MOTORCYCLES XJ XJ 6 SP (RJ19)
    YAMAHA MOTORCYCLES XJ XJ 6 SP ABS (RJ19)
    YAMAHA MOTORCYCLES XJ XJ 6 Diversion (RJ19)
    YAMAHA MOTORCYCLES XJ XJ 6 Diversion F (RJ19)
    YAMAHA MOTORCYCLES YZF-R YZF-R6 (RJ03)
    YAMAHA MOTORCYCLES XVS XVS 650 Drag Star (4VR, 4XR)
    YAMAHA MOTORCYCLES XVS XVS 650 Drag Star (4VR, 4XR)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM02)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM02)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM03)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM03)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM04)
    YAMAHA MOTORCYCLES XVS XVS 650 A Drag Star Classic (VM04)
    YAMAHA MOTORCYCLES TDM TDM 850 (4TX)
    YAMAHA MOTORCYCLES TDM TDM 850 (4TX)
    YAMAHA MOTORCYCLES TDM TDM 900 (RN08)
    YAMAHA MOTORCYCLES XVS XVS 950 Bolt (VN03)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN01)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN01)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN09)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN04)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN04)
    YAMAHA MOTORCYCLES YZF-R YZF-R1 (RN09)

    • Useful Useful x 4
  4. You need to break that up with some pictures :bucktooth::D

    • Funny Funny x 3
    • Agree Agree x 1
    • Thanks Thanks x 1
  5. Thank you Stu @Exige as always a source of useful information:upyeah:.

    On this occasion I will overlook the forum rule, as highlighted by Mr @Harry Bell of Scotisshland, of pictures in long posts due to the usefulness of the post :upyeah:

    cheers mate:upyeah:

    • Agree Agree x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
  6. :thinkingface::thinkingface:

    • Funny Funny x 1
    • Agree Agree x 1
    • Useful Useful x 1
  7. Here's a picture too just in case anyone need it for a thread or summat :D IMG_20200724_090956.jpg

    • Thanks Thanks x 2
  8. That's brightened the thread up no end :sun: but what would really brighten it up is if the said battery didn't fit when he finally stripped it down to install :joy:

    • Funny Funny x 3
  9. At the risk of being too brief, get a Lithium.

    • Funny Funny x 1
  10. [​IMG]

    • Funny Funny x 1
  11. I know it's probably funny but please explain the above photo as I'm not familiar with it.
    Looks like something from Monty Python however.

  12. There’s a long running debate on the merits (or not) of lithium batteries in older bikes that were not intended to use them. The debate centres around their alleged propensity to catch fire due to the charging circuit on the bike being designed & built for a lead acid battery rather than a lithium battery. Basically it’s a can of worms.

    • Thanks Thanks x 1
  13. Yup - batteries are just cans of electric worms....

    • Like Like x 1
    • Agree Agree x 1
  14. Modern "quality" LI OEM replacement batteries have Over-Discharge and Over-Charge protections.
    The FAQ below does mention pre-1990 voltage regulator issues but yours is a 2009 which is modem.
    I have one of these in my Multistrada and just purchased another for my Monster. I also had one in my Panigale. No issues.
    What does Ducati say about it?

    FAQ
    https://antigravitybatteries.com/help-center/powersports-battery-fitment-sizing/
    For Ducati Monsters
    https://antigravitybatteries.com/?m...gine=8288&post_type=product&action=vpf-search

    #14 DarR, Aug 5, 2020 at 12:37 PM
    Last edited: Aug 5, 2020 at 1:25 PM
    • Useful Useful x 1
  15. Thanks DAR, interesting:upyeah:

Do Not Sell My Personal Information
