Fault Code Cross Ref.

Discussion in 'Technical Help' started by Nelson, Apr 15, 2019.

Page 1 of 2
  1. Does anyone have a cross reference for the above fault codes?
    I'm showing a 'eng' code on the display.
    I'm trying to diagnose using Jpdiag, however when I view the stored codes they are shown as alpha/numeric codes, which I still need to cross reference.
    @nelly
    :bucktooth:

    #1 Nelson, Apr 15, 2019
  2. This one?

    #2 Nelson, Apr 15, 2019

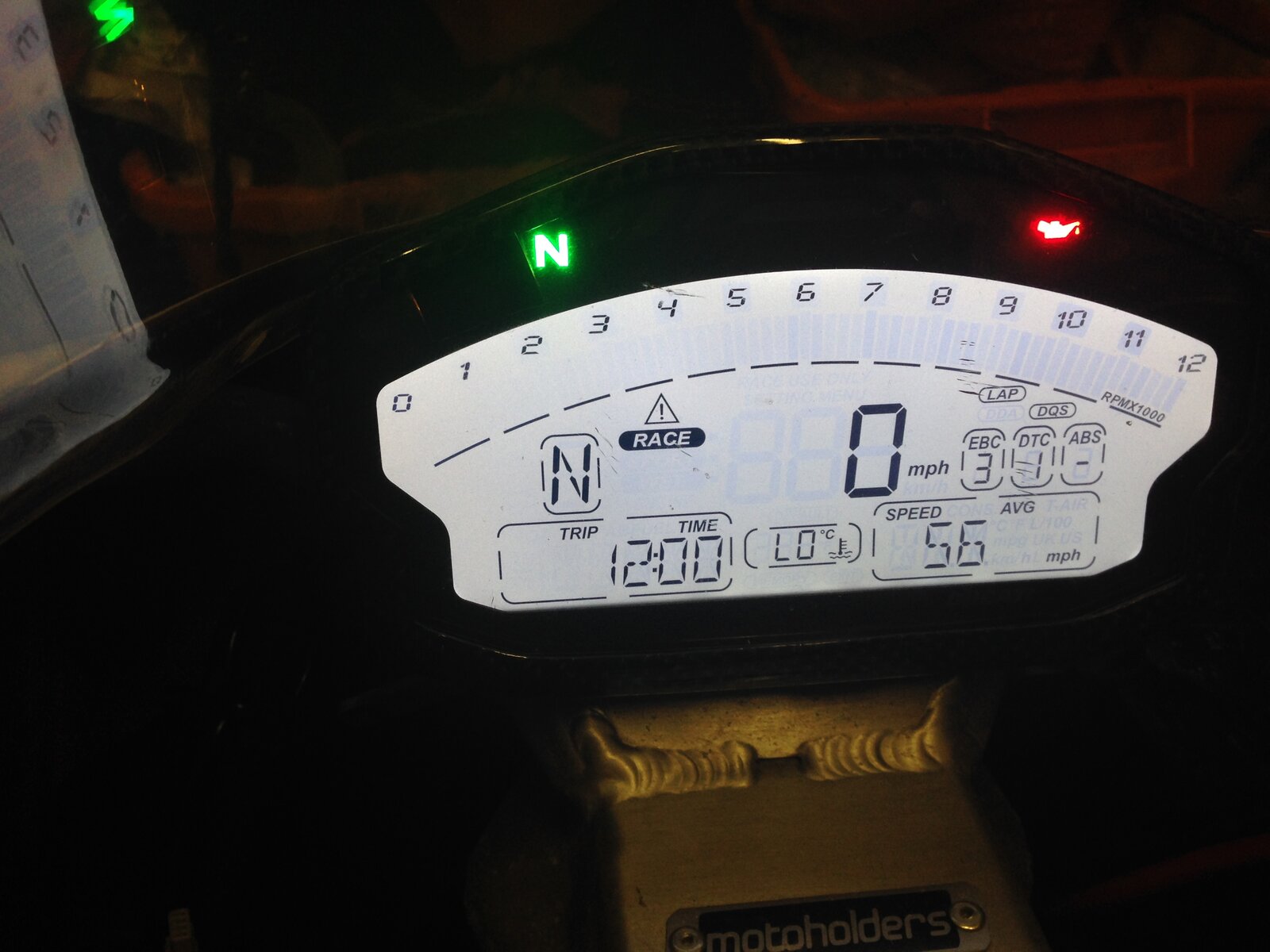

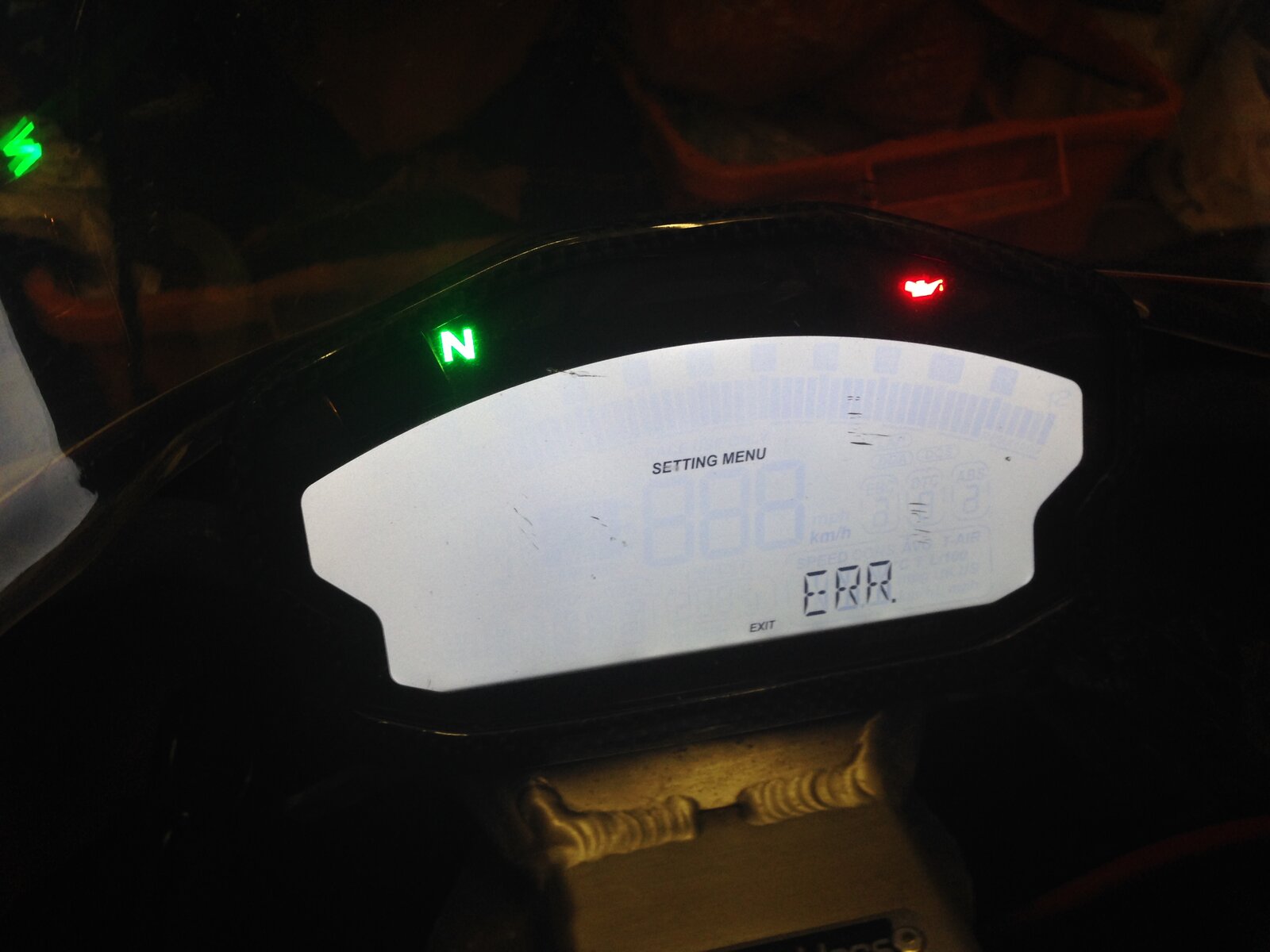

  3. IMG_0899.JPG IMG_0900.JPG Cleared the codes , still have the triangle of doom?

    #3 Nelson, Apr 15, 2019
  4. Sorry. Those codes don’t resemble the ones I get. Maybe chrisw can shed some light, or the jpdiag forums?

    #4 nelly, Apr 15, 2019
  5. Just a thought....... does the warning triangle clear in sport mode or wet? Can’t recall if it lights as a warning that abs is turned off in race?

    #5 nelly, Apr 15, 2019
    • Useful Useful x 1
  6. Thanks Nelly.
    It's displayed for all modes.

    #6 Nelson, Apr 15, 2019
  7. MAF sensor - P0100

    #7 chrisw, Apr 16, 2019
  8. Thanks Chris.
    Where did you locate that?

    #8 Nelson, Apr 16, 2019
  9. £77 from Ducati!
    Fook me!

    #9 Nelson, Apr 16, 2019
  10. Google OBD2 codes. For JPDiag add 'P0' to code and that usually pin points it.

    #10 chrisw, Apr 16, 2019
    • Like Like x 1
    • Thanks Thanks x 1

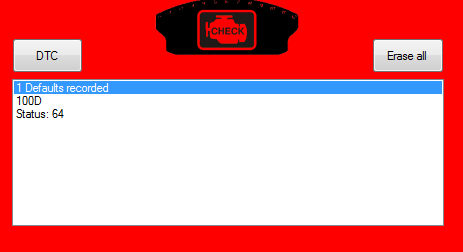

  11. I am reading 100D
    P100D Exhaust valve potentiometer [Short circuit to ground or Open circuit]

    #11 aero, Apr 16, 2019
  12. #12 chrisw, Apr 16, 2019
  13. #13 Nelson, Apr 16, 2019
  14. Guy who posted it is from Germany

    #14 chrisw, Apr 16, 2019
  15. I saw the same question and photo on a US site.
    I'm not sure but I thought that air pump was part of the US canister system.
    Gives me something else to check :upyeah:

    #15 Nelson, Apr 16, 2019
  16. Yay!

    #16 Nelson, Apr 16, 2019
    • Like Like x 1

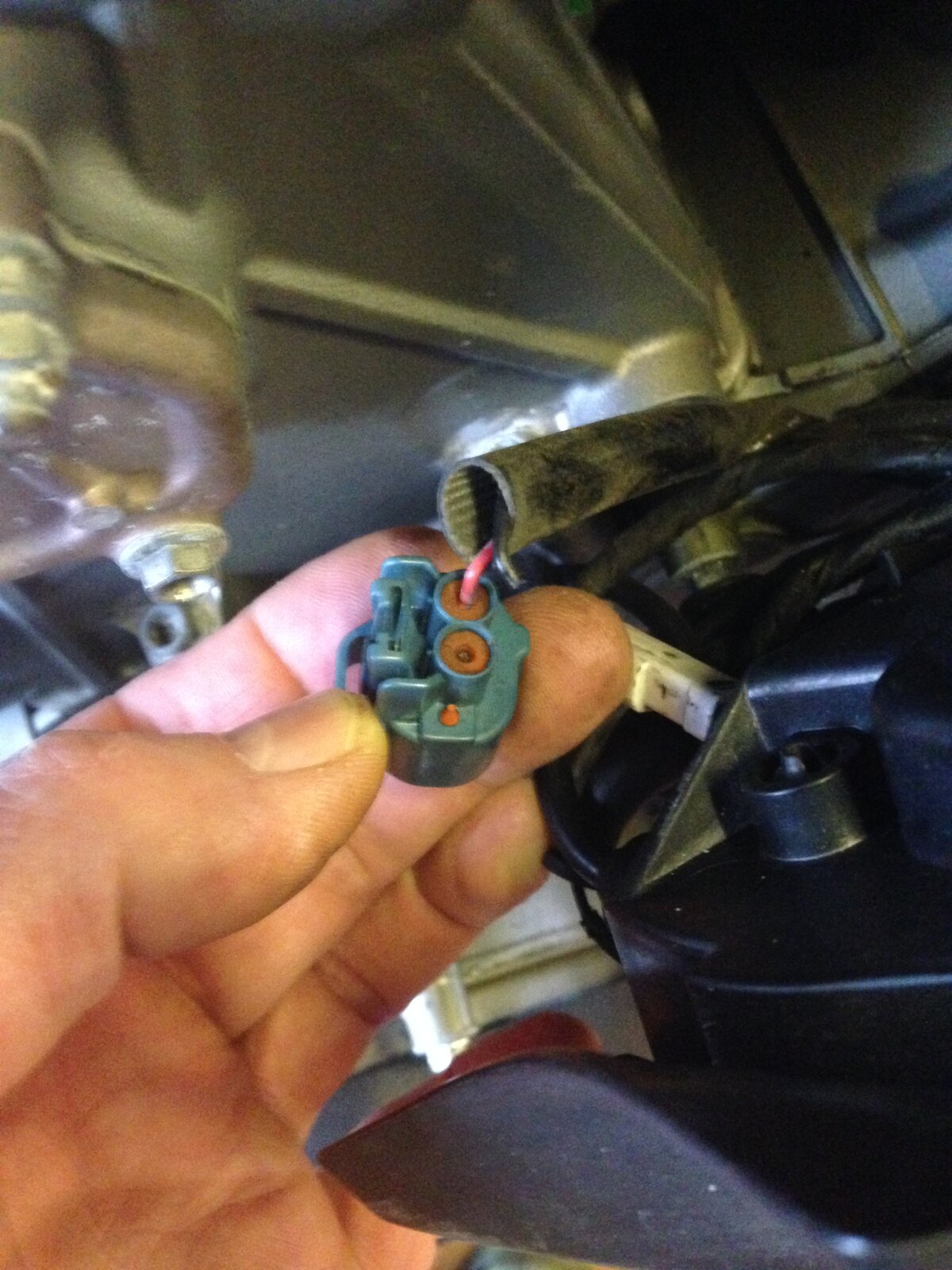

  17. TFF the internet!! Can you get the broken connector out? I can check my spares to see if I have any.

    #17 chrisw, Apr 16, 2019
  18. TF indeed....:D Not tried yet. I'll have another dabble at the weekend when I've more time.
    Usually you can poke the pin out and remake it.
    Thanks for your help...:upyeah:

    #18 Nelson, Apr 16, 2019
  19. Design fault, no play in wire?

    #19 chrisw, Apr 16, 2019
  20. It's a bit tight, but not overly.
    Also, bit tucked away for crash damage. Seems odd it's exactly the same as the other chaps fault.

    #20 Nelson, Apr 16, 2019
