hi guys anyone know to remove the complete number plate bracket from a 1198 ive had all the seat unit off but cant see how it comes off!! cheers

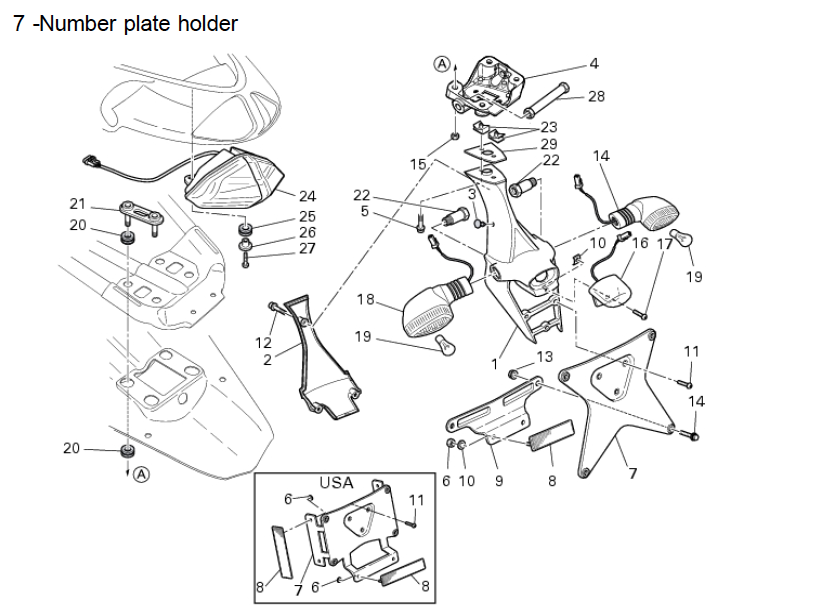

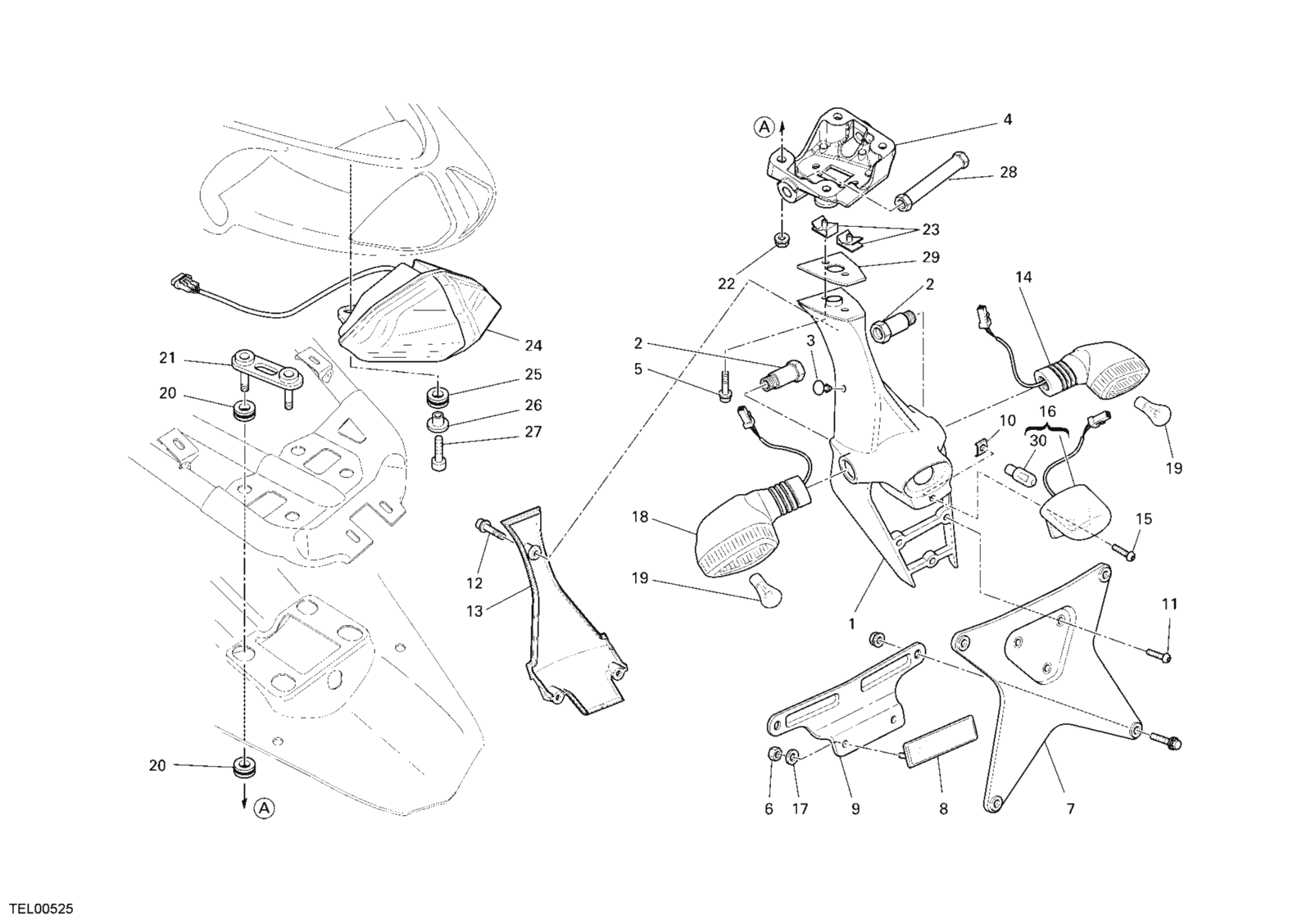

I had the opposite problem when my ex track 1098R was being returned to standard. Remove part (4) by removing 4 x nuts (20)
Remove the cover No. 13 (3 screws) Once that is out of the way, undo the electrical connectors and remove the two screws no.5. They're a bit fiddly but you can get them with a long key.
No 4 doesn’t need to come off. Just two bolts no 5 go up through through no 1 and into clip nuts in no 4.

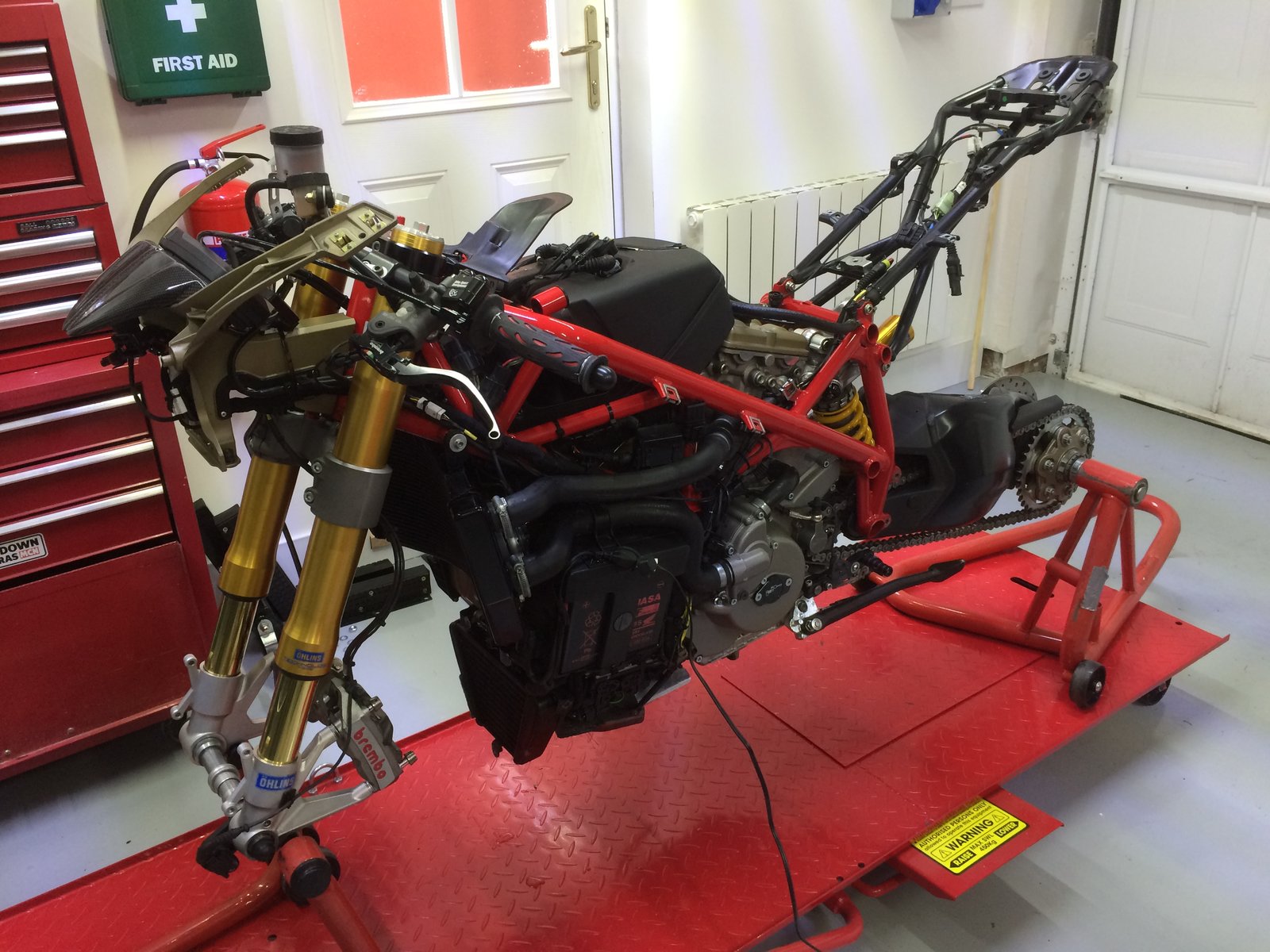

Do you know what it is. I think you are right. I must have had to refit (4) when I stripped the bike down after getting it. I remember refitting it and to my mind thought I must have been puting it back on after the original owner removed it. I now remeber that it is screws (5) that need to be removed. Sorry chaps. It was a while ago now. It was off in this pic (that's my excuse)
Confused me then yep. No 4 has the exhaust bands screwed into it. Two screws (5) are all that holds the hanger in place.
What has been said before - just the 2 no. 5 bolts that need to come out. I use the Ducati Performance plate hanger, part number 96993308B. Much much easier to swap back and forth between road/track use.
