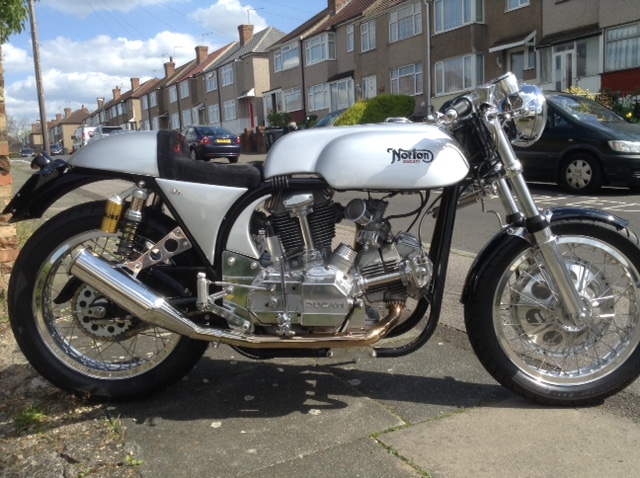

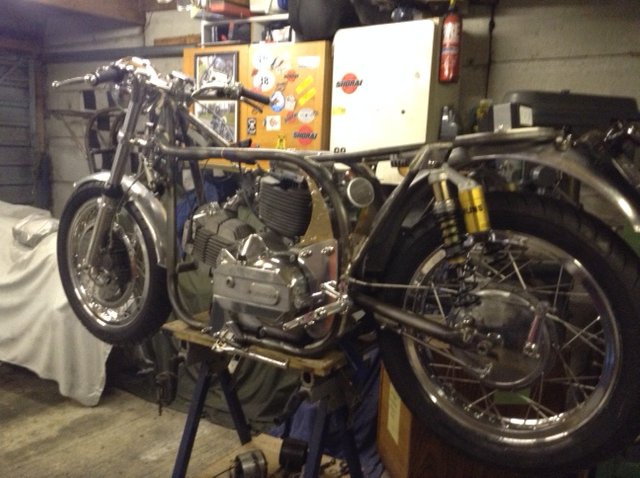

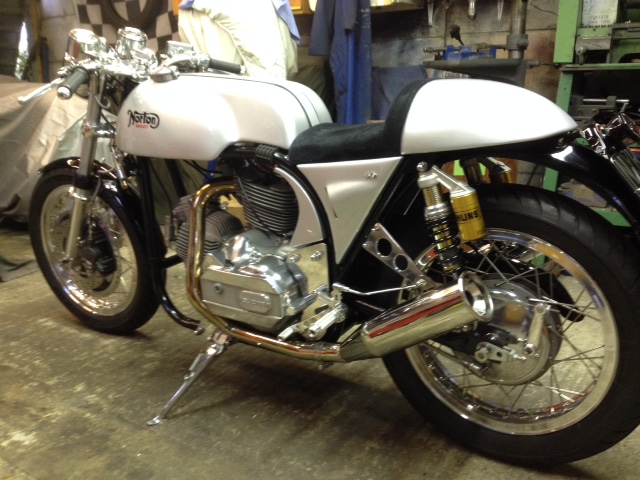

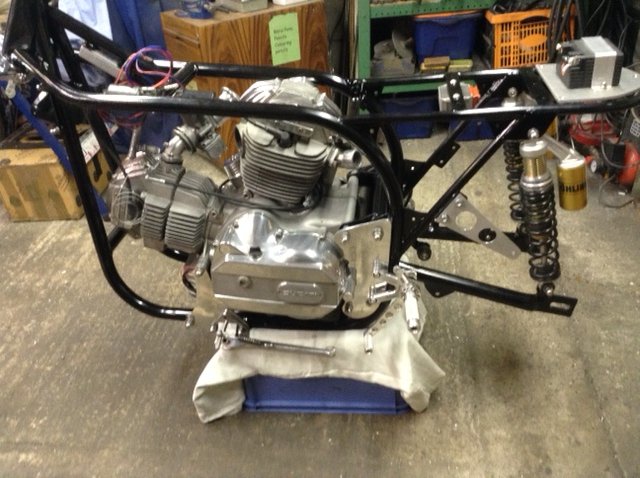

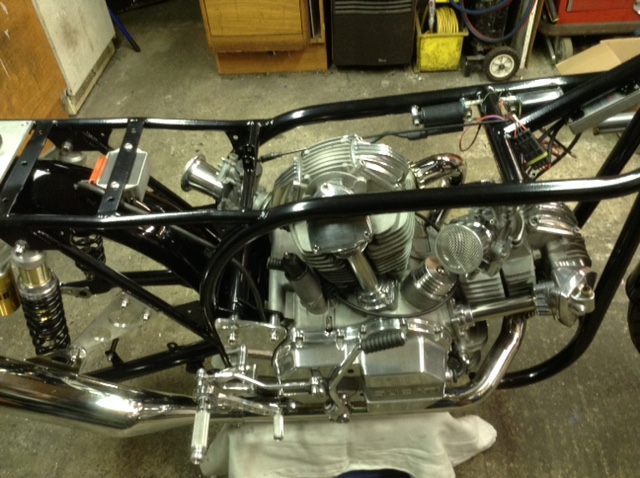

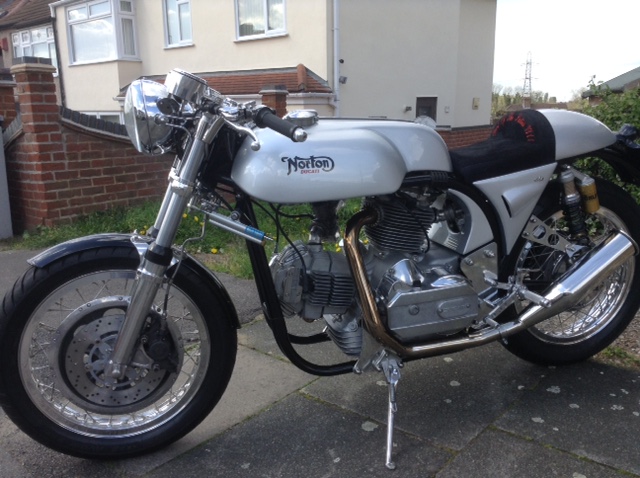

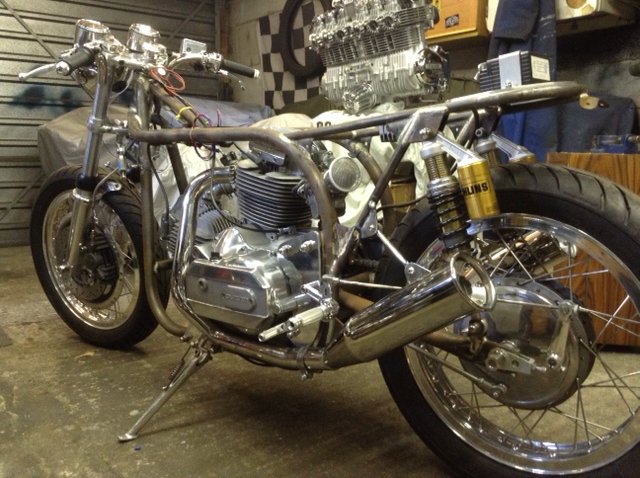

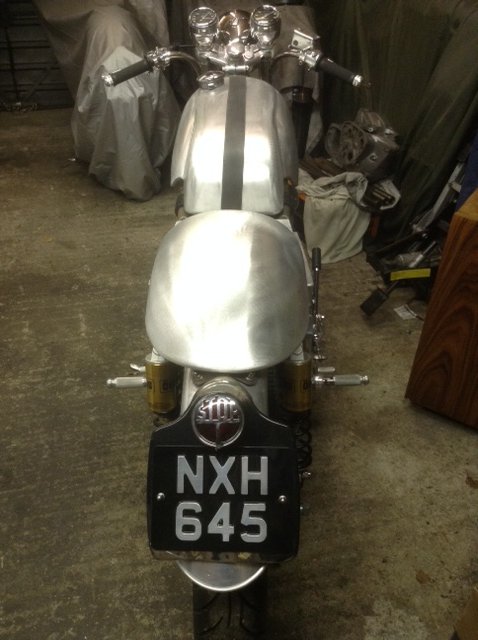

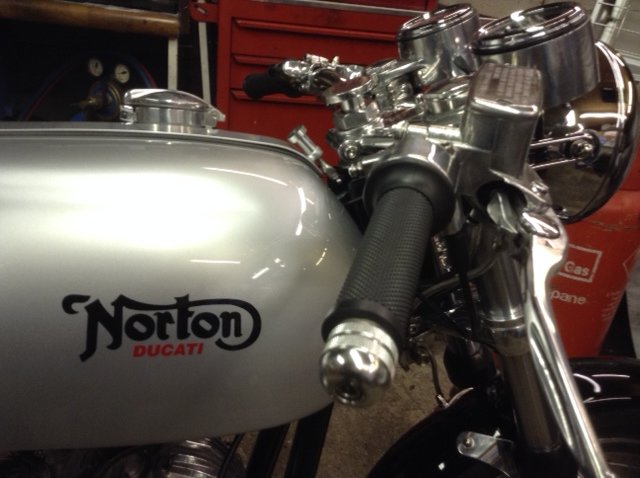

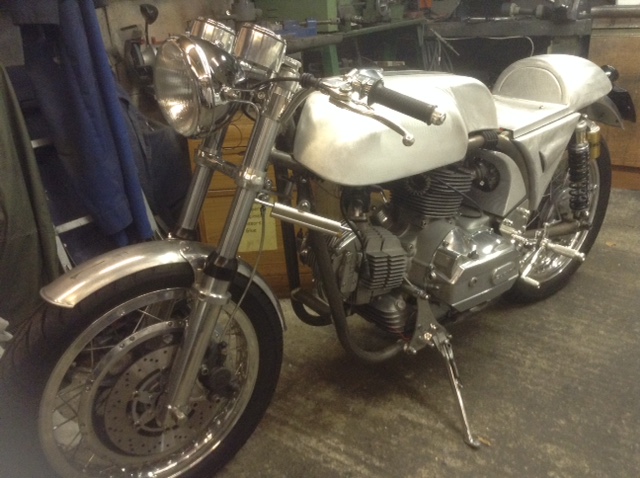

Hi ladies and gents, I'm putting this up for a contac of mine Garry Laurence, this needs to be seen, its an awesome project and I cannot think of anyone that wouldnt like the read and photo's Enjoy ............ NORTON\DUCATI This café racer is part of a trilogy of Norton\ Italian café racers which are unique in being the only ones known to exist, it therefore follows there are no points of reference to make things easy. This machine was a long time in the making, turn the clock back to 2011 when I first thought of building it and it took until 2013 to find an engine. I had bought two complete bikes to use the engines but in the end I just cannot break complete motorcycles to build café racers. I eventually found an engine in Denmark which had been fully restored and looked excellent. I fitted Silent Hectic ignition and 32mm Dellorto carburetors. The only other modification was to change it from left to right gear change. I already had a Norton frame hanging in the garage so it was just a matter of did it fit well having paid a substantial amount for it it was going into the frame one way or another The engine fitted into the frame with the rear bevel drive cap removed and the front tappet cap just clearing the front down tubes. In addition the swinging arm was way out of line but it was clear to me that it was feasible. The frame was modified by spreading the bottom rails to pick up on the front engine mounts and increasing the length of the frame by 1 1\2“ to allow front tappet cover to be removed. The top rail also had to be scalloped to allow rear bevel cover to be removed and finally the swinging arm mount was repositioned for correct chain run . With the engine sitting in the frame I made the engine plates so all cover can be removed for maintenance. The engine has to be fitted with the rear bevel cap removed and fitted once in place. With the engine bolted in the back carburettor fouled the rear frame so I fabricated a new one using an original adaptor. Other frame modifications include machining the rear gusset plates to allow for a balance pipe for the exhaust. Coils mounted on top frame rails under the tank. Ohlin's steering damper mounting. On front down tube. The front end is a rare item being a large conical hub containing the first disc brake made in the UK made by Rickman. I designed a fully floating disc and coupled it with a magnesium caliper. The forks are again period being metal profile with the top nuts drilled and tapped to allow fitment of Norton Commando clock mounts with chronometric clocks. I machined the front fork mudguard mounts and bracket a lot of work to fit the front mudguard but Rickman use Jubilee clips a no no for me. Thefront end is coupled with my signature swan neck clip-ons and chrome wire headlight brackets. The rear hub is Ducati with the original brackets machined off and converted to rod operation and smiths speedo drive fitted, vapour blasted and polished, new shoes and bearings etc. The rear end is finished off with a box section swinging arm,Ohlin shock absorbers and chain tensioner. Bodywork ,tank and seat are all one off designs and custom made which took over seven months, wiring loom and all electrics are again one off designed and made by builder. Exhaust system is custom made by John Campbell and includes a balance pipe, rearsets are designed by builder and are again one off. Seat cover made by Viking Vynl to builders specification. There are no off the shelf parts fitted to this machine all parts have been made or are modified to give the machine a factory finish and balance. On the road the machine handles like a Featherbedmachine should weighing in at 190 kilos fully fuelled. Engine: Ducati 860cc V twin Cam(s): .Bevel drive Carb(s):32mm Dellorto Crank: bearing Clutch: Std Primary Drive: gear driven Gearbox: 5 speed Ignition: Programmable Silent Hektic Exhaust: Custom made Campbell exhausts Frame Norton wideline frame extensively modified. Modifications: Down tubes spread to allow engine fitment and mounts Footrest/Hangers: Modified Triumph Daytona foot peg hangers coupled with Barleycorn rear sets Front End: Wheel: 18” Flanged alloy rim with Rickman drum/disc Forks: Metal profile Yokes: Alloy top / bottom metal profile Handlebars: Stainless steel swan neck clip ons Switchgear: modified Clearhorn dip/horn switch Clocks: Chronomertic speedo and rev counter Instrument Surround: Norton Commando Rear End: Shock(s): Ohlins gas Wheel: 18” Flanged alloy rim Ducati hub Bodywork: Front Mudguard: Manx alloy guard custom brackets Petrol Tank: Custom made Manx gallon alloy tank Seat: Custom made Manx alloy seat cover by Viking Vynl Tailpiece/Rear 'Guard: Manx alloy guard Other Bodywork alloy side and front panels Electrics Main Loom: Custom designed and made by builder Headlight(s):. 7” Lucas Tail Light(s): Vincent Paint: Colour(s): Fern silver
Whatever you call it - it really is one beautiful machine! Well done for the quality of the build and having the imagination to build it

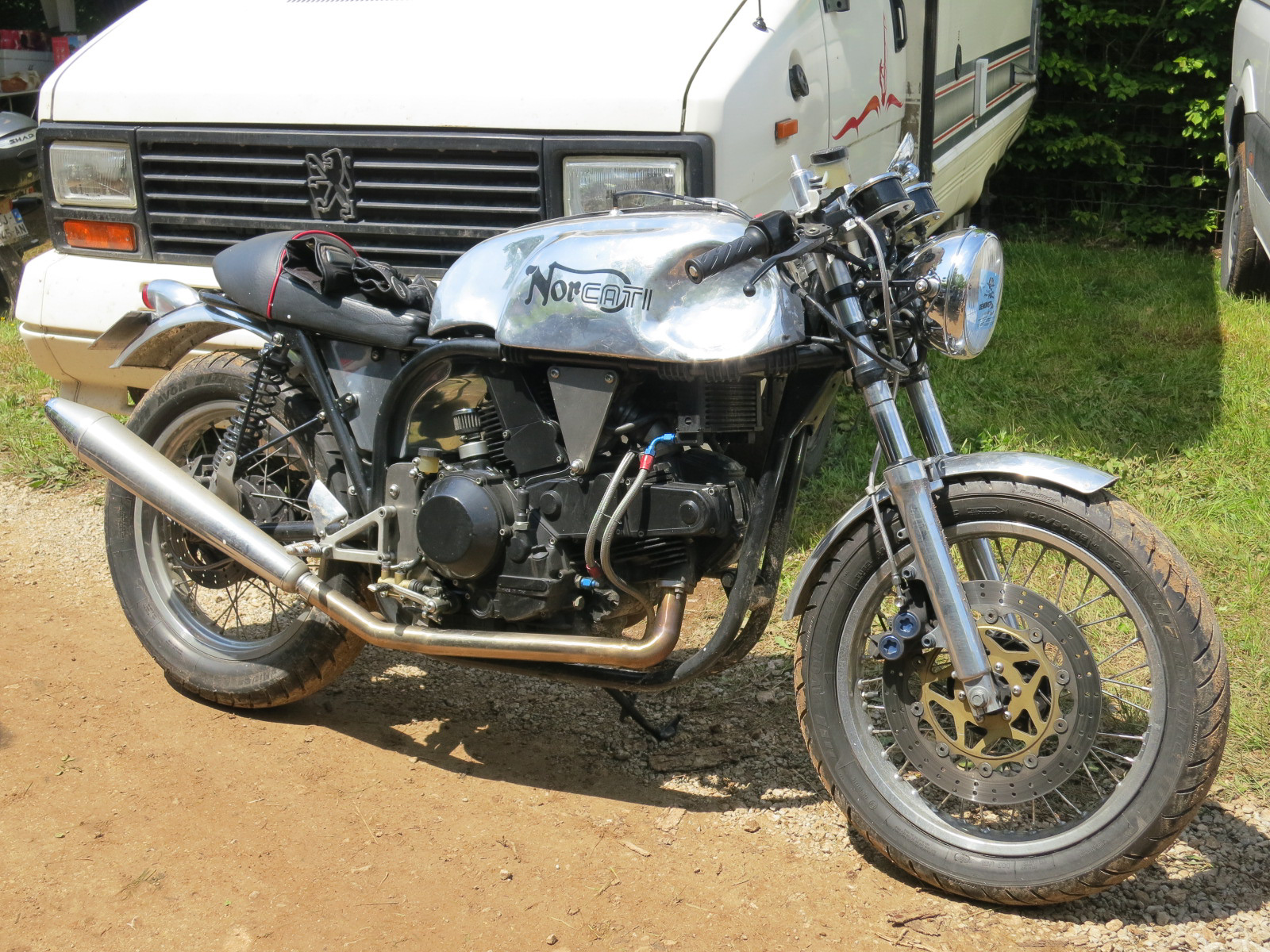

Andy, I thought you might be interested in a Norcati I saw in 2013 at Dijon which was nice but your mate's trumps it no problem
That's still nice, I thinks it the highly polished engine and nearly everything handmade that get this one in the top of my ratings..... it has gave me my own thought though, with a bit if tooling and imagination anything is possible, I'm now doing a bit of research for an old Norton/bsa/triumph frame style and a stretta engine combo!, but this could be a lifetime build if it could be done!............... "anything is possible" is my current life model!
