Hi guys, New to the forum, just fitted a Leo vinci Decat pipe to go with the 2-1-2 termis, and have unplugged the o2 sensor, just want to fit a sensor eliminator plug instead of the sensor but the one on the e-bay site I'm looking at, the picture of the plug looks different to my connector and supplies two? I've added a photo of the ones for sale, any help is appreciated, don't want to order if they aren't correct.
I fitted these to my Monster 1100S - they worked a treat. What type of Hyper have you got? If it's an 1100 I would expect there to be two sensors like the Monster.

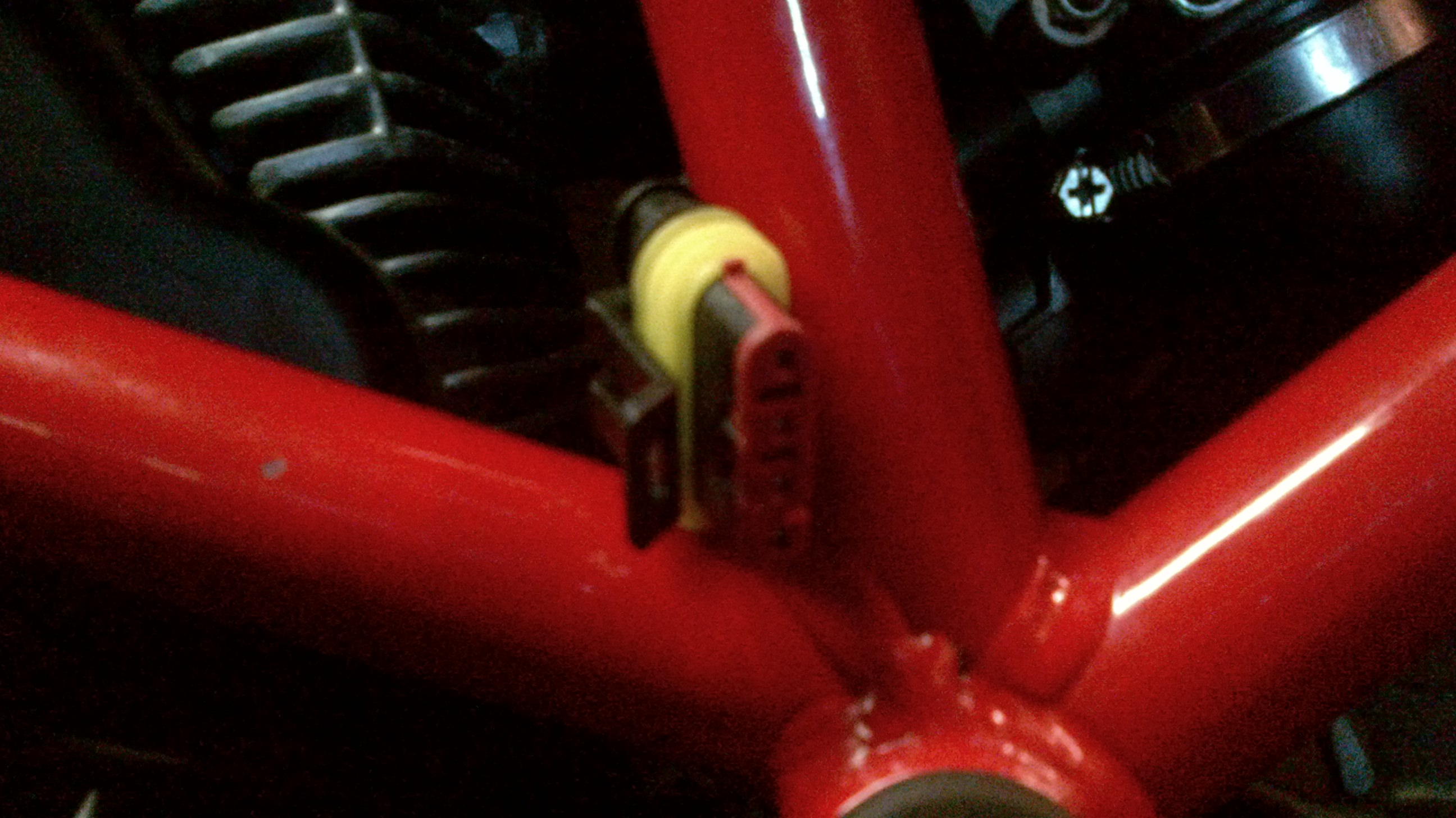

Hi rickyx, thanks for the reply, yes it's an 1100 59 plate, the eBay site said two plugs would be supplied, where do they go? I disconnected the standard o2 sensor plug (photo below) bjt unsure of what or where to go from there?
That's the wrong connector. Not sure where the O2 sensors are located on the Hyper however, you need to trace the wires back from the sensor in each exhaust header. Once you find the end of each of those wires, you will find a square block connector on each one. Unplug the connector and plug in the eliminator you have bought to each one. On the Monster they were located on the inside of the right hand subframe rail. Hope this helps. R
thanks guys, ive already ordered the sensor eliminators but appreciate the info chrisw, thanks Rickyx for the help, will look for the plugs in a bit more depth!
That's the plug coming from my cat!!! The flatter plug!! The picture below it of the square plug is what the sensor eliminator I ordered will fit, haven't found one of them yet!
Your 2009 1100 HM uses the lambda in the top picture. The lambda eliminator you have ordered won't fit. The only ones I have found that would fit are by Bazzaz Bazzaz Ducati 1198 09-11 O2 Eliminator from SportbikeTrackGear.com
Damn! Thanks for the info chrisw, hmmm, what to do? Any negatives to reinstalling the O2 sensor into my decat pipe for now, or do you think I should just do the deed with the bazzaz? Is this what you've installed?
Are you running a DP ECU? The lambda should be disabled if you are. You will know as there will be no Engine Light error on the dash. If not then the easiest way is to disable the lambda in the ECU. PM me for more info.
Hi Chris, all I know is that there is a race ecu that was fitted at the same time as the termi's. What would you suggest, start it and see whether the error light comes on? If it does, will it go out if I reconnect the sensor, or would I need to have a dealer turn it off then?
If you do get a light it will go when you reconnect. If you have the race ECU then the lambda should be disconnected. If it does work then buy some 18mm blanks and take the lambda(s) out.
Sorry to hijack your thread Gazza but i'm after a pair of those sensor plugs for my 796 motard if you have no need for them any longer. If you wish to sell them on PM me. Cheers
You are a top man mossy! Will def sell on to you if you want them, think they should be here by midweek, and thanks Chris, you've been a real big help, much appreciated.
Mine are done - didn't know there were blanking plates (my blanking plates are made out insulation tape). Got a link?
The blanking plates are for the holes in the exhaust. I've not found a source of covers for the Superseal connectors yet.
