Oil

Discussion in 'Technical Help' started by Cream_Revenge, Oct 14, 2017.

  1. It blew smoke at a petrol station after a 45 min ride and on arrival home after nearly 2 hours riding. She was plenty warm. Shouldn't be rich as has a custom map so should be perfect.

  2. Knowing your previous, is your drain plug not done up fully?

  3. Perfect. No weeping and torqued to spec.

  4. Wouldn’t panic as long as it’s only puffs of black does sound like its a little rich - may be due to sensible riding - need to stop doing that !

  5. I don't normally, was just to test oil usage.

    • Like Like x 1
  6. Vertical plug looks oily.

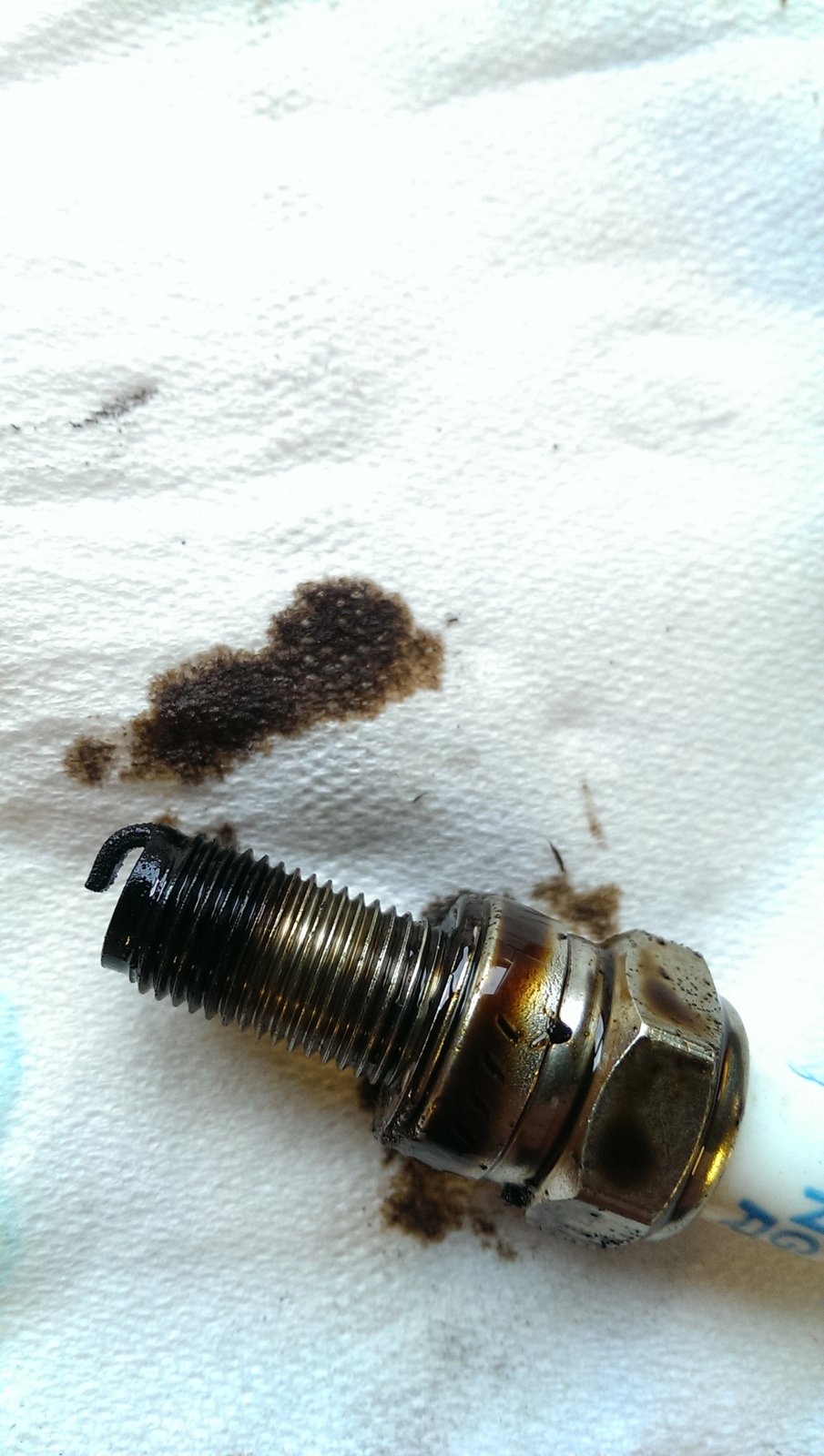

  7. IMAG0034.jpg

    • Dislike Dislike x 1
  8. There's oily ...

    ... and then there's that monstrosity!

    • Agree Agree x 2
  9. Other than the amount of oil, that looks to be running rich to me which would account for a bit of black smoke.
    Steve

    • Agree Agree x 2
  10. That's quite a bit of oil on the outside of the plug mate, is your rocker cover loose, leaking, or cracked?

    • Agree Agree x 1
  11. why so much oil around the base of the plug? you got oil leaking into the plug holes?

    • Agree Agree x 1
  12. I know on 1098's the seal on the rocker cover that keeps oil out the plug hole fails regular filling the plug hole with oil. When I put mine back after checking valve clearances I put some of that grey stuff on the seal. Stopped mine leaking

    • Agree Agree x 1
  13. So, as I'm going to get the valves done anyway, this could be good as maybe only the gasket gone explaining losing oil and smoking exhaust?

    I have a feeling heads have never been off.

    No sign of oil on outside.

  14. Tend to agree looks like it’s running rich and even if leaking into plug hole that wouldnt get to the cylinder so that won’t cause the smoke - think the black smoke is over fueling

    Does it smell like it’s over fueling when running ?

    • Like Like x 1
  15. Smelling fine. And done a very happy 2k mls since custom map. No poping on over run.

  16. Pulled the H. Looks healthier.

    Did a compression test on cold engine.

    V-100
    H-115

    Anyone know what this indicates?

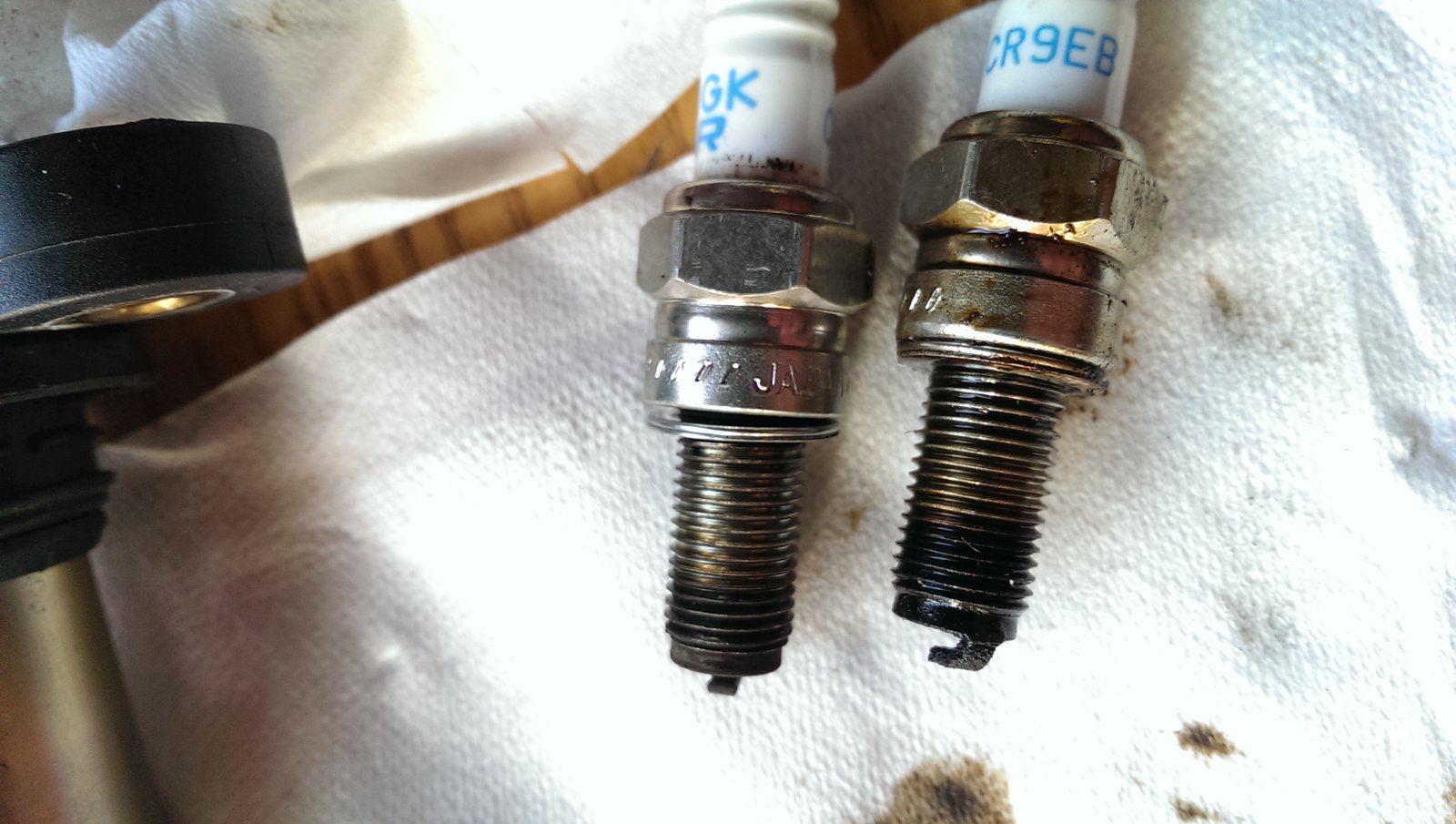

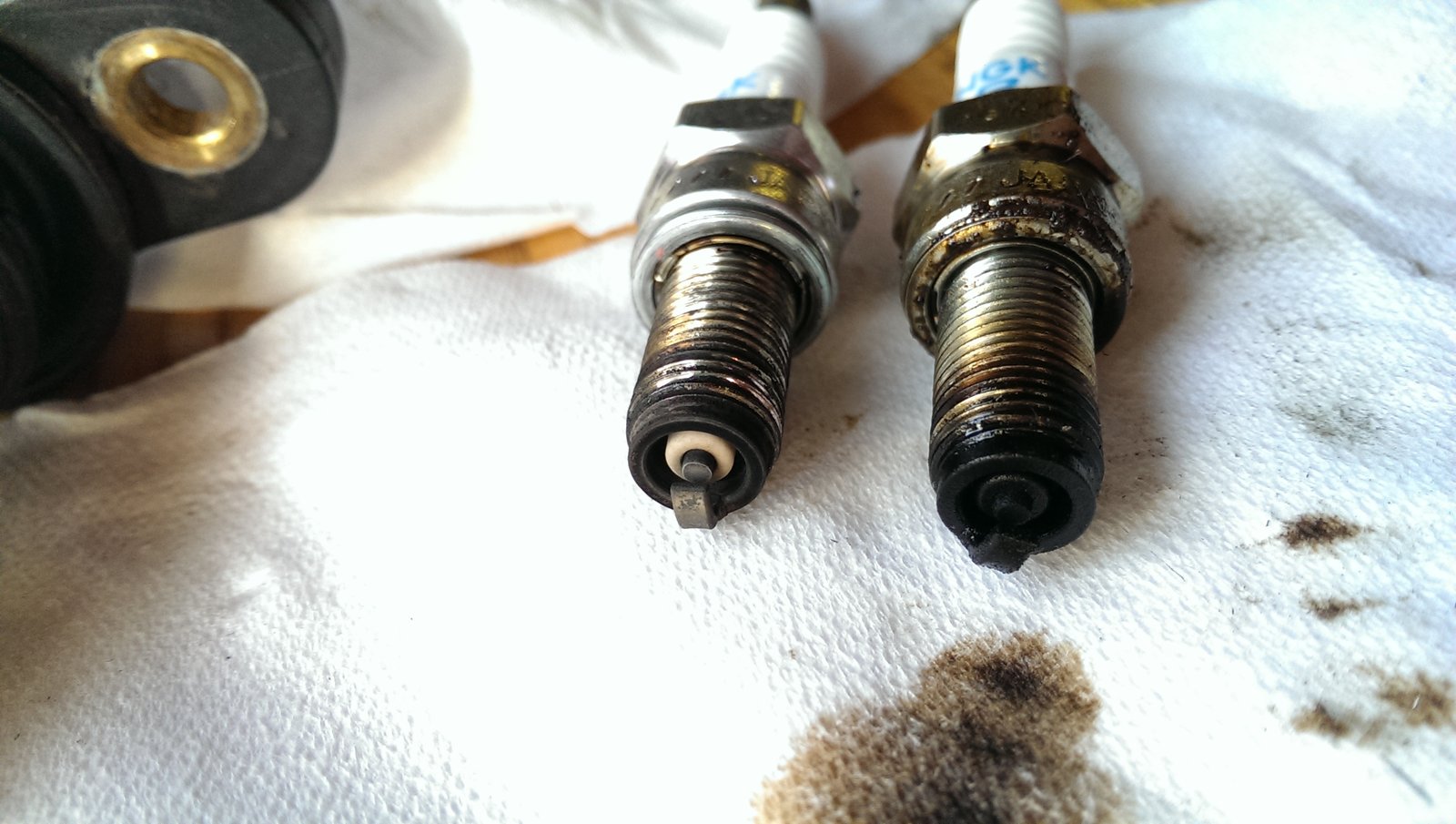

    IMAG0035.jpg IMAG0037.jpg

  17. Vertical is a bit low IMO which taken with the condition of the plug COULD indicate rings or valve seats. If the stem seals have gone that could result on crud accumulating on the valve affecting the seating. Andy

    • Agree Agree x 1
    • Thanks Thanks x 1
  18. Ok, to be honest, as I know the valves should be done anyway, this probably won't be to horrendous......

    I'm remarkably calm for some reason, normally I'm melting down by this point.

  19. Not bad enough for a melt down -

    • Thanks Thanks x 1
