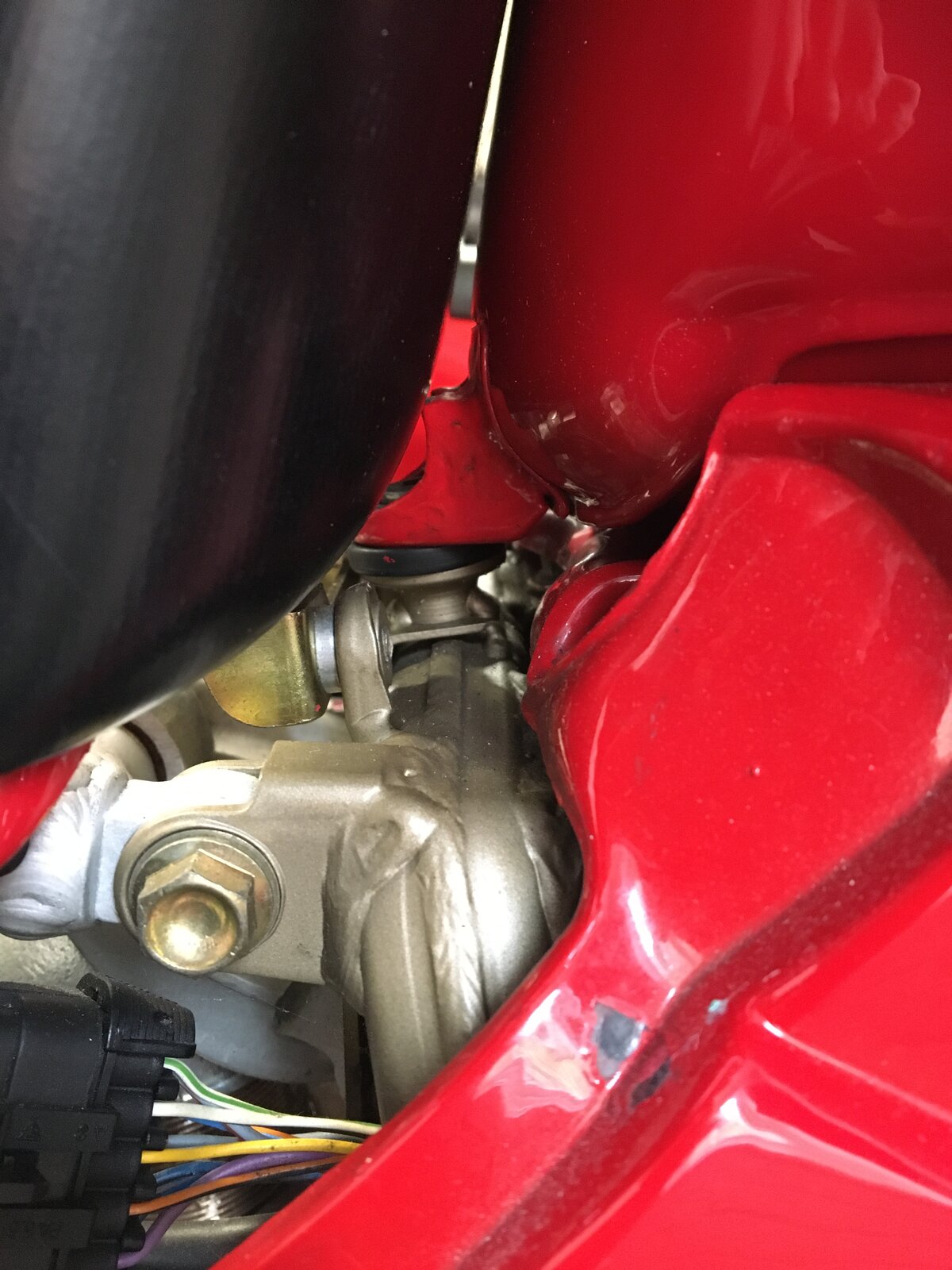

Hi all I’m just getting to the end of my 916 restoration and was wondering the best way to adjust the seat to air box gap I have one side touching and the other side has a gap ? The seat release doesn’t seem to have enough movement to align. Thanks in advance
Looks very tight and really should have a gap between the airbox or it will rub the paintwork,do you've the seat bracket around the correct way.

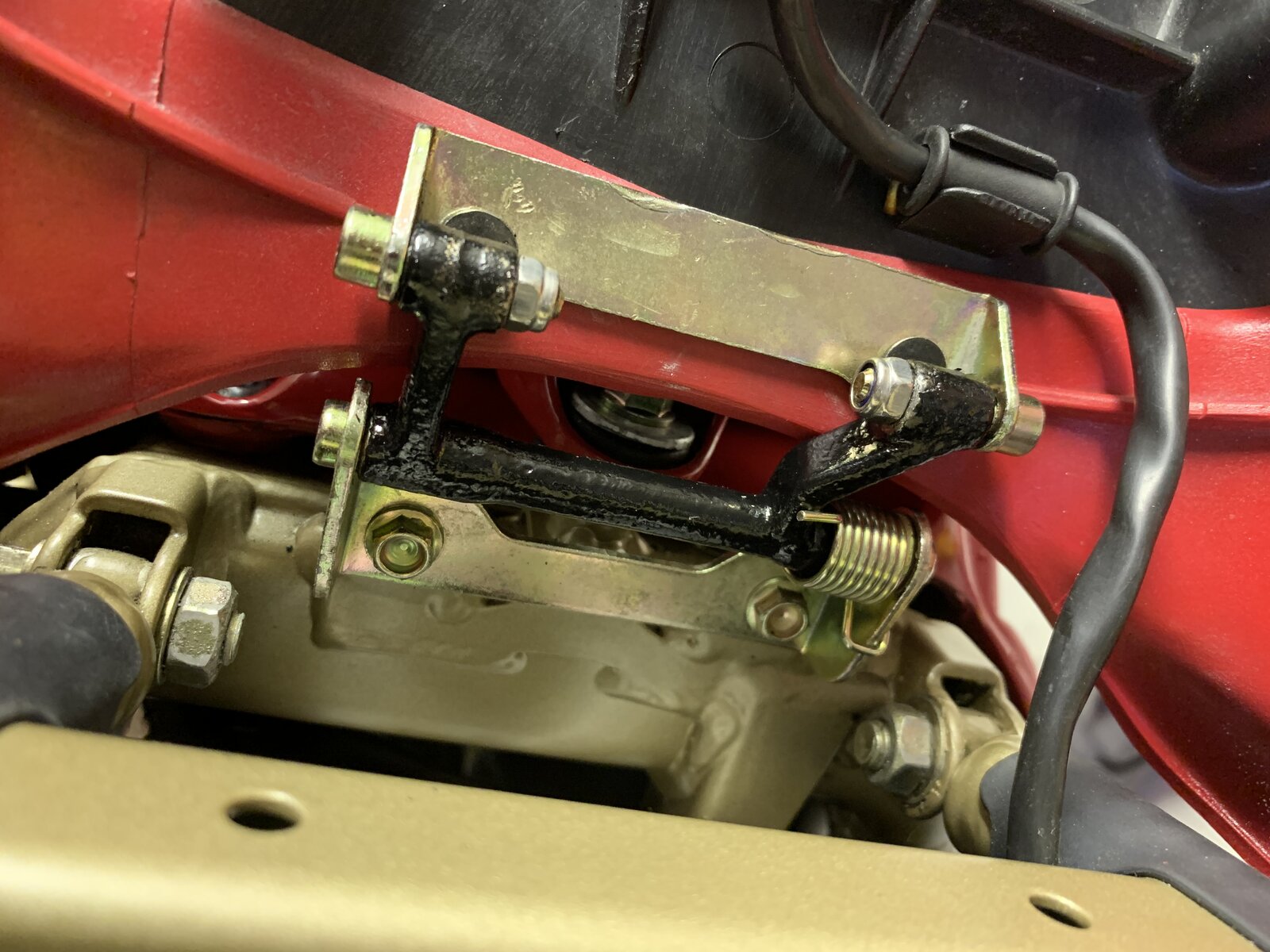

Having just checked some photos of mine it appears to be the right way round . Is it the original seat bracket though ?
As above, the pins do have some give whereas rigid bolting of the seat may be having an influence on alignment. If they are still available then it might be best to fit nylon pins.
also you have some adjustment on the rear frame by slackening the 4 bolts and nuts to the main frame and you can get some alignment from there a little easier.. you may have to adjust the exhaust can hangers after though

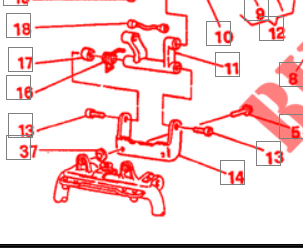

Are the collar spacers (37) in place between the frame and lower hinge bracket on both sides. They are just a 5mm or so thick washer/spacer. One of my bikes has 2 number in each side but the gap looks ok.
loosen the 2 allen bolts holding the seat locating pin at the back , (on the seat unit) move it forward about 3mm and retighten
Just use washers. You’ll be able to set the gap right by using more on one side then the other. Some removed the spacers altogether to get the gap right.
I’ve used this seller before and service is second to none. Arrived first class post. my seat spacers are M6 3mm thick and 13mm external. https://www.ebay.co.uk/itm/193391036716 Cheers
