Hello! Could anyone advise with 100% certainty the Termignoni code for a 54mm system for a 2006 standard 999? (deep sump/black swingarm) I have researched a fair bit and it seems that the official Termi system was only a 57mm?? Does this mean that people have been fitting the 749 system? (I read that the 54 performs better than the 57) I'm well confused, and pics and codes don't seem to match...I've already purchased a 54 system with titanium end can that seems to fit only the 03/04 models....arghhhh.... Any guidance appreciated, or if you have spares sitting around... Cheers Grant
When I was looking for mine, this is what I found on internet, which is supposedly copied from the catalogue: Ø50 96432903B 999 MY03-04 Full system with titanium silencer and steel collectors: Ø57 96446405B 999R MY05 Ø57 96443104B 999R MY04 - 999R MY03 Ø57 96446005B 999, 999S MY05 - 999S MY04 Ø57 96443204B 749R MY04 Full system (102db) with steel silencer and collectors, ECU and racing filters: Ø 54 96433603B 999 MY04 Ø 54 96433703B 999S MY04 Ø 54 96433803B 749 MY04 - 749S MY03 - 749 Dark MY05 Ø 54 96433403B 749 MY05 Ø 54 96445805B 749S MY05 Ø 54 96445905B 749 Dark MY06 Ø 57 96446505BA 999 MY05 Transformation kit from asymmetric exhaust to full system (?): Ø 57 96445205BA 999, 999S MY05 - 999S MY04 Asymmetric steel system (102db) with ECU racing filters: 96436403B 749 MY04 - 749S MY03 - 749 Dark MY05 I found this info in the Italian forum motoclub-tingavert.it. So, according this, I guess yours is 96433603B, as is the 54mm system for the 999 MY03, which I think also has deep sump engine.
I have been looking for the 96433603B code and you’re right. This is the 96433603B system: Looks like is for the shallow sump.
Thanks for the reply, so do you know if a banana system from a 749 would fit? - Ie: Which 746 is deep sump? Thanks Grant
I have a 999 banana system missing the front pipe - not a clue what I need but looking at @jusutus post above there is only one type
I have a 06 749, so mine should be Ø 54 96433403B 749 MY05 or Ø 54 96445805B 749S MY05. I guess the only difference is the ECU, but the Termi should be the same.

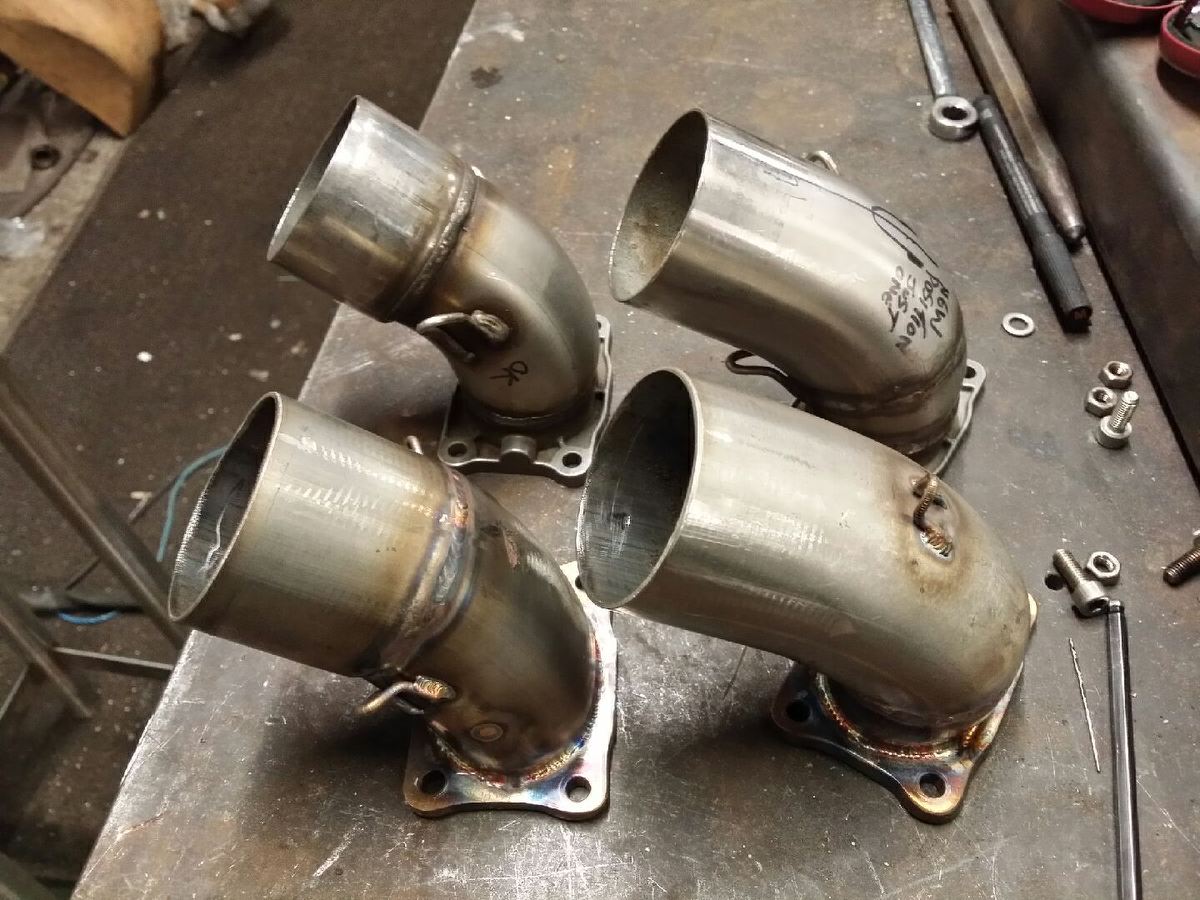

I think I just need the main front pipe, but I'll be seeing Chad this year to finalise my frame, would need a pattern one to copy though...
