Featured Winter Project Finished Then....

Discussion in 'Other Bikes' started by Expat Jack, Apr 1, 2021.

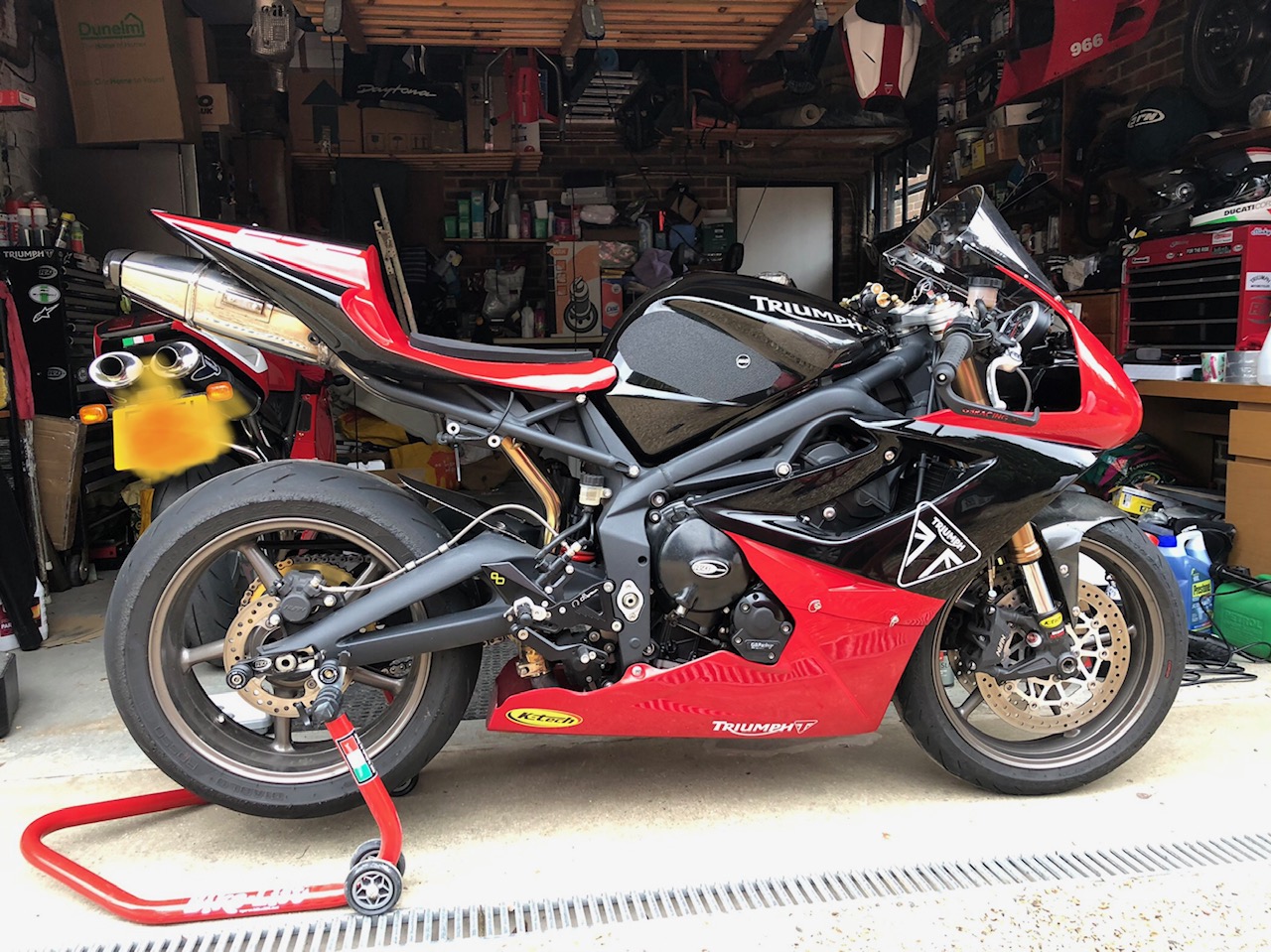

  1. IMG_4369.jpg

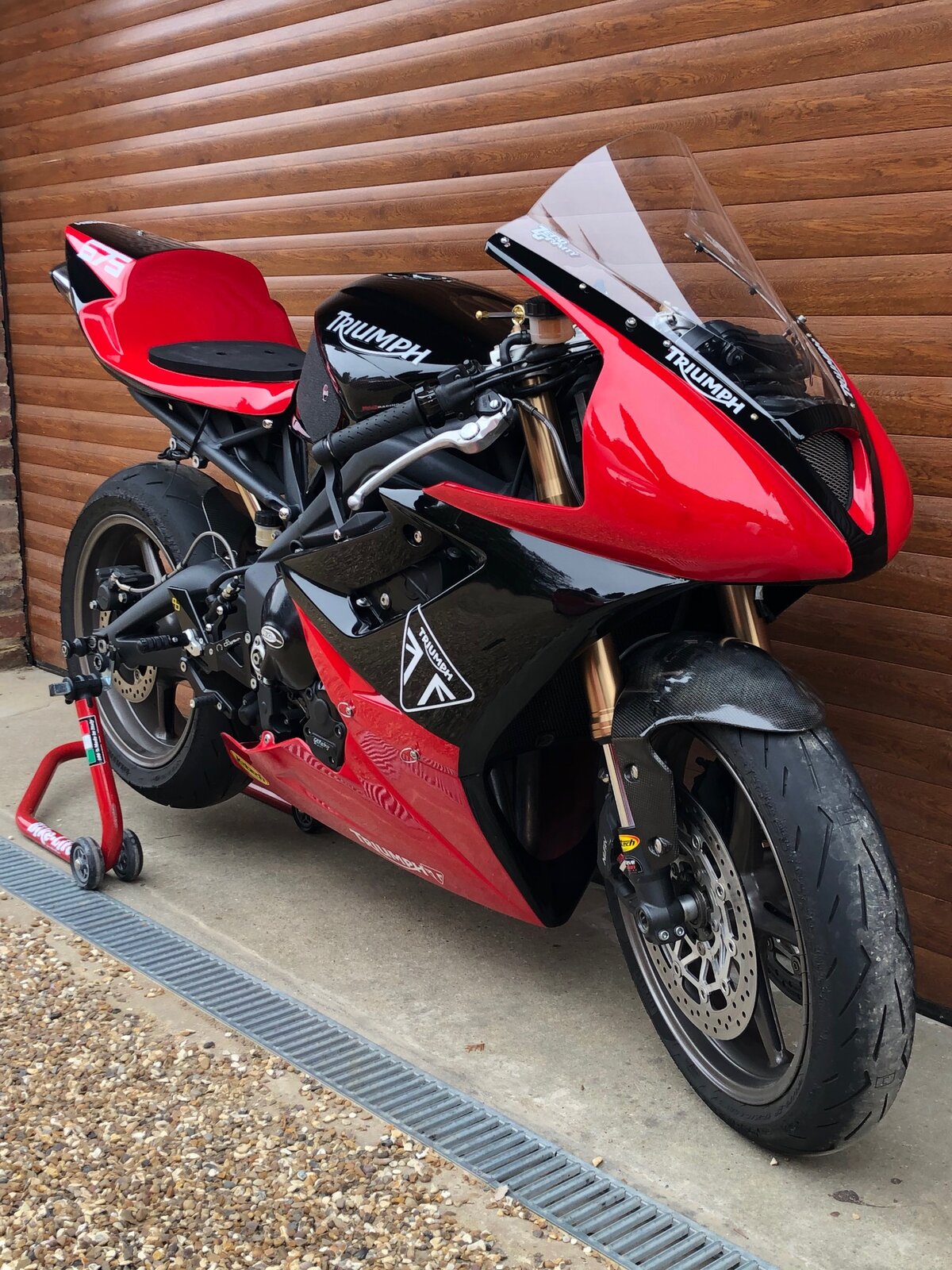

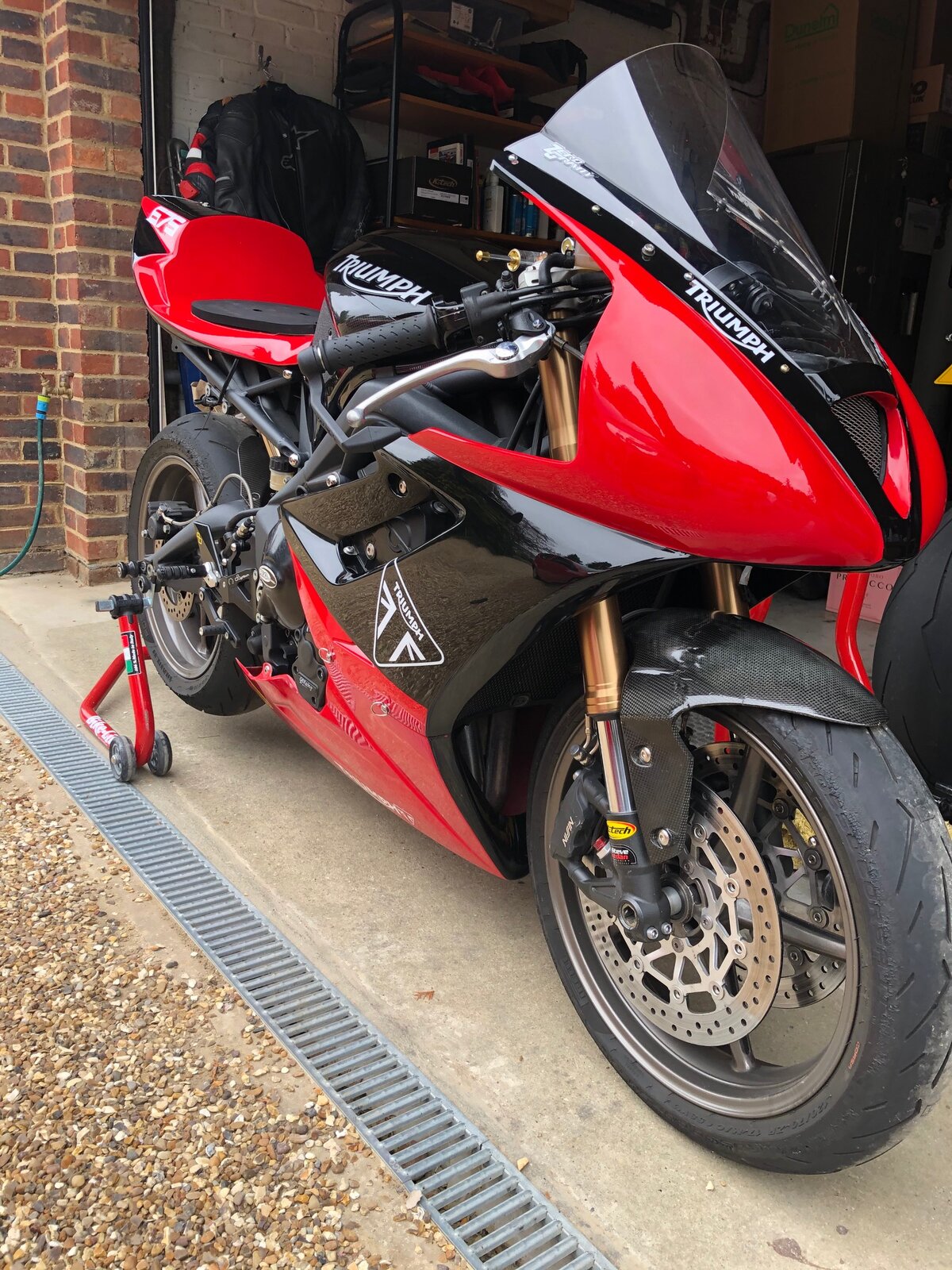

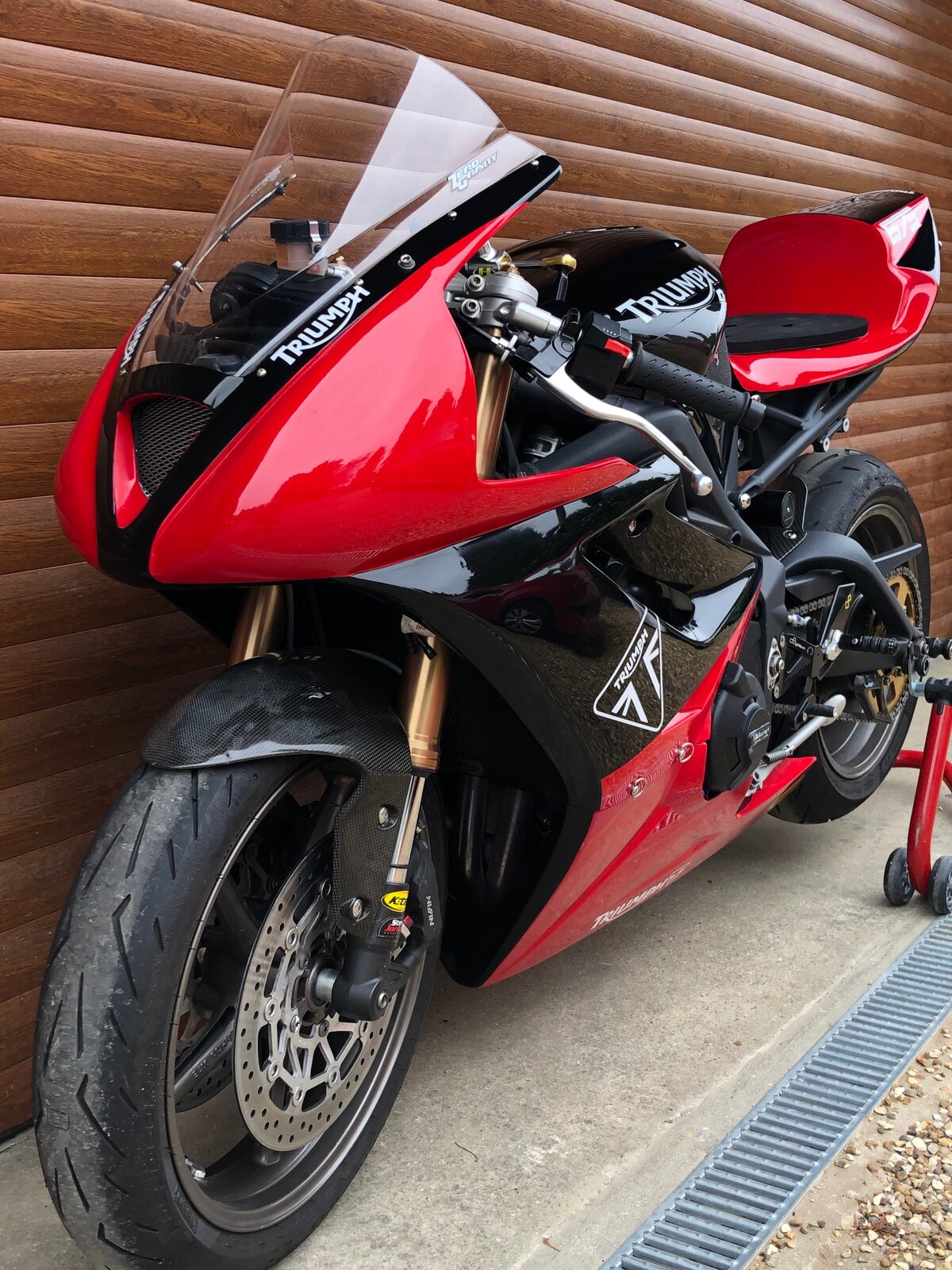

    TRIUMPH 675 DAYTONA 2010

    Wet Weight (with 7 litres of fuel) 169kg

    Bike was bought with crash damage late last summer for a bargain price. I then fully repaired with Triumph parts for the road. MoT pass first time.

    Then work to convert to track bike. The K-Tech kit cost more than I paid for the bike and was the most expensive item. Most parts were sourced over the winter months from EBay. Paintwork was done by me using rattle cans and lots of tea.

    Finished the bike this morning bar a little fettling. Plan is to run this year as a minimum. First outing is Silverstone on 16th April and I cannot wait.

    SPEC LIST/WORK DONE

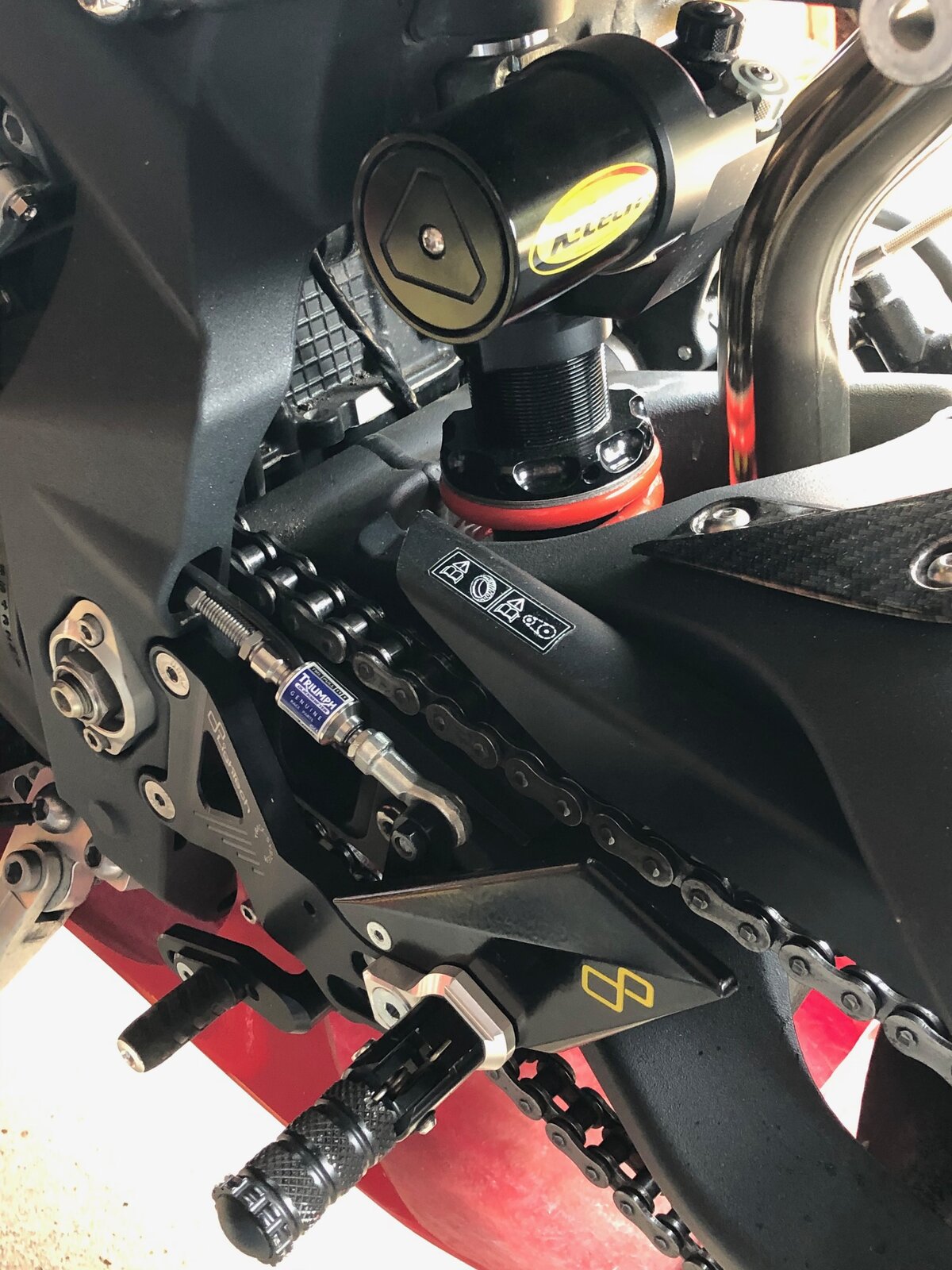

    · K-Tech DDS Lite shock

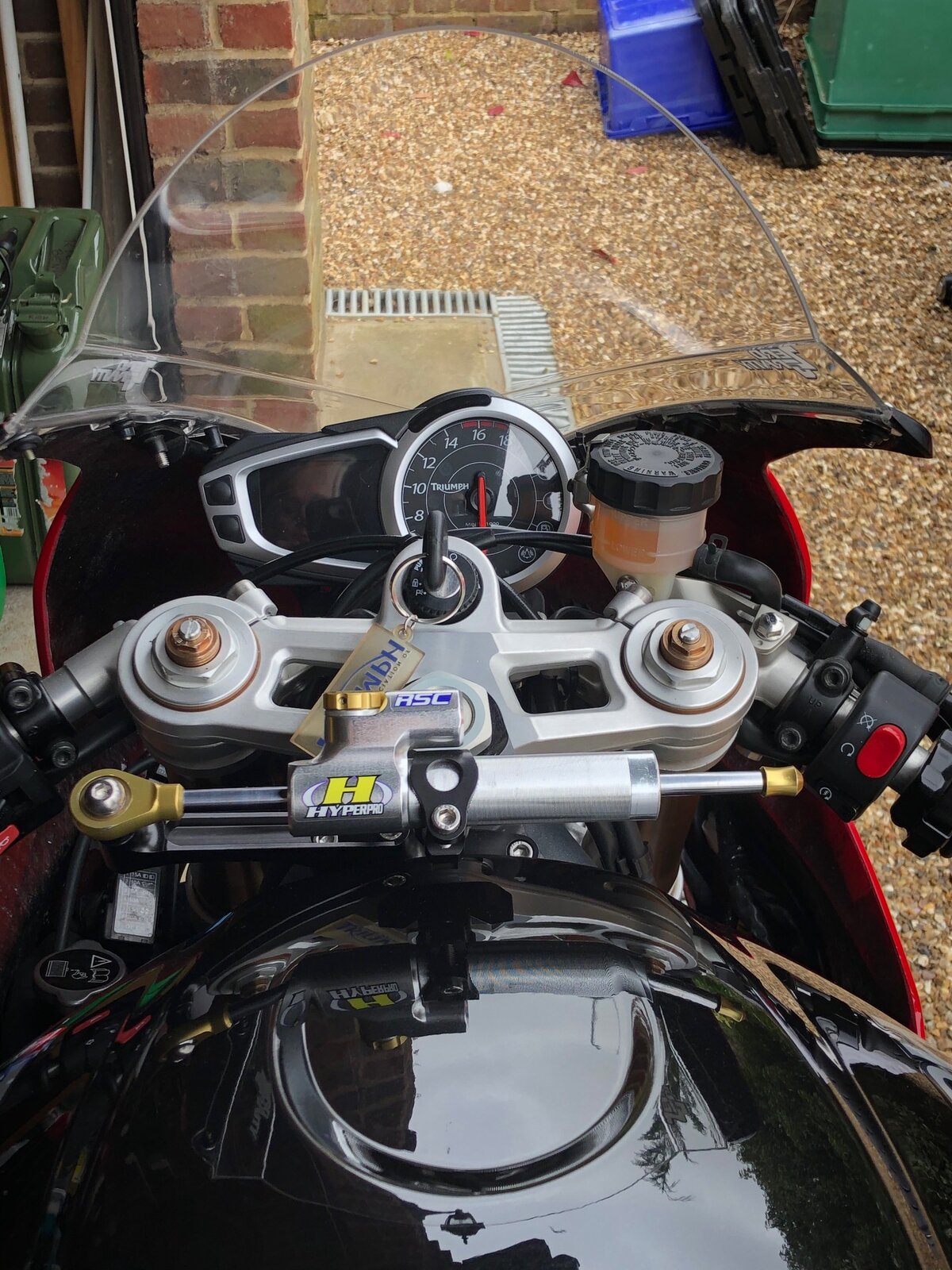

    · Hyperpro RSC top mounted steering damper

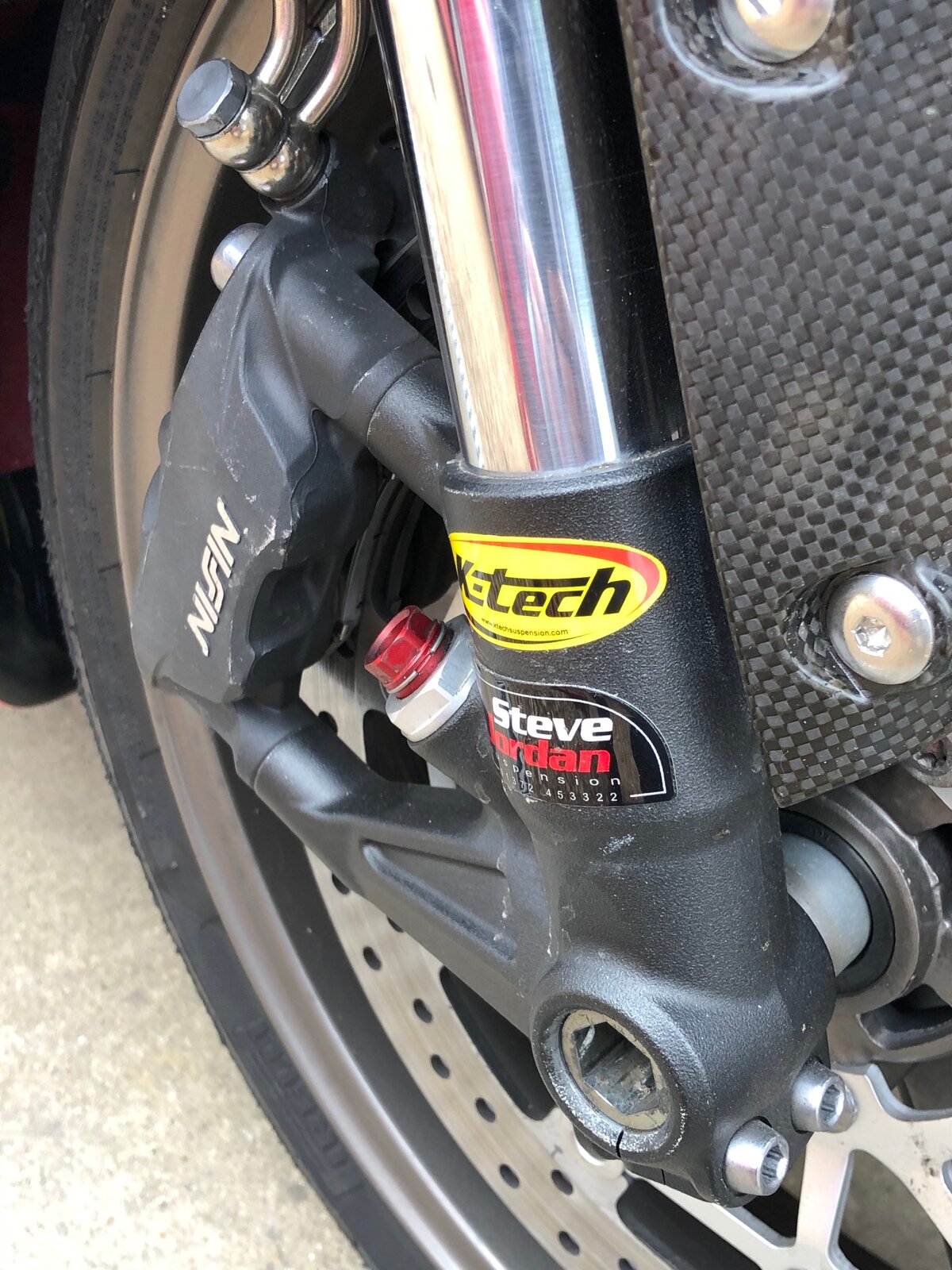

    · Forks stripped and rebuilt with K-Tech SSK fork kit. K-Tech springs. K-Tech oil
    · Suspension set up by Steve Jordan

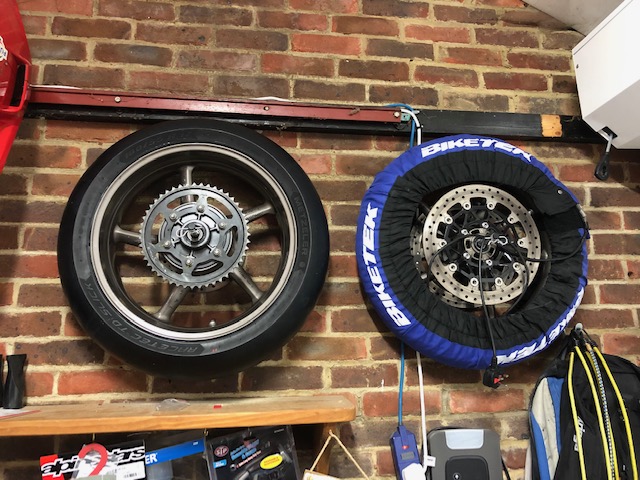

    · Metzeler TD slicks (two sets of wheels – one slicks, other road)
    · LighTech rearsets, road pattern

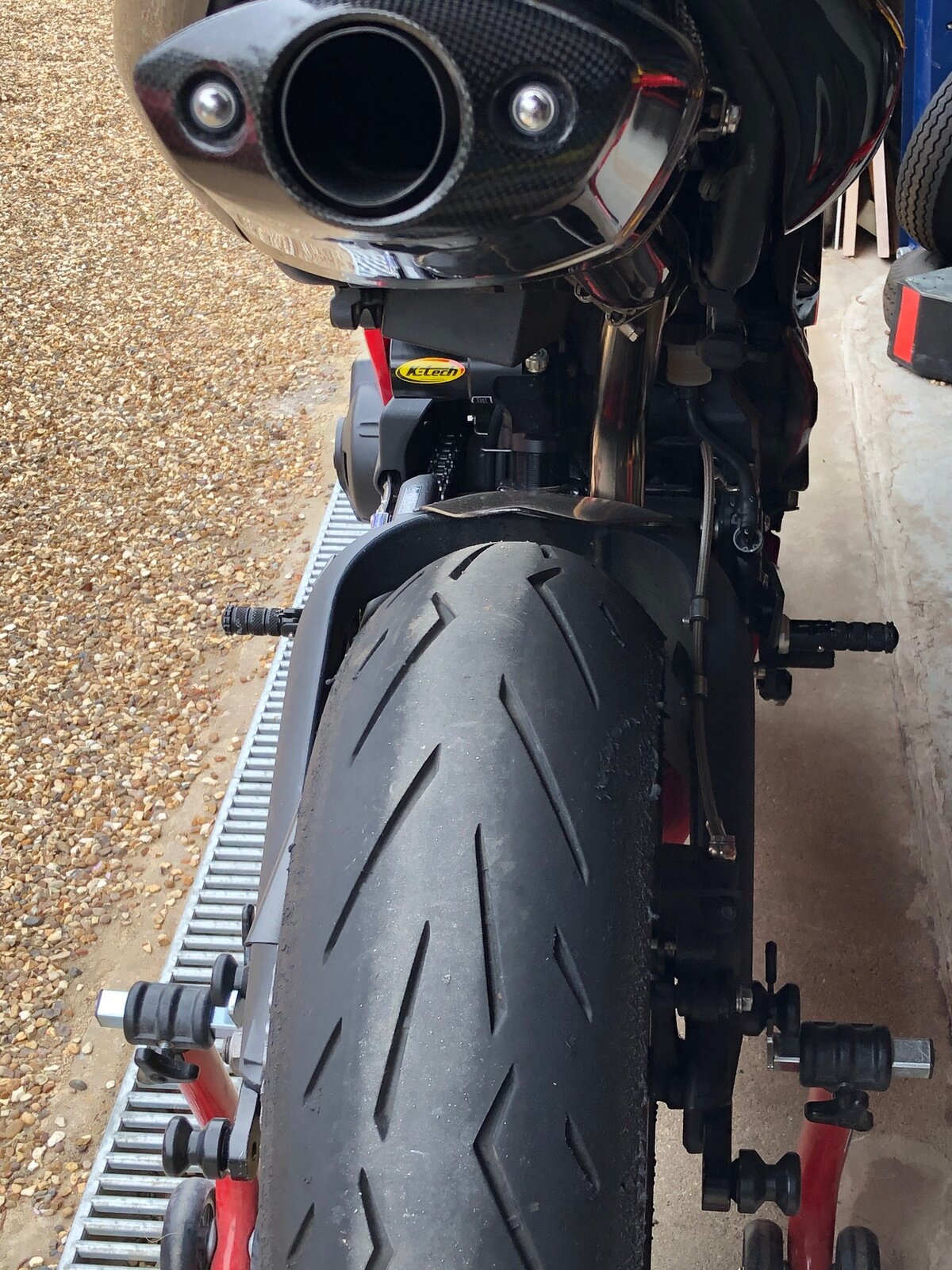

    · Triumph lightweight (TORS) race exhaust (removable baffle fitted)
    · BMC race air filter
    · NGK iridium plugs
    · Brembo SC pads
    · Motul racing brake fluid
    · Calliper strip and new seals
    · Wheel bearings and seals

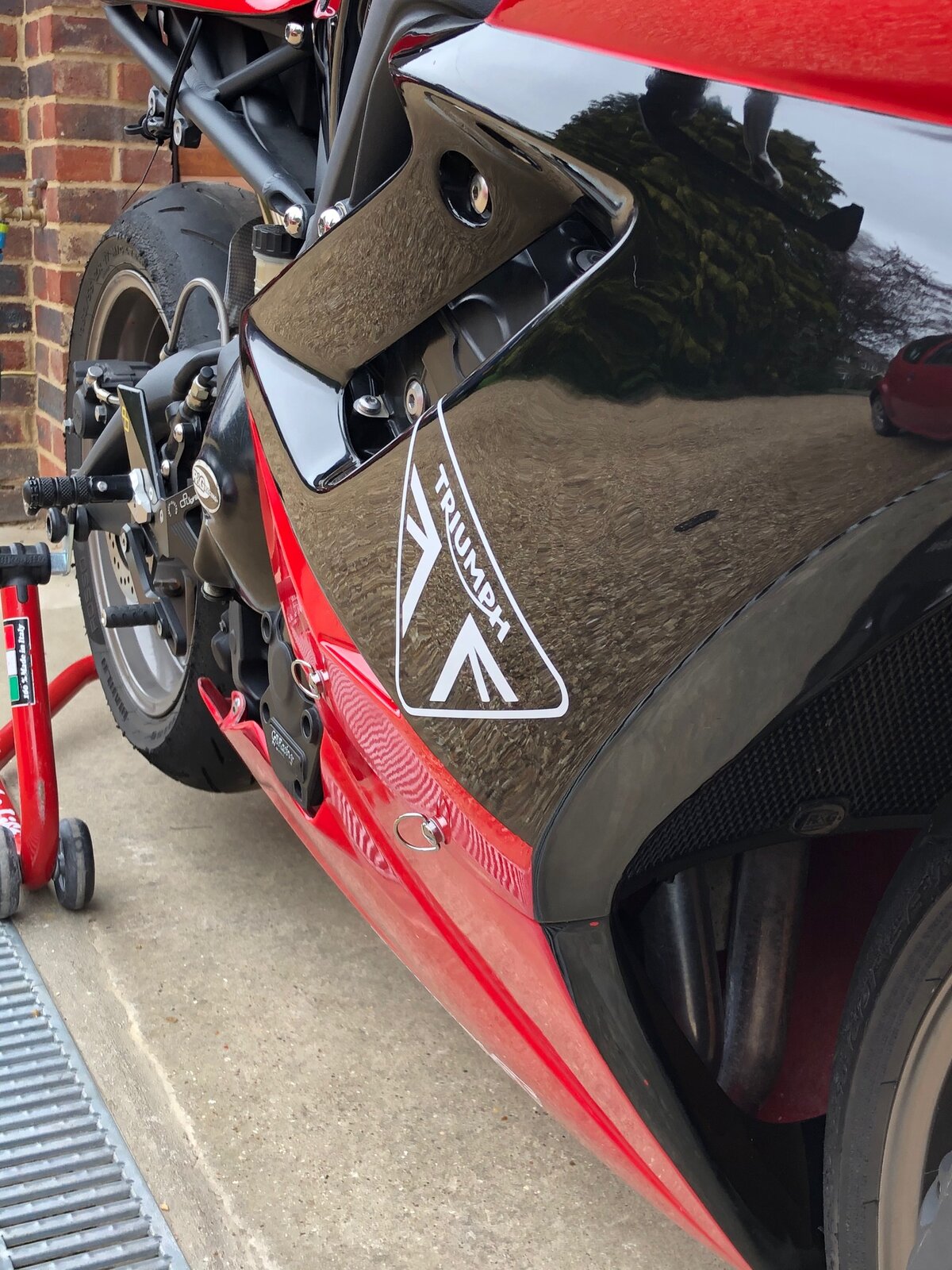

    · Skidmarks fairing and seat unit, rattle can paint & lacquer (Halfords)

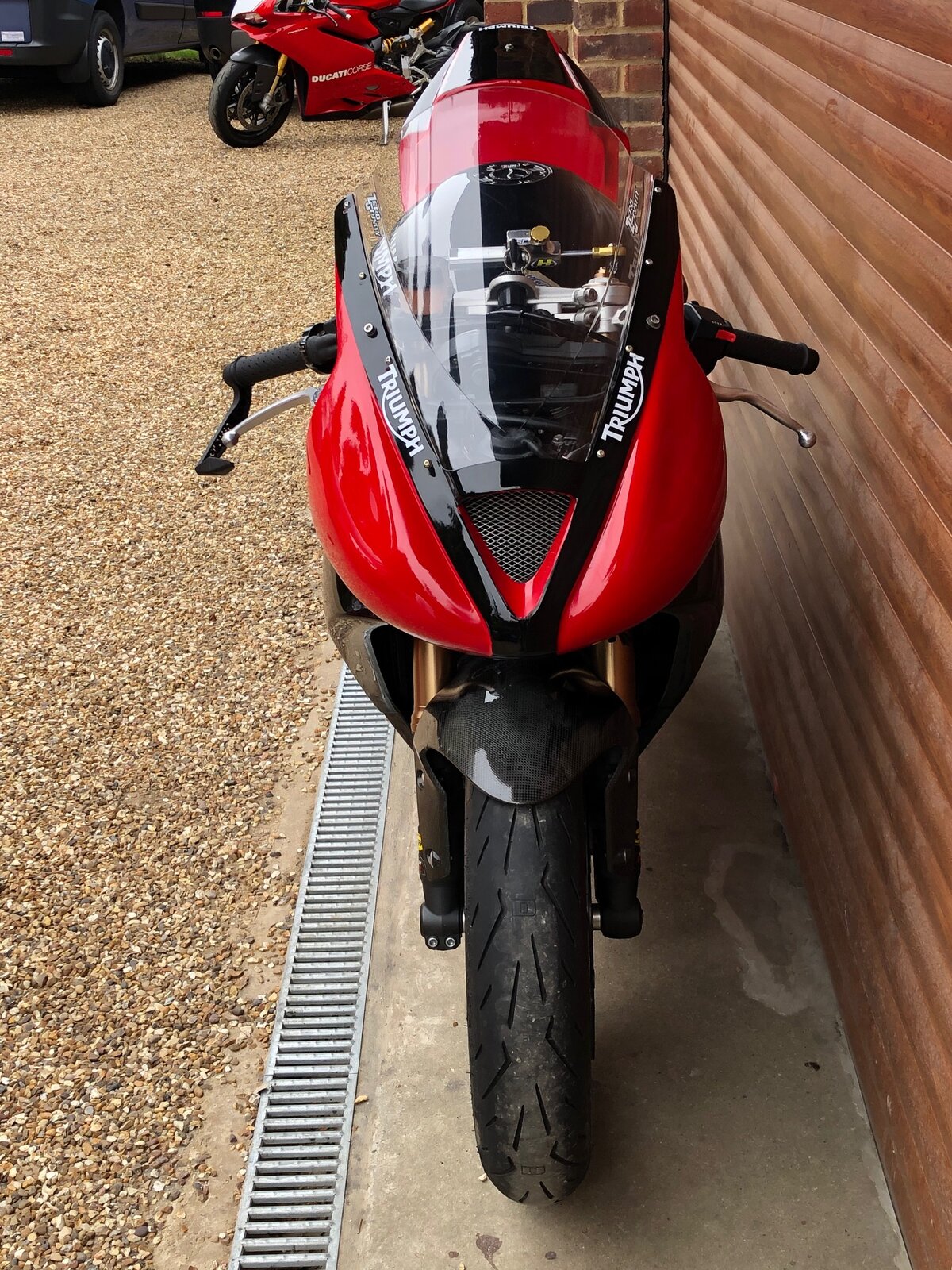

    · Zero gravity race screen
    · SES lock stop
    · MPW Race nose cone and instrument bracket
    · QR filler cap
    · Samco blue coolant hoses
    · Halfords OAT coolant
    · Triumph QA throttle mod (throttle tube from Triumph 1050 fitted)
    · Front sprocket -1
    · Talon rear sprocket +2 and standard
    · GB racing / R&G Engine protection
    · GR Racing fork protection (not shown in pictures)
    · GB Racing brake guard
    · R&G carbon tank sliders
    · R & G bar end slider
    · R&G tank grips
    · R&G swing arm protection bobbins
    · Triumph OE Quick shifter
    · Hydraulic brake light switch (for MOT)

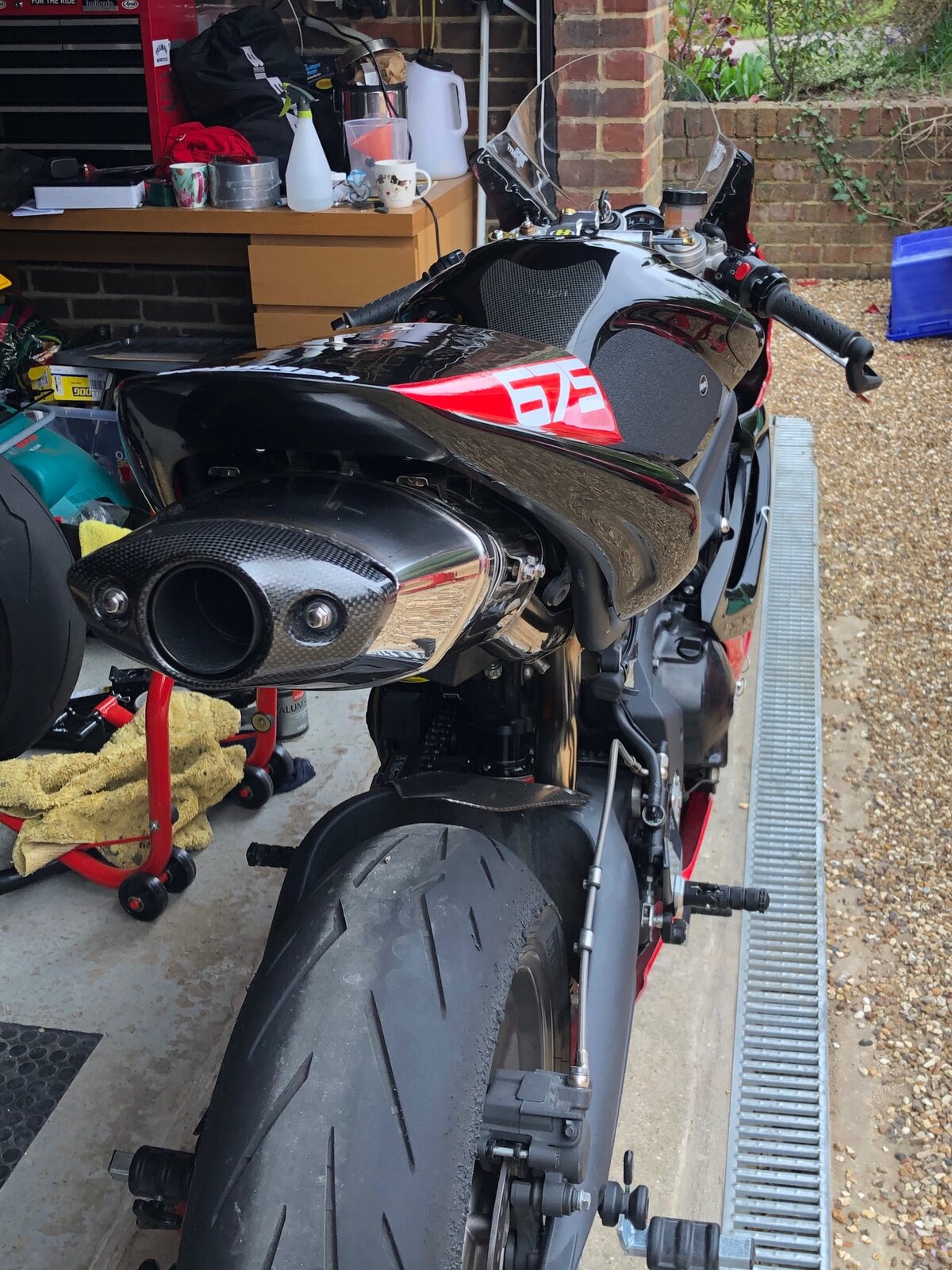

    · Triumph carbon exhaust end cover
    · Triumph carbon front mudguard
    · Triumph carbon shark fin
    · New OE clip on grips
    · Optimate lead

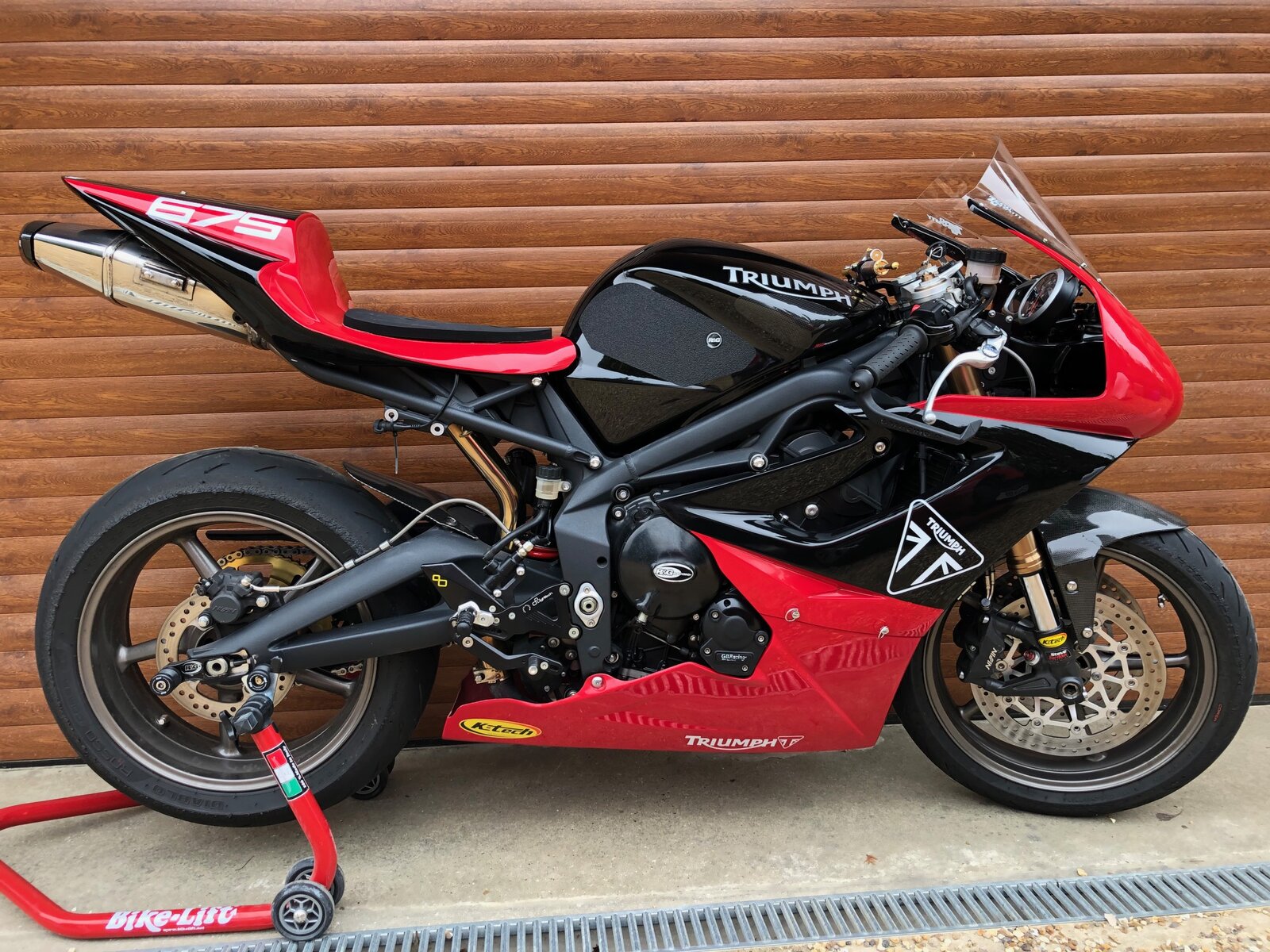

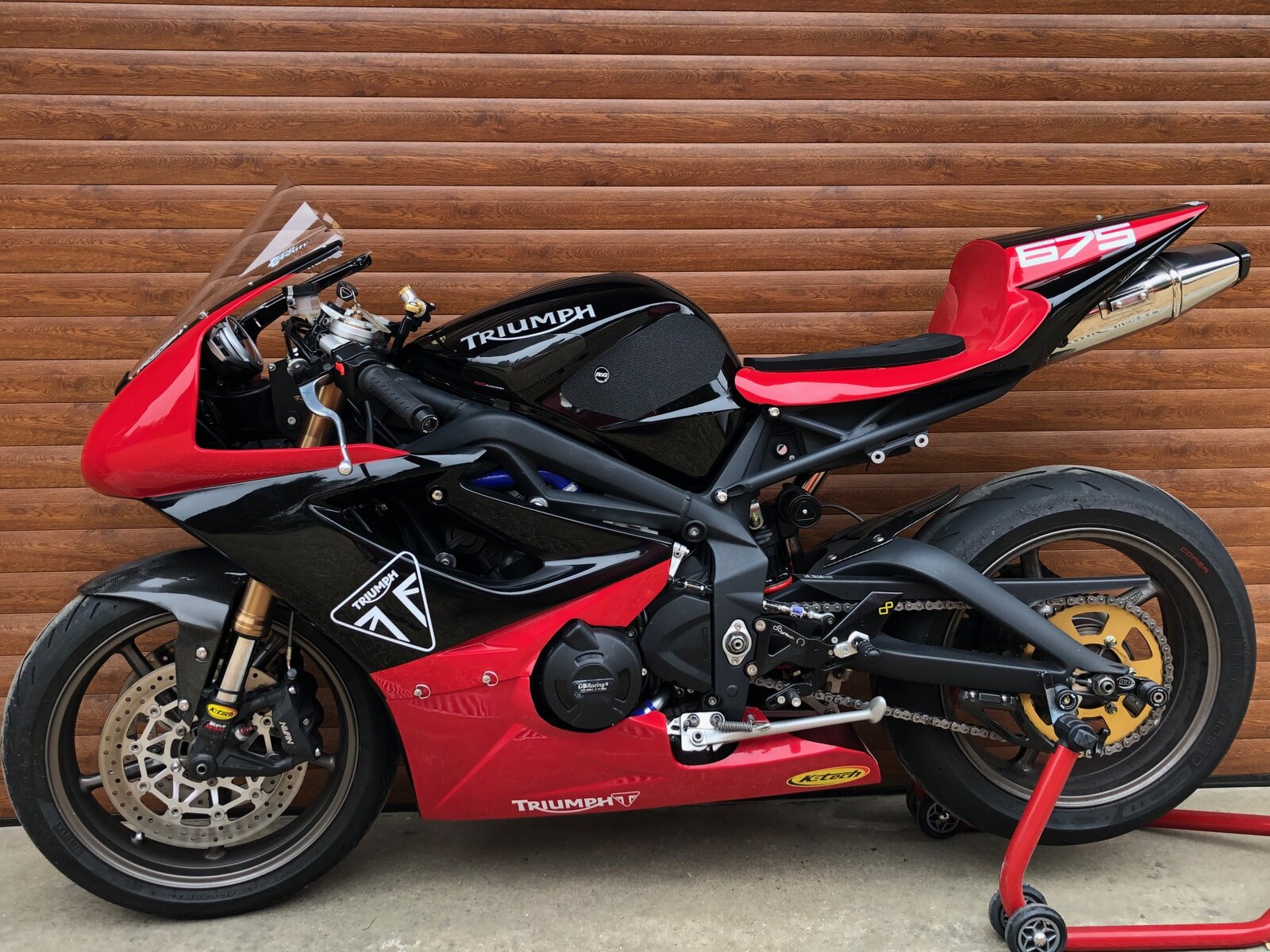

    IMG_4368.jpg IMG_4370.jpg IMG_4371.jpg IMG_4372.jpg IMG_4373.jpg IMG_4374.jpg IMG_4375.jpg IMG_4376.jpg IMG_4377.jpg IMG_4378.jpg IMG_4379.jpg IMG_4380.jpg

    • Like Like x 28
    • Love You Love You x 1
  2. Stunning work EJ you must be rightly chuffed

    • Agree Agree x 1
    • Thanks Thanks x 1
  3. Nice work mate, looks fantastic :upyeah::upyeah:

    • Thanks Thanks x 1
  4. out of interest or ignorance mate, why the halfords coolant?

  5. excellent mate!

    interested to hear your thoughts on the 675

  6. Ah. The Halfords references are a bit of a joke with another member who is snobbish about such things. :cool:

    • Like Like x 2
  7. I will report back. You can try it yourself at Donny in the summer if you like.

    • Love You Love You x 1
  8. Very nice :)

    • Thanks Thanks x 1
  9. NICE! ;-) work, Rich! :cool:

    #9 bettes, Apr 1, 2021
    Last edited: Apr 1, 2021
    • Thanks Thanks x 1
  10. Cool Ian (geddit?).
    Can’t wait to terrorise some 959’s out there ;):)

    • Funny Funny x 1
  11. Looks mega mate.

    Have you many trackdays booked this year?

    • Thanks Thanks x 1
  12. Got 4 booked so far. 2x Silverstone April & June. Donny and Snetterton July.

    • Like Like x 2
  13. You look to be a dab hand with a spray can Richard, well impressed.

    • Agree Agree x 1
    • Thanks Thanks x 1
  14. Looks to pas the 6 paces test :upyeah:

    Good man :upyeah:

    • Thanks Thanks x 1
  15. Looks fantastic, love the paint scheme

    • Agree Agree x 1
    • Thanks Thanks x 1
  16. Thanks Chris. First attempt not great as I was impatient and
    it was too cold to spray really. The weather this week has allowed me to get it done then a bit of elbow grease cutting and polish.

    • Like Like x 2
  17. Errrrrrr wow!

    • Like Like x 1
  18. What a lovely black & red colour combination, well done you sir.:upyeah:

    • Agree Agree x 1
    • Thanks Thanks x 1
  19. Cheers Pete. Needed some red on a Ducati forum. ;)

    • Like Like x 1
  20. There's another member on here that says the colour you choose for your motorcycle sums up your sexual prefence, he will along later i guess.:worried:
